IMPORTANT: This unit came from a Federal University lab and has been Fully Tested. It is in Wonderful Cosmetic Condition and that is why we can offer a 90-DAY-WARRANTY for it!!!

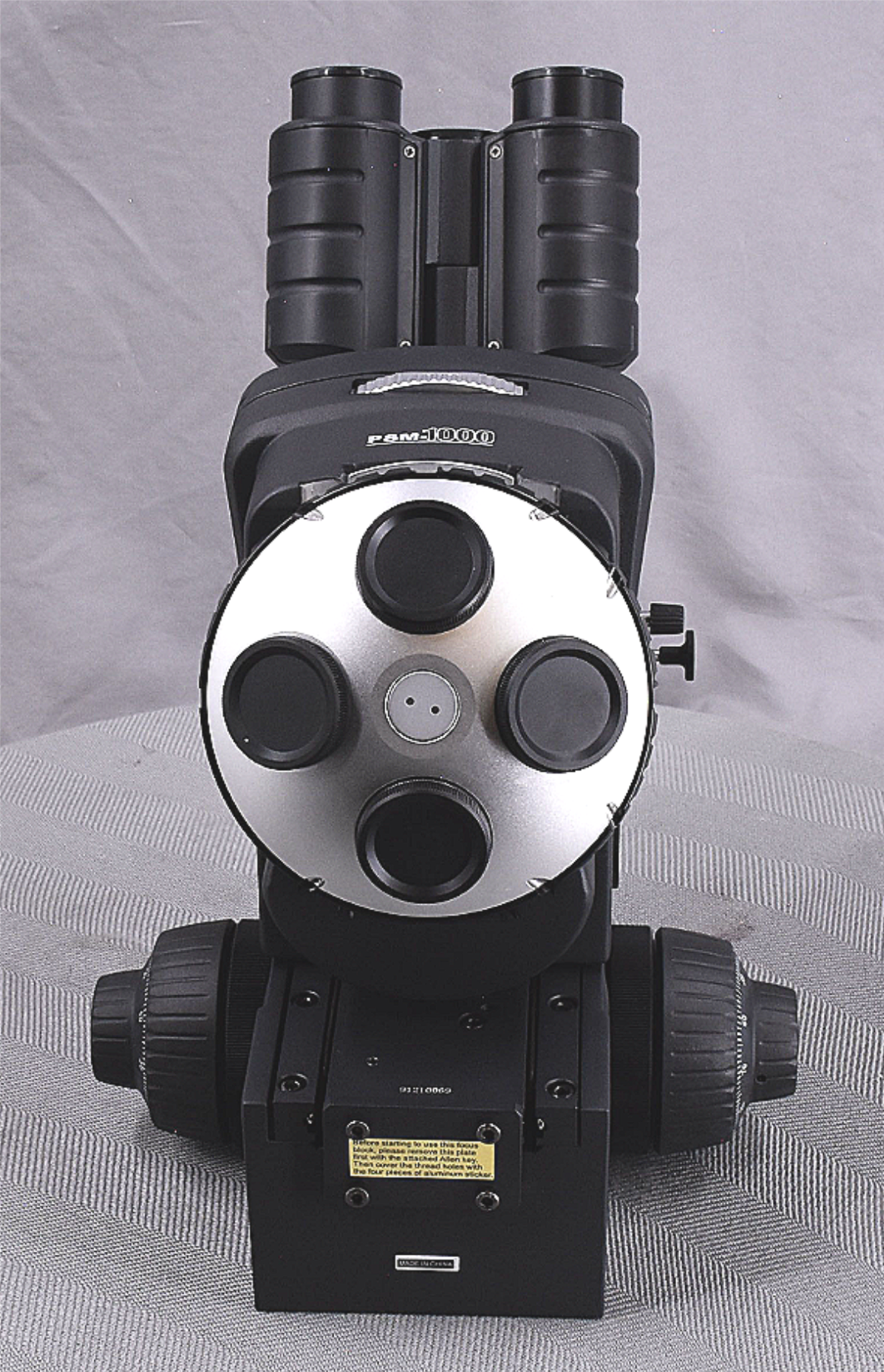

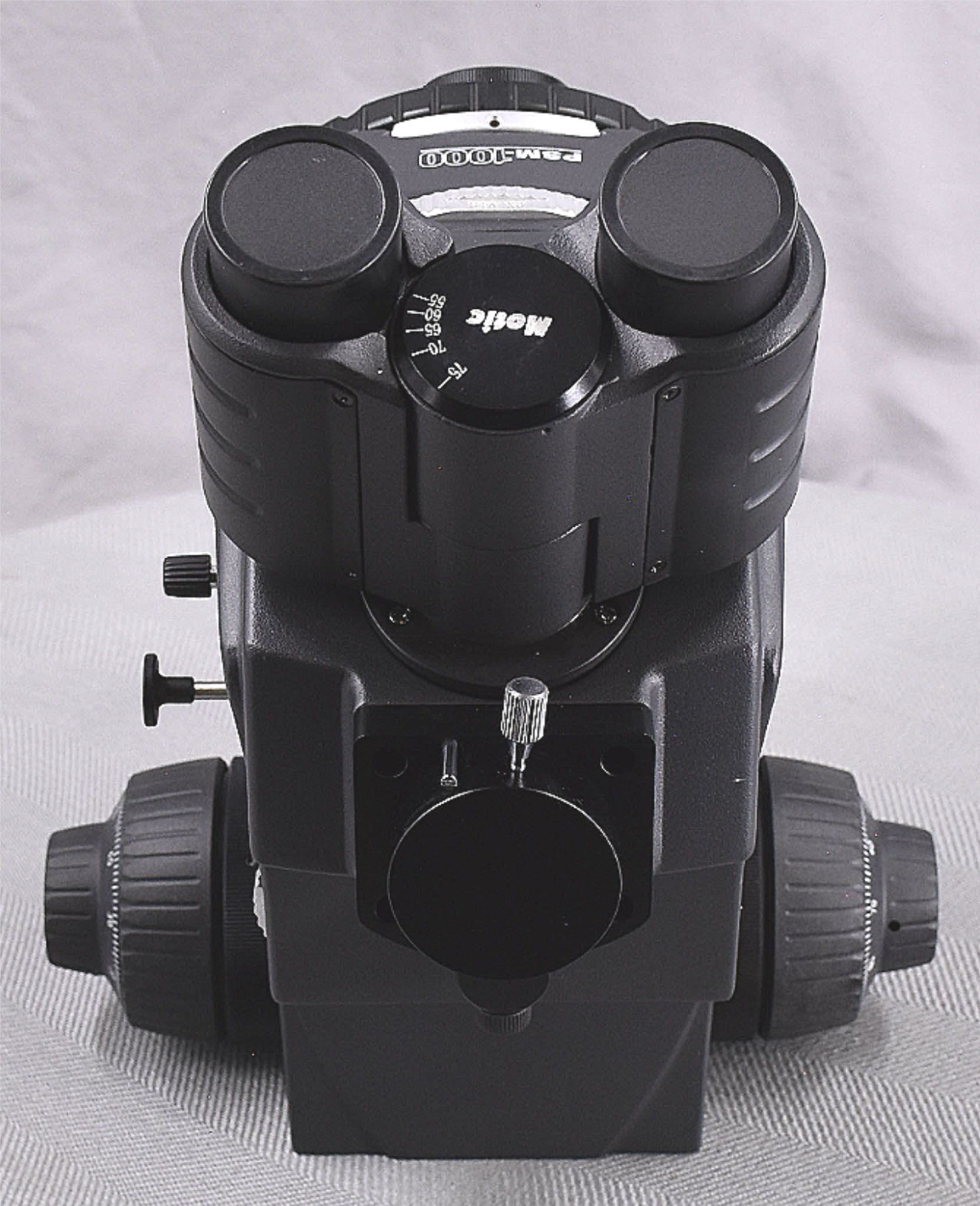

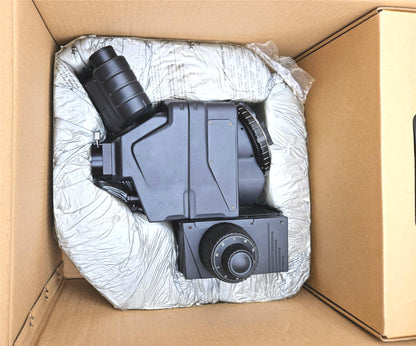

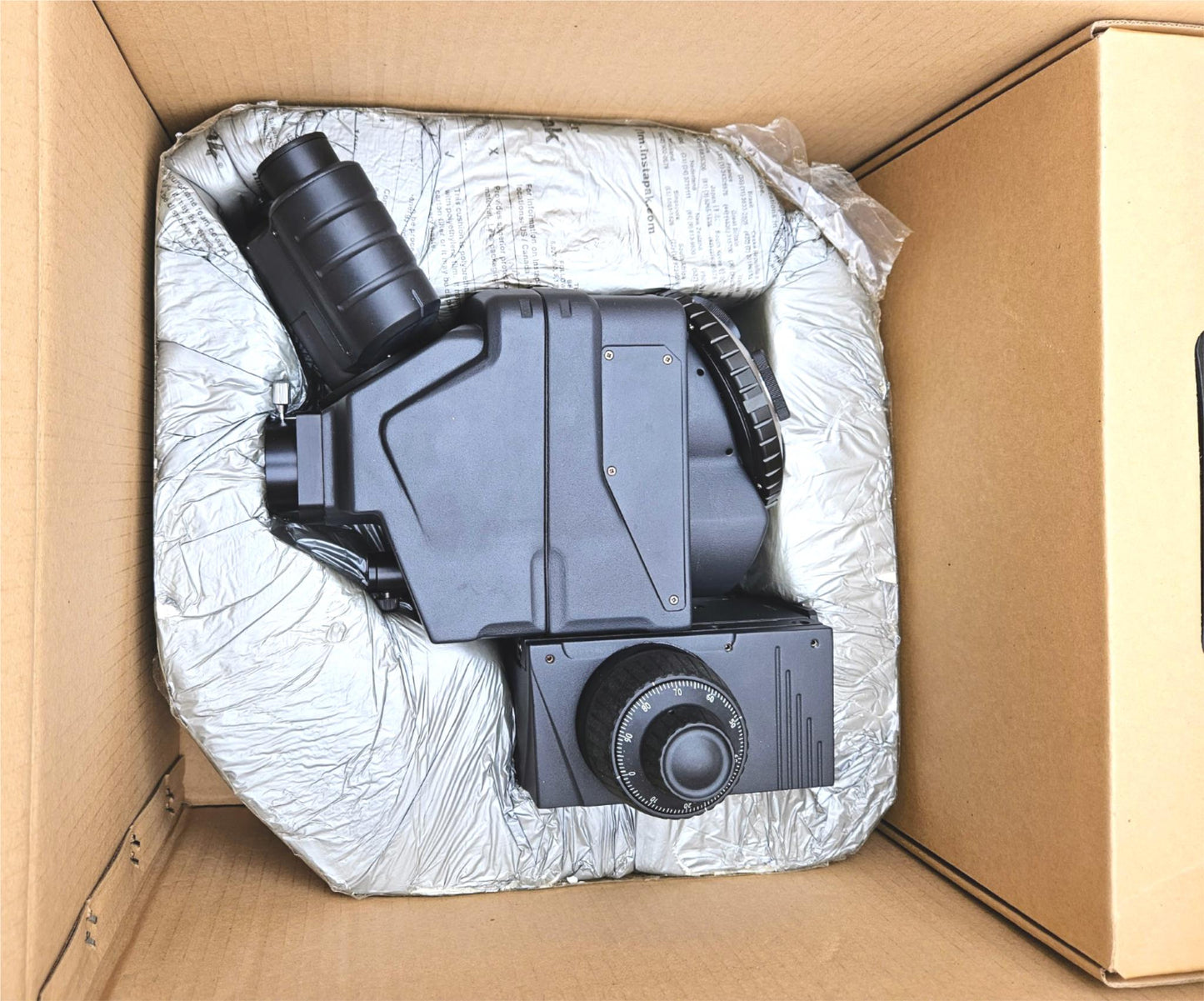

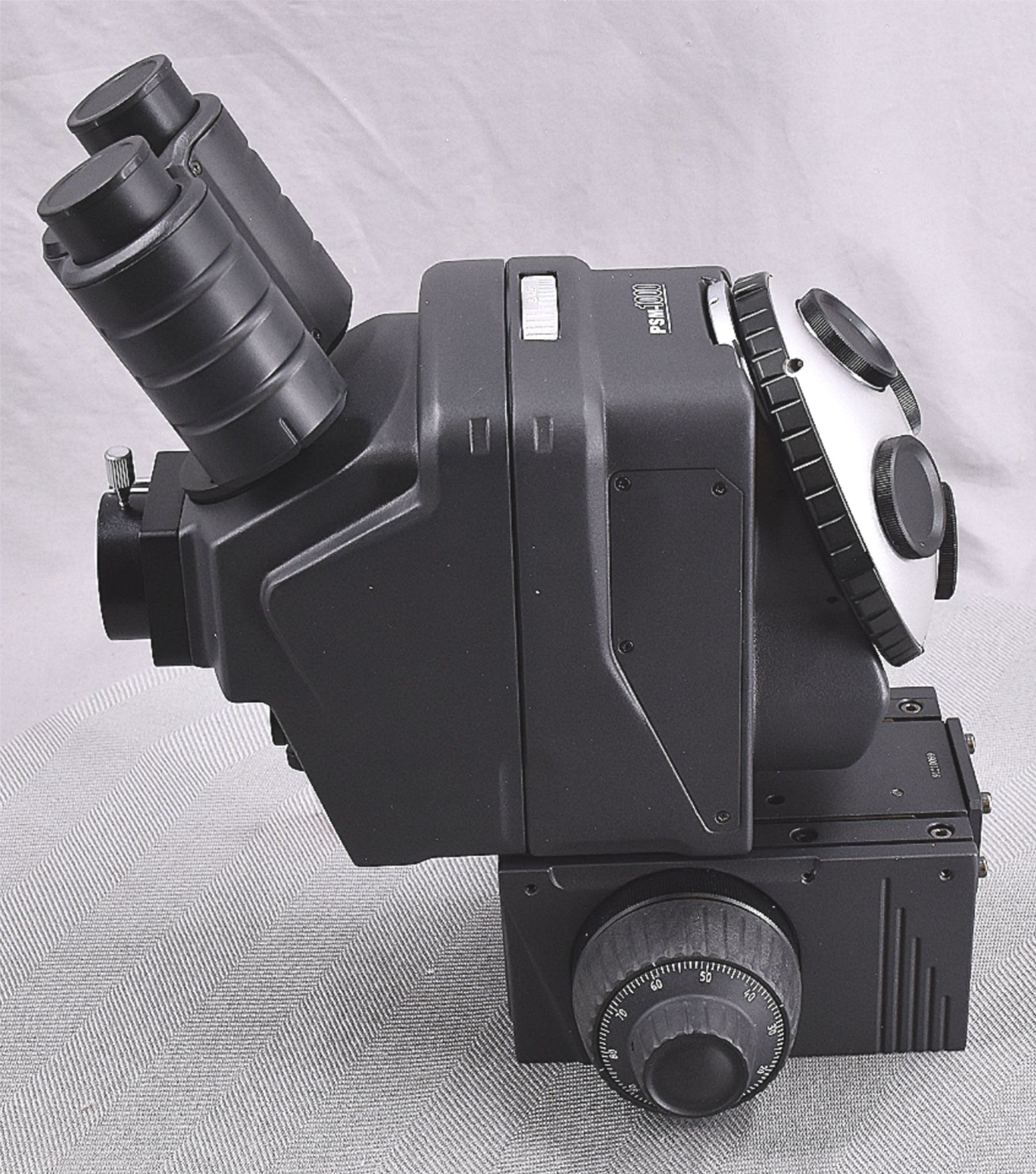

Motic PSM-1000 System Trinocular Qty:1
Manufacturer: Motic
Model: PSM-1000 System
Type: Trinocular
Condition: This item has never been used, open box & has not been tested.

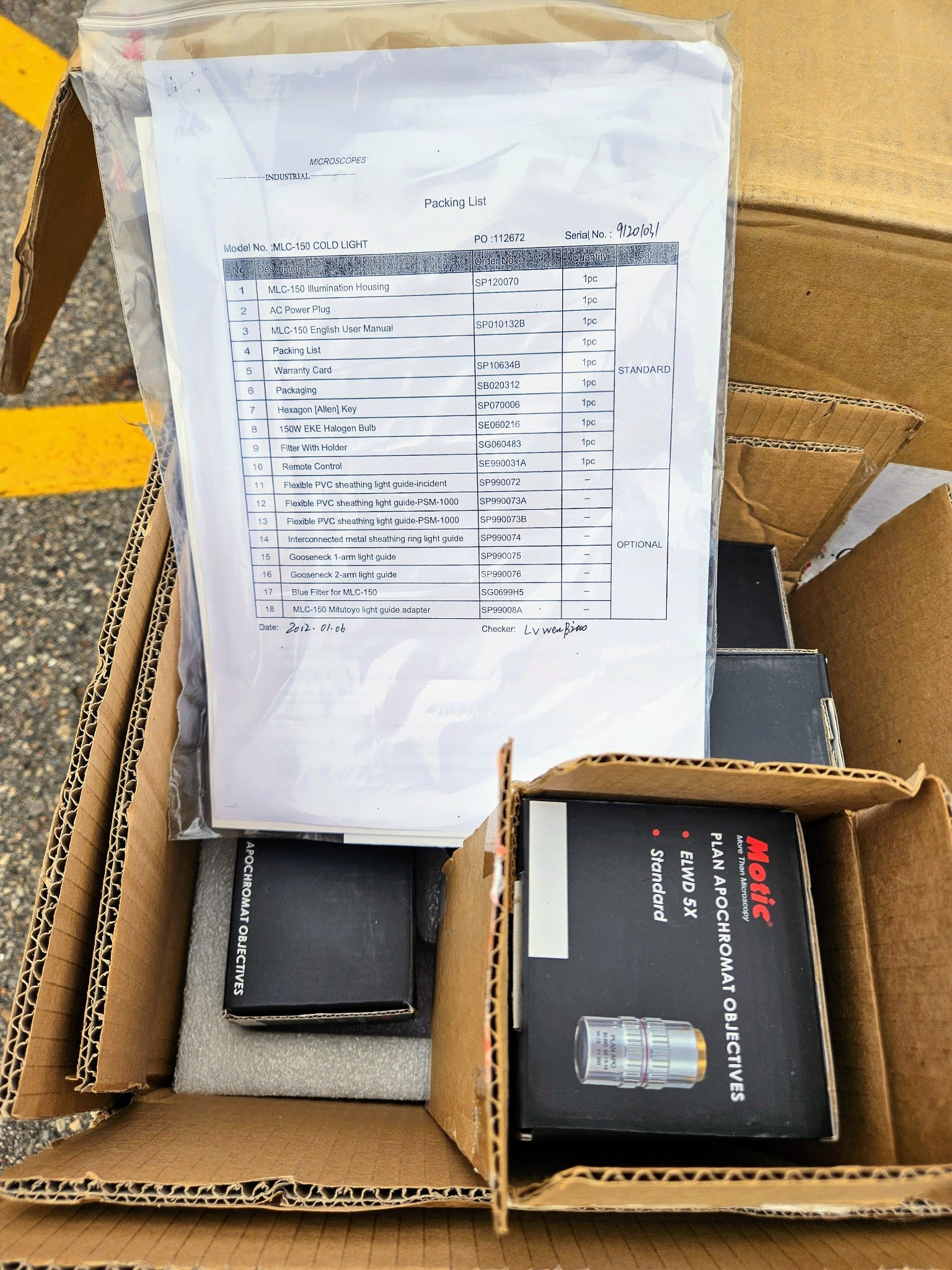

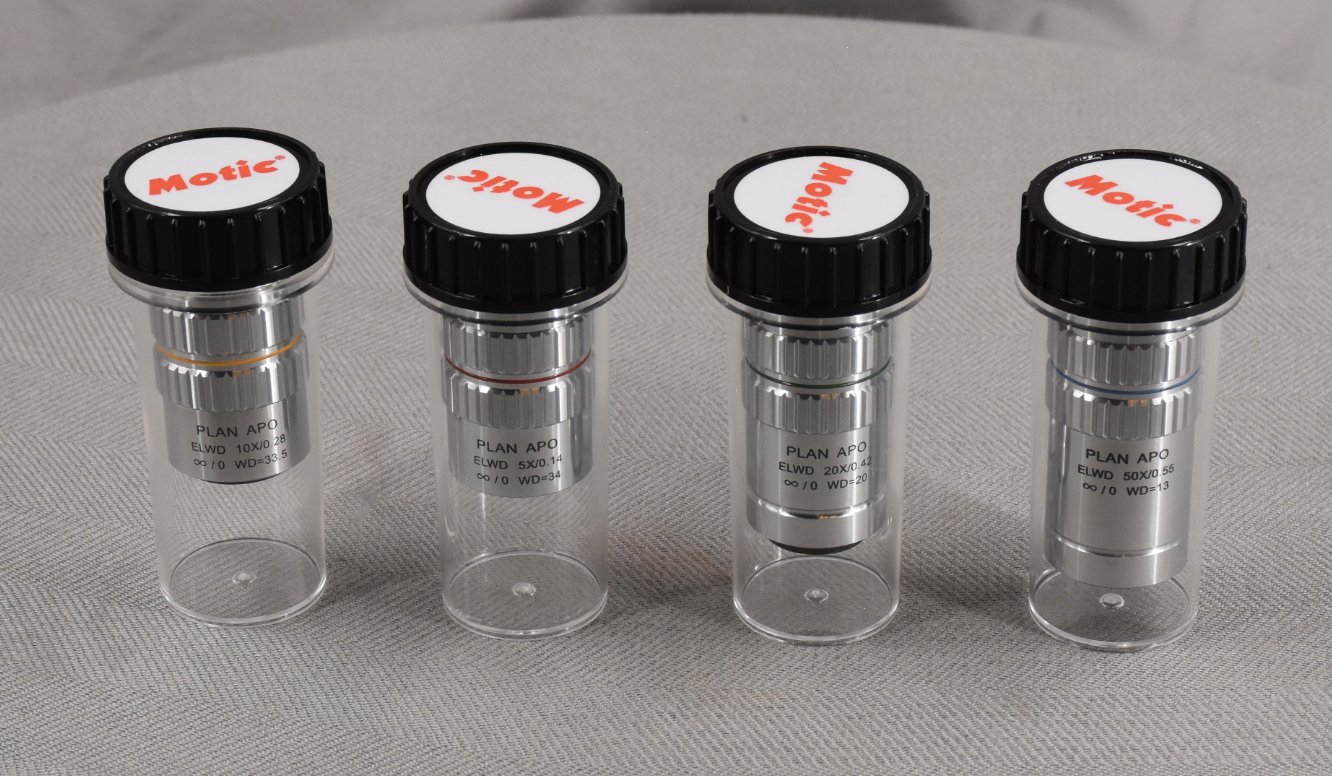

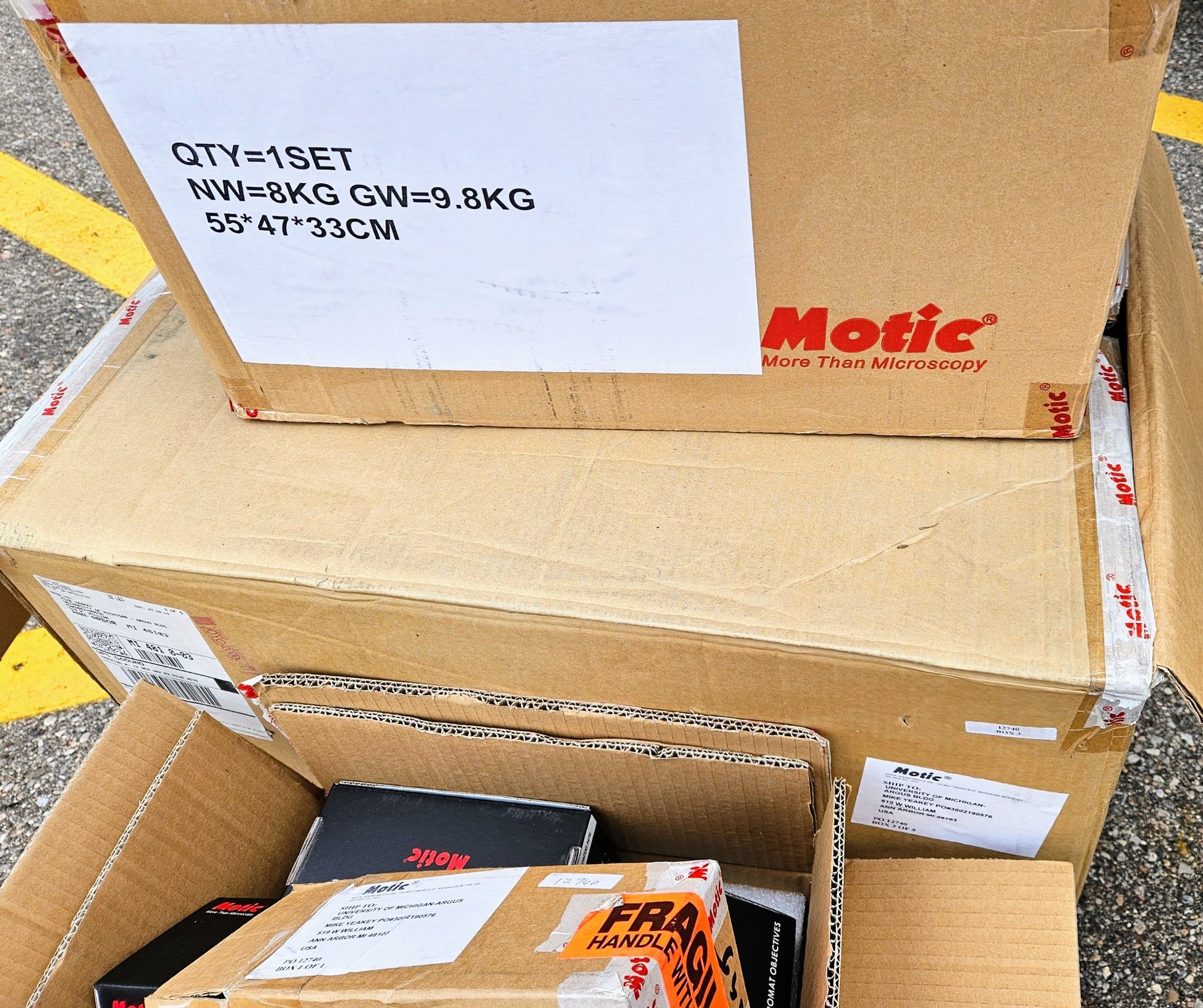

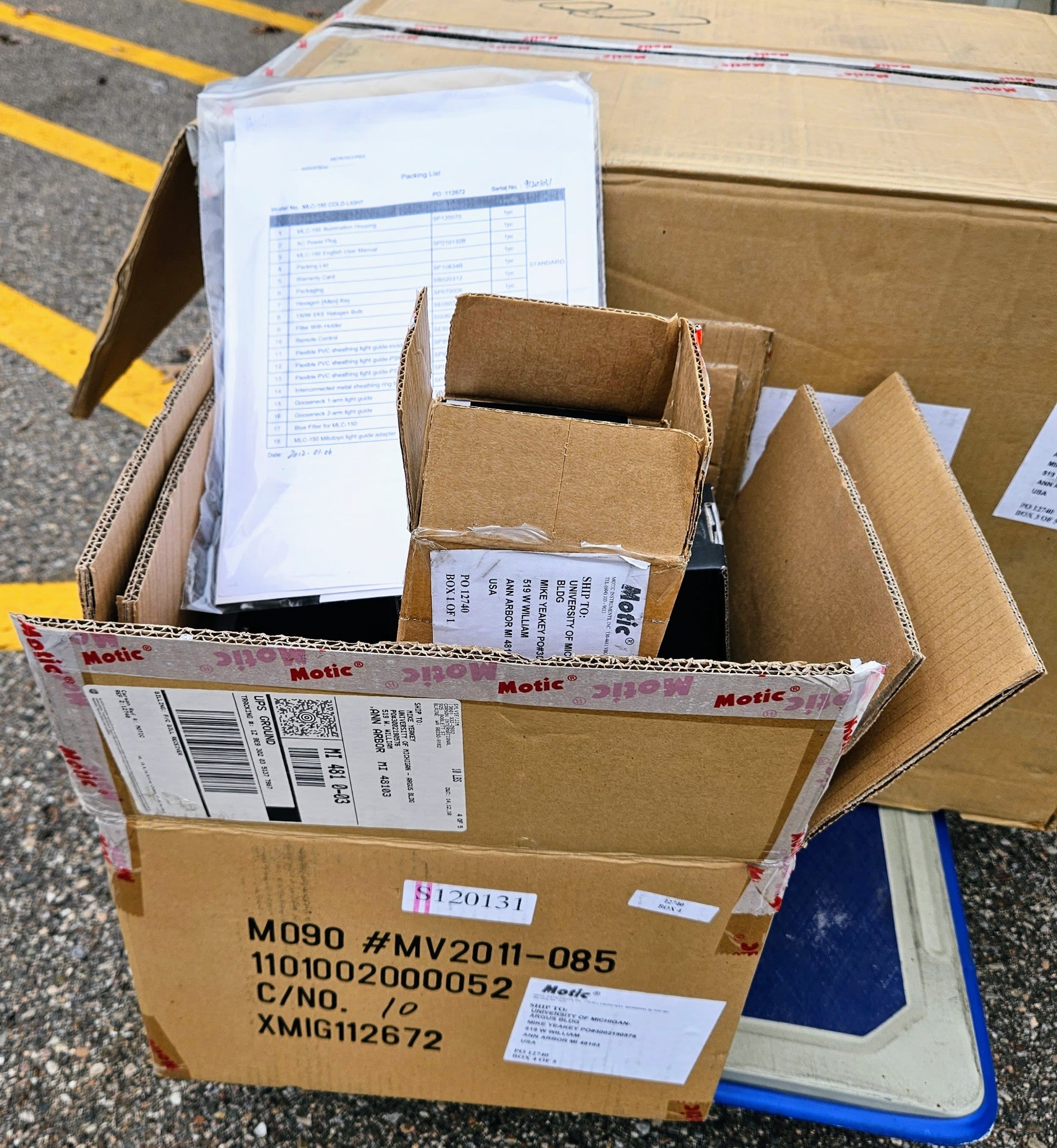

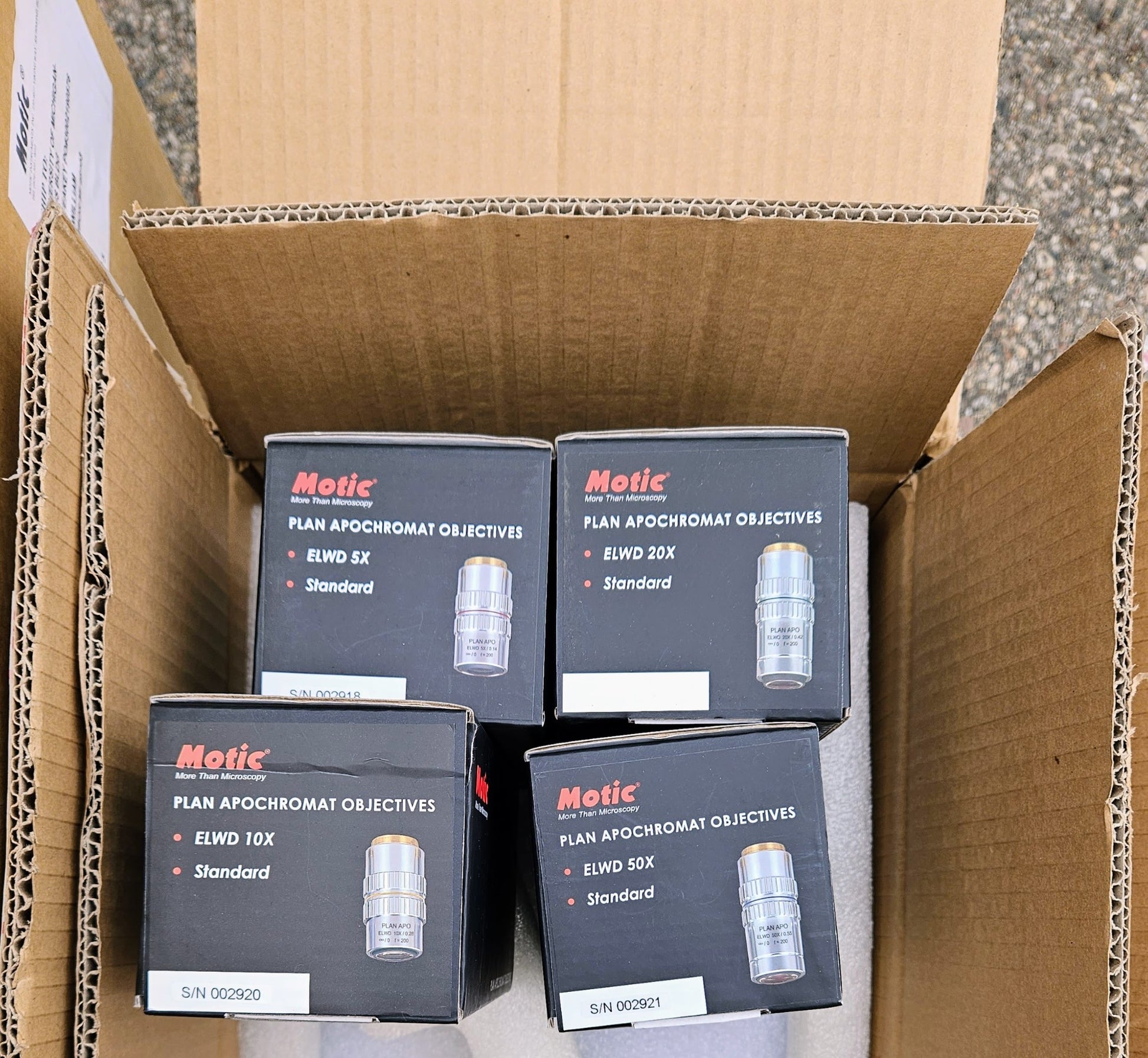

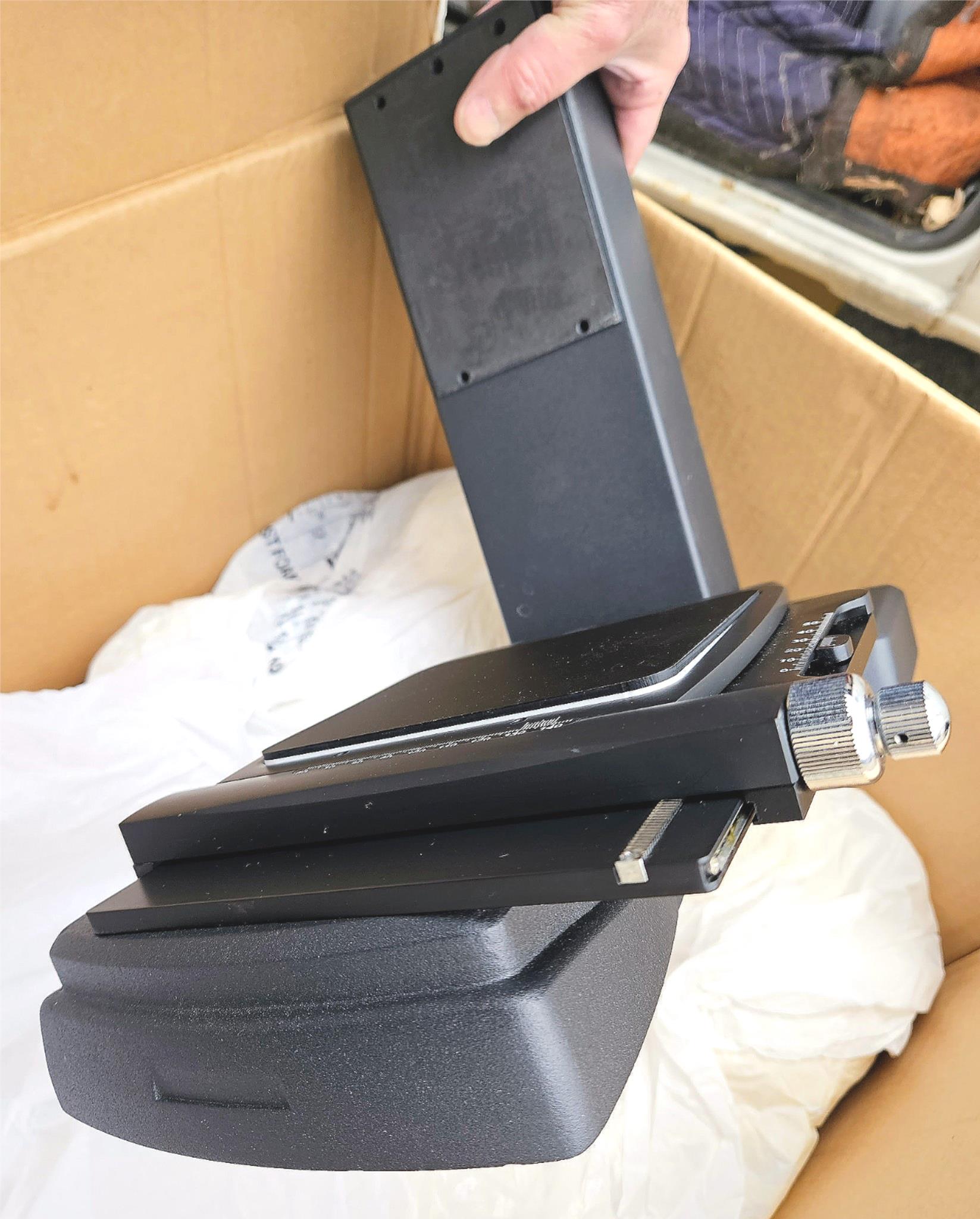

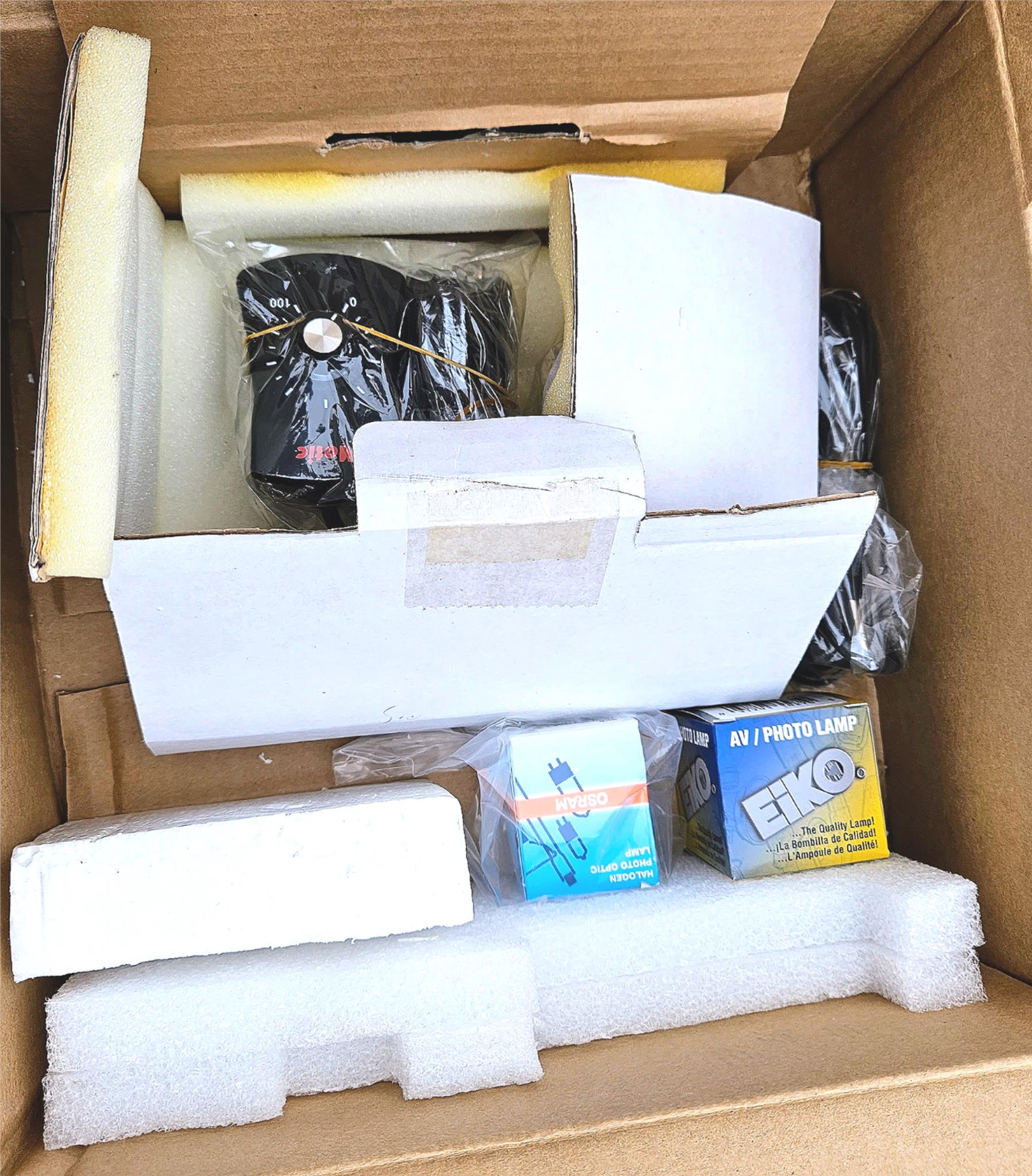

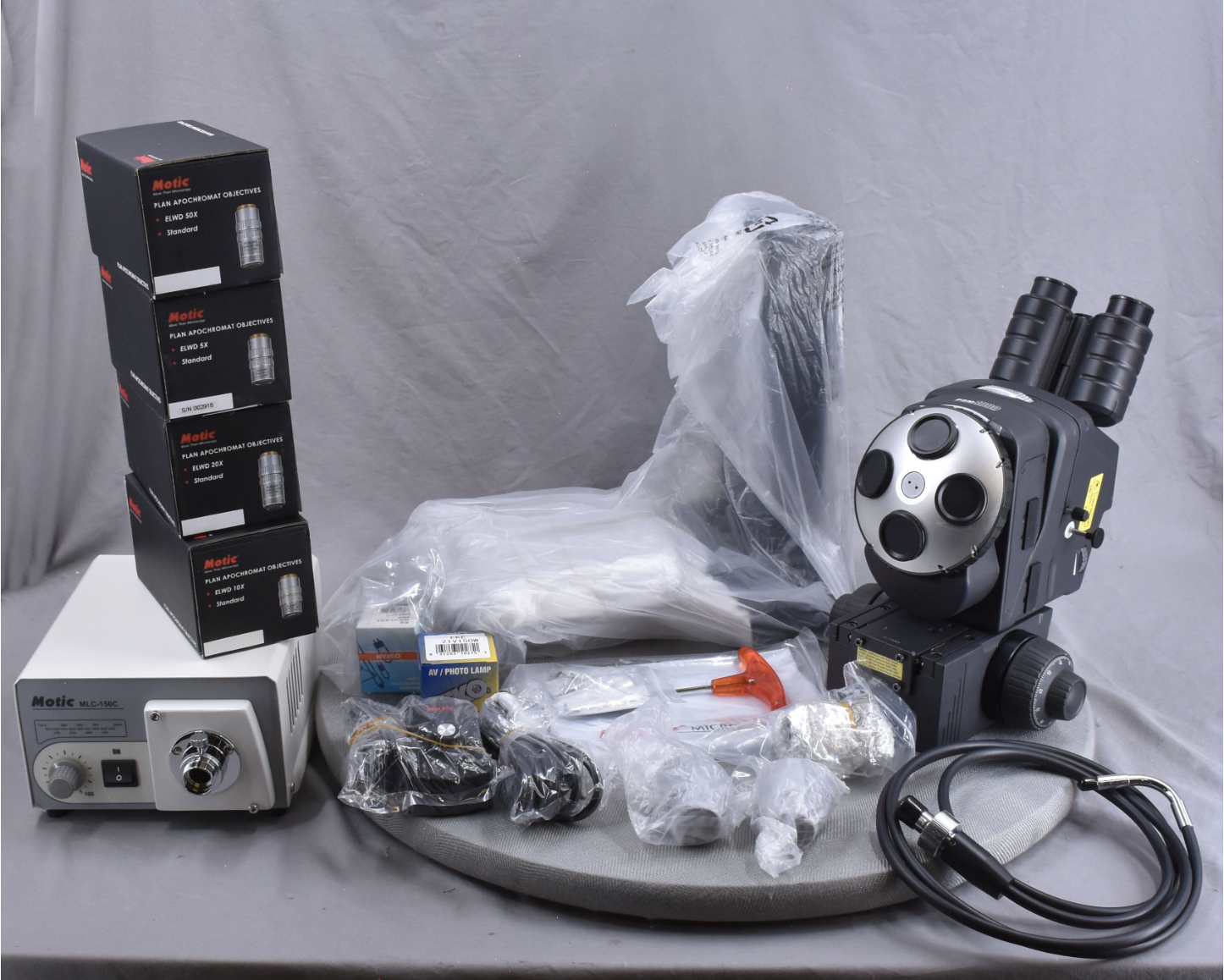

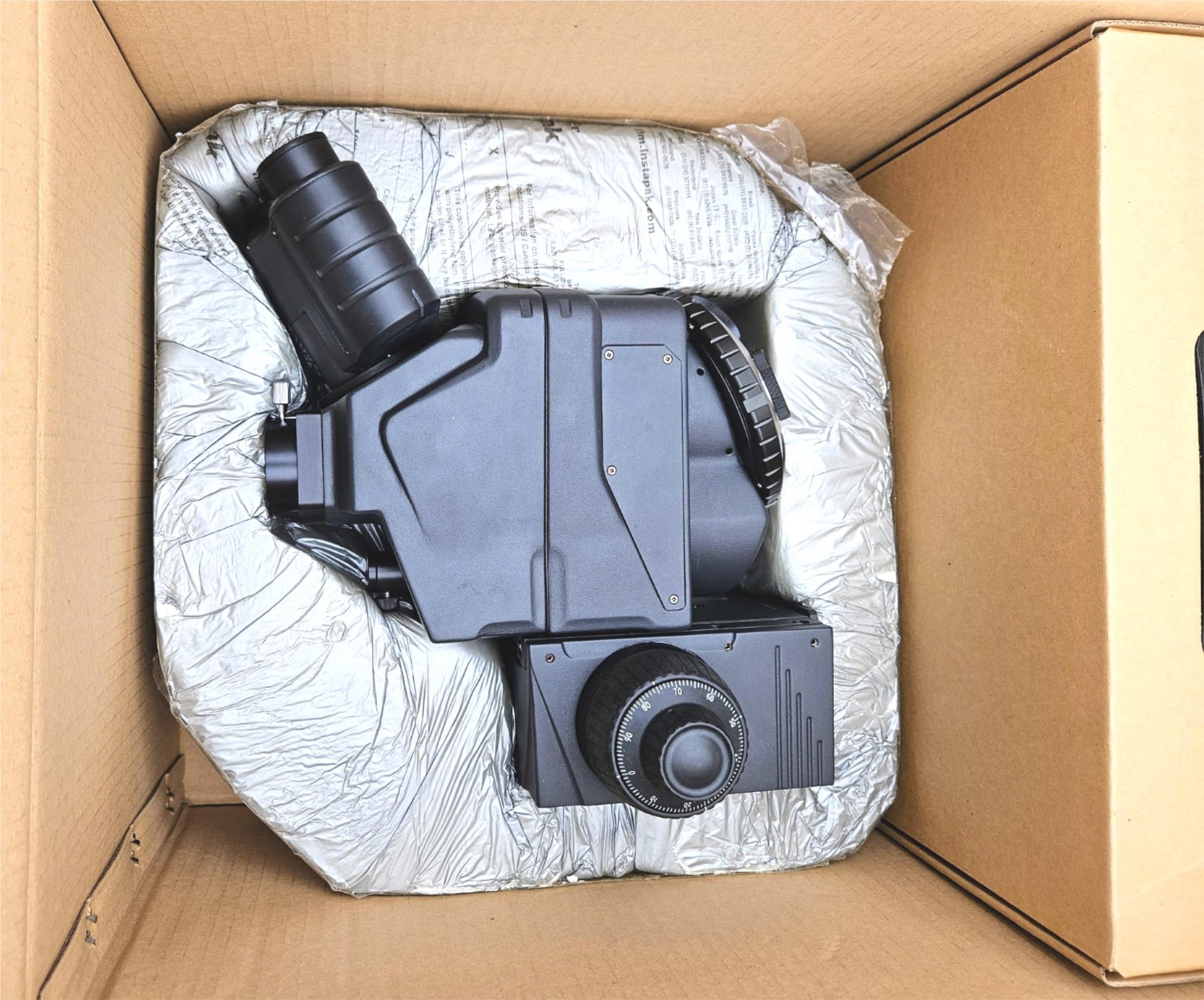

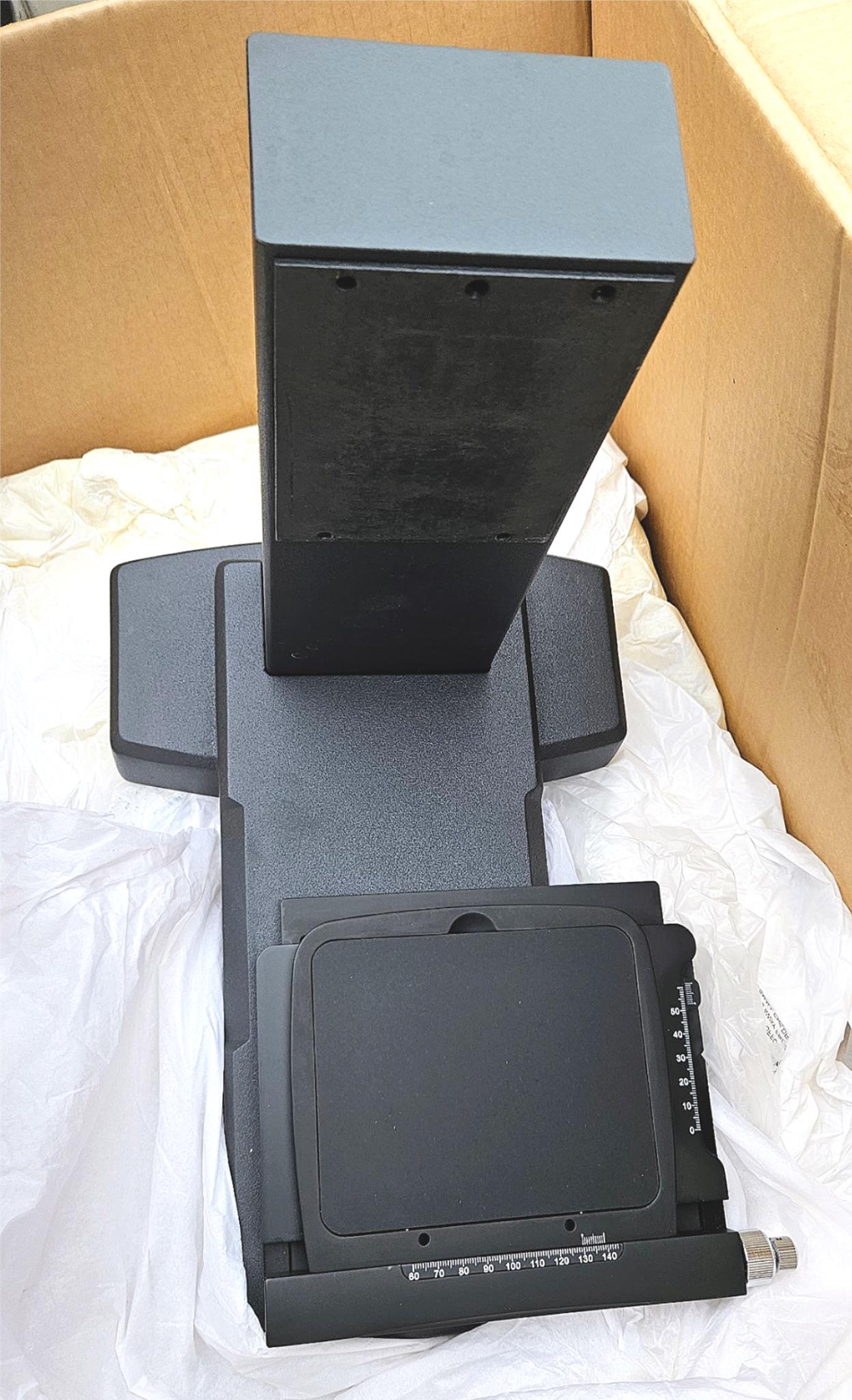

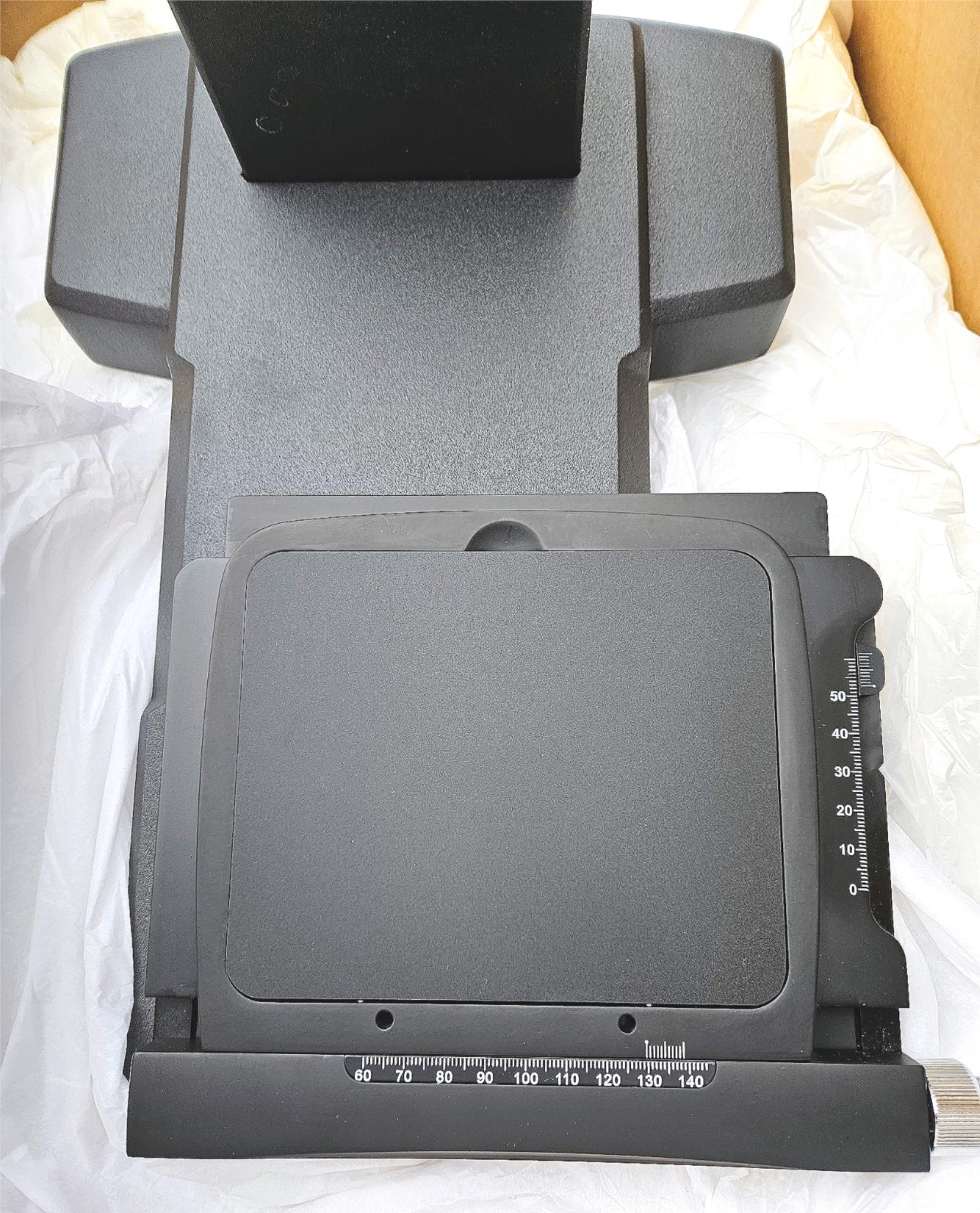

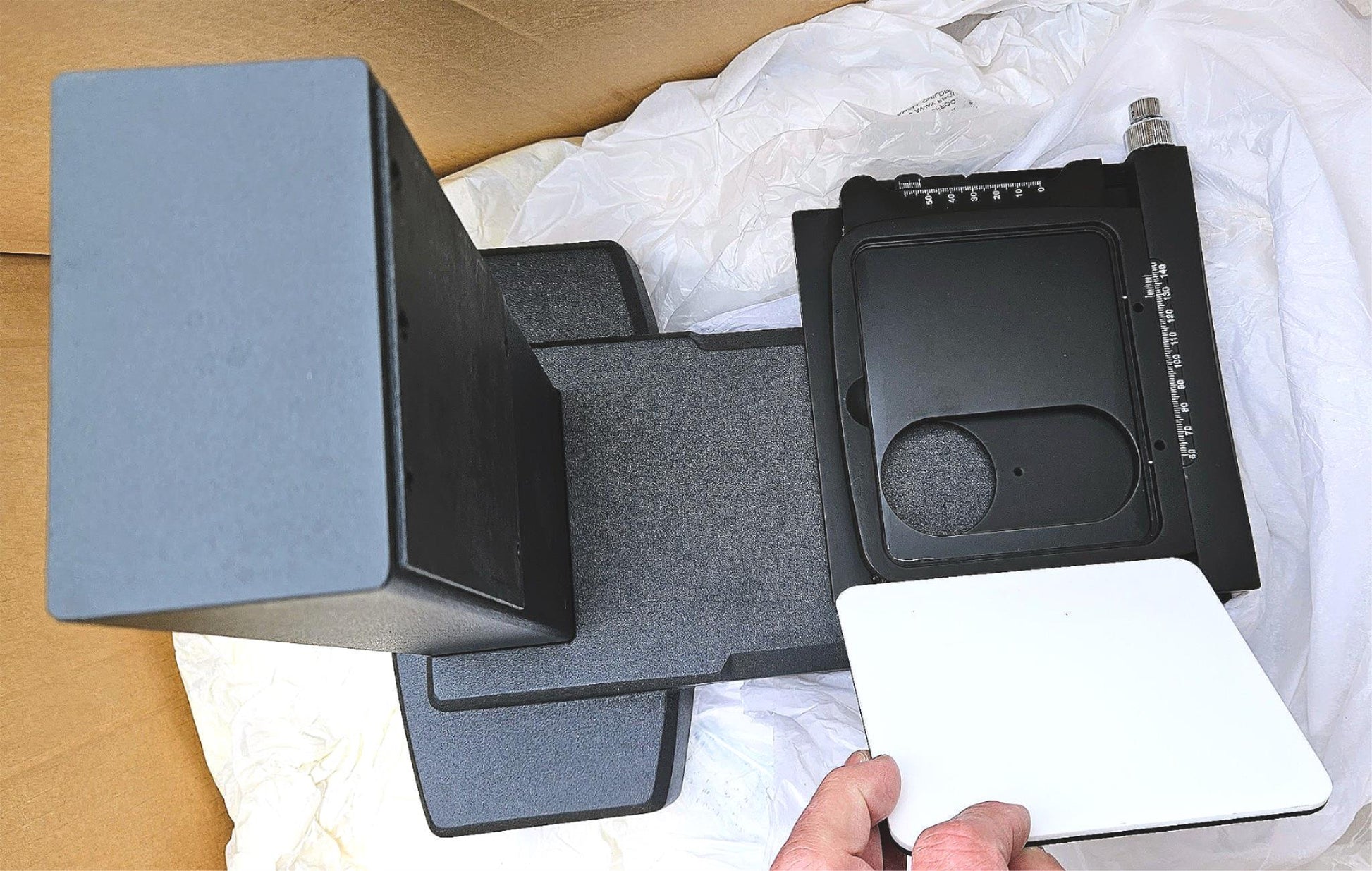

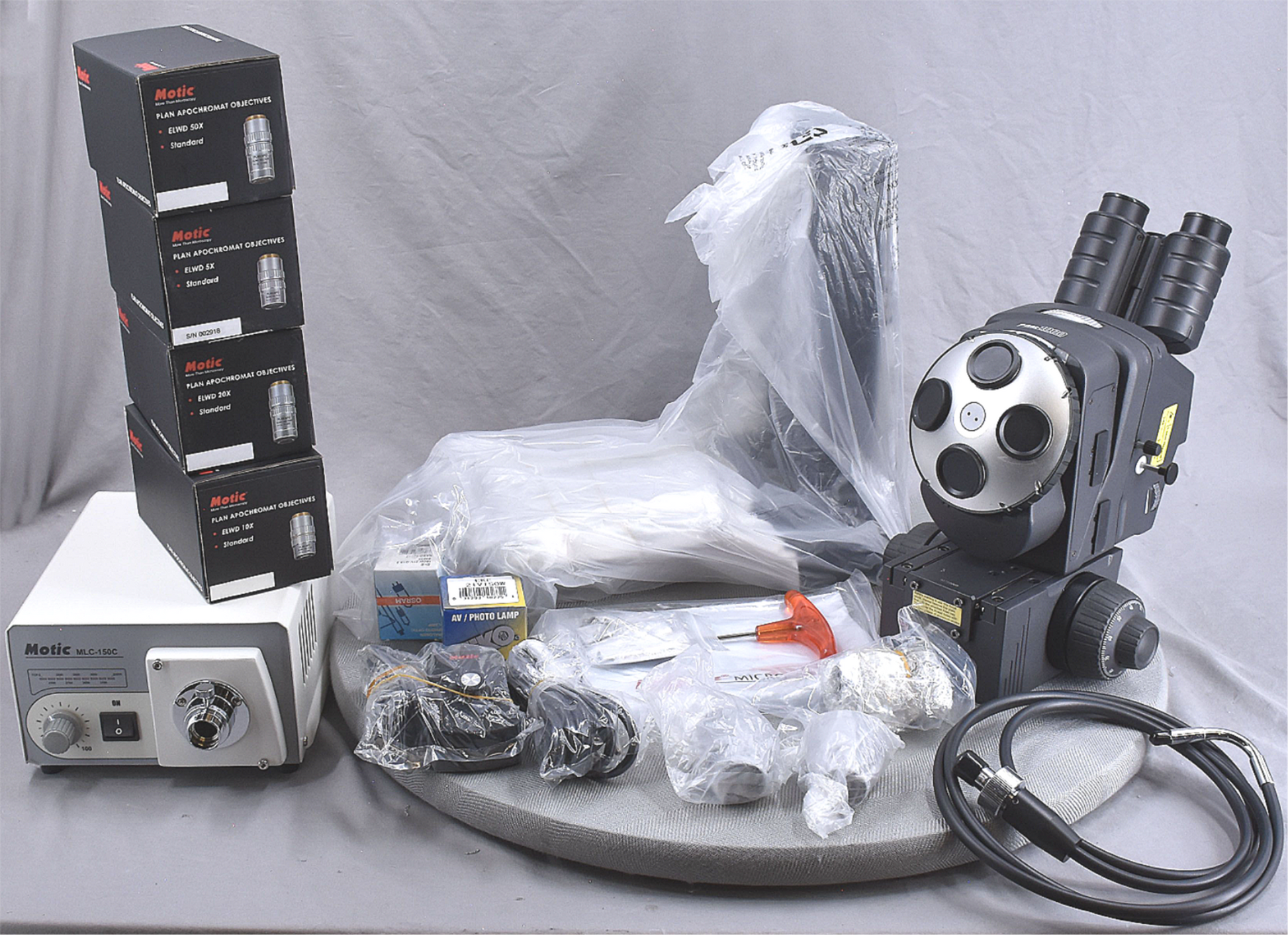

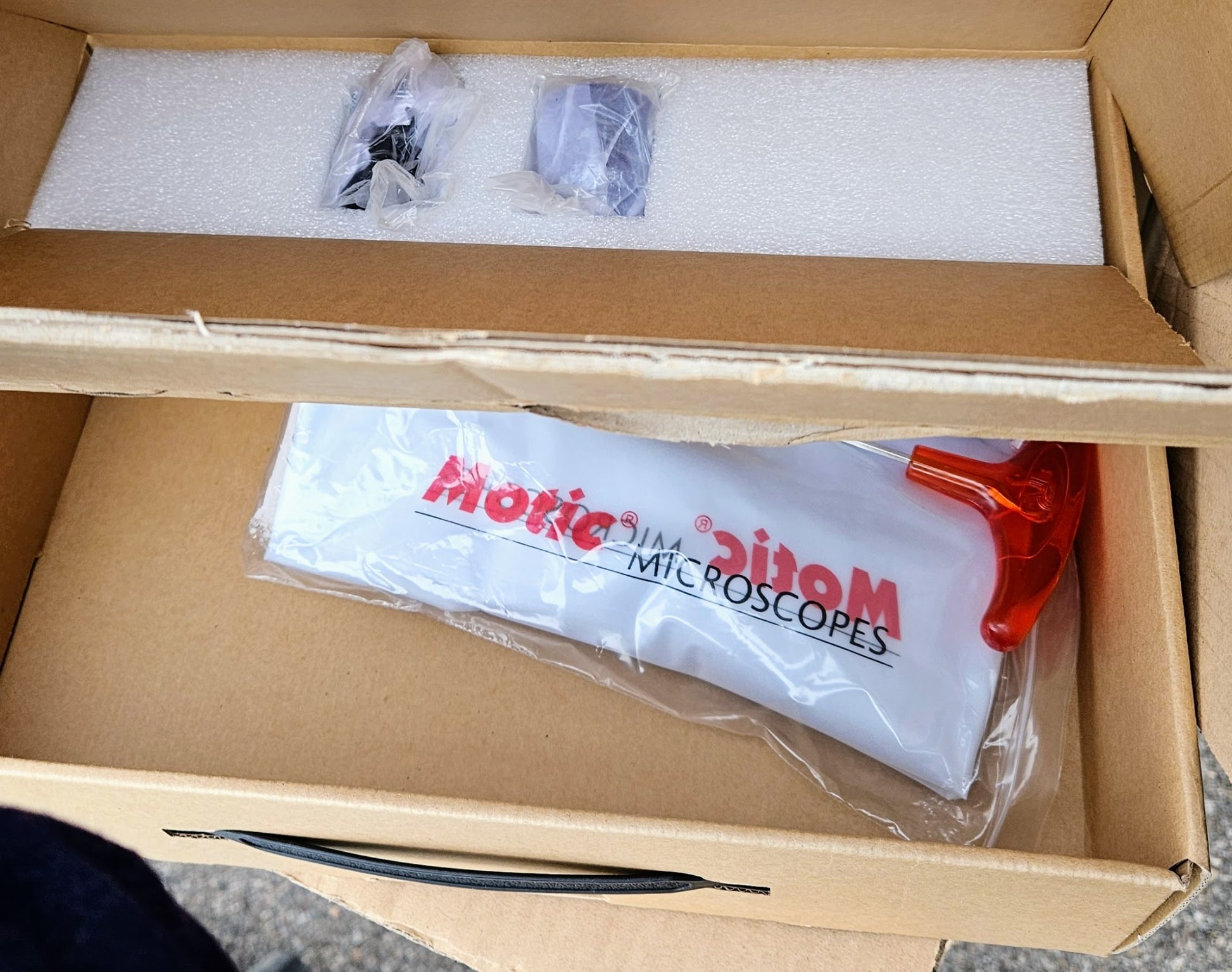

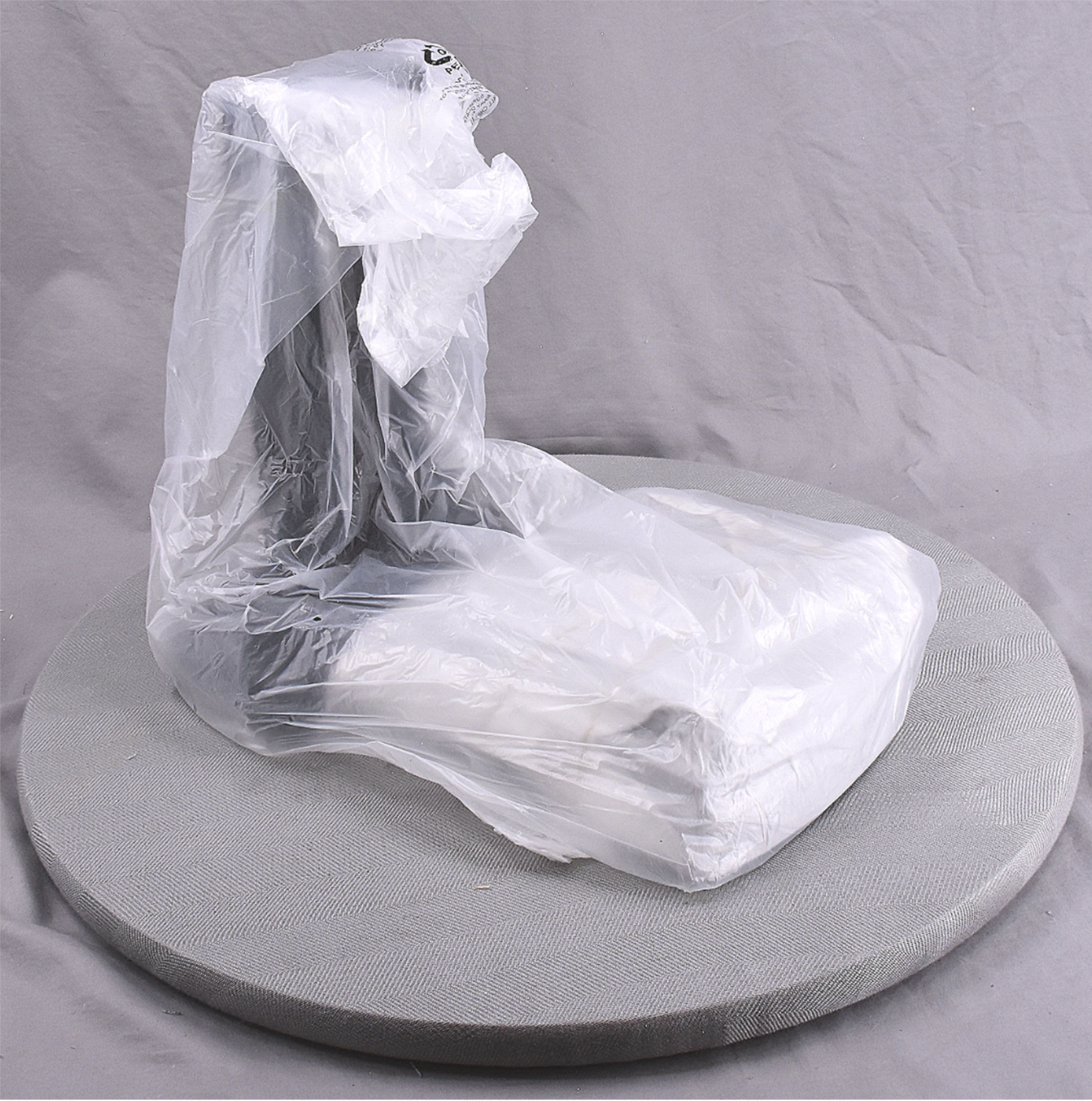

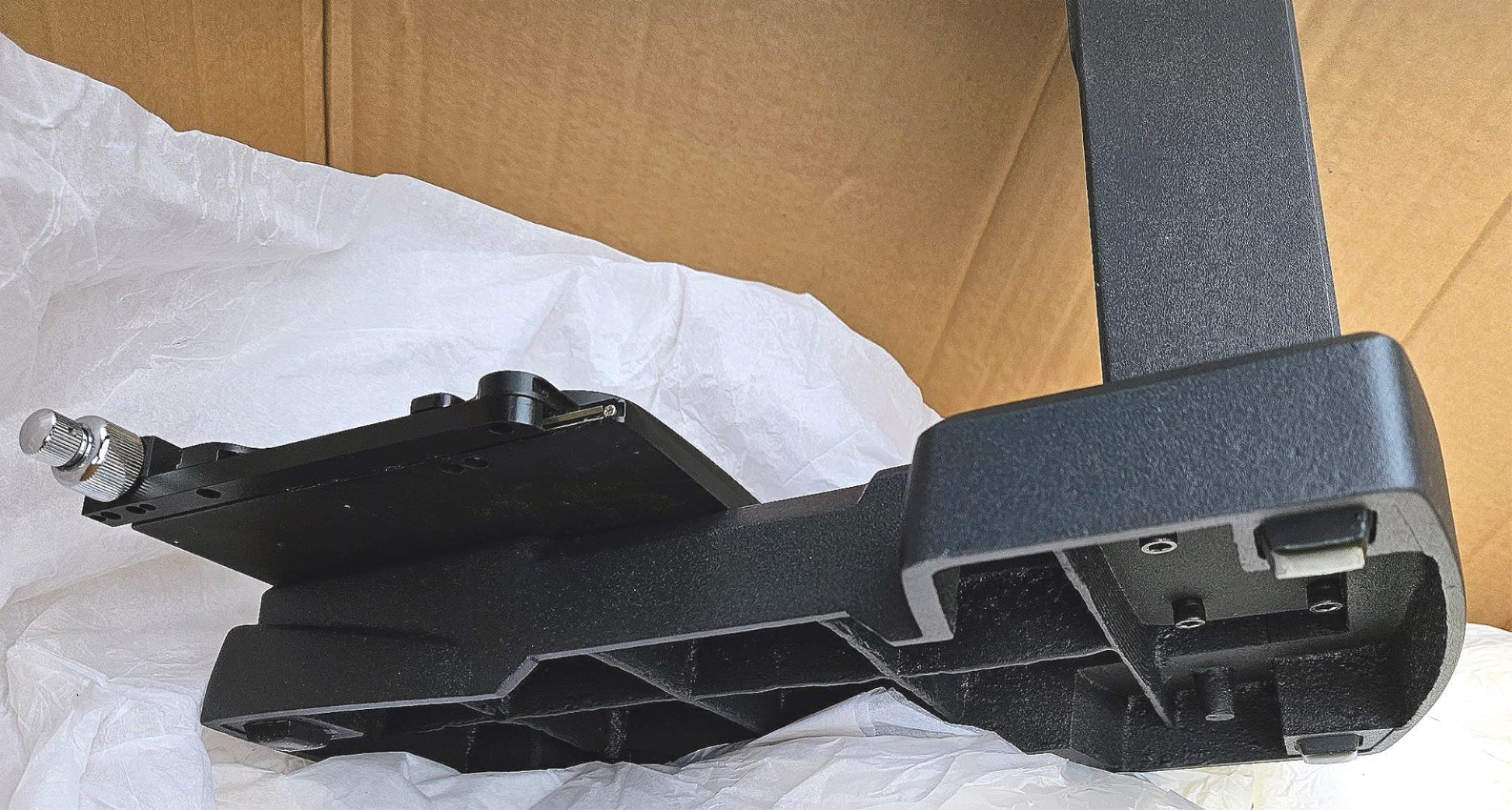

Additional Information: This system includes stand with mechanical stage, laser optics (355-1064nm, laser not included); 3-lens change over turret; MLC-150 fiber optic light source and guide; and the following four objectives Plan Apochromat ELWD 5x, 10x, 20x, 50x. This item was never assembled and was delivered in original packaging.
IMPORTANT: LASER IS NOT INCLUDED IN THIS SYSTEM!!!
microscopecentral.com/products/motic-psm-1000-probe-station-microscope?
variant=4487194433&cmp_id=19235316366&adg_id=&kwd=&device=c&gclid=CjwKCAjw7oeqBhBwEiwALyHLM3rIHnYLo-lD4EDNq54fTsPc1QTfHJv0VD7UIQDksYNFlw09d5IP2xoCzK0QAvD_BwE
SPECIFICATIONS

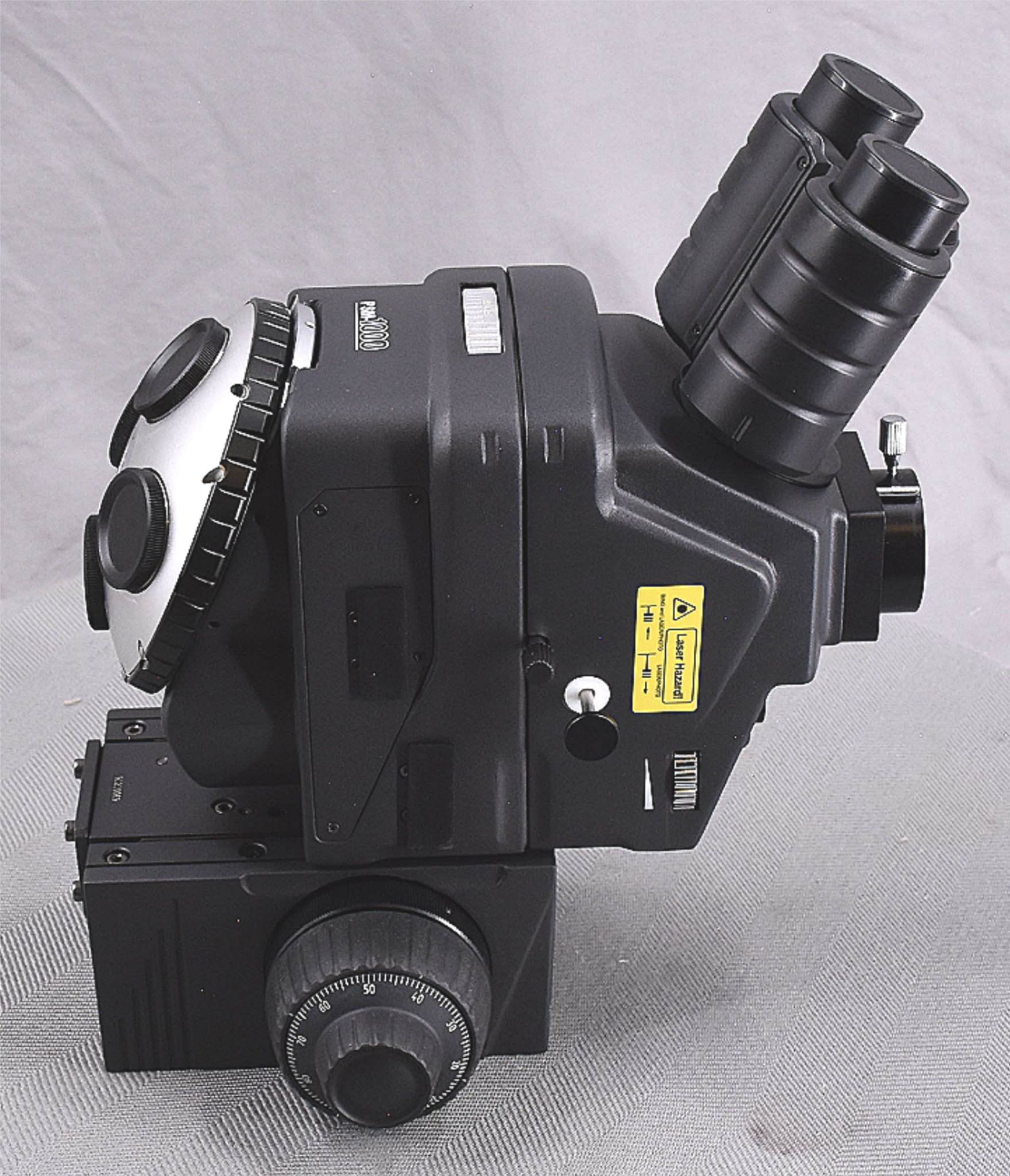

Head: Trinocular head [Optical split - 50:50 / 0:100] or Trinocular Tilting

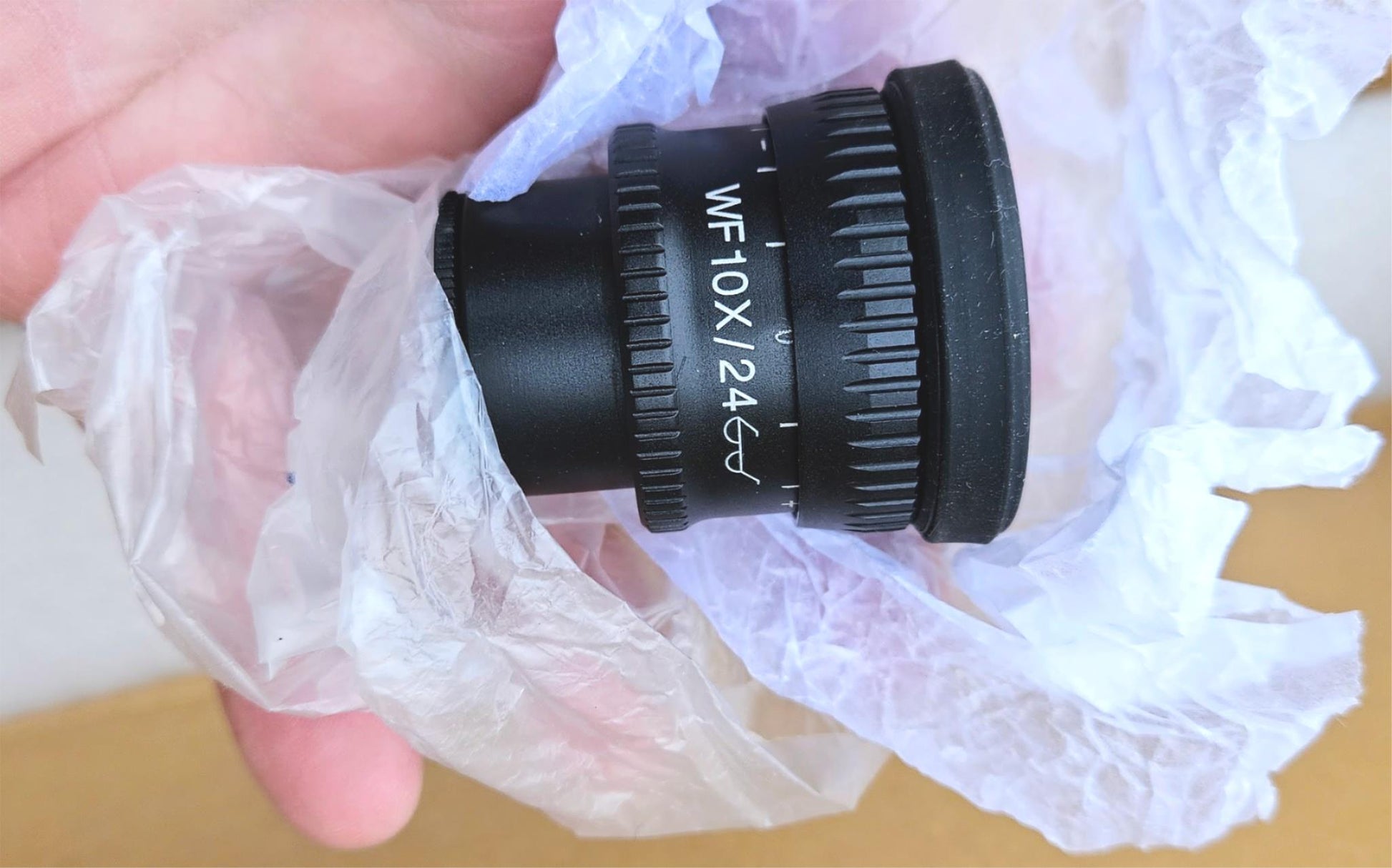

Eyepieces: Adjustable widefield high eyepoint 10X/F.N.24
Changeover Turrett:
3-lens changeover turret [1XUV, 1XIR, 2XVIS]
Nosepiece: Adjustable / centerable forward facing nosepiece one fixed, three adjustable

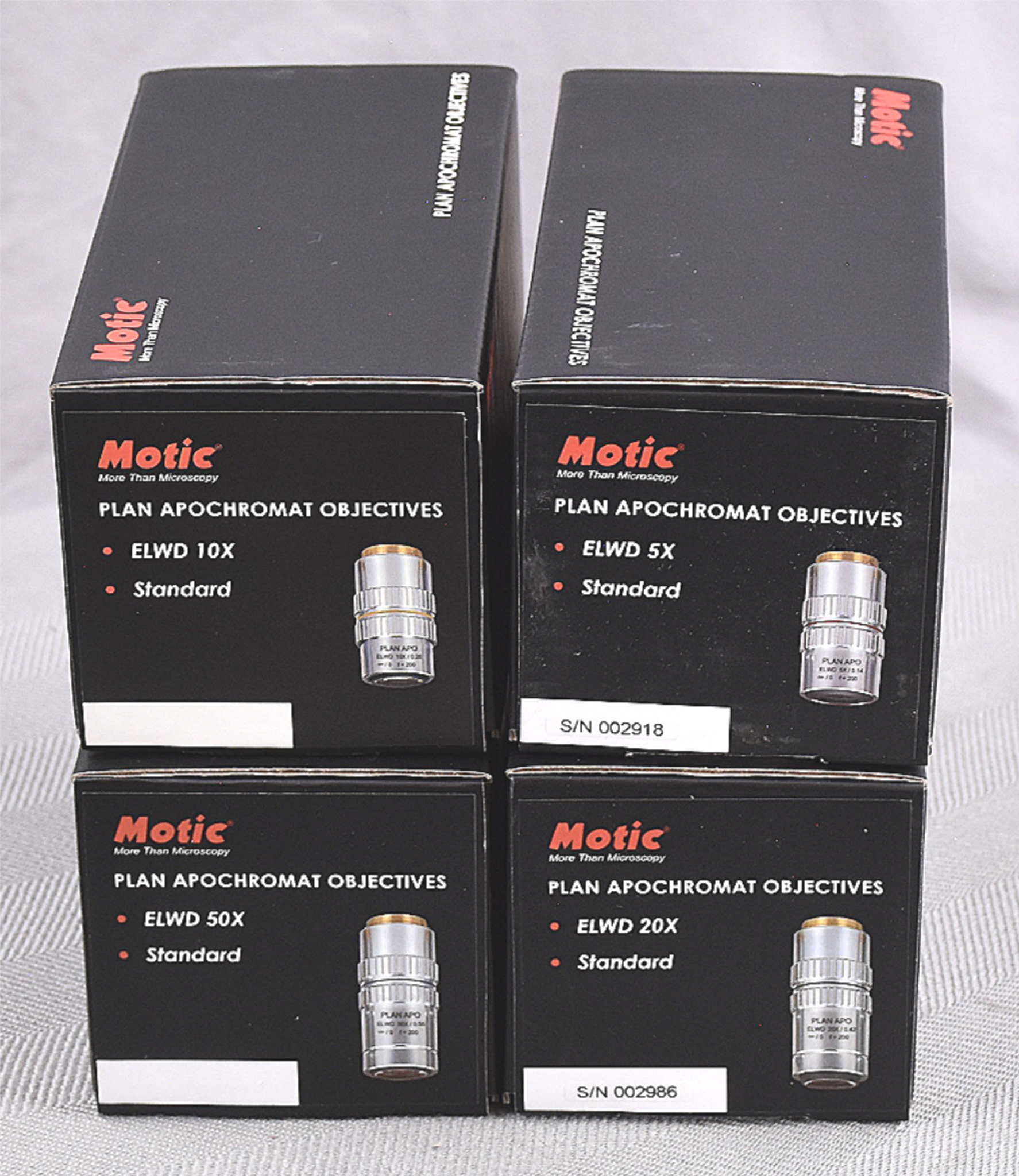

Objectives:
PLN Plan Achromat 10x Microscope Objective
20X NIR Objective N.A. 0.4, W.D. 20.5mm
PLN Plan Achromat 40x Microscope Objective
50X NIR Objective N.A. 0.42, W.D. 19mm
Laser: Beam splitter for laser work. Laser capabilities [355nm - 1064nm] Laser safety kit [shims and laser safety pin]
Focusing:
Coaxial coarse/fine focus: 50mm travel range, 0.1mm/rev. for fine adjustment, 4mm/rev. for coarse adjustment.
Focusing Block - 20kgs rated

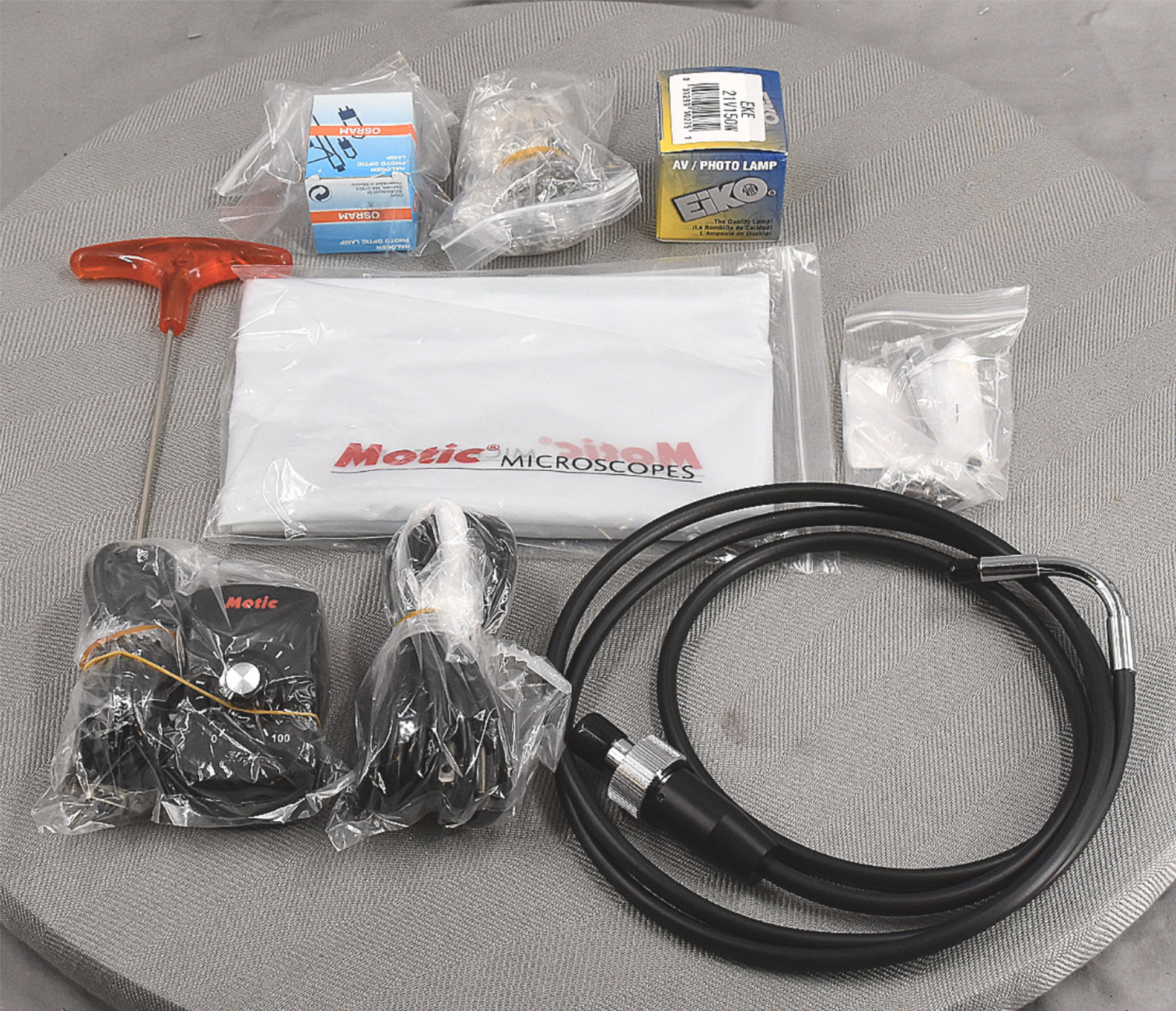

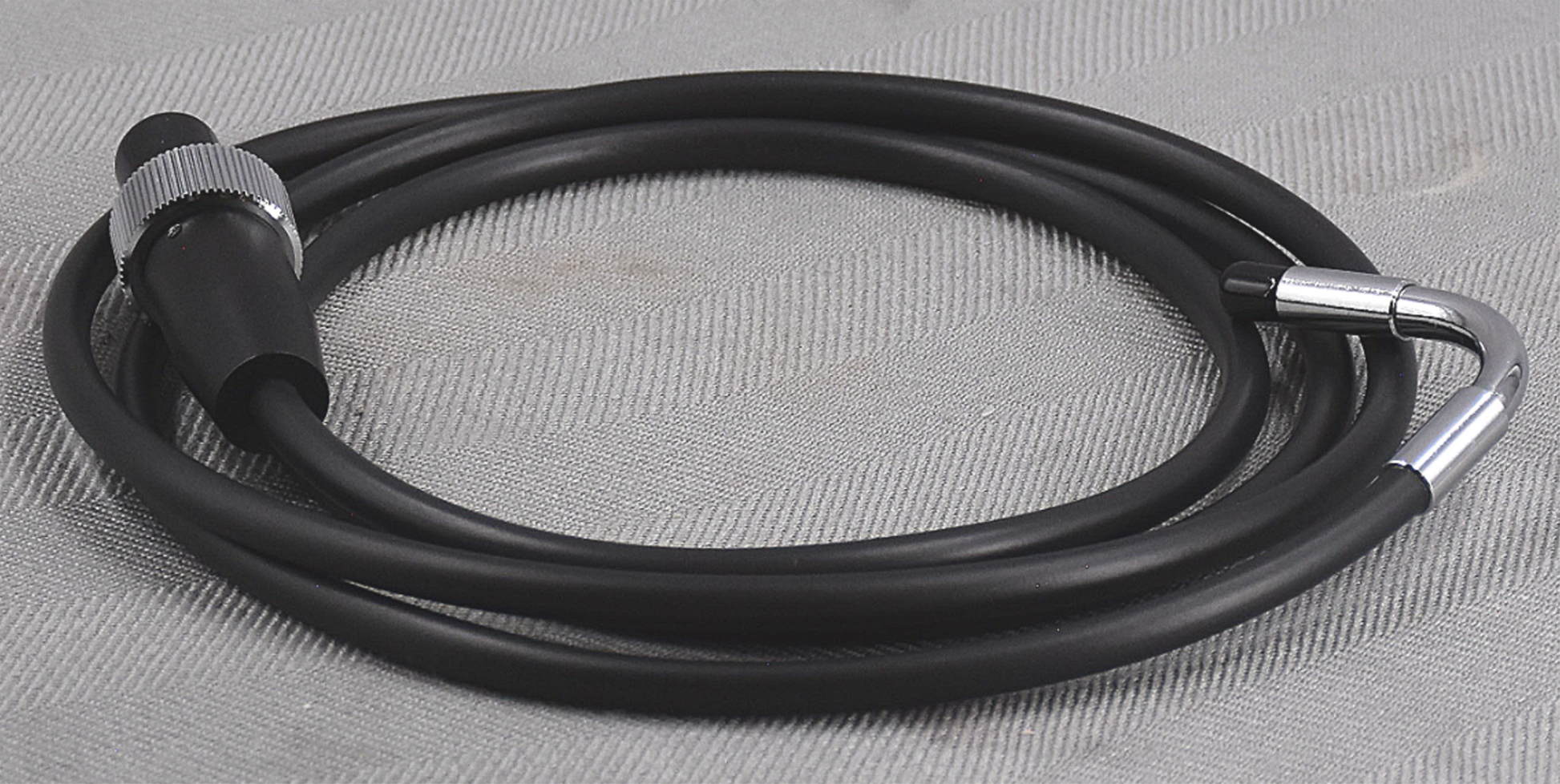

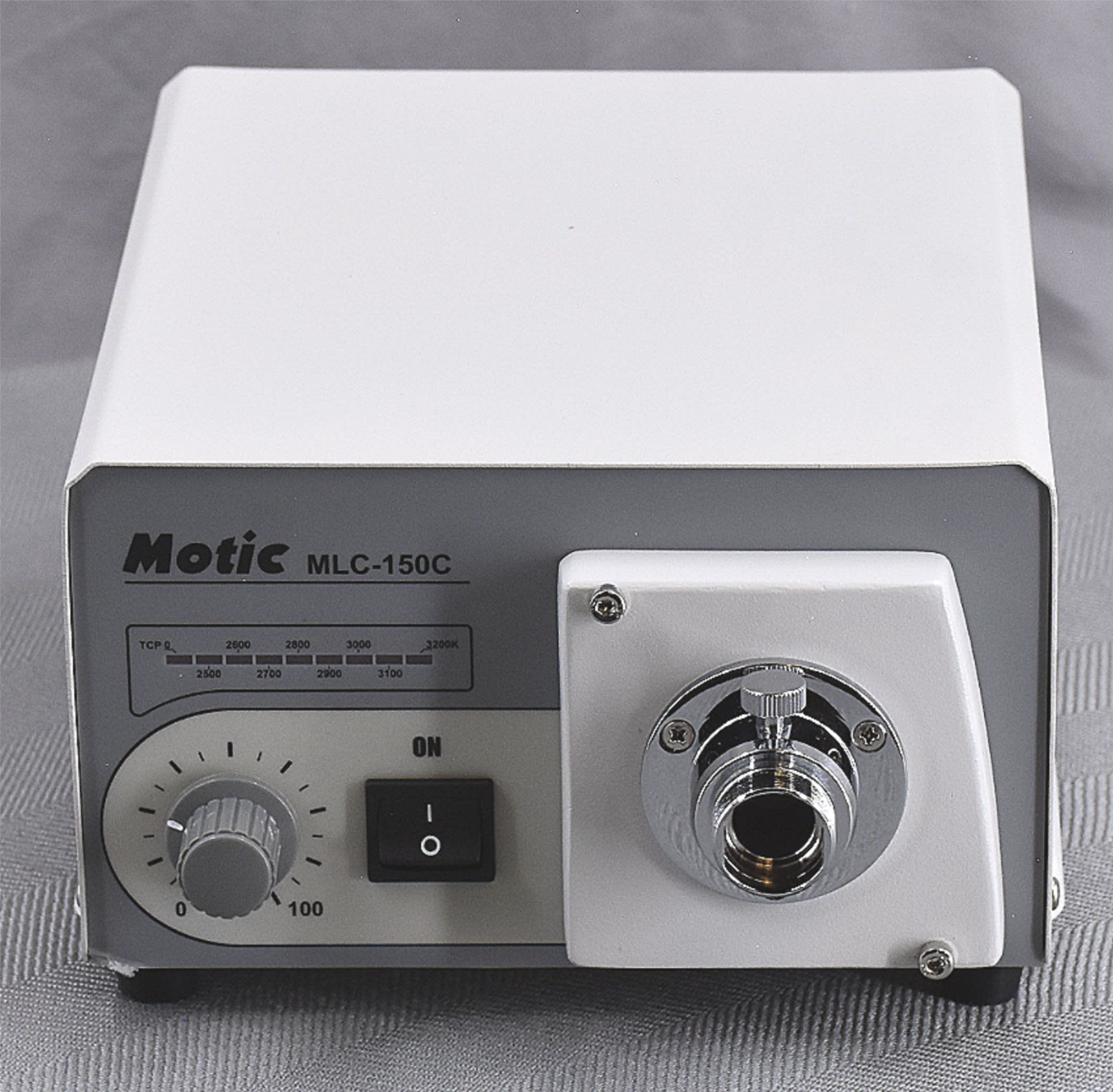

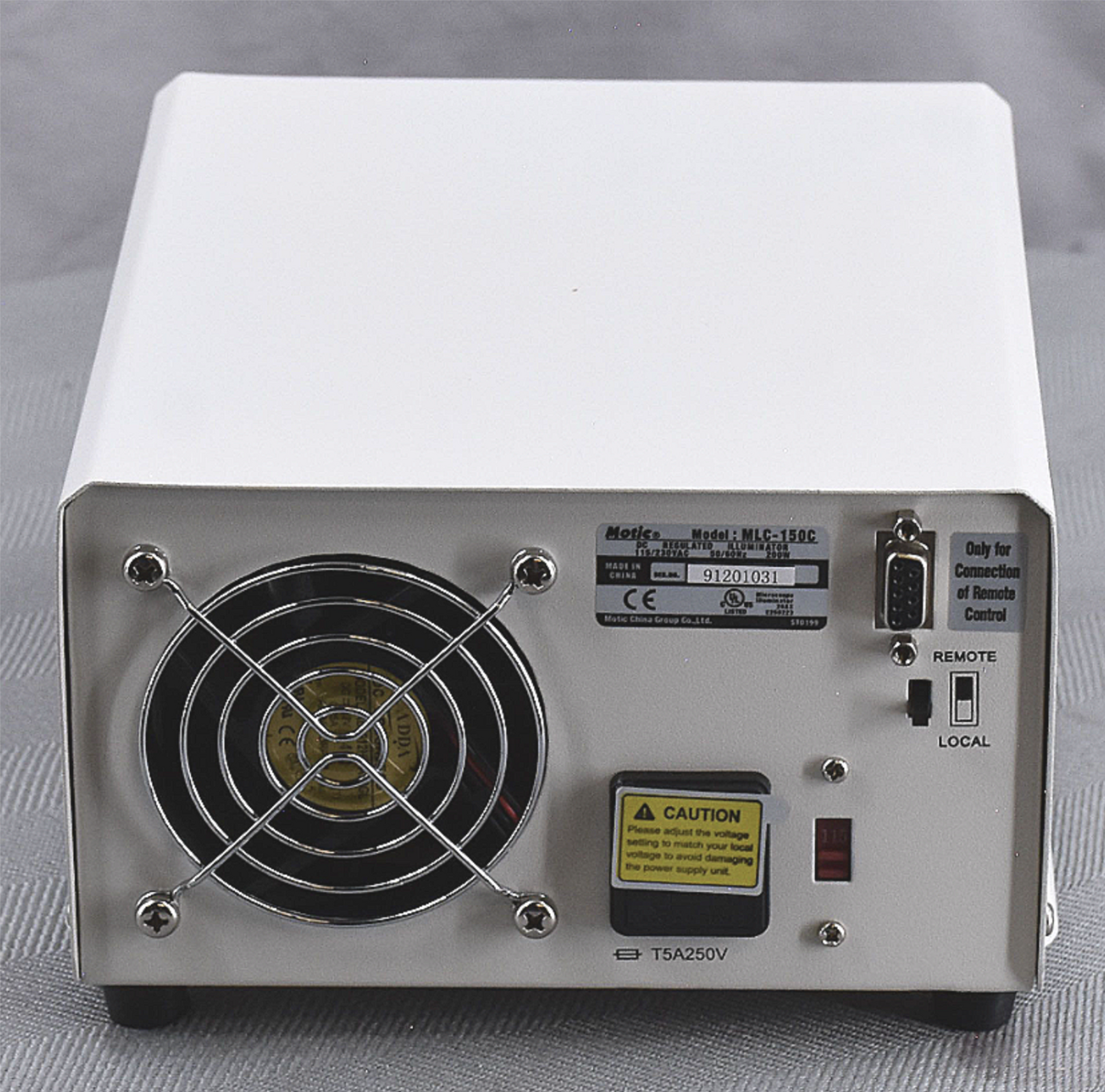

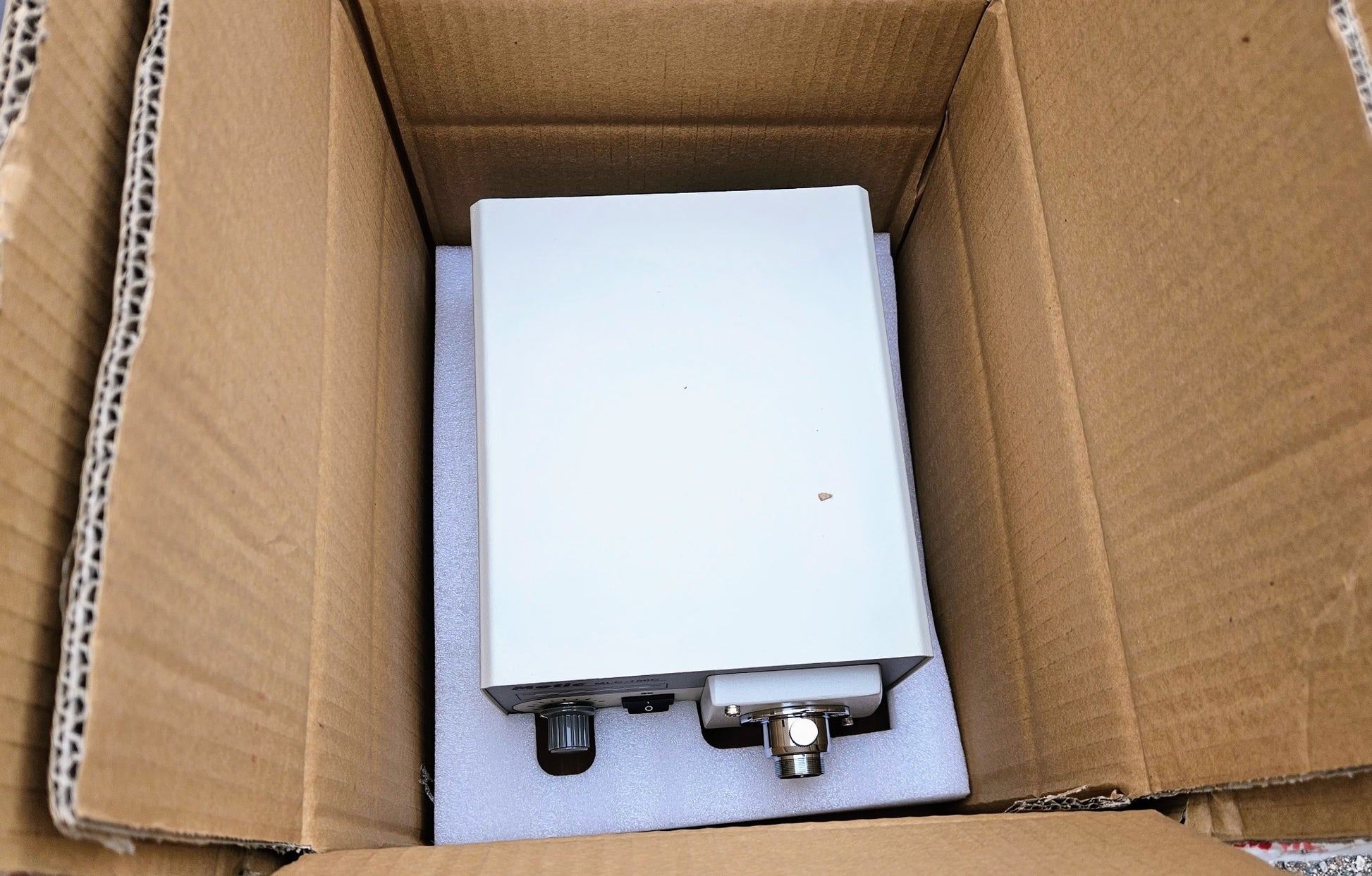

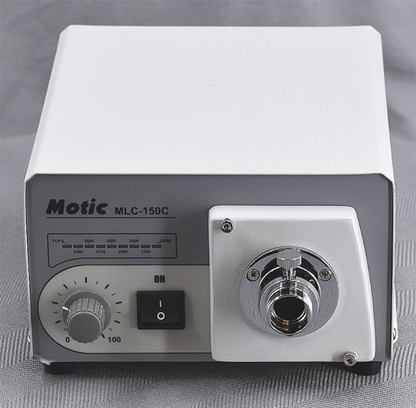

Illumination: 150W cold light source, light guide length 2m. (See Accessories Tab)
Warranty: 5 Year Mechanical & 1 Year Electrical
Pair of 10x Bausch & Lomb StereoZoom Eyepieces. These eyepieces are made in the U.S.A. to the exact specifications of Bausch & Lomb from a glass manufacture that used to make these for them when the StereoZoom microscopes were made. These are high quality eyepieces for all StereoZoom series. We do have low cost replacement Chinese versions too if you need.

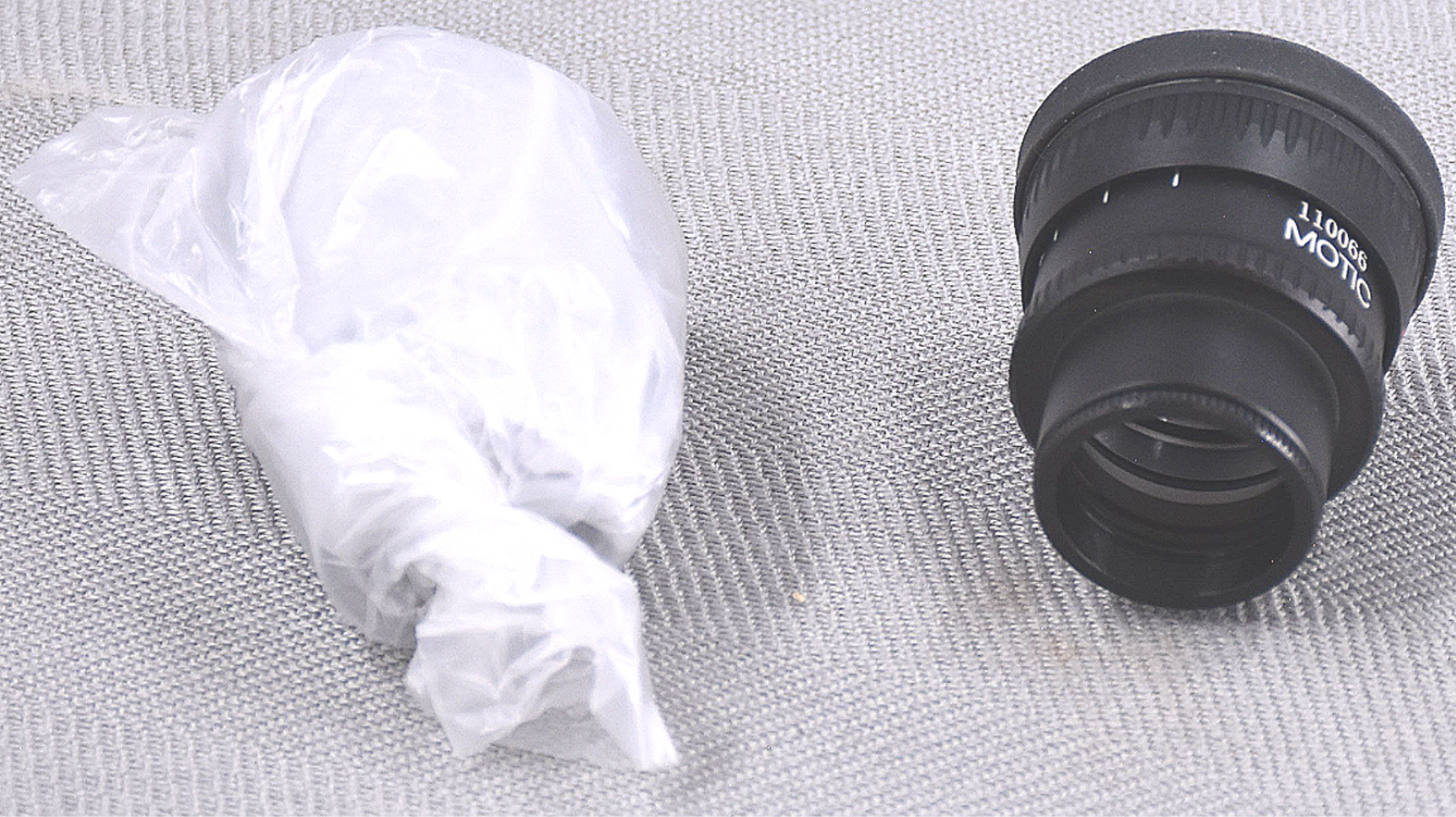

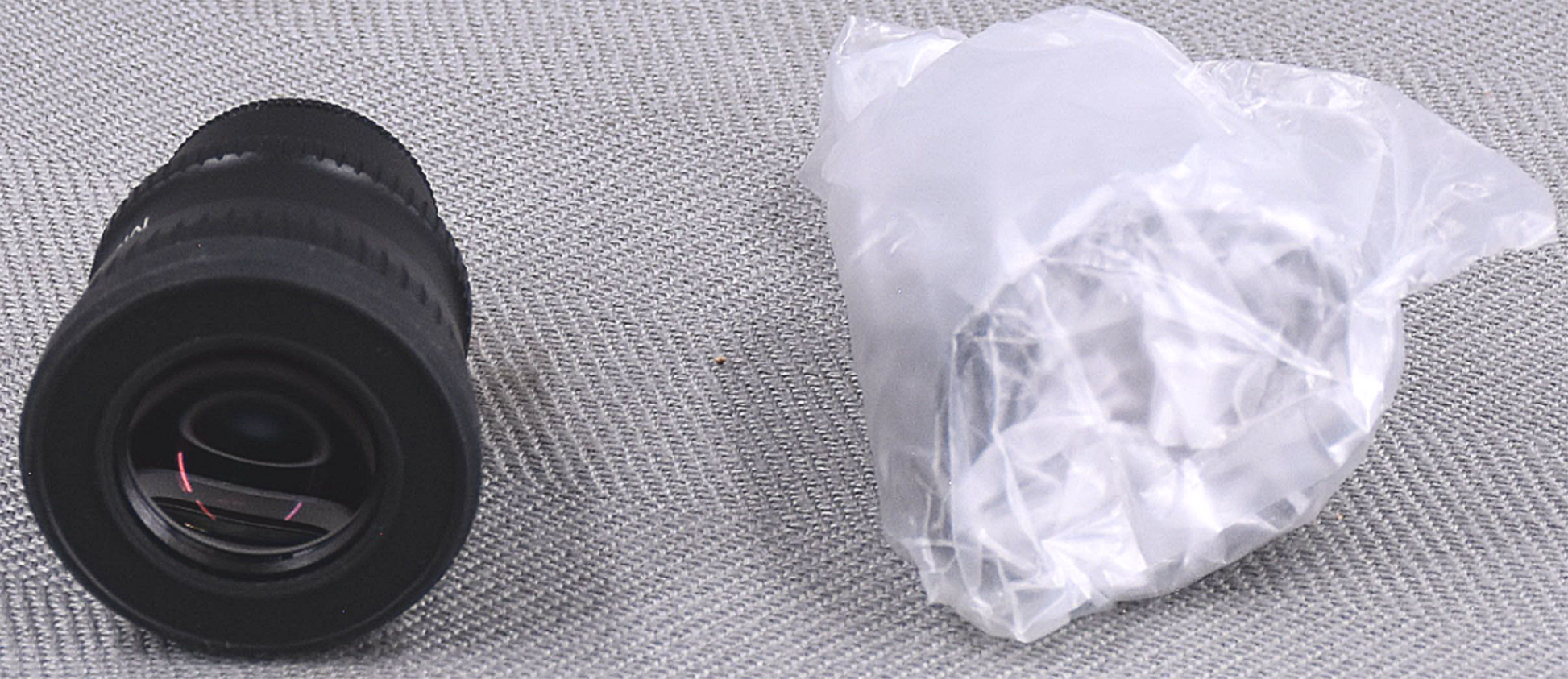

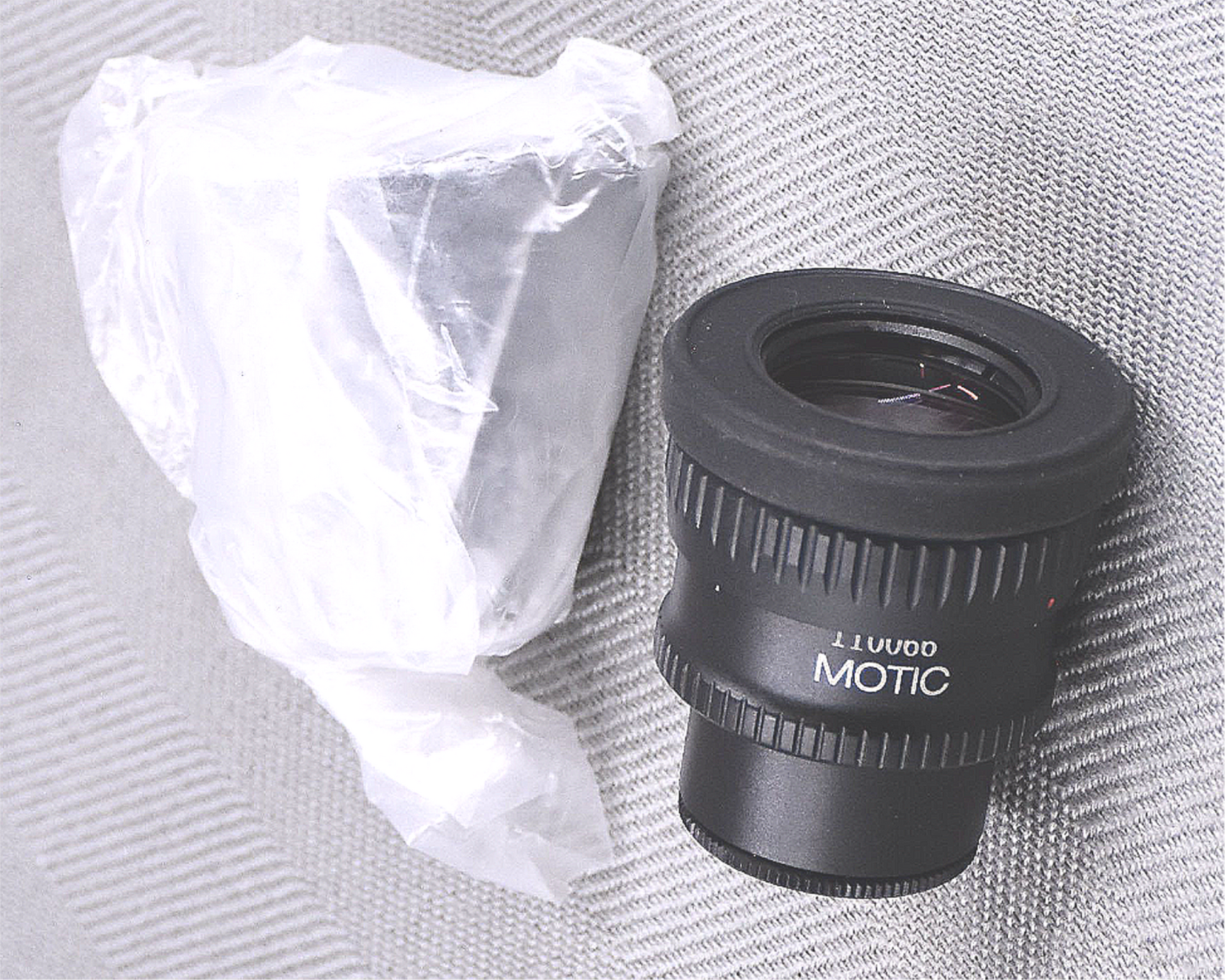

New 10x w.f. eyepieces
Pair of eyepieces for Motric stereo microscopes.
Made in the U.S.A
