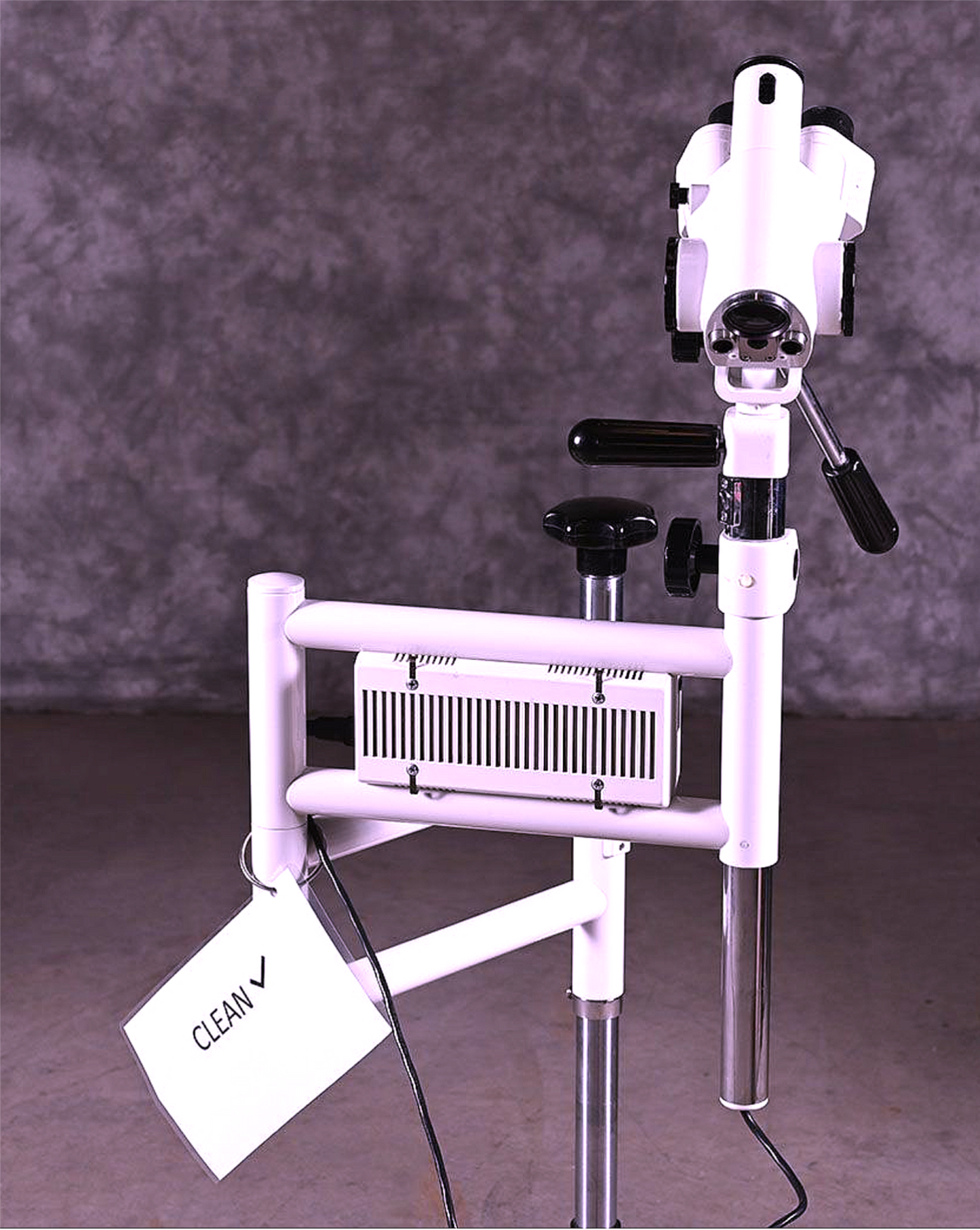

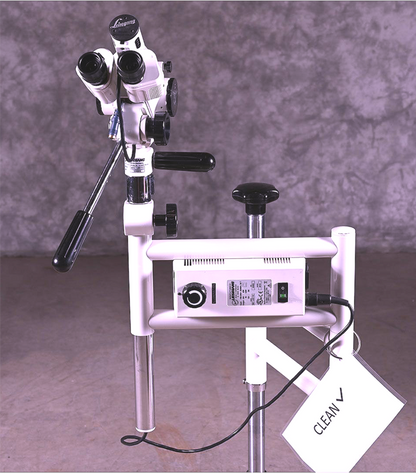

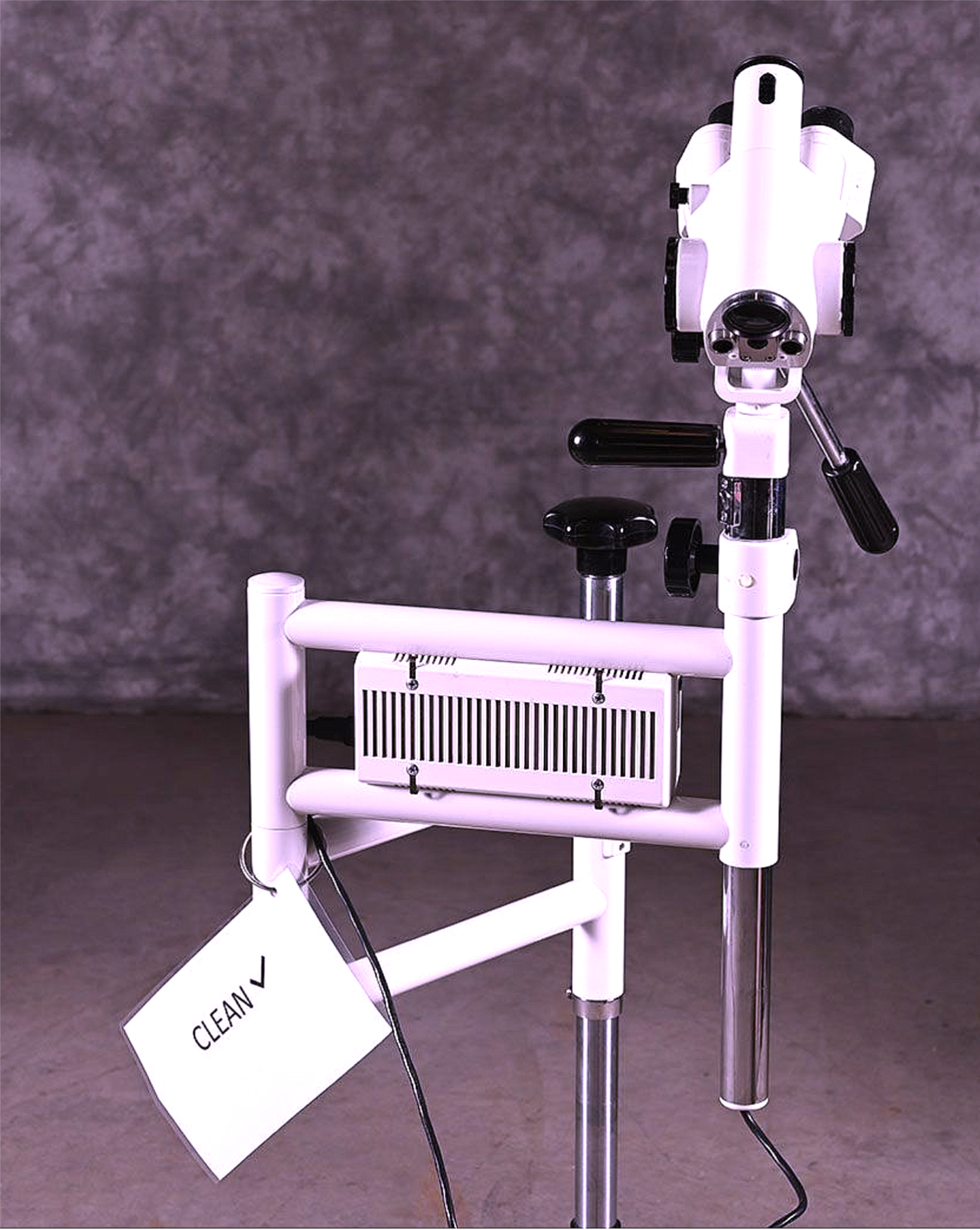

OptiK™ Model 2 (3MTL-LED, 3MVL-LED USB, 3MVL-LED Y/C)
The Colposcopes of OptiK Model 2 series are Leisegang’s popular Digital/Photo colposcopes with
precision fine adjustments in horizontal and vertical direction, high performance optics and LED lighting.

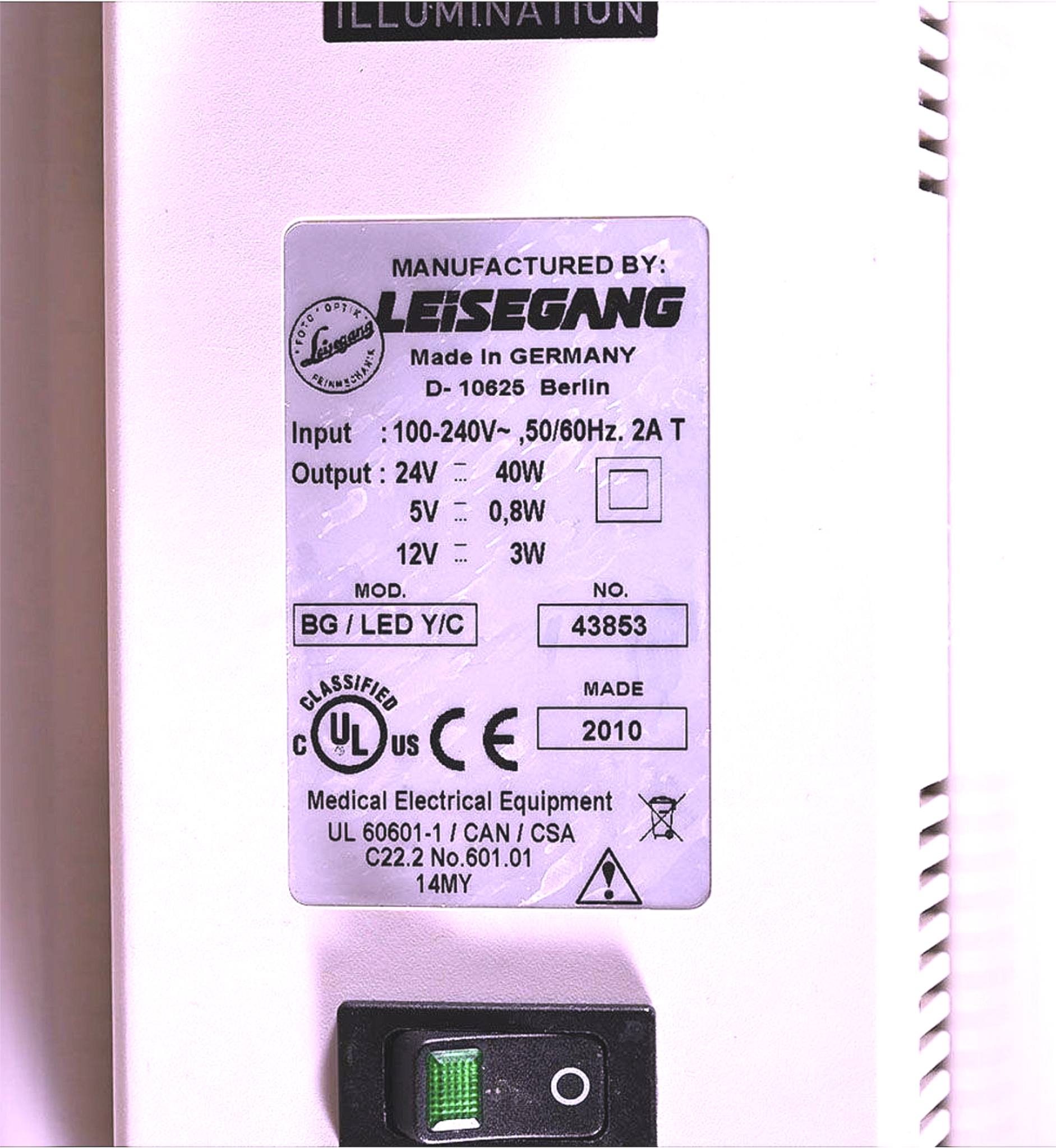

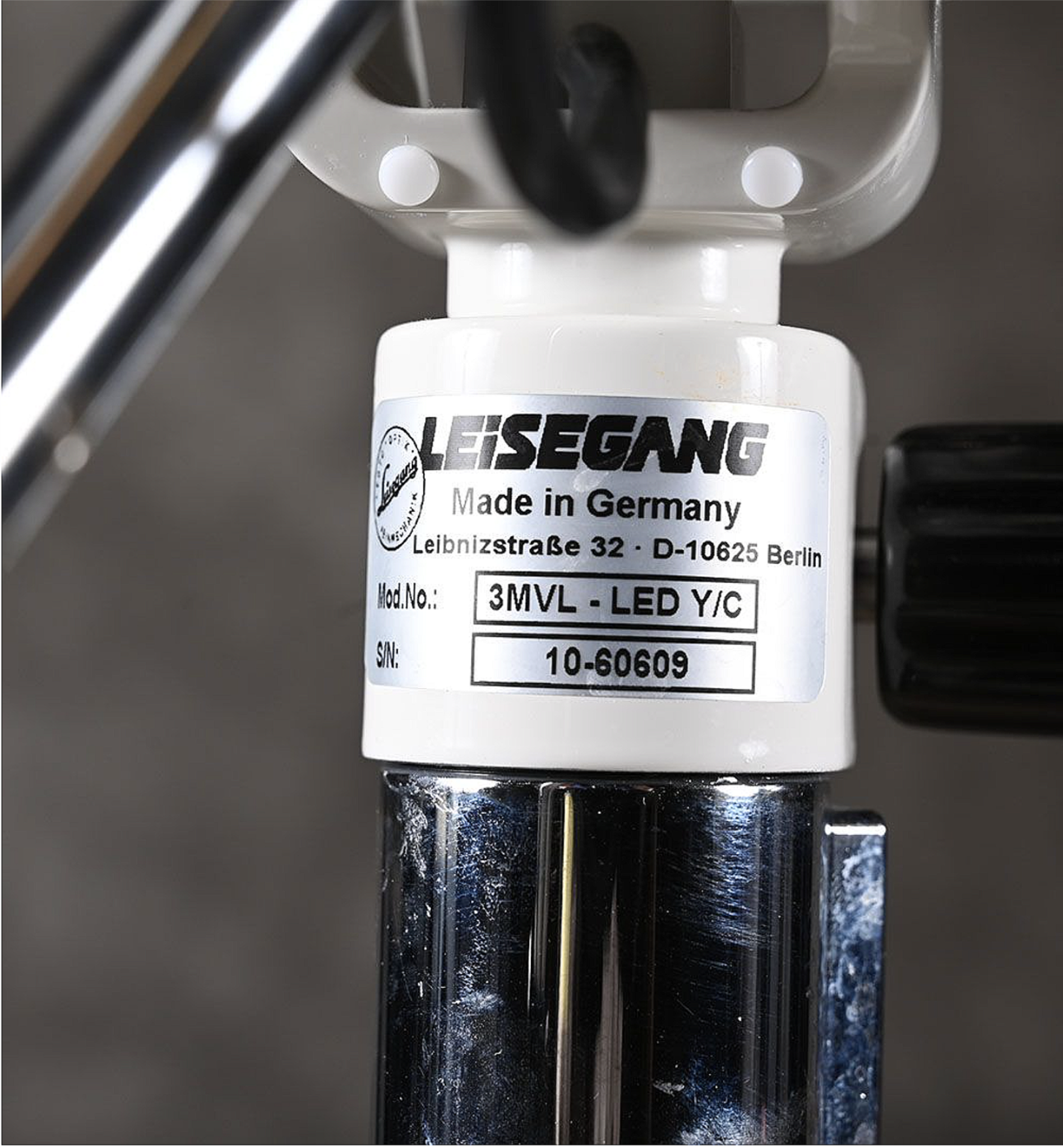

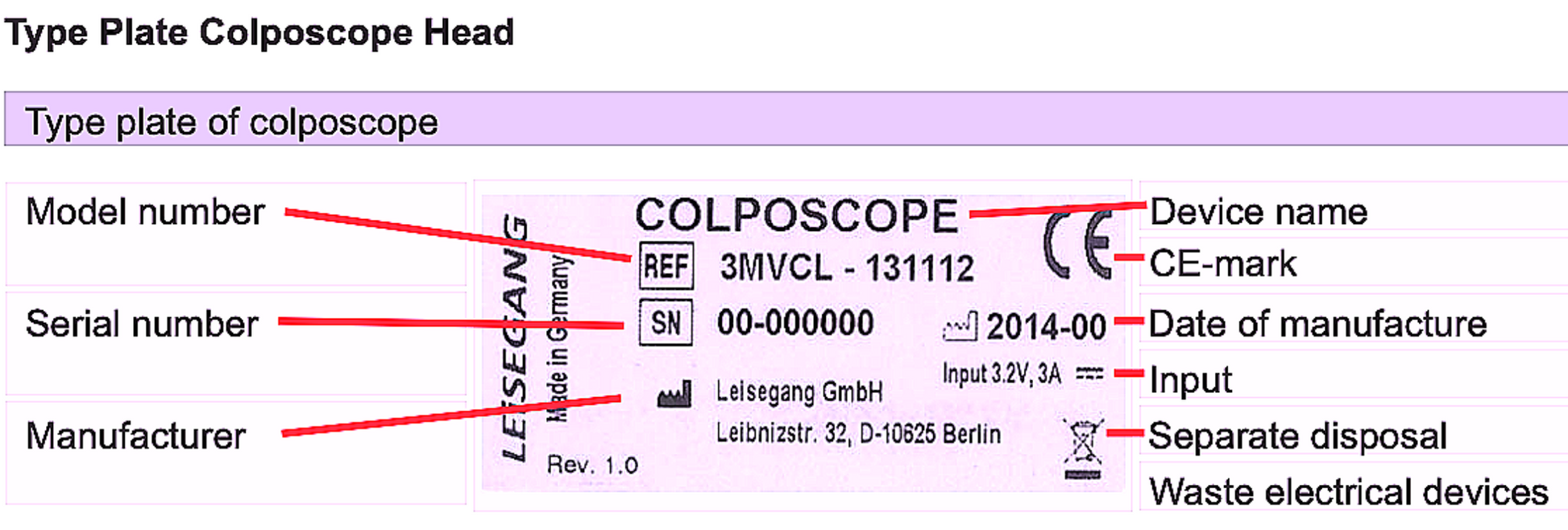

The plate identifications for OptiK Model 2 vary according to the camera configuration purchased.

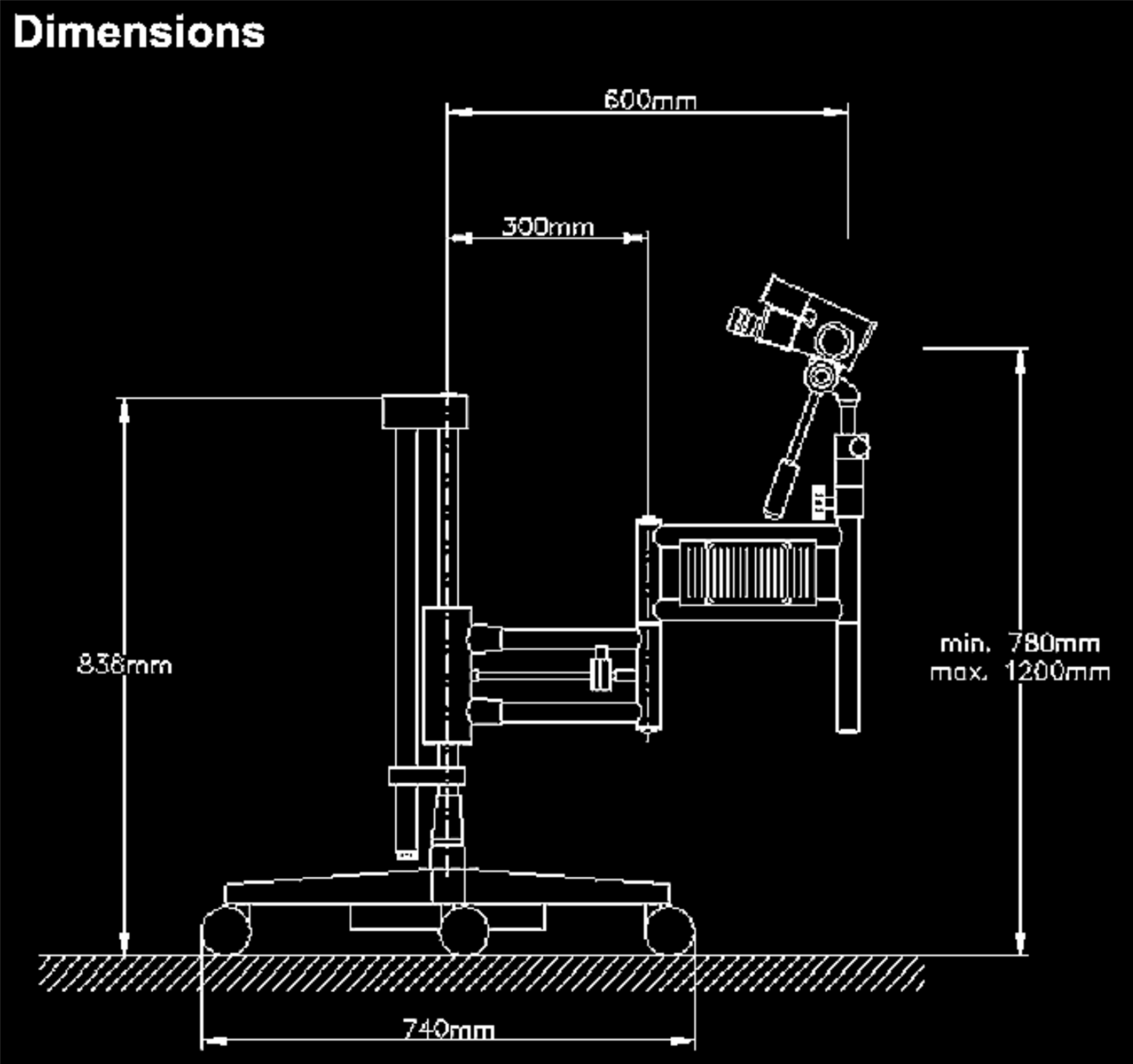

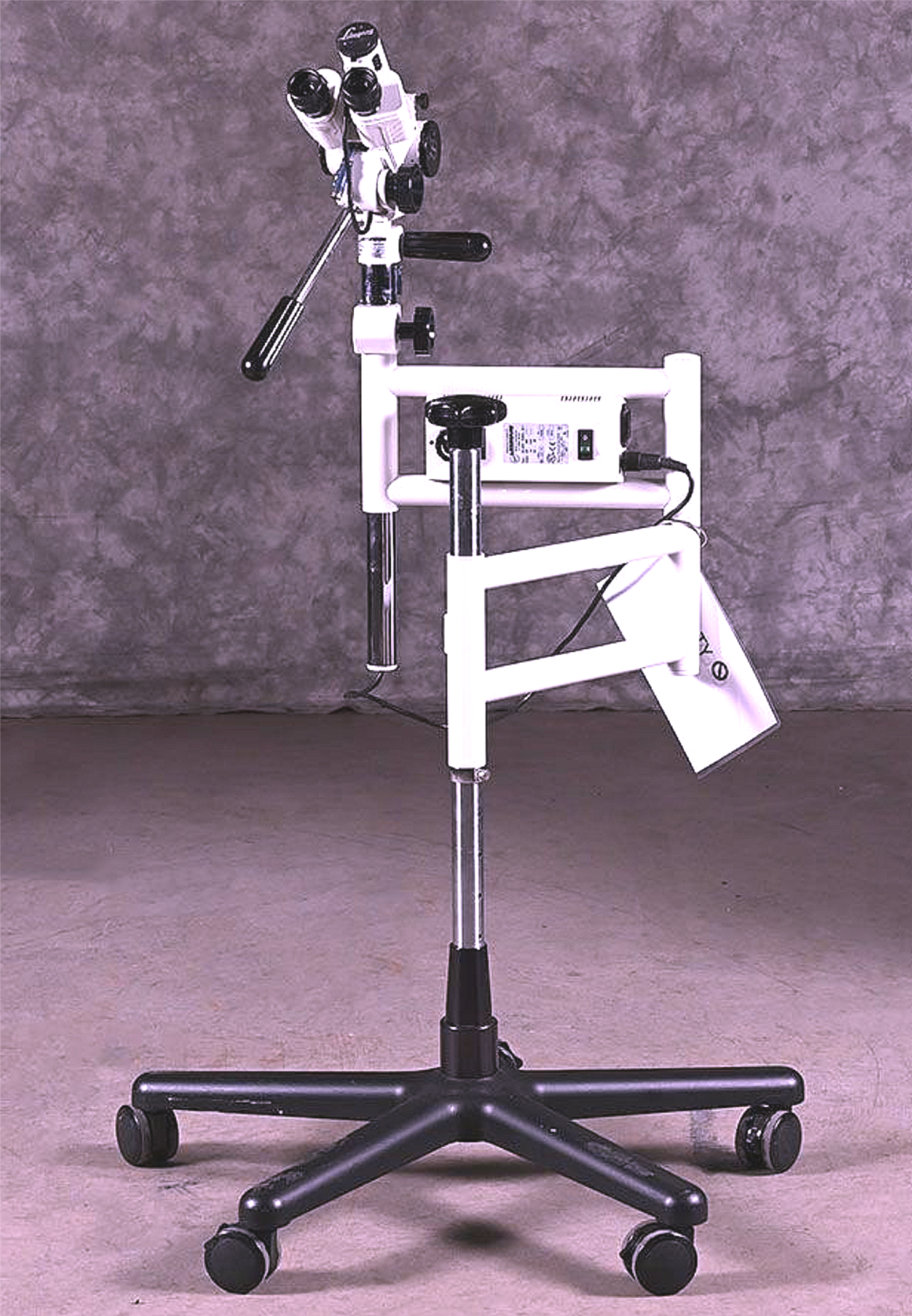

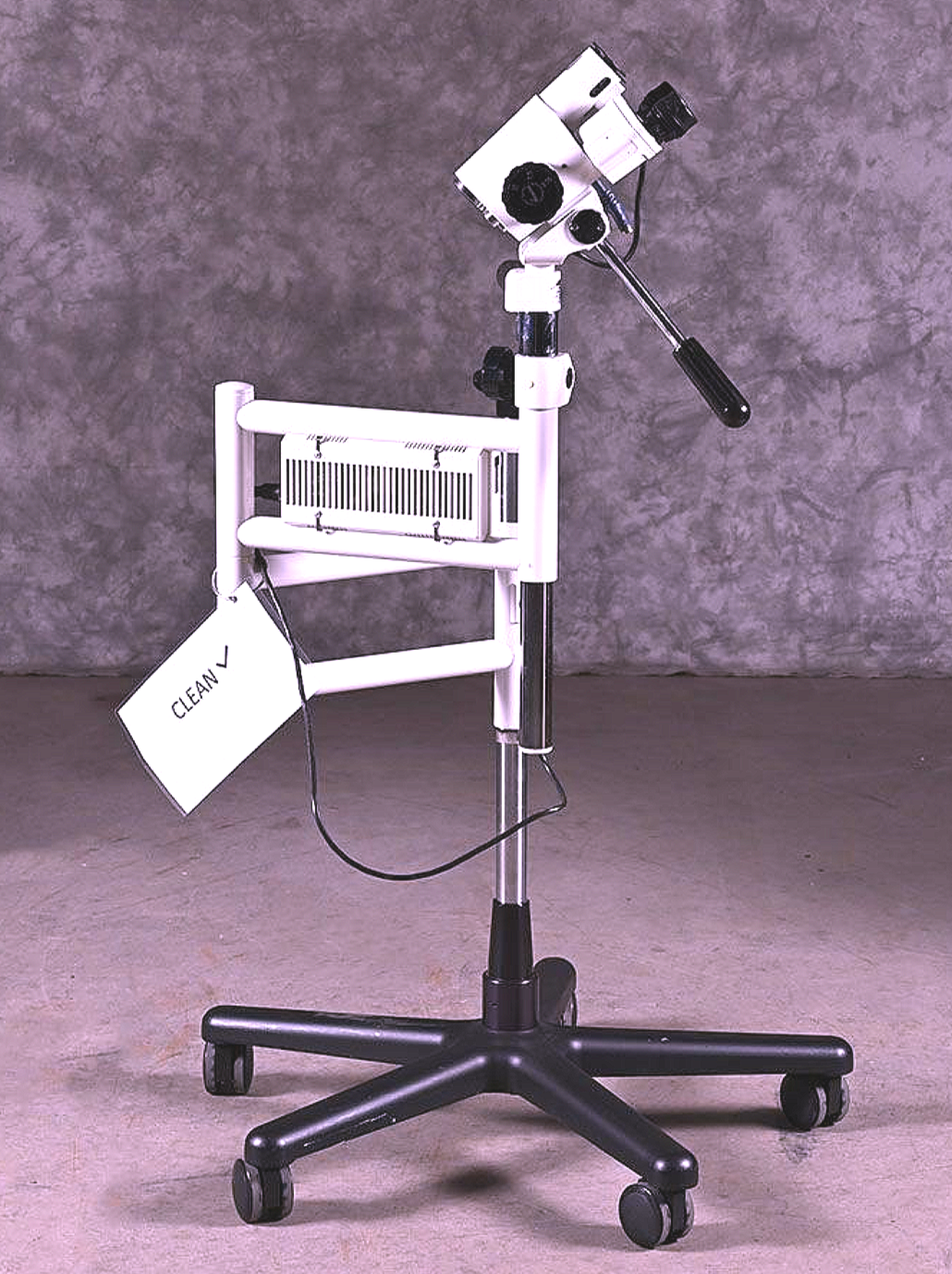

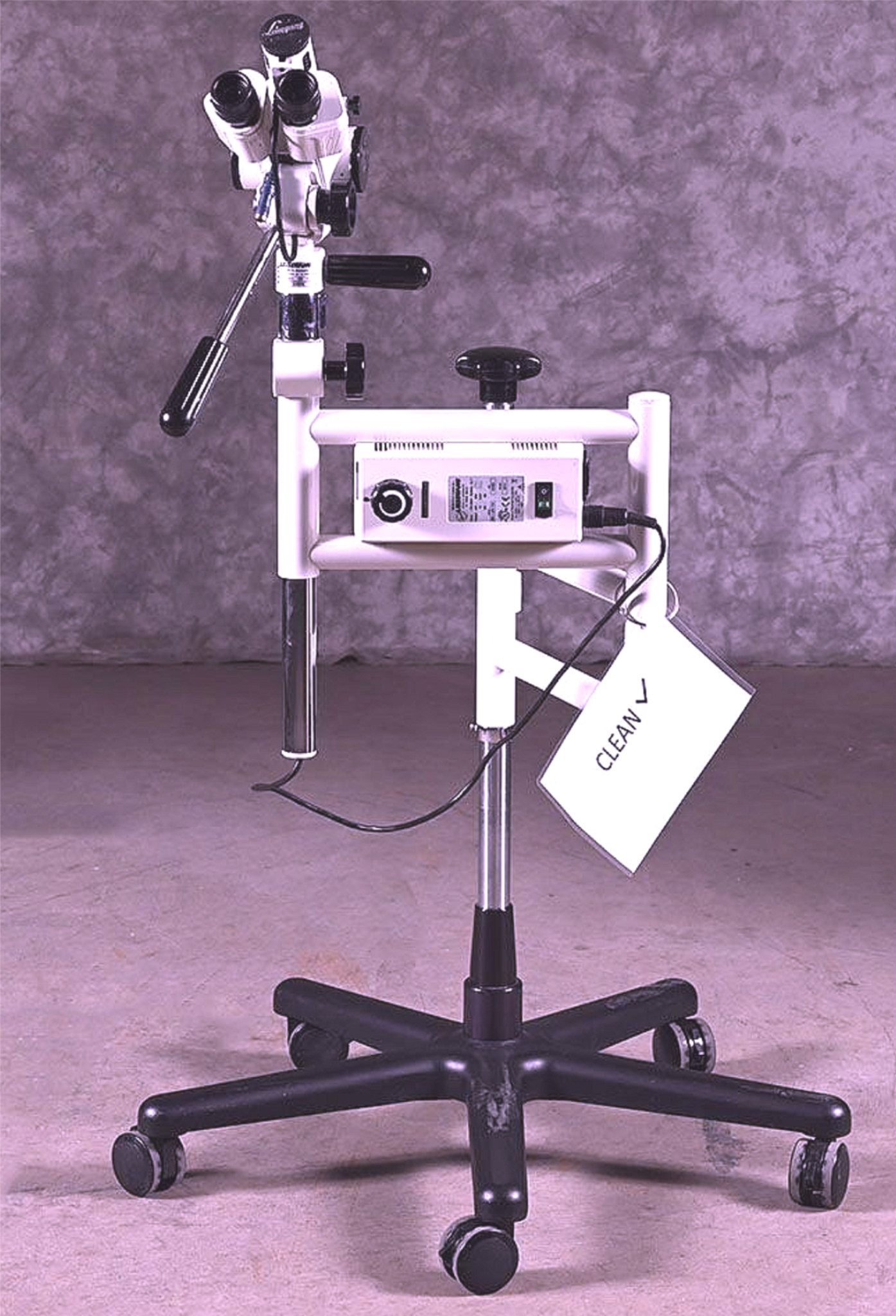

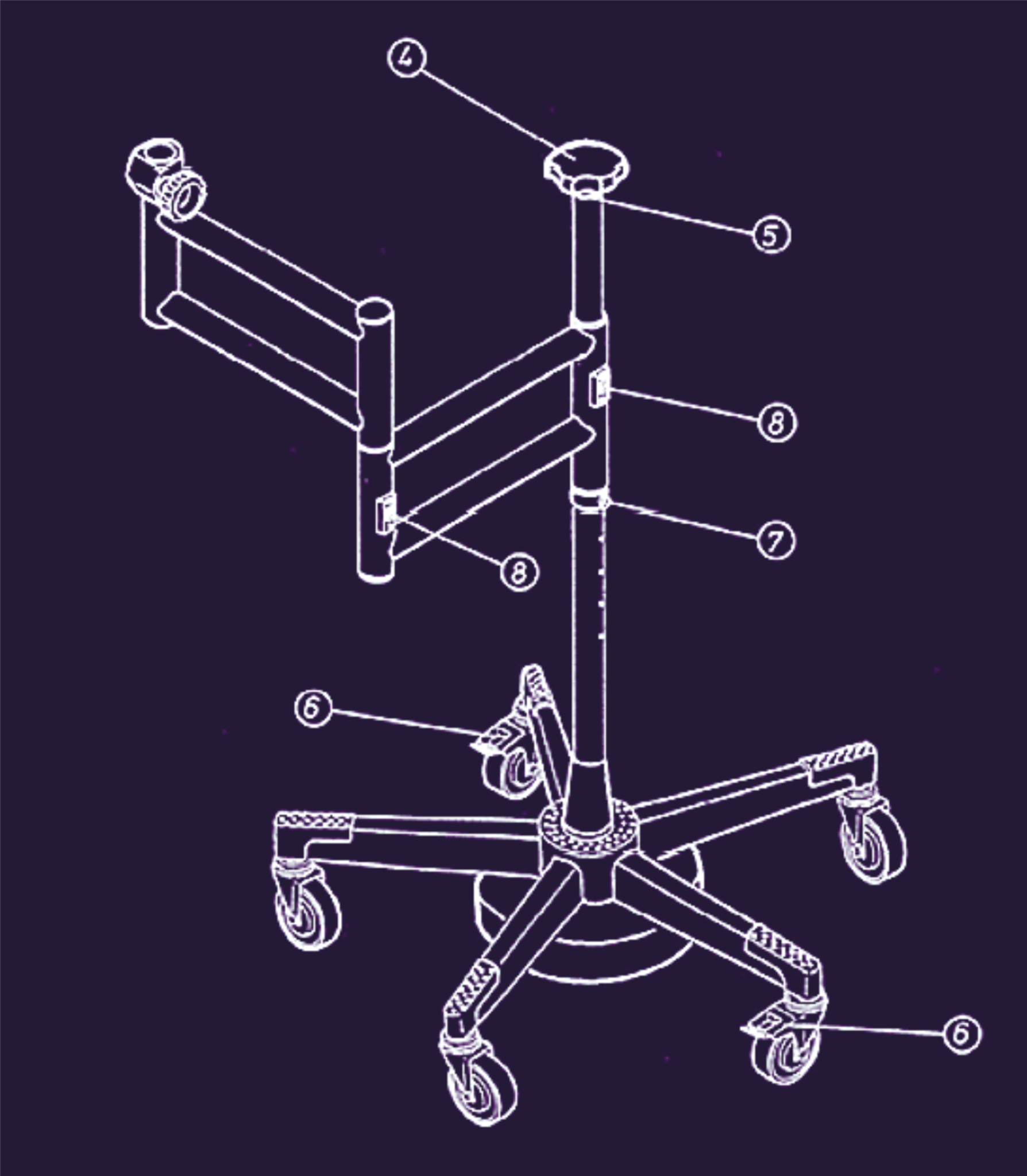

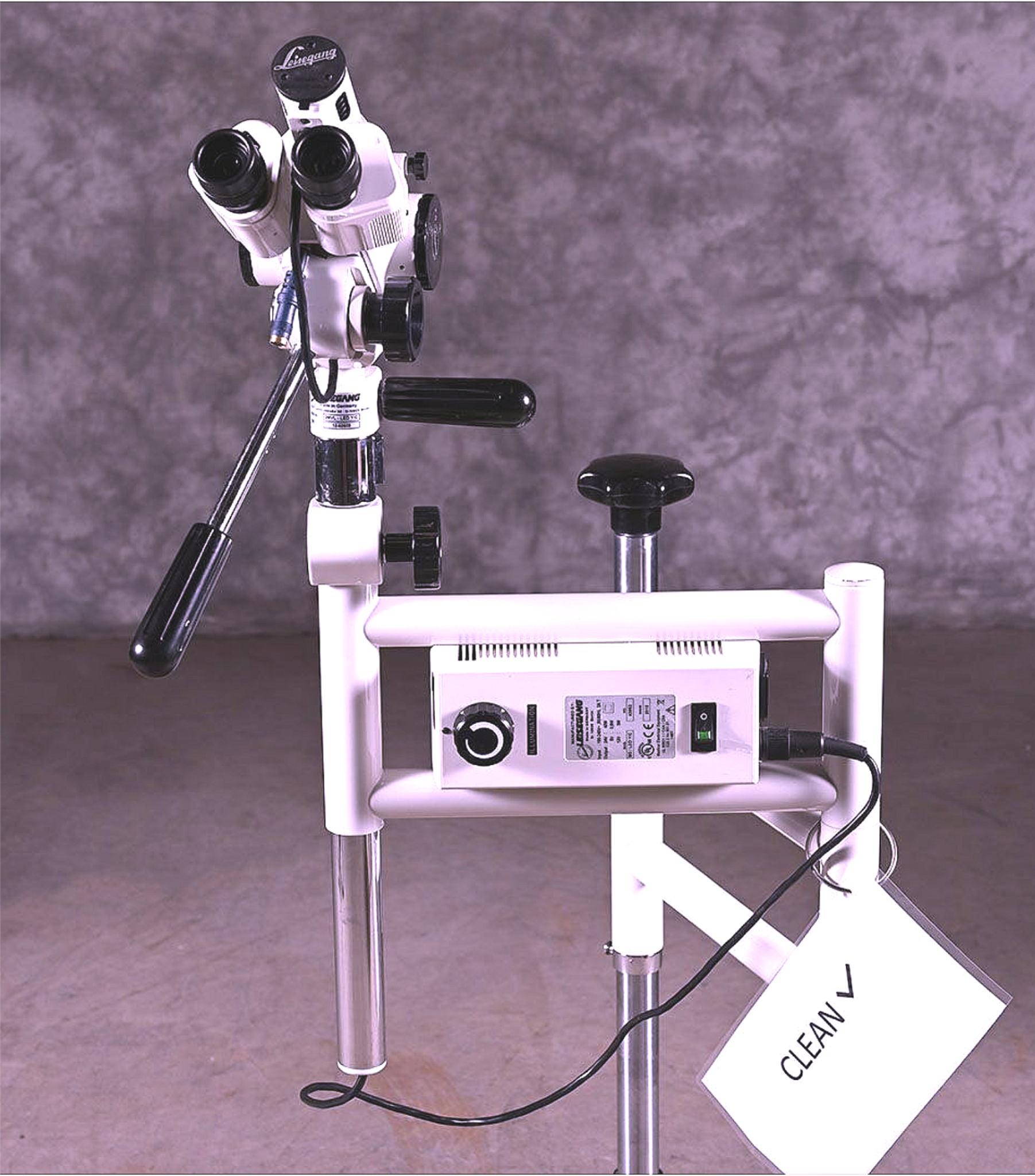

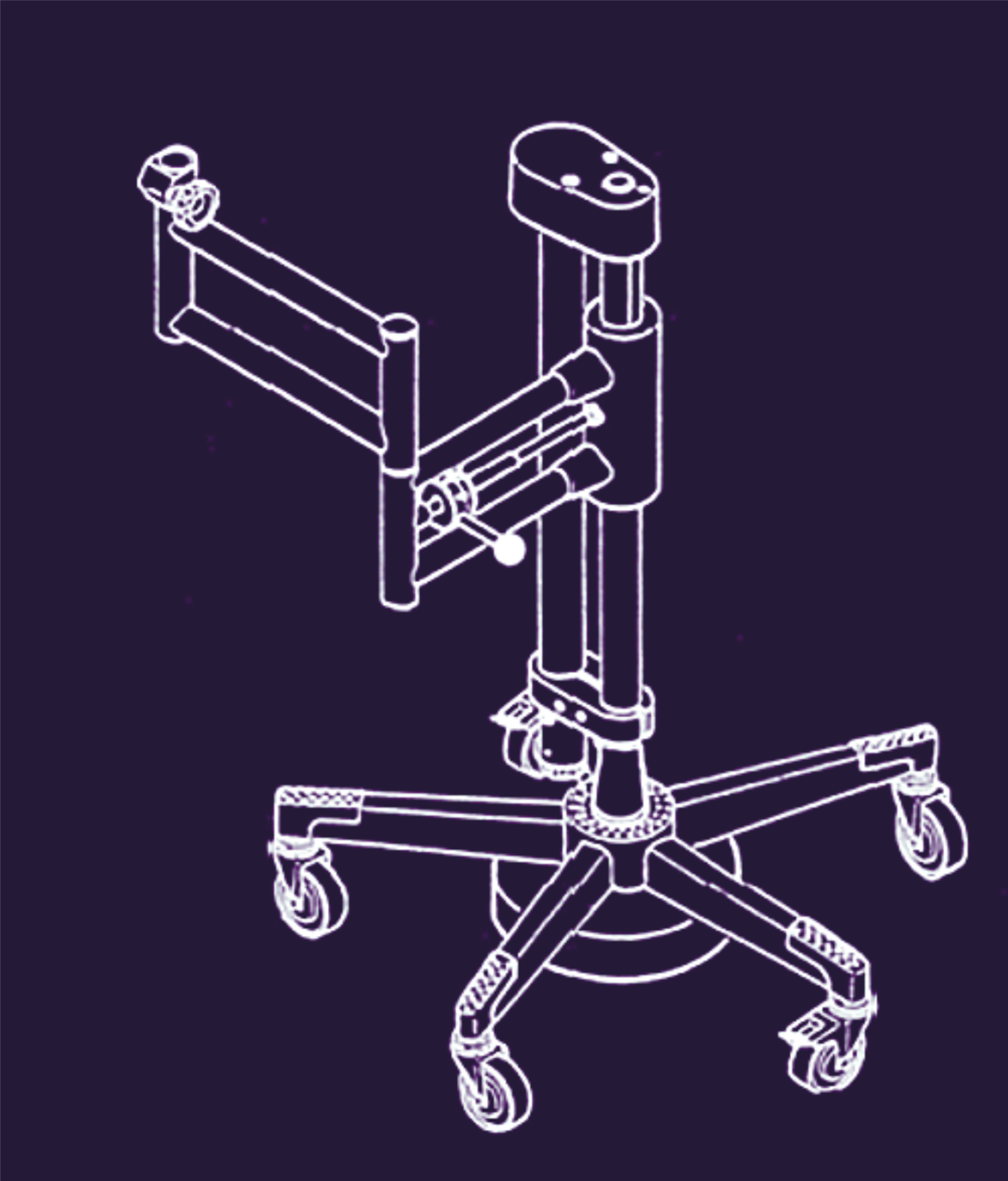

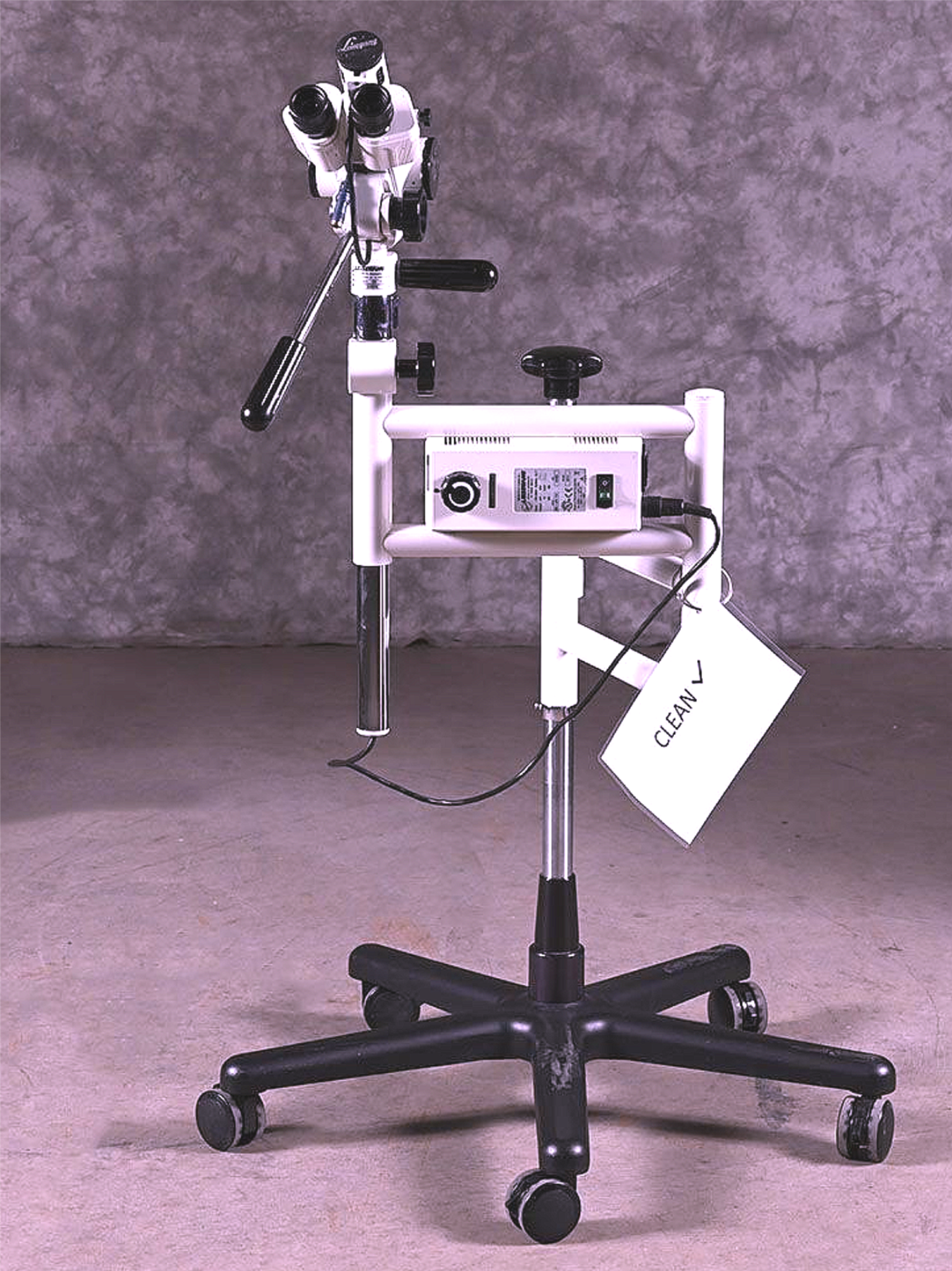

Swing Stand with heavy spider base
Features

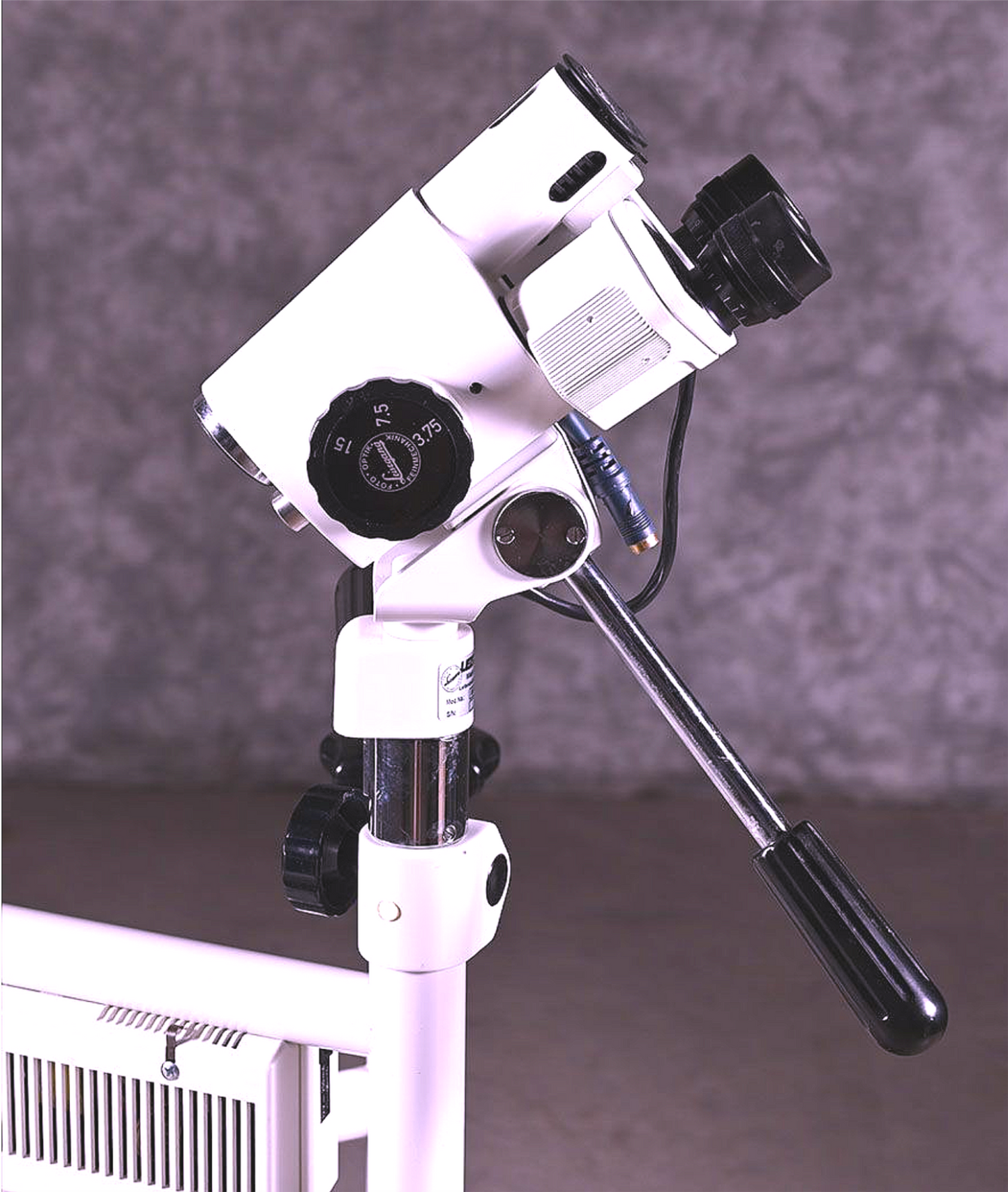

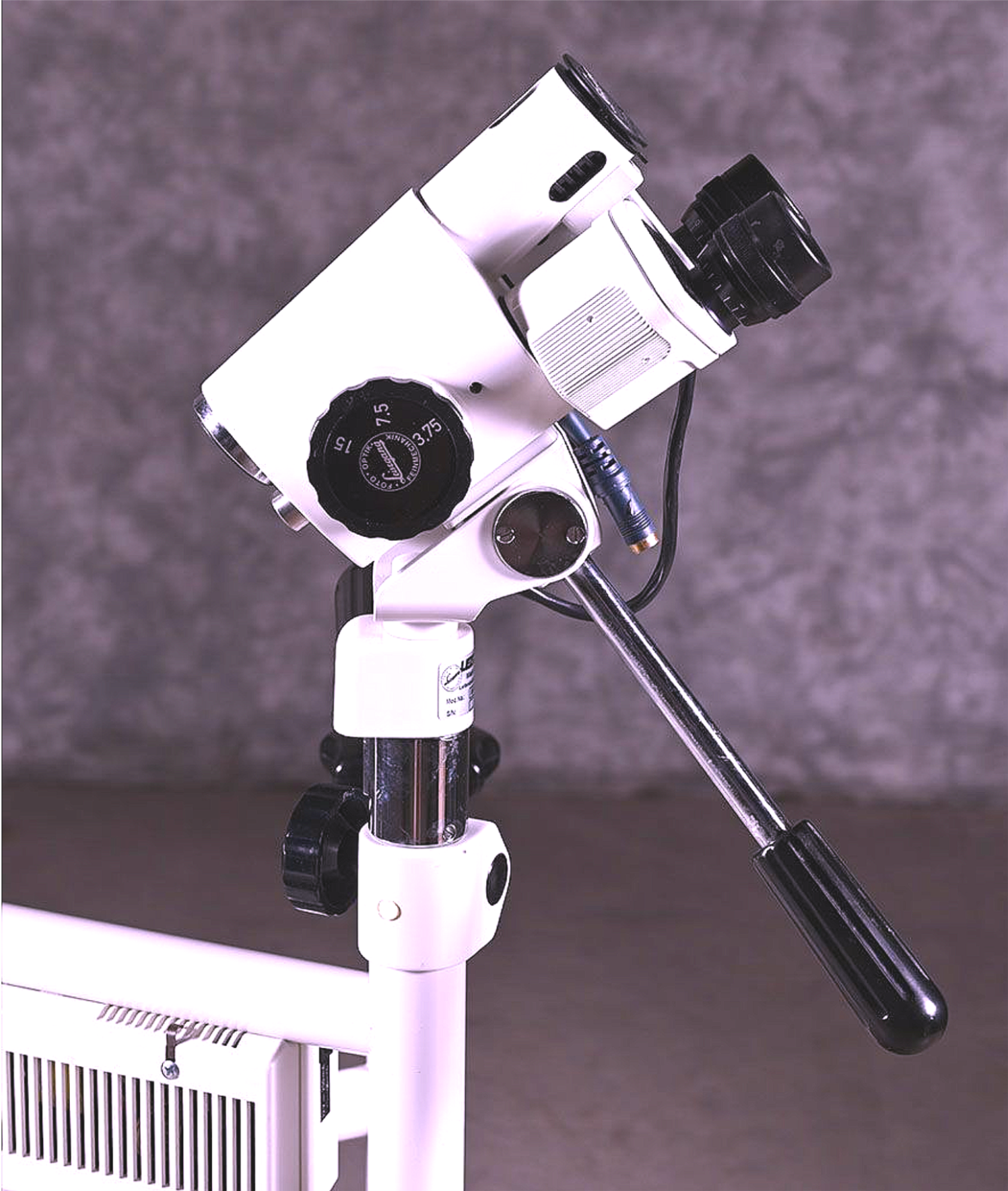

• 3-step magnification drum changer (3.75x/7.5x/15x)
• Inbuilt LED Lamp

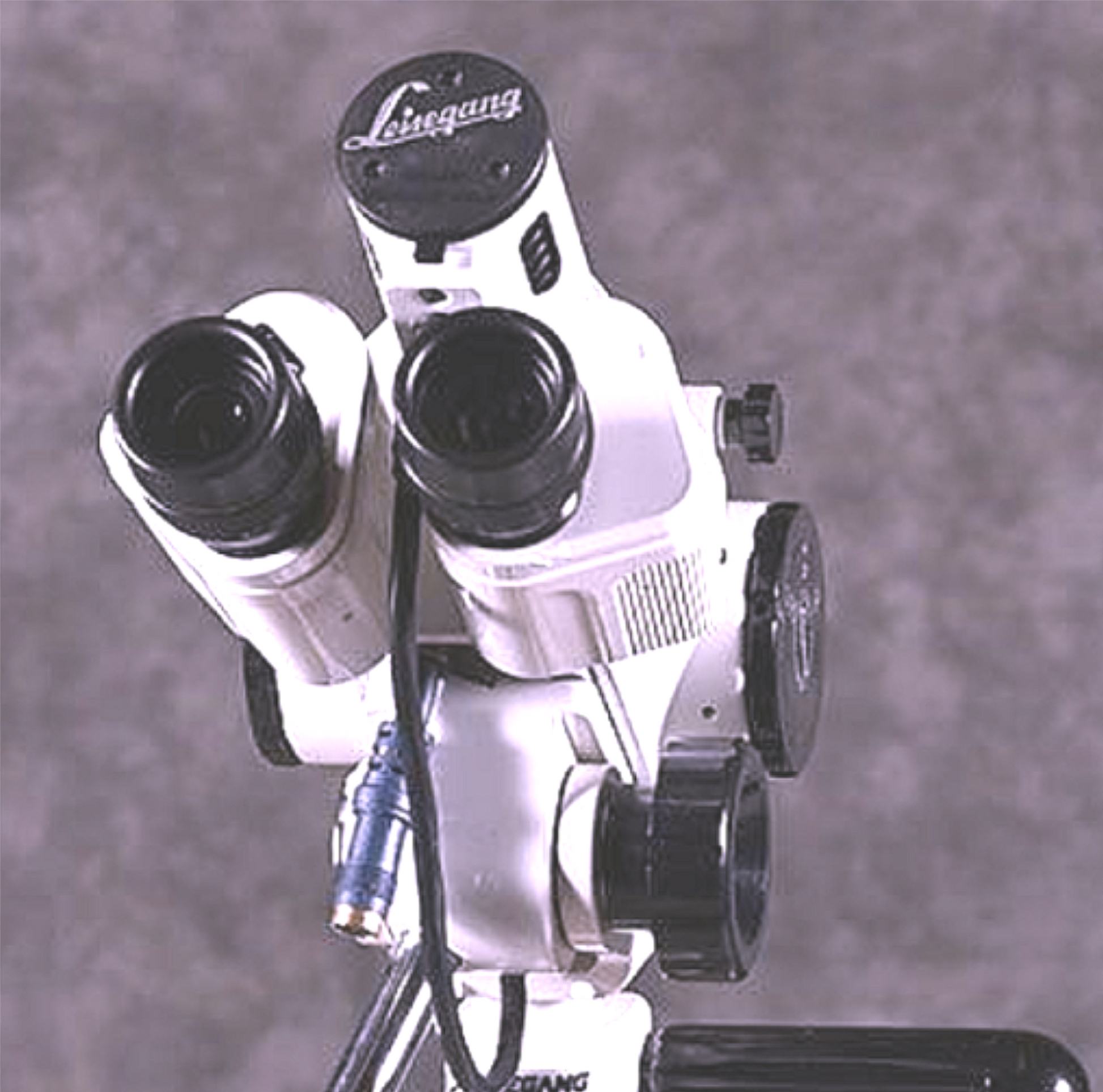

• Individually adjusting oculars with measuring reticules
• Measuring reticules in optical pathway for lesion assessment
• Gross and fine focusing and height adjustments
• Available in either 1.0” or 0.5” optimized charge coupled device (CCD) with external camera-ready port
with matching magnification (3MTL-LED). Or, available with integrated camera (3MVL-LED USB or
3MVL-LED Y/C)
• Green filter

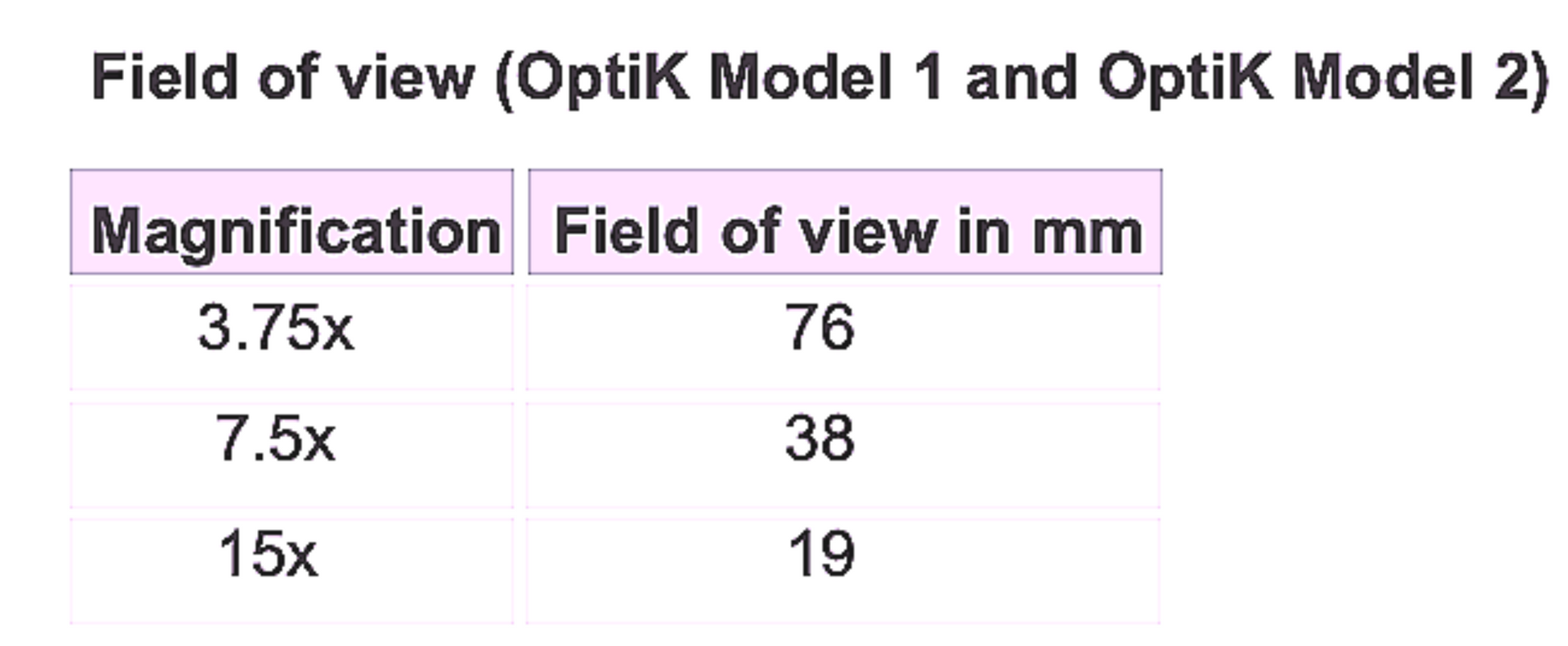

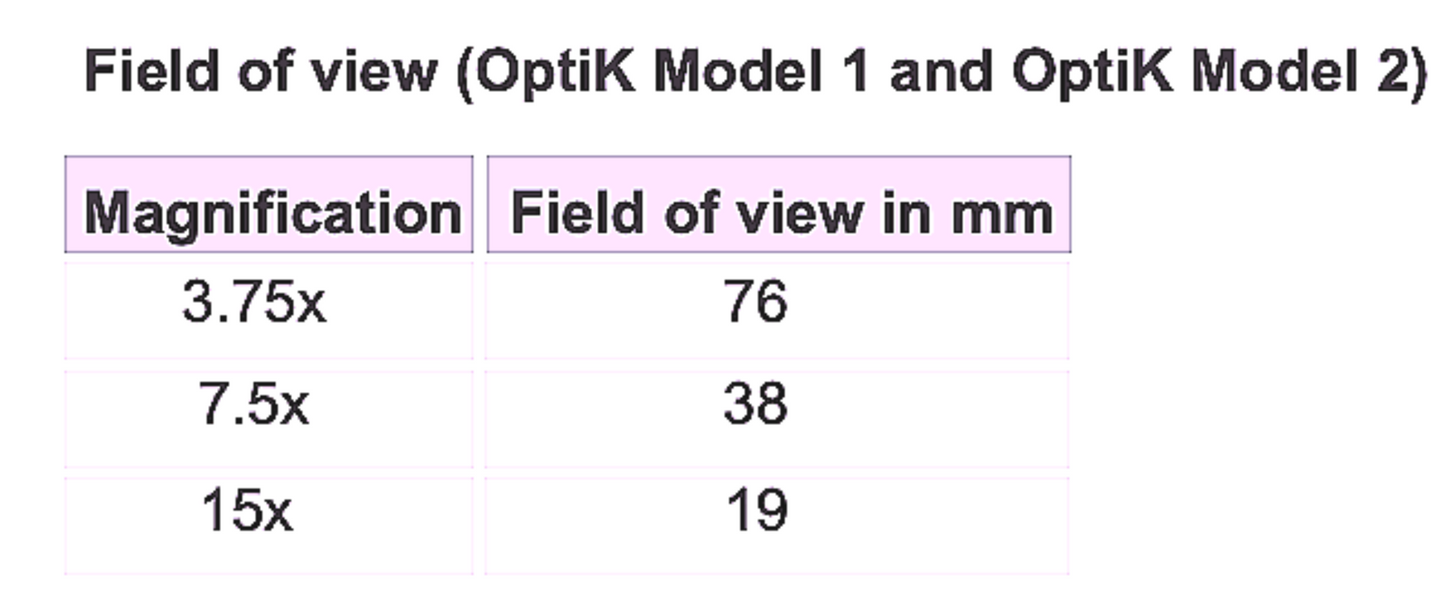

Field of view (OptiK Model 1 and OptiK Model 2)
Magnification Field of view in mm
3.75x 76
7.5x 38
15x 19

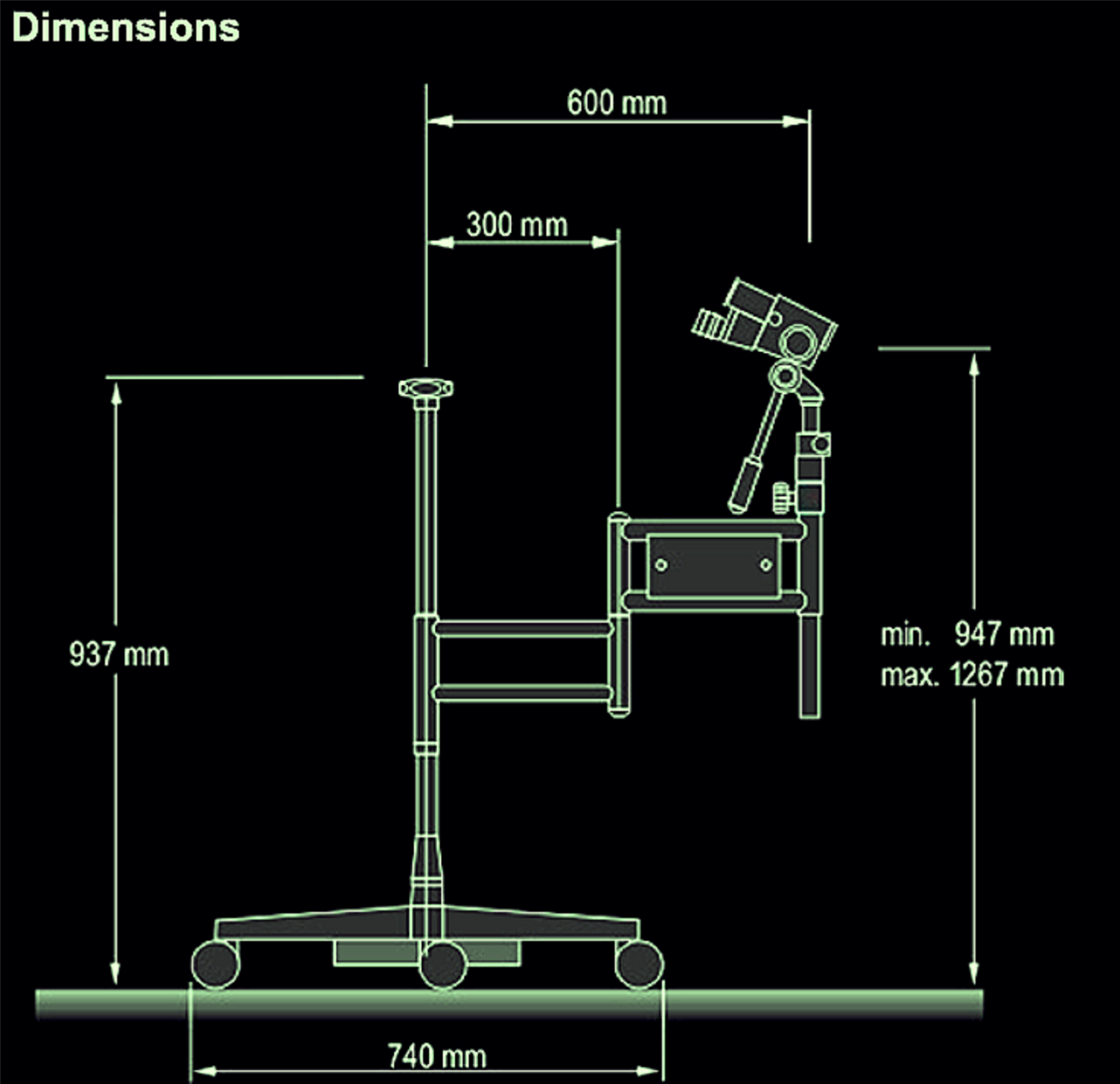

The working distance of a properly focused Leisegang colposcope is about 300 mm or 11.8 inches.
A sheet of paper, at 11 inches, is a good starting reference for length between the colposcope and the
object of focus.
