90DAYWARRANTY 220Volt EDWARDS 3 ROTARY VANE 2.3CFM VACUUM PUMP FILTER WATCHVIDEO

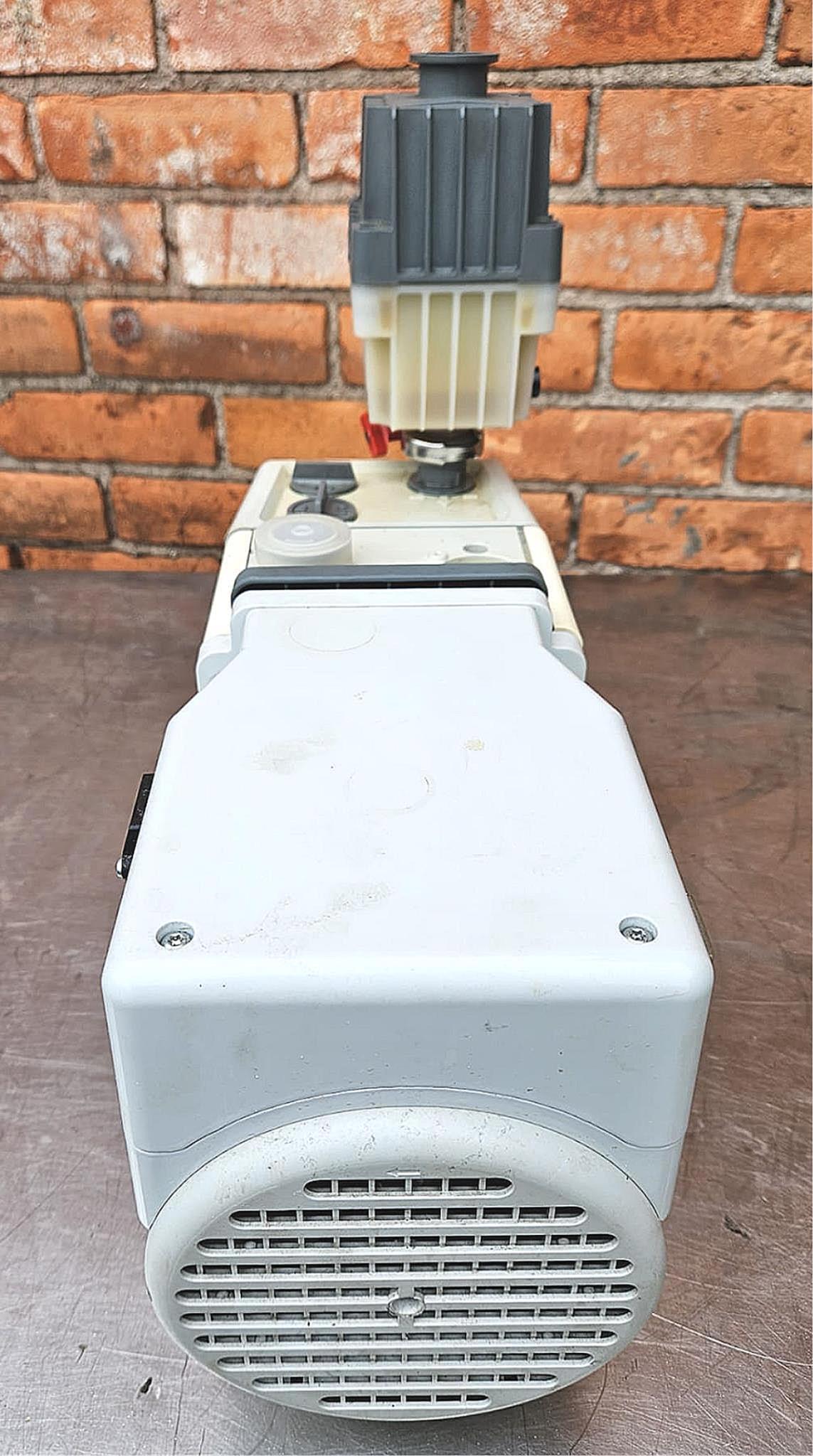

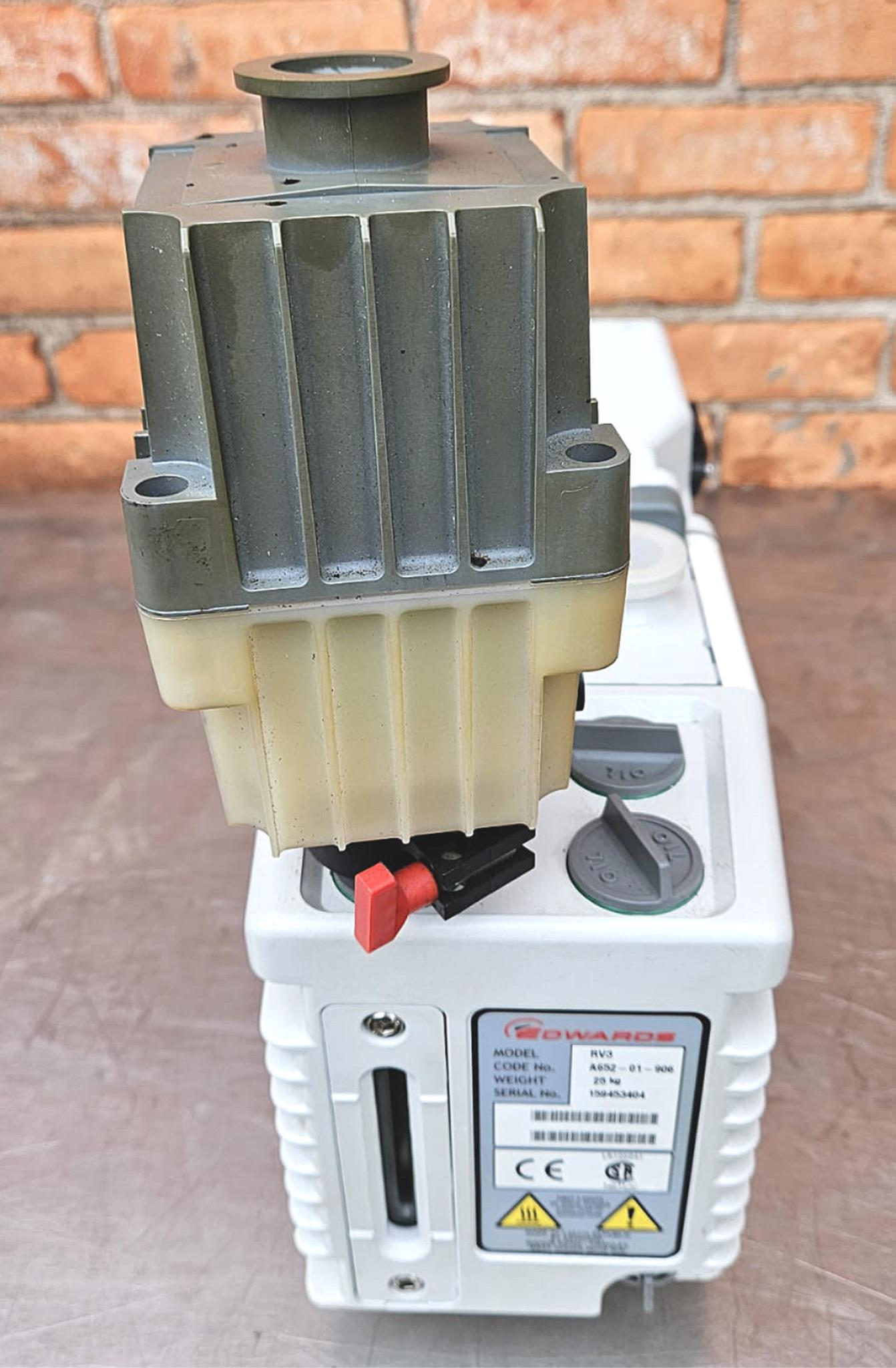

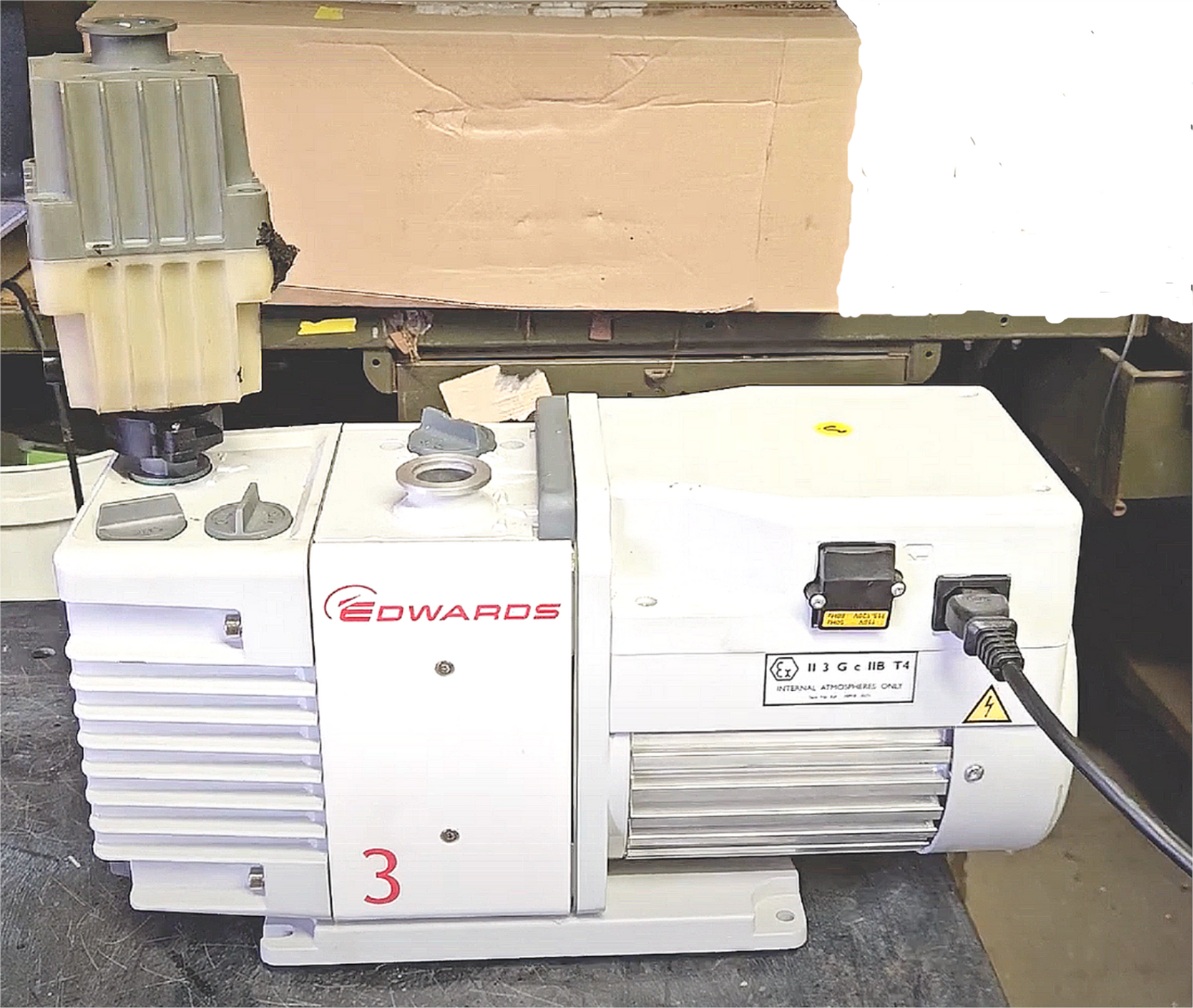

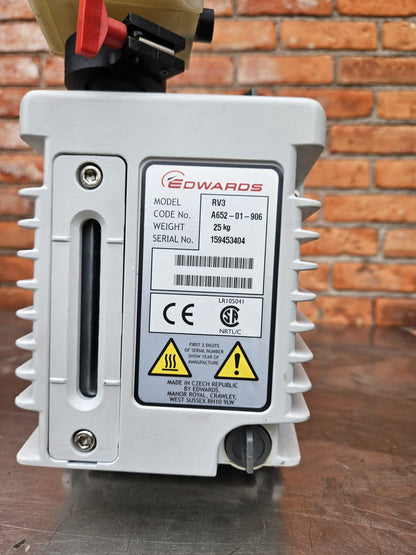

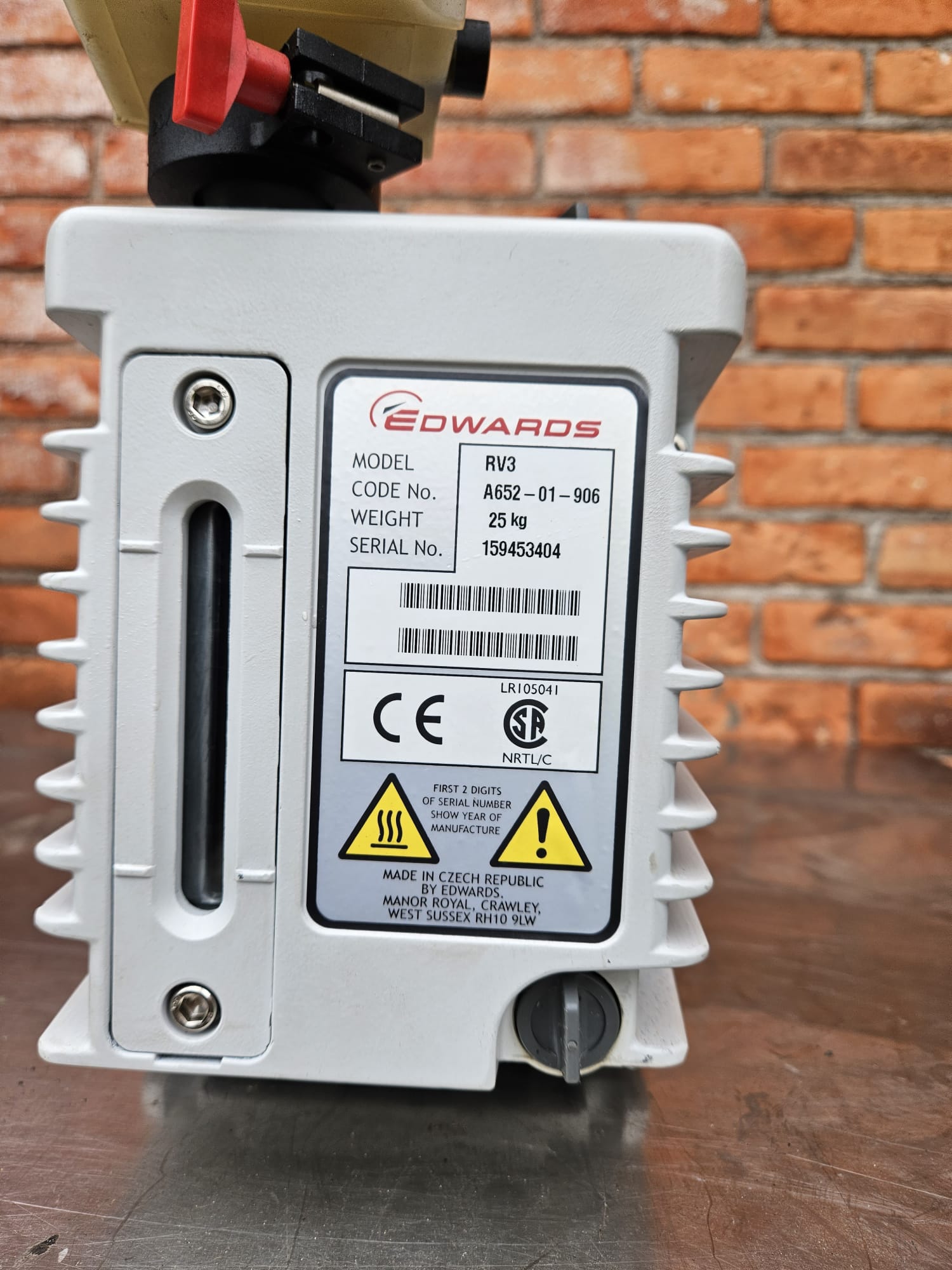

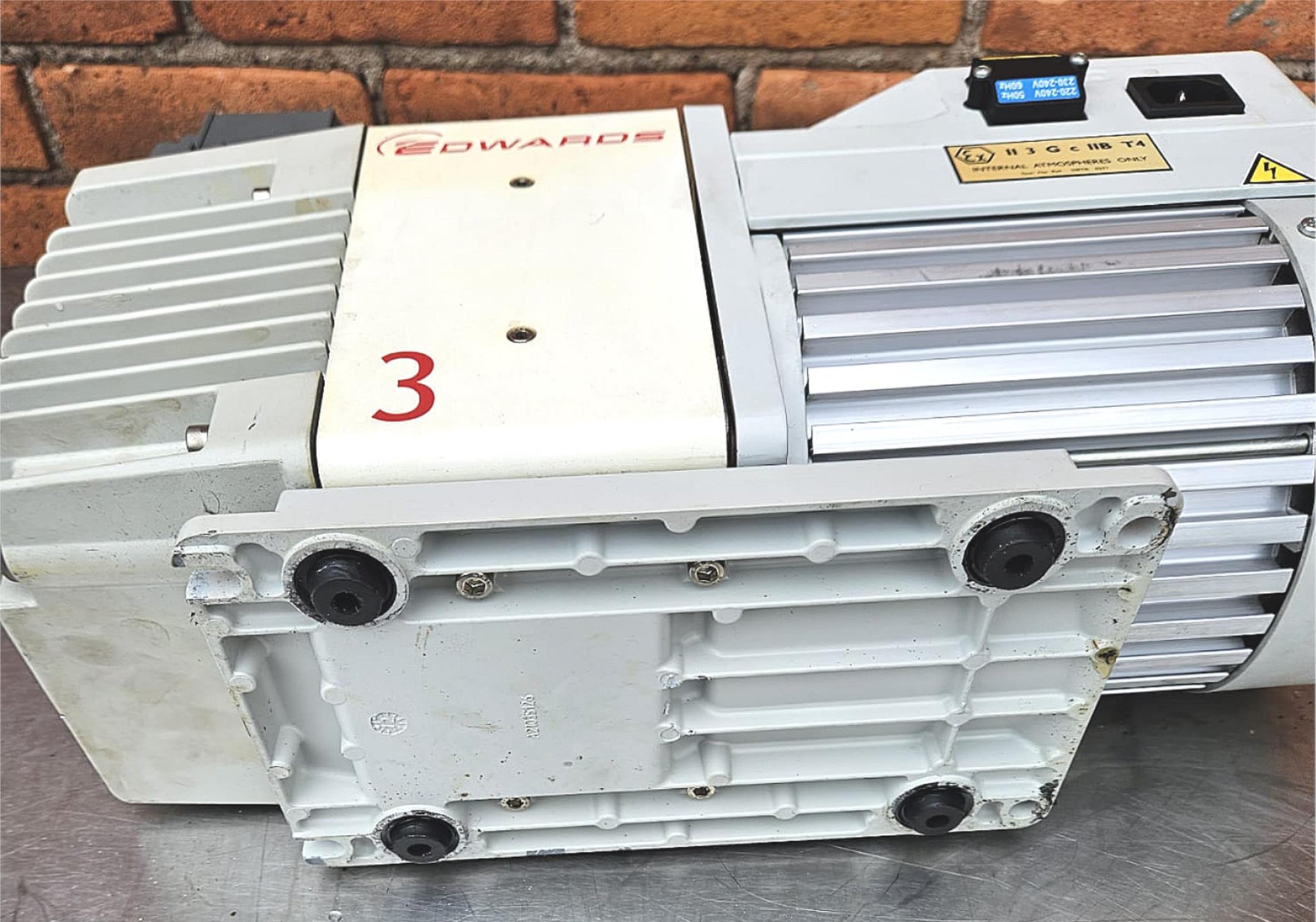

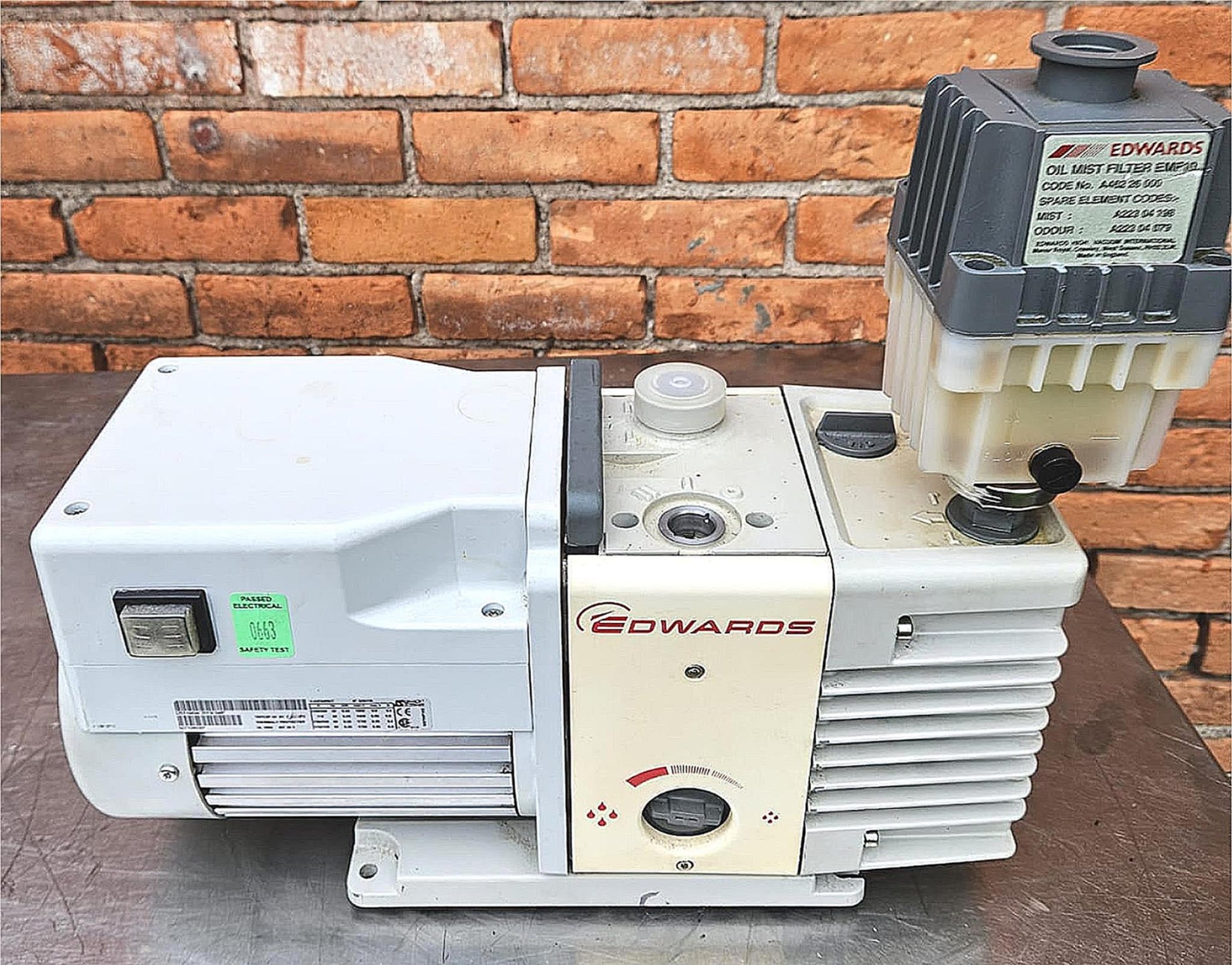

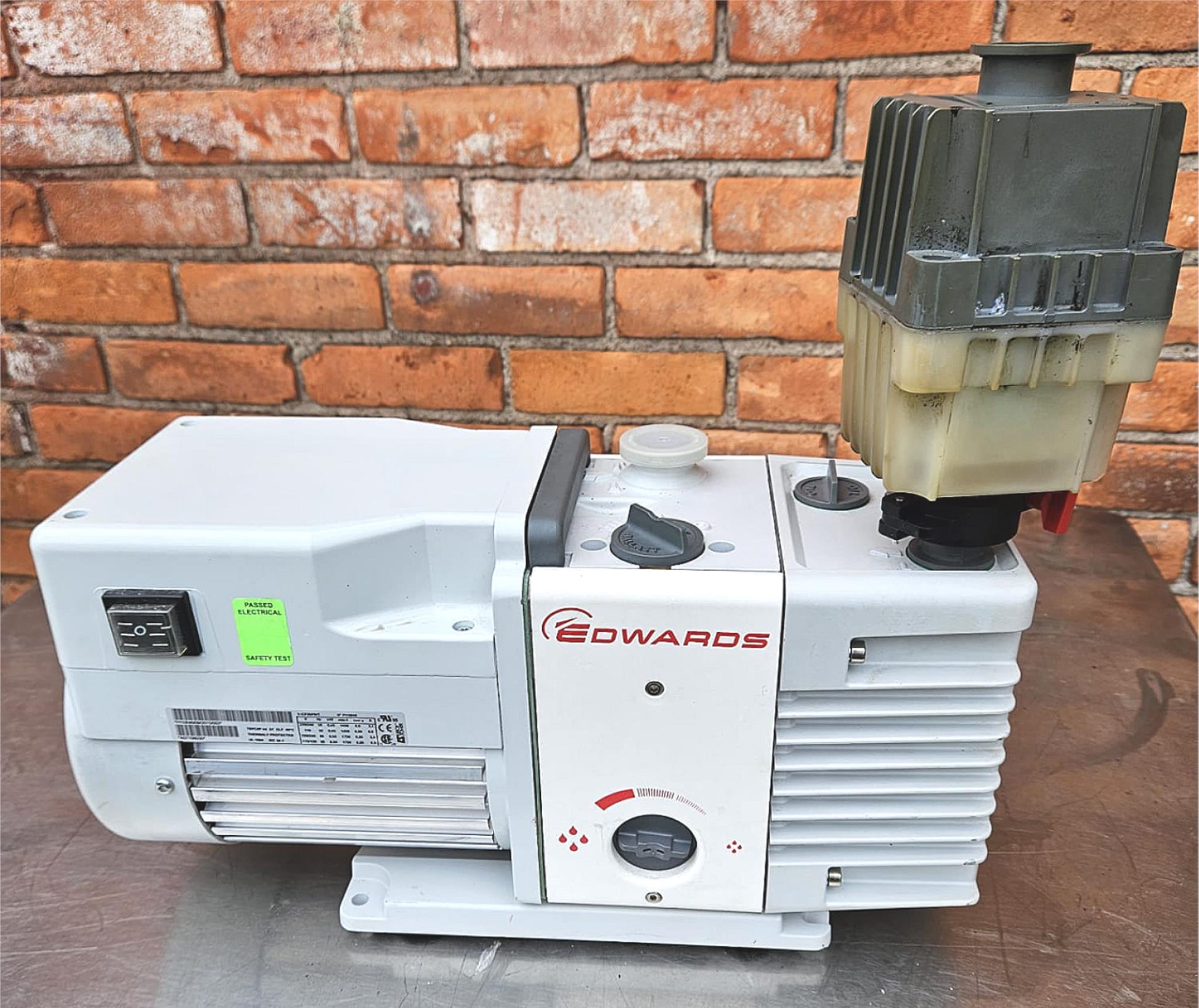

This listing is for a Wonderful Operational Pre-owned Condition 220Volt EDWARDS 2.3 CFM RV3 TWO STAGE ROTARY VANE VACUUM PUMP with MIST FILTER as can be seen in the pictures.

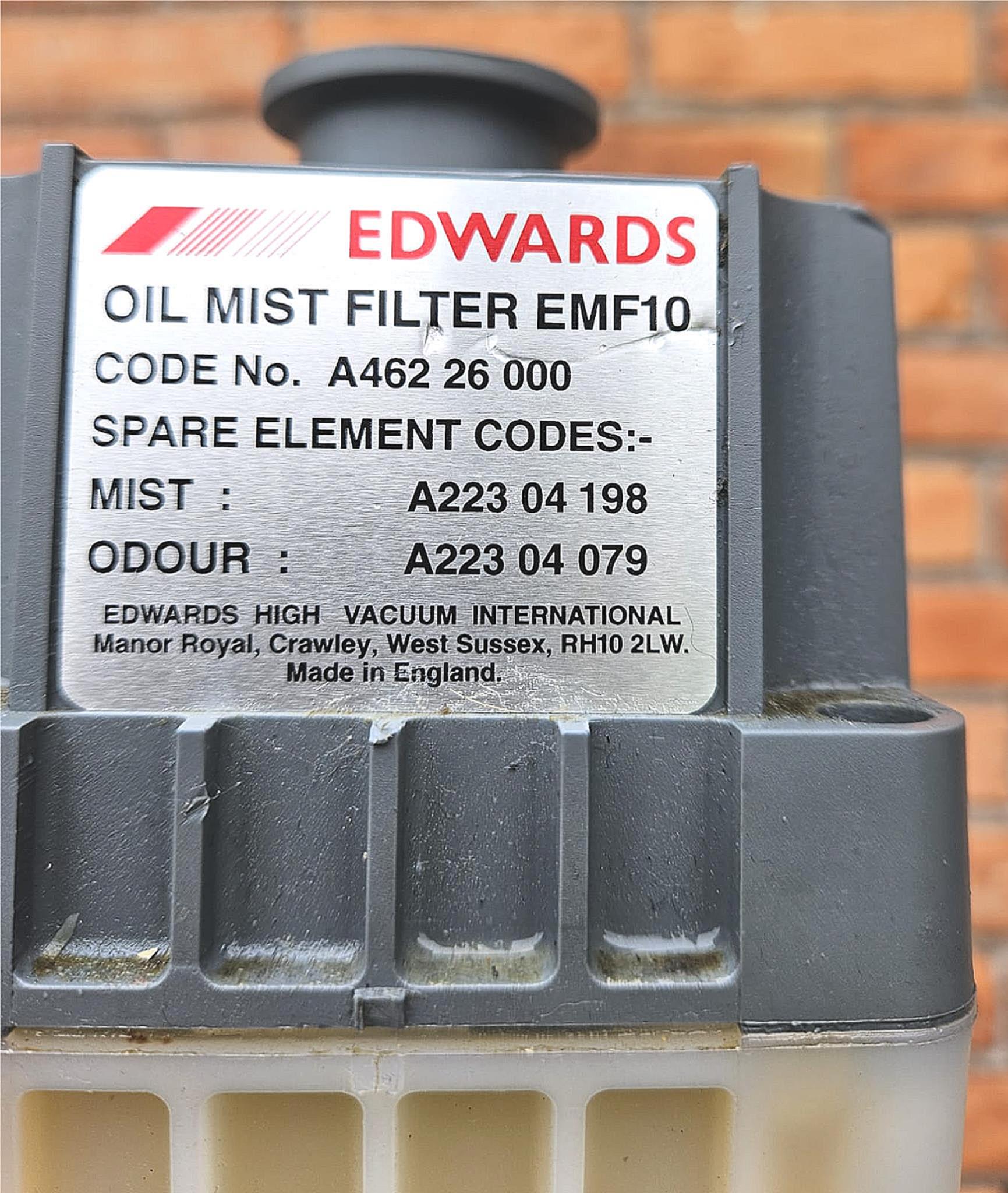

Additional Bonus Accessories: Edwards EMF10 Oil Mist Filter NW25 (A Bonus $323.62)

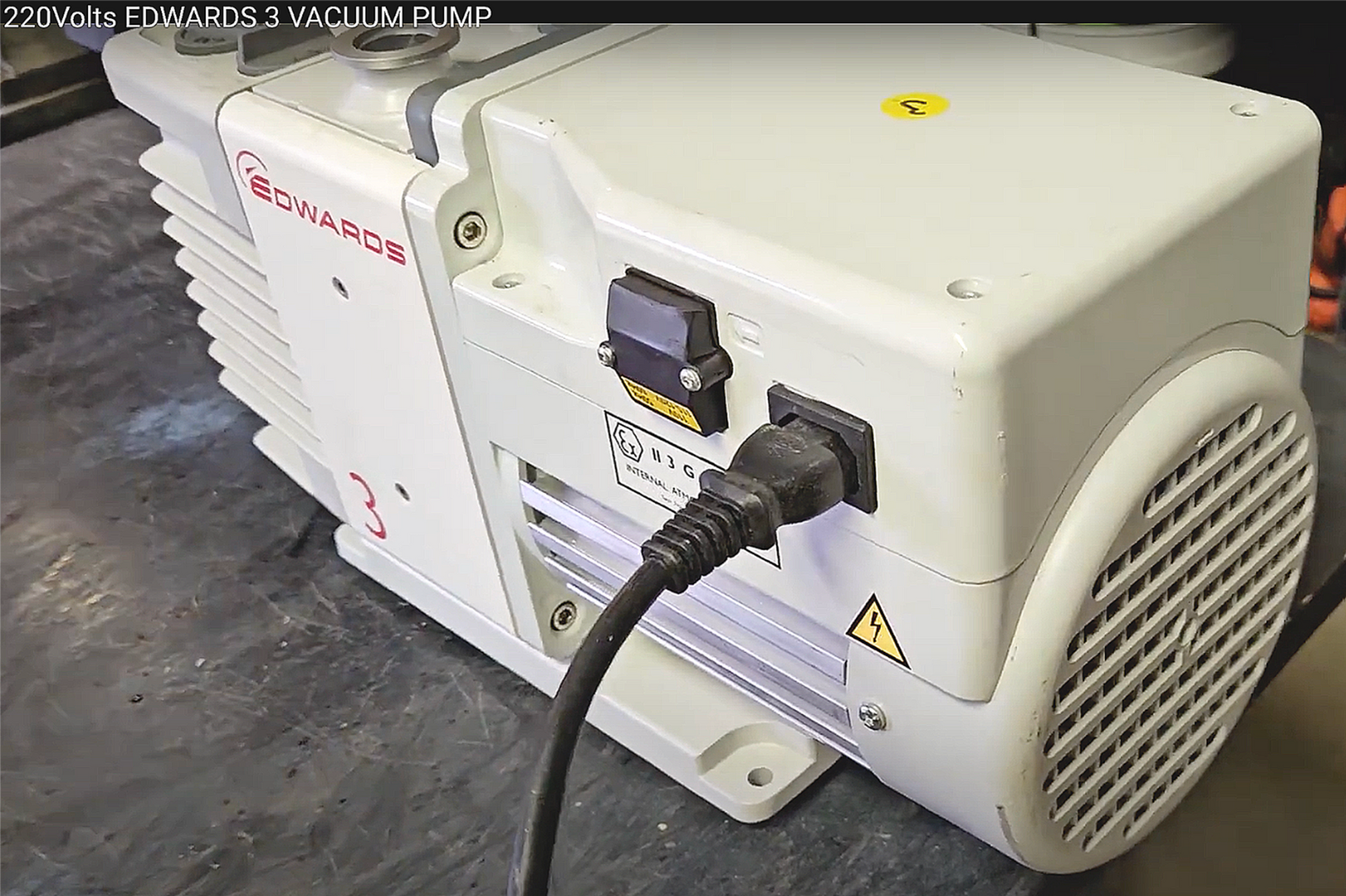

FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING BY CLICKING: https://www.youtube.com/watch?v=8xoWFK03agY

The unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures.

This 220Volt EDWARDS 2.3 CFM RV3 TWO STAGE ROTARY VANE VACUUM PUMP is GUARANTEED to perform at factory specifications and that's why we offer a 90-DAY-WARRANTY on this unit!!!

Technical Information below in BLUE ITALICS was taken online from Manufacturer's website:

msesupplies.com/products/edwards-2-3-cfm-rv3-two-stage-rotary-vane-pump?variant=39574095364154

Edwards 2.3 CFM RV3 Two Stage Rotary Vane Pump

THE RV SERIES IS THE ULTIMATE RANGE OF SMALL OIL SEALED ROTARY VANE PUMPS

The result of more than 80 years' experience and a clean sheet design program, these rugged vacuum pumps offer an excellent ultimate vacuum with good pumping speeds as well as superior vapor handling capabilities and quiet operation.

MSE Supplies is an authorized distributor of Edwards vacuum pumps.

Key Features

High vapor handling resulting in quicker process.

Superior particulate handling providing high reliability.

Fast acting, automatic inlet valve for best in class anti-suck back protection for safe process and systems.

Mode selector and two position gas ballast configured to meet your vacuum needs.

Designed for easy maintenance resulting in no unplanned downtime.

Quiet running for a better work environment.

Universal Motor to cover the widest possible voltage and frequency range from a single motor.

Edwards RV pumps are supplied with an initial charge of Ultragrade 19 oil.

Applications

Mass Spectrometry

GCMS, LCMS, ICPMS, MALDI, RGA, surface science, leak detectors.

Electron Microscopy

TEM, SEM, sample coaters

Sample Preparation

Gel dryers, glove boxes, rotary evaporators, centrifuges.

Research and Development

Chamber evacuation, coating systems, turbomolecular pump backing.

High Energy Physics

Beam lines, accelerators, mobile pump carts, turbomolecular pump backing, laser evacuation.

Industrial

Glove boxes, coating systems, freeze drying, gas bottle, filling/emptying, refrigeration system manufacture, degassing/curing (oil, epoxy resin).

Chemical

Gel dryers, glove boxes, rotary evaporators, centrifuges, distillation/extraction/filtration.

Designed for Easy Maintenance

One size hex-head wrench to dismantle all parts.

All parts self-aligning so no jigs or special assemblies required.

Polymer blades with no springs or pins for easier assembly and greater reliability.

shaft seals can be replaced from the motor side without dismantling the pump mechanism.

No O-rings between the slices for easier assembly.

Additional features and benefits can be found here.

Technical Data

Peak Pumping Speed 60Hz 2.3 cfm

Peak Pumping Speed 50Hz 3.3 m3/h

Ultimate Pressure 60Hz 1.5 x 10-3 (1.5 x 10-2 with Fomblin®)

Ultimate Pressure 50Hz 2.0 x 10-3 (2.0 x 10-2 with Fomblin®)

Ultimate Pressure GB I mbar (Torr) 3.0 x 10-2 (2.3 x 10-2)

Ultimate Pressure GB II mbar (Torr) 1.2 x 10-2 (9.1 x 10-2)

High Throughput Mode mbar (Torr) 3.0 x 10-2 (2.3 x 10-2)

Water Vapor Tolerance mbar (Torr) 80 (60)

Water Vapor Capacity GB I 60 g/h

Water Vapor Capacity GB II 220 g/h

Oil Capacity 0.7 litres

Operating Temperature Range 12-40°C

Weight

lb 55 55

kg 25 25

Oil capacity litres 0.7

Oil type (Ultragrade) 19

Inlet flange NW25

Exhaust flange NW25

Noise level 50 Hz dB(A) 48

Noise level (with Acoustic Enclosure)* 50 Hz dB(A) 41

Operating temperature range °C 12 to 40

All of our equipment is fully tested to perform at factory specifications before being shipped.

Full 90-Day Warranty

The picture is the actual item buyer will receive.

FREE USA SHIPPING ALSO!!!

INTERNATIONAL BUYERS PLS CONTACT US FOR A SHIPPING QUOTE!!!

Stock # 231409
