Highly Accurate. Small. Reliable.
• 0 to 100% measurement range
• mini-zirconia oxide ZR-500 sensor
• ± 0.5% accuracy
• internal or remote sensor mounting
• T90 < 15 seconds
SPECIFICATIONS
Type Percent oxygen analyzer
Operating range 0-1%, 0-10%, 0-25%, 0-50%, 0-100%, auto
Sensor mini-Zirconia, limiting current type, ZR-500
Accuracy within ±0.5% of measurement range
Response time T90 < 15 seconds
Warm up time 60 seconds to operation; 35 minutes for temperature equilibrium
Sensor expected service life 2 years
Relative humidity (analyzer) 0 - 95% non-condensing
Operating temperature -10 - 50° C (14 - 122° F)
Sample pressure (internal sensor) 1-10 psig; not to exceed 20 psig
Sample pressure (external sensor) 15” Hg cacuum to 7 PSIG (0.5 to 1.5 Bar)

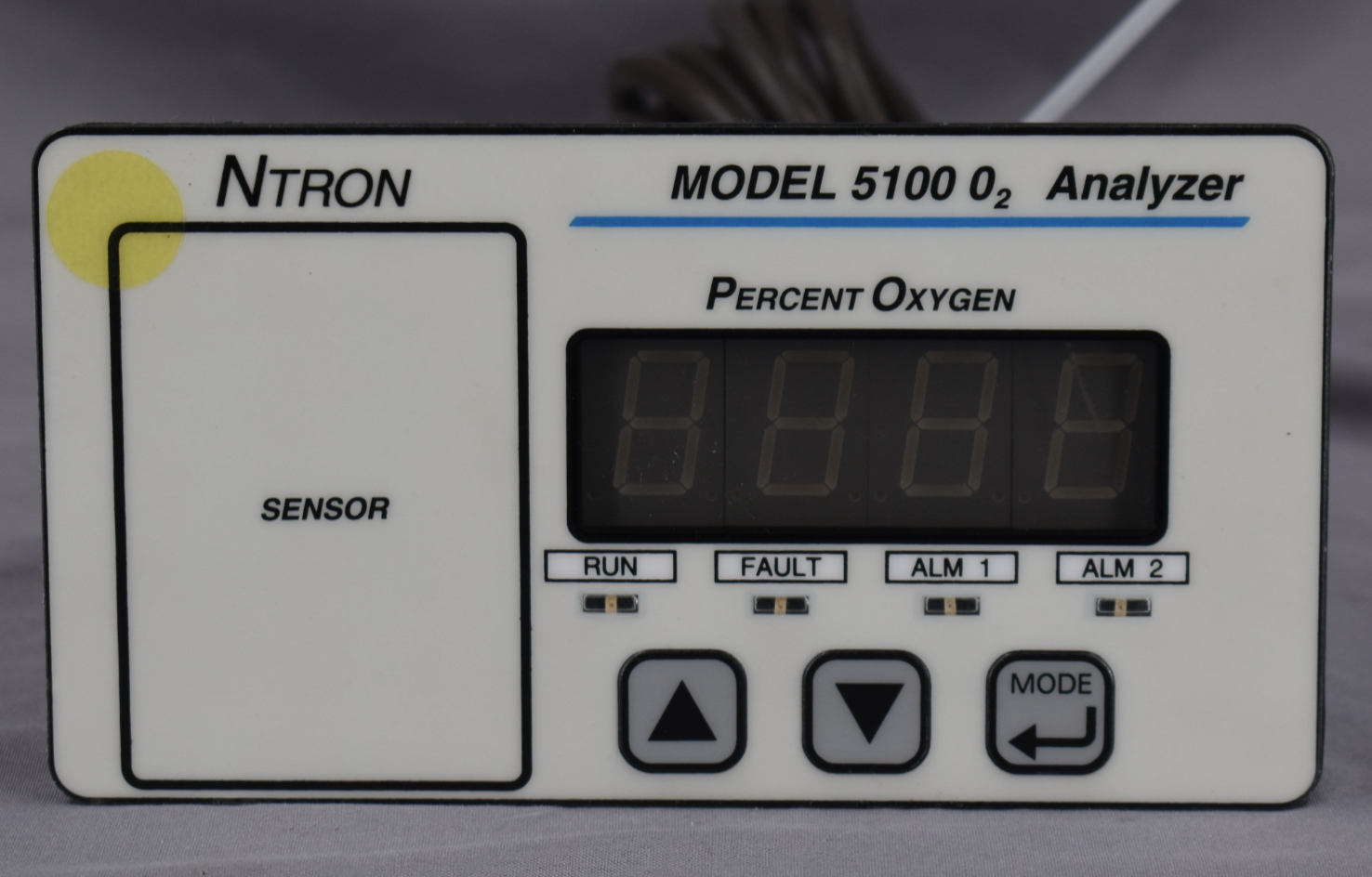

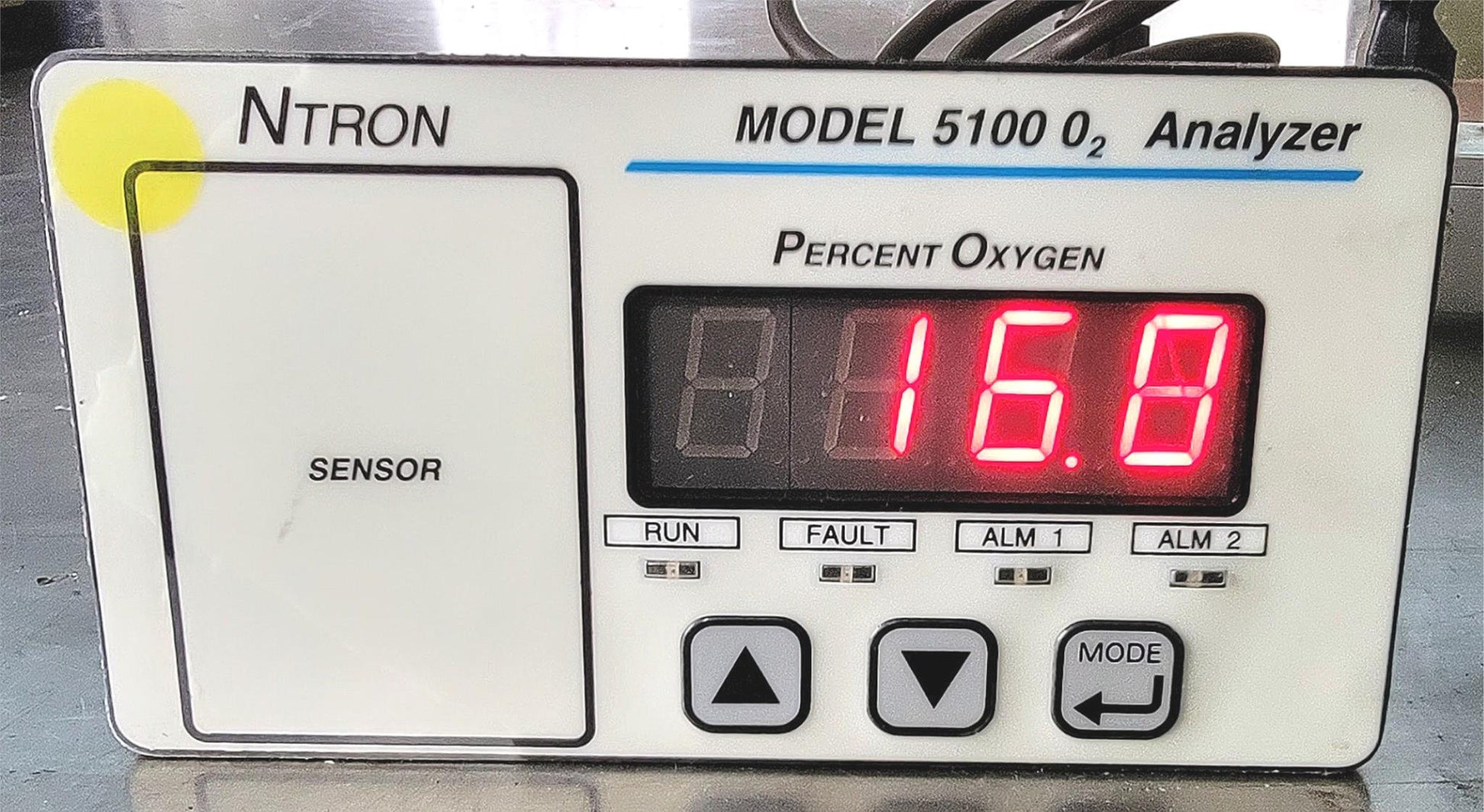

Display 7-segment, 0.75" alphanumeric LED, 4 characters
LEDs for system status: run, fault, alarm-1, alarm-2

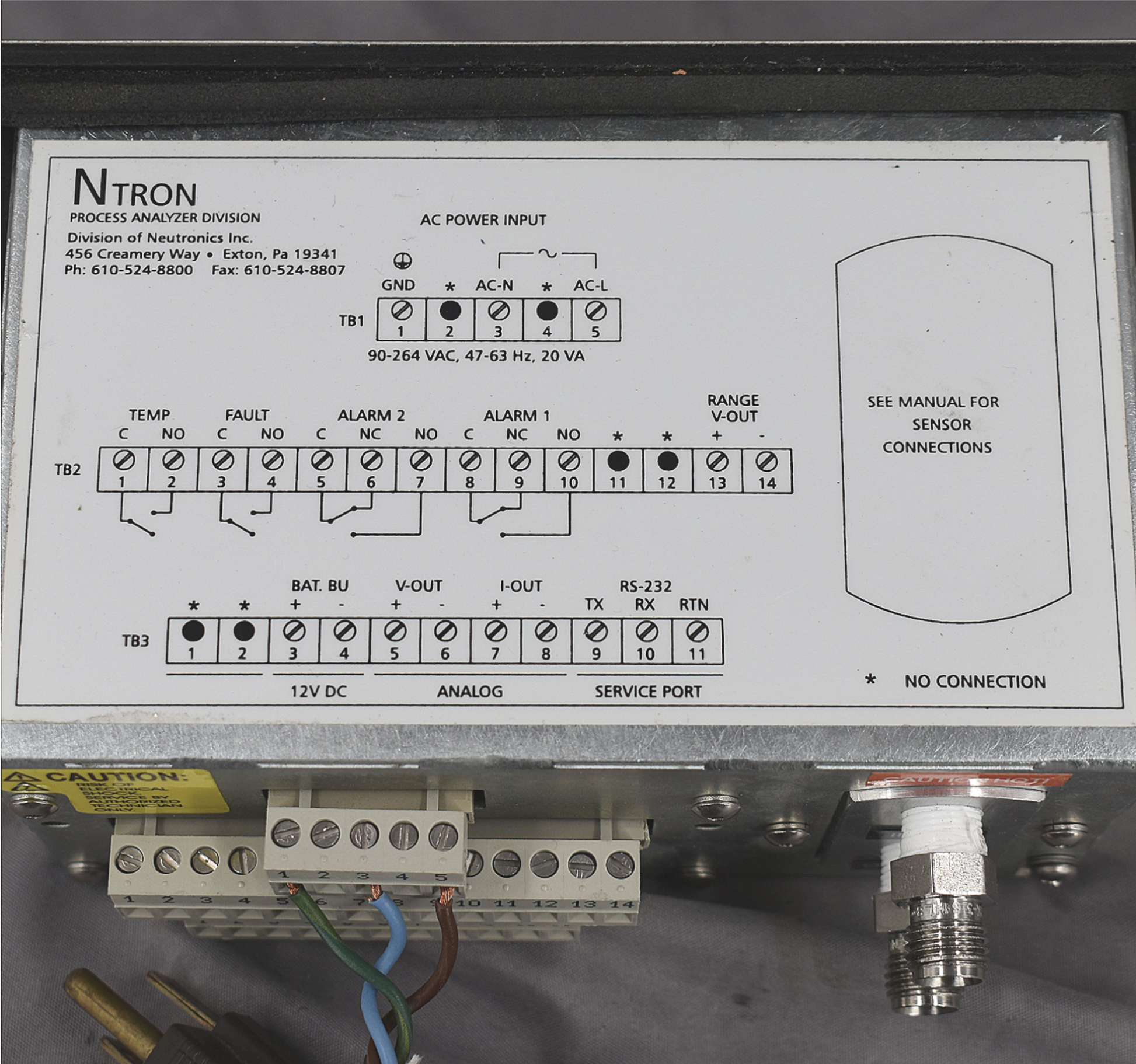

Power supply 90 - 264 VAC or 24 VDC
Analog current output 4 - 20 mA, 12 VDC, negative ground, powered by the analyzer
Analog voltage output 0-1, 0-5, 0-10 VDC

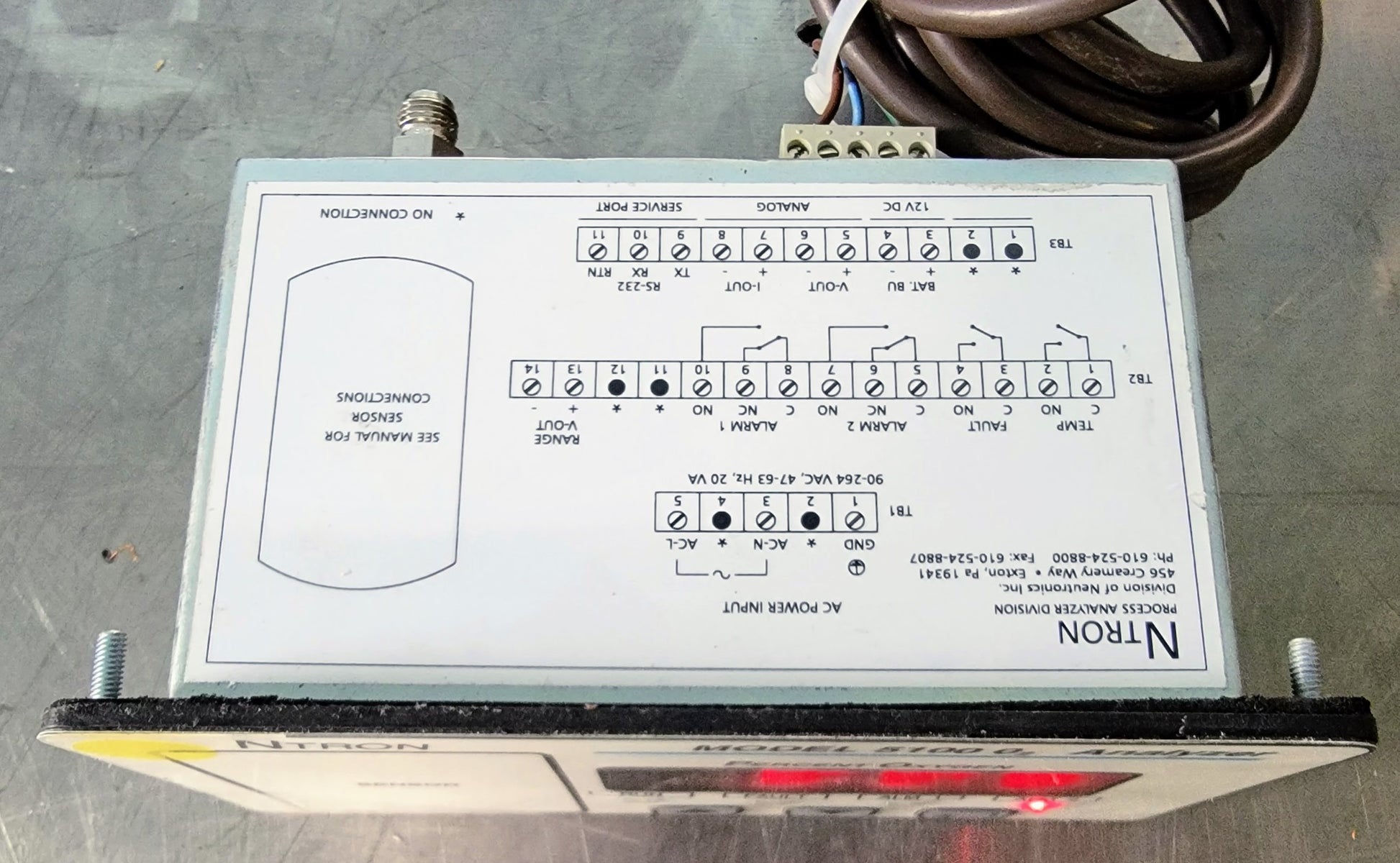

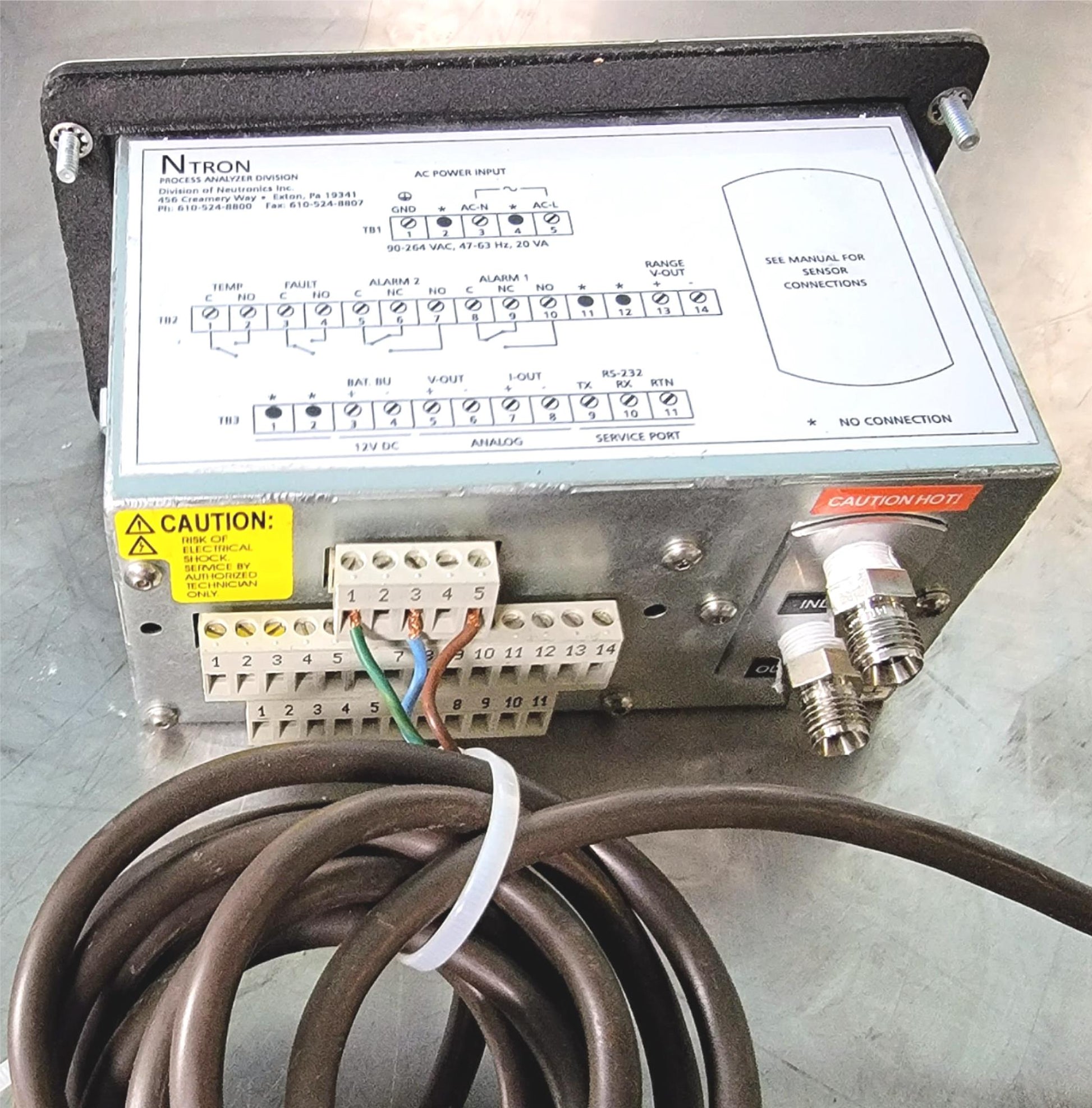

Relay outputs two alarm relays, field adjustable Form C (SPDT)
one system fault relay, non-adjustable Form B (SPST)
Serial service port RS-232
Control panel rating weatherproof NEMA 4, IP66
Rear electronics chassis rating NEMA 1, IP20
Analyzer dimensions (LxWxH) 7.00" (117.80mm) x 4.125" (104.78mm) x 3.75" (95.25mm)
External sensor dimensions 1.5" diameter x 3.25" long (NEMA 1, IP20)
Weight 3 lbs (1.4 kg)

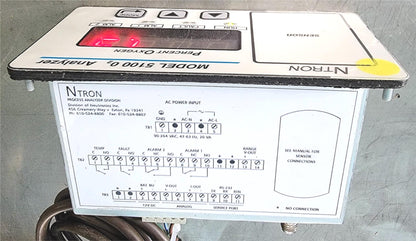

NEUTRONICS 5100 Ozone/Oxygen Analyzer Electric
Description

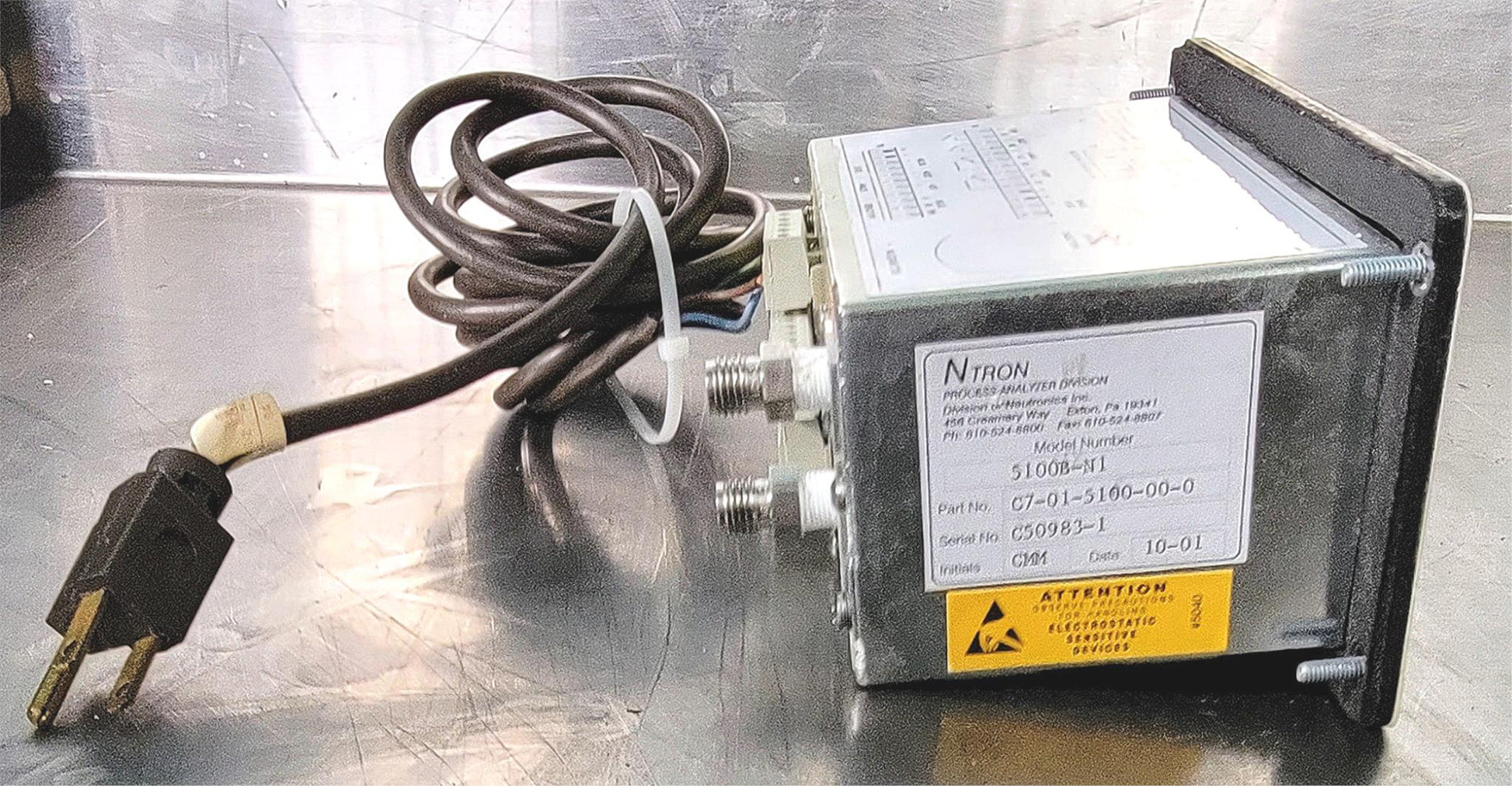

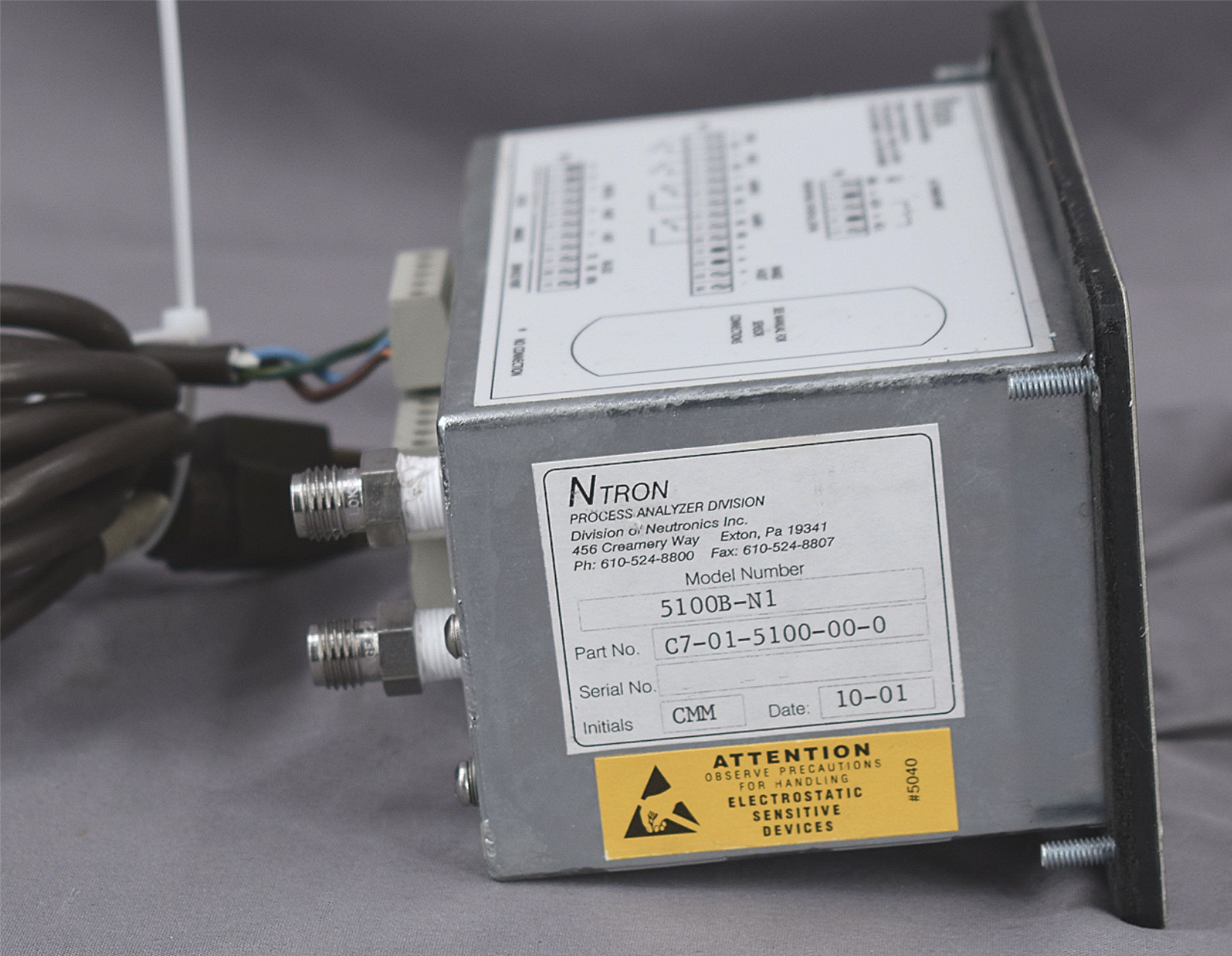

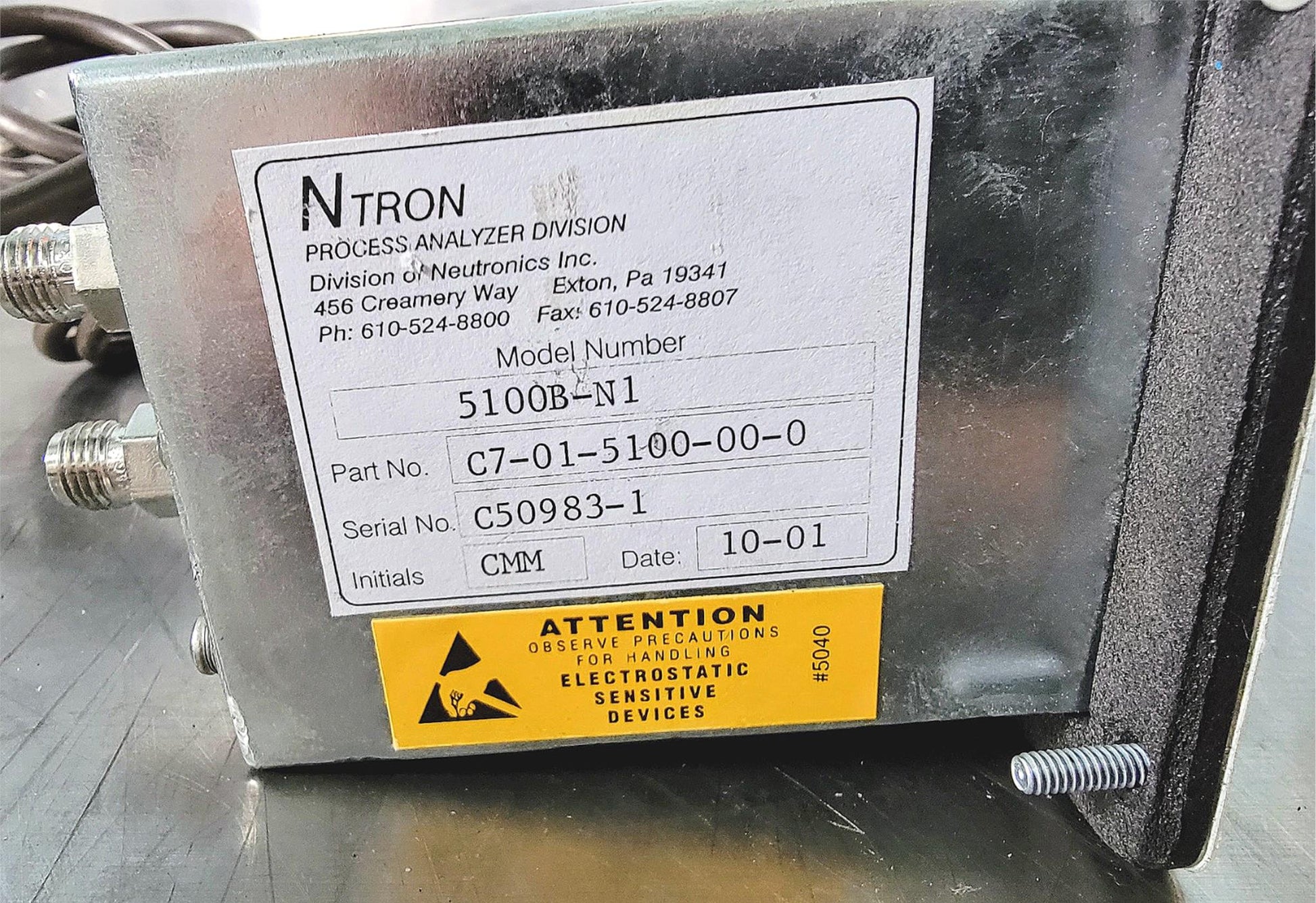

5100BN1
OXYGEN ANALYZER
90-264VAC
47-63HZ
NEMA 1 ENCLOSURE
WITH INTERNAL MINI ZICOMIA OXIDE SENSOR
PERCENT RANGE

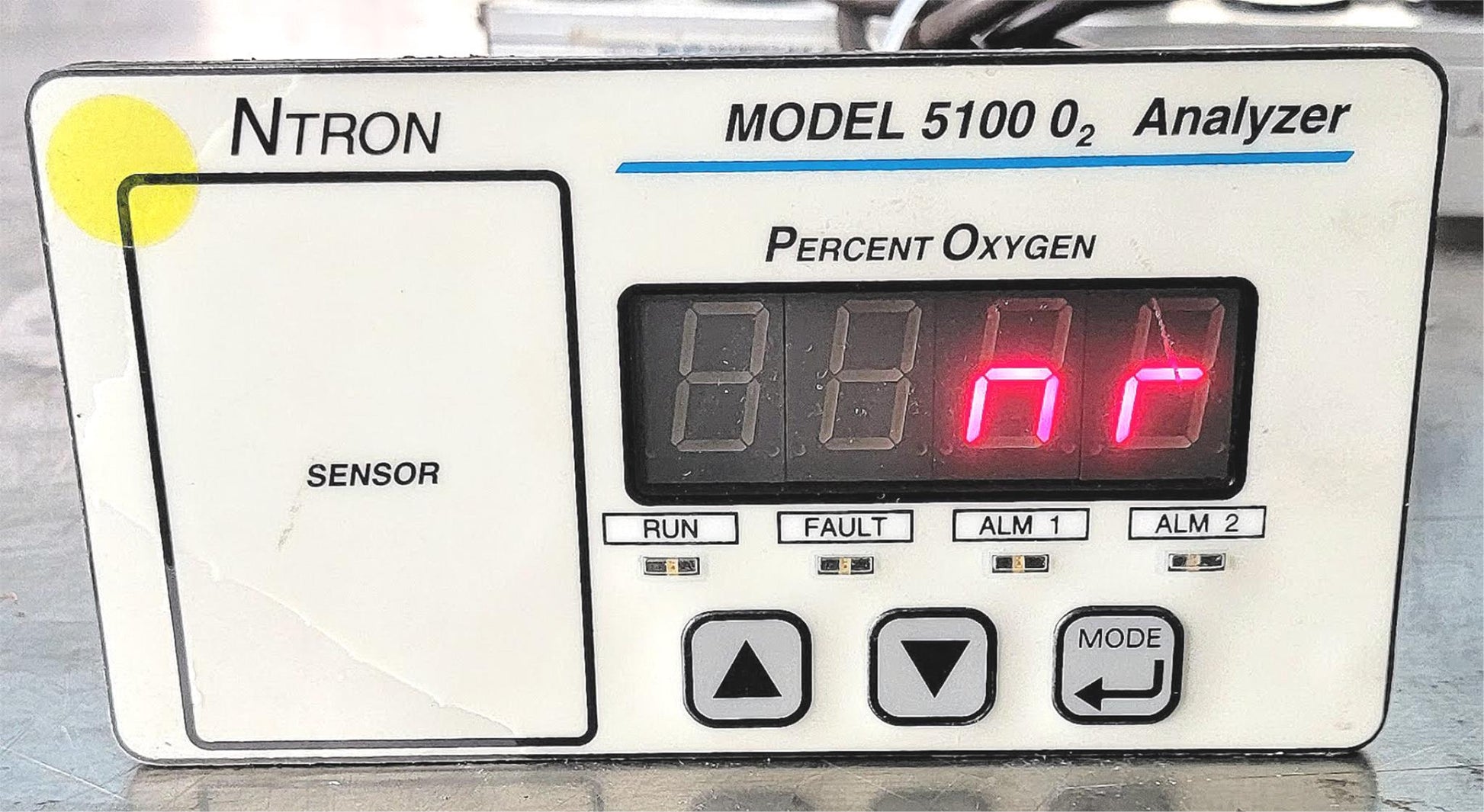

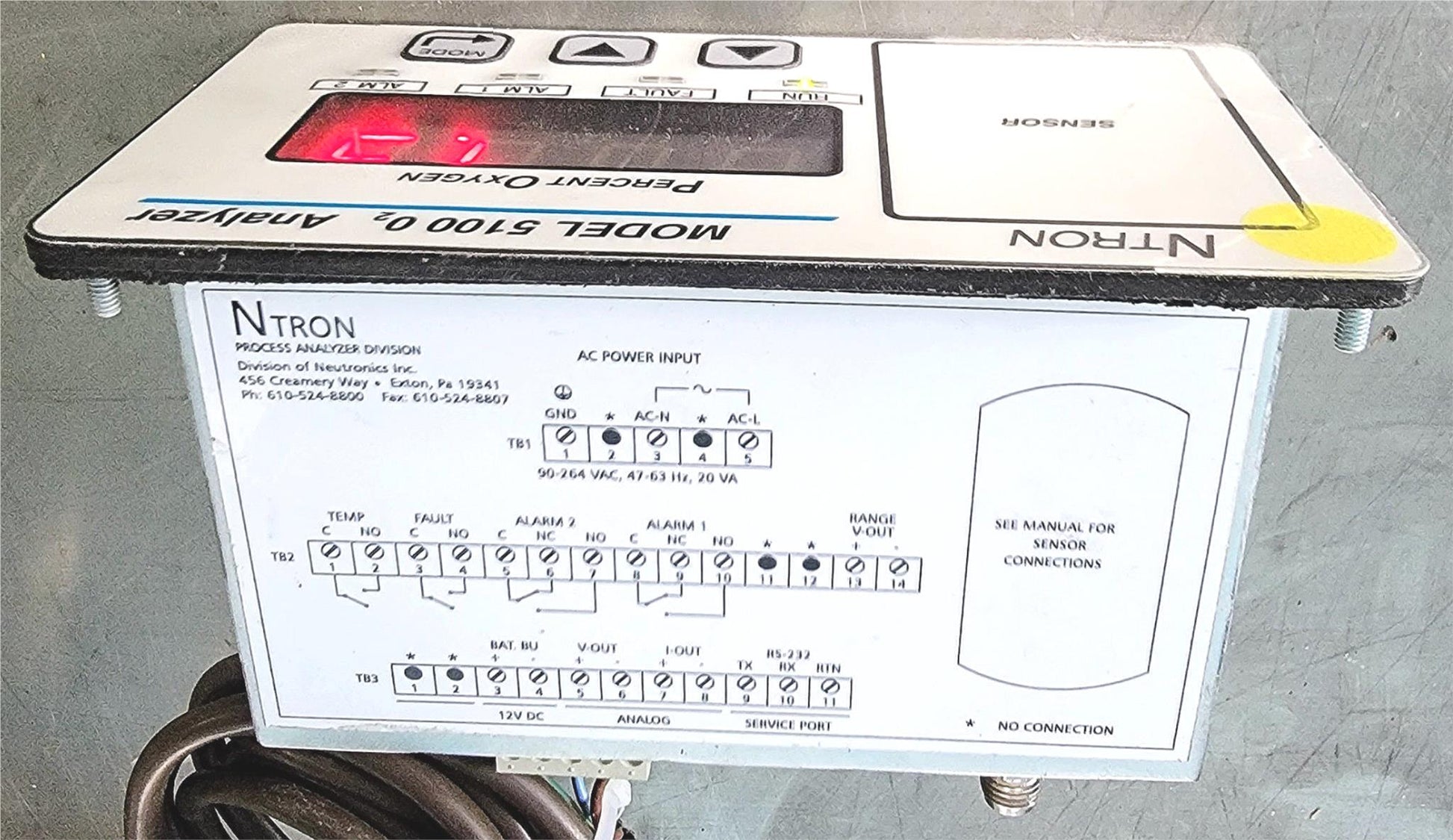

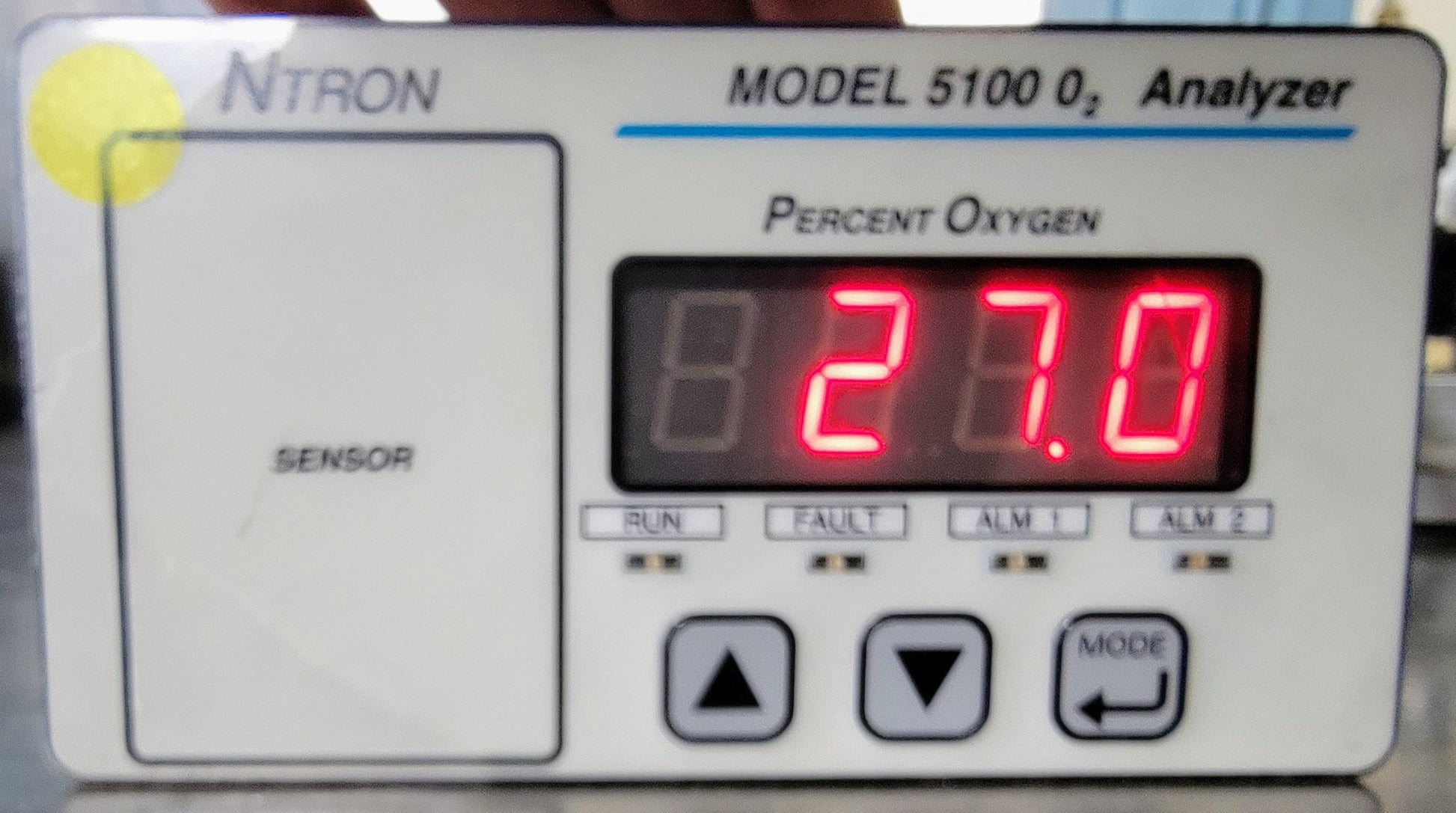

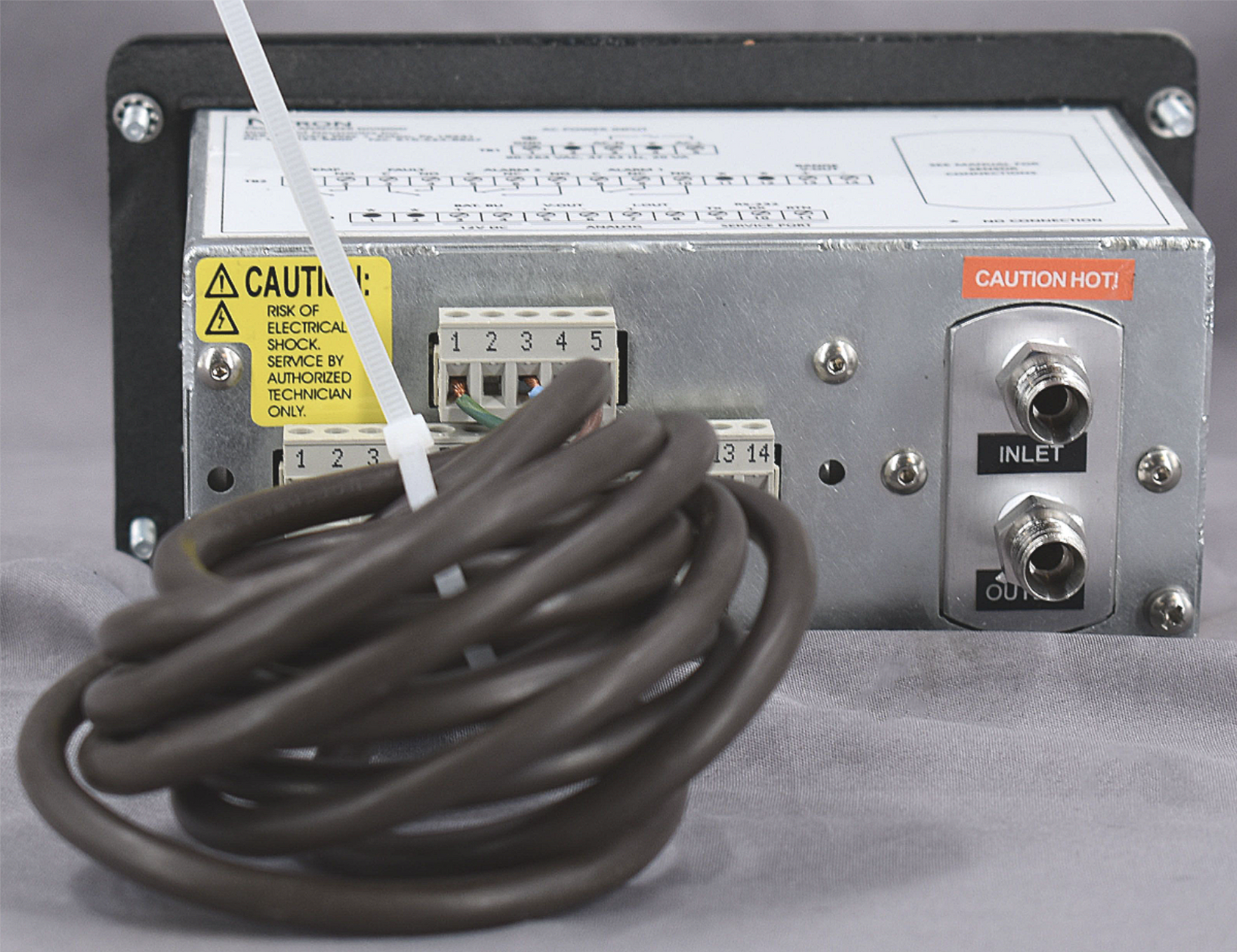

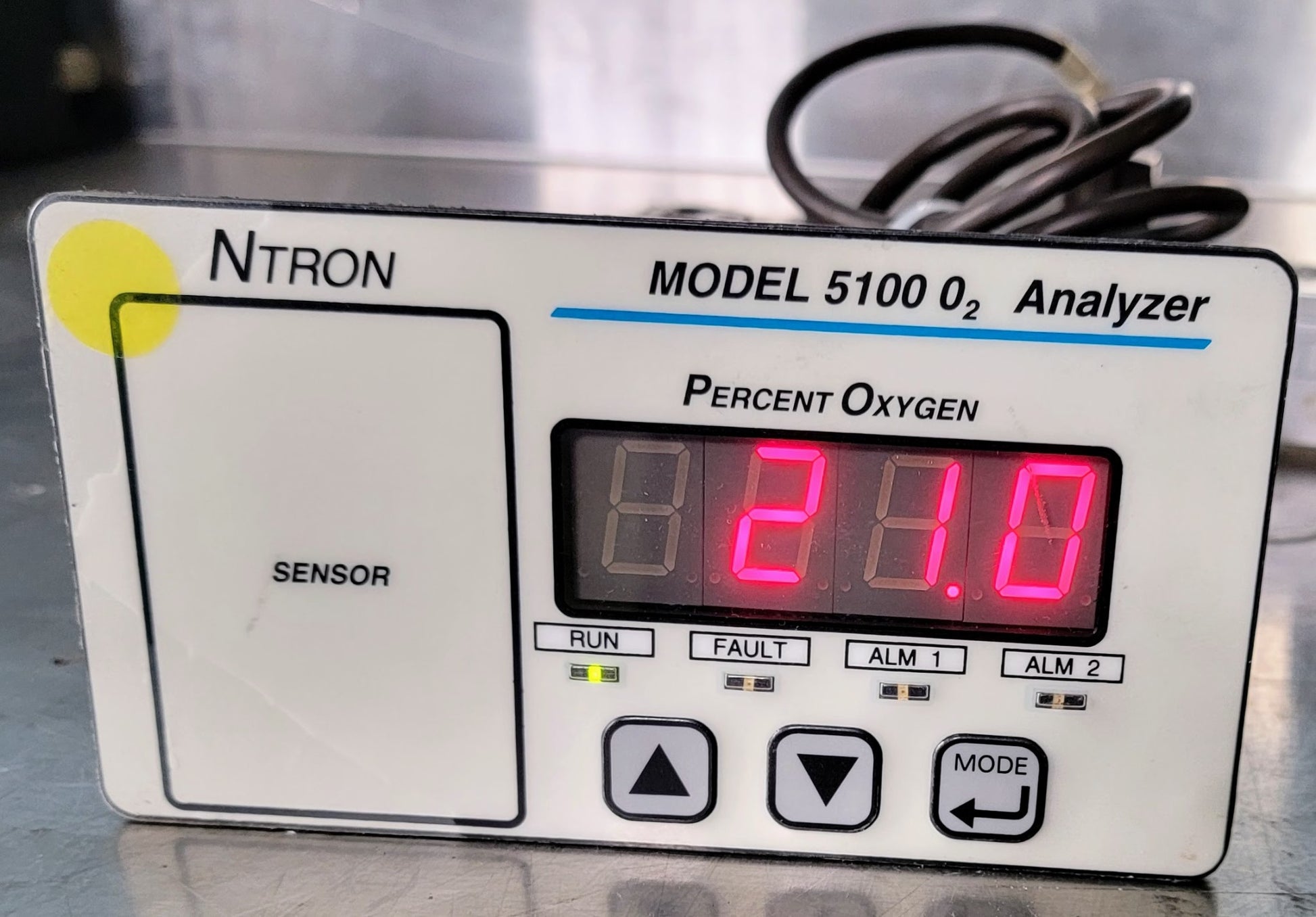

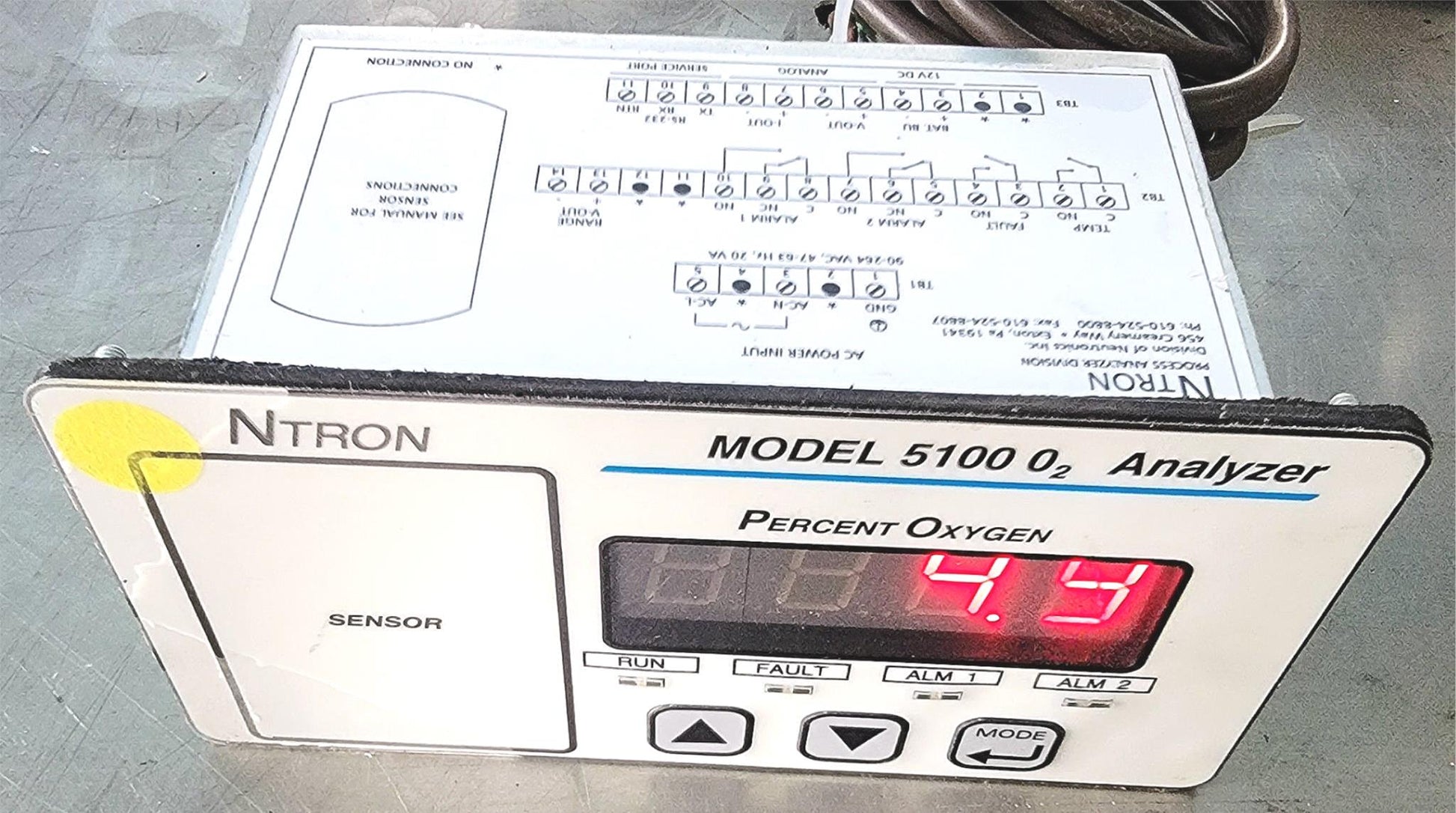

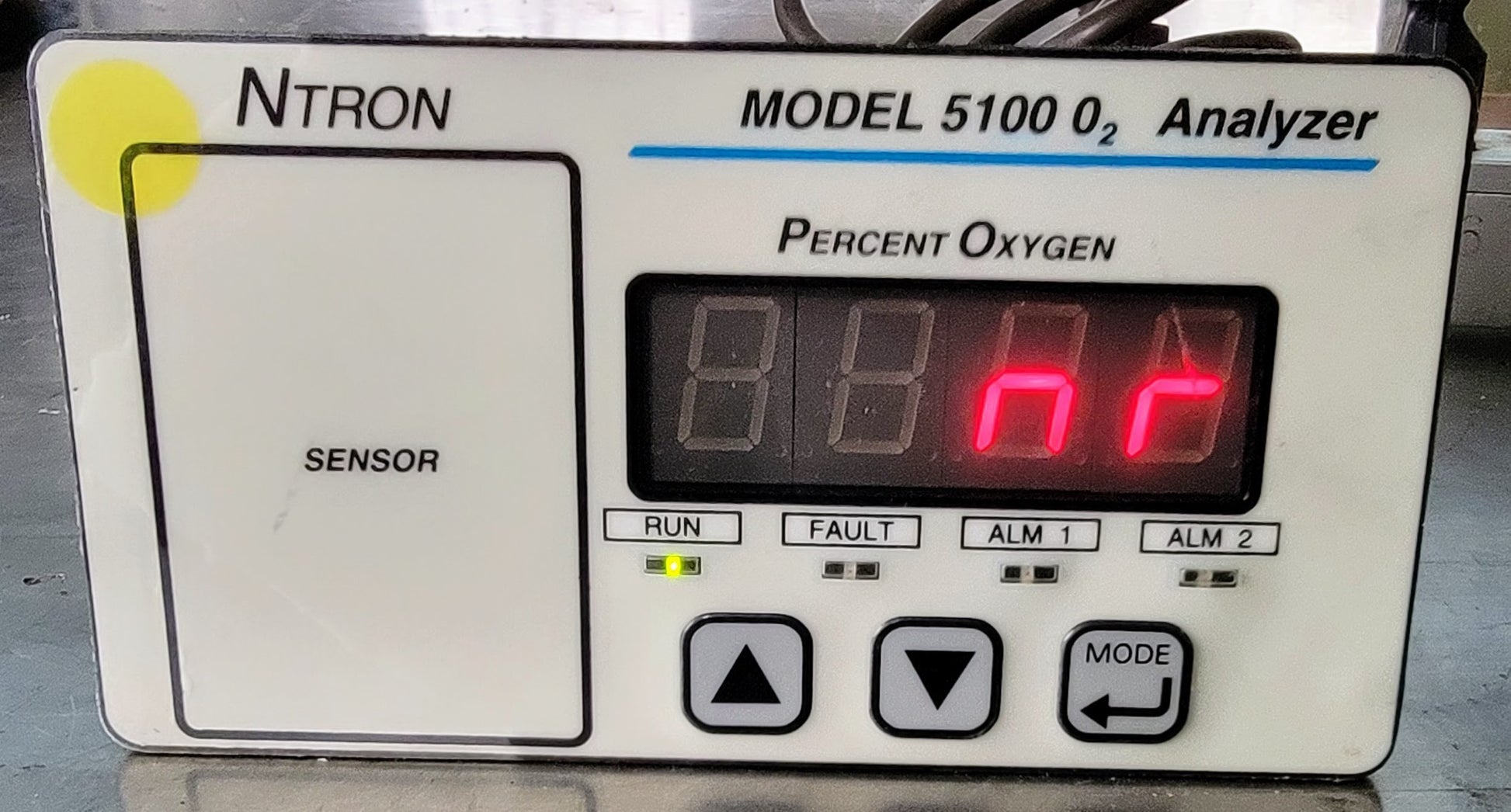

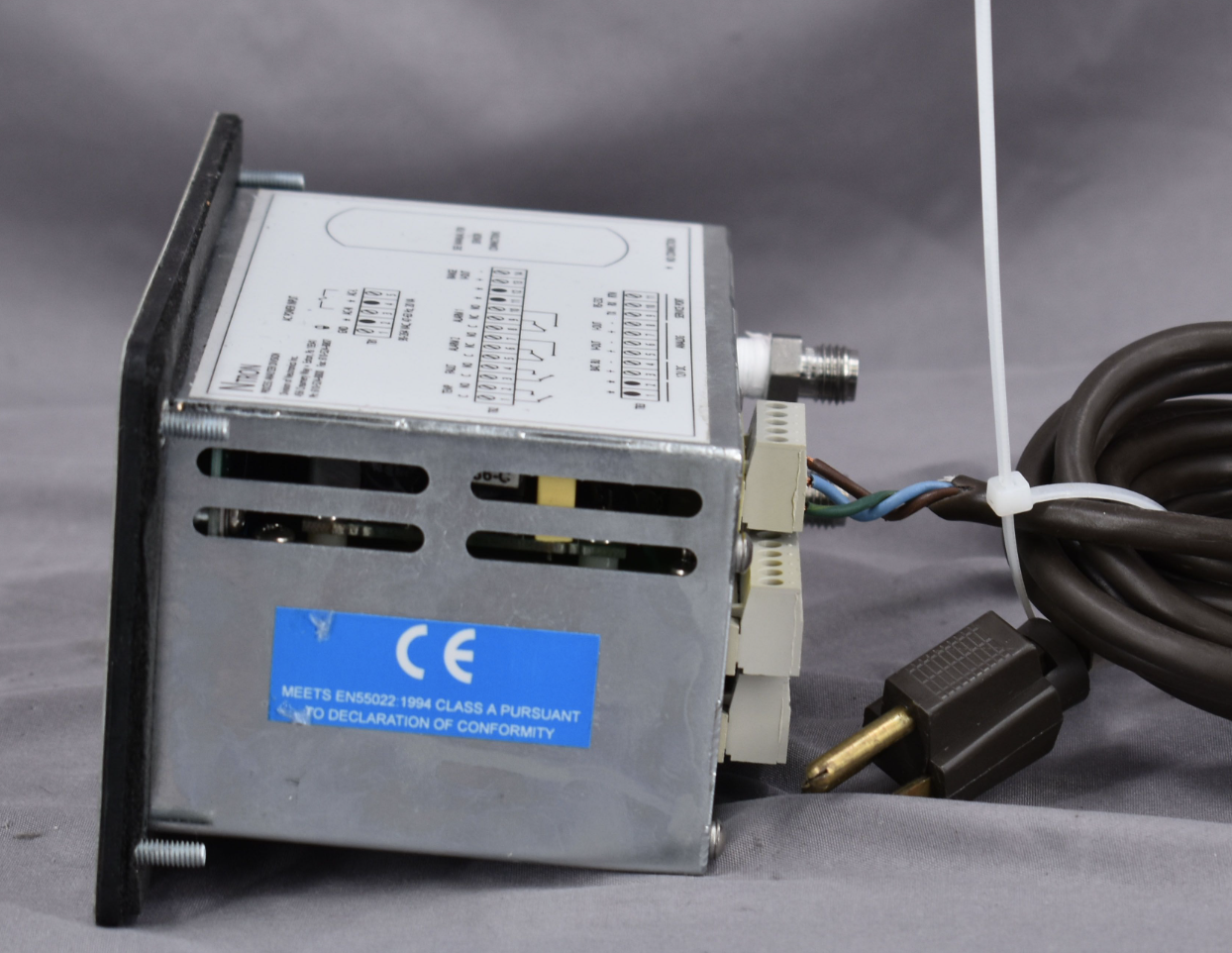

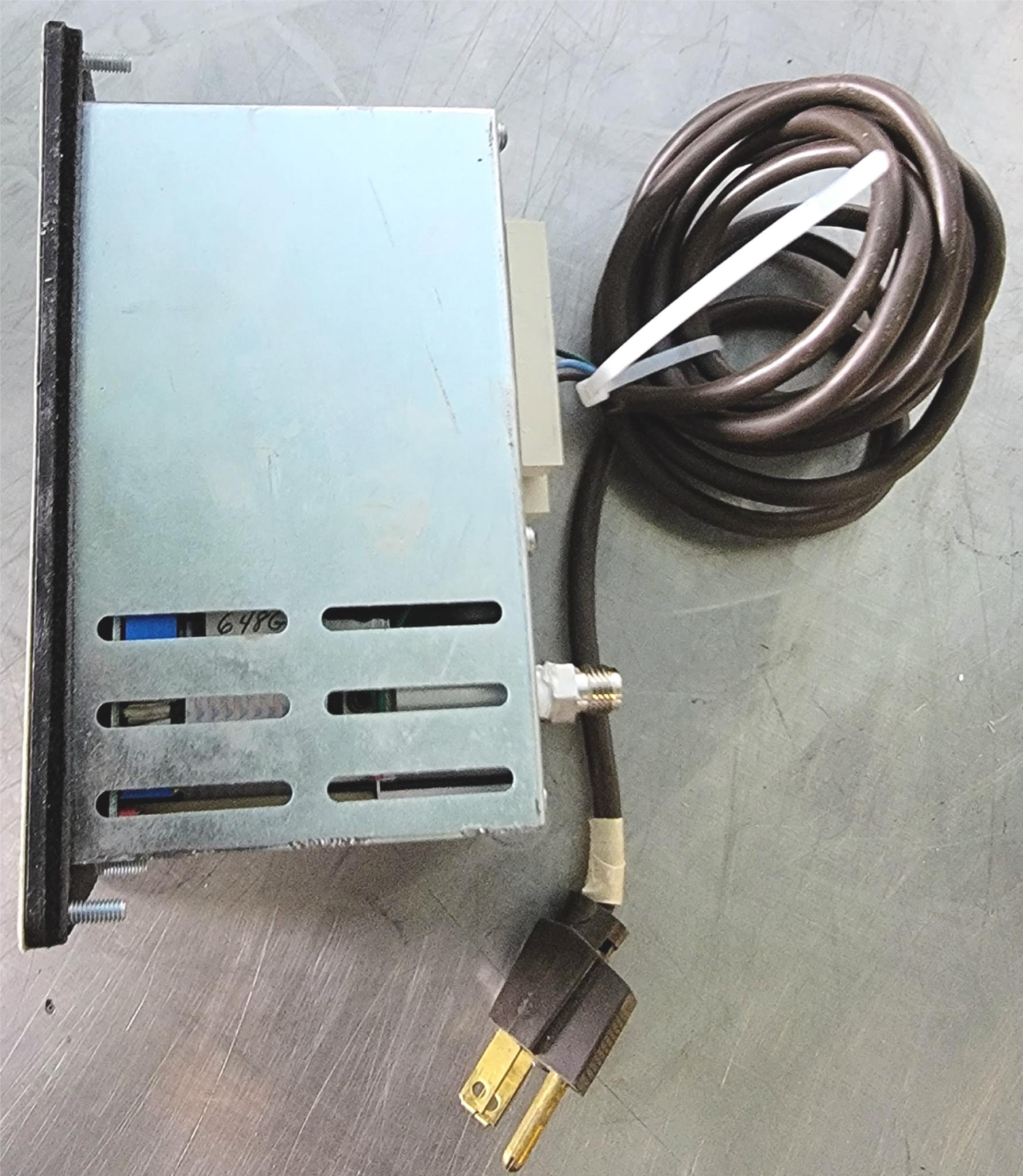

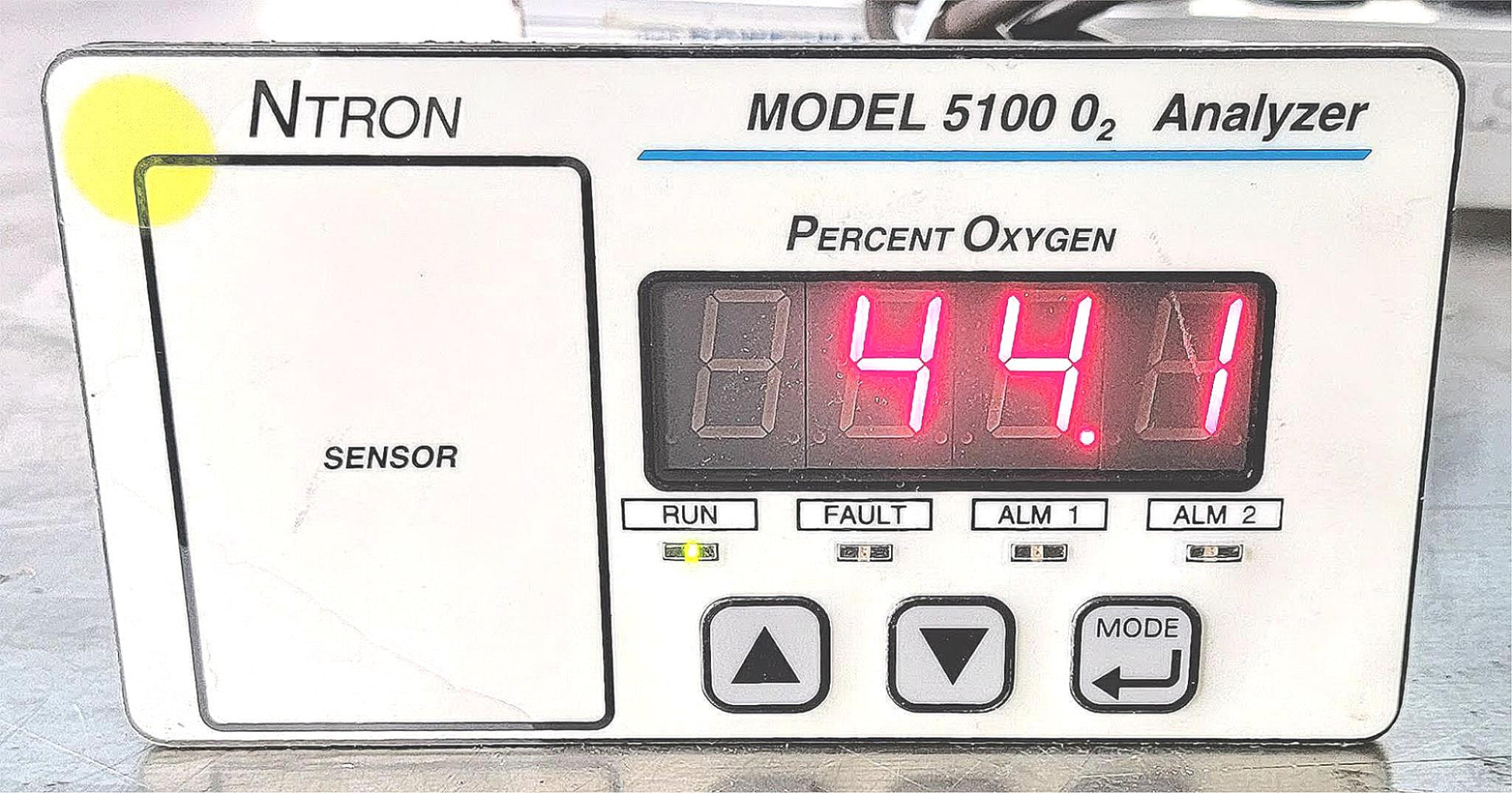

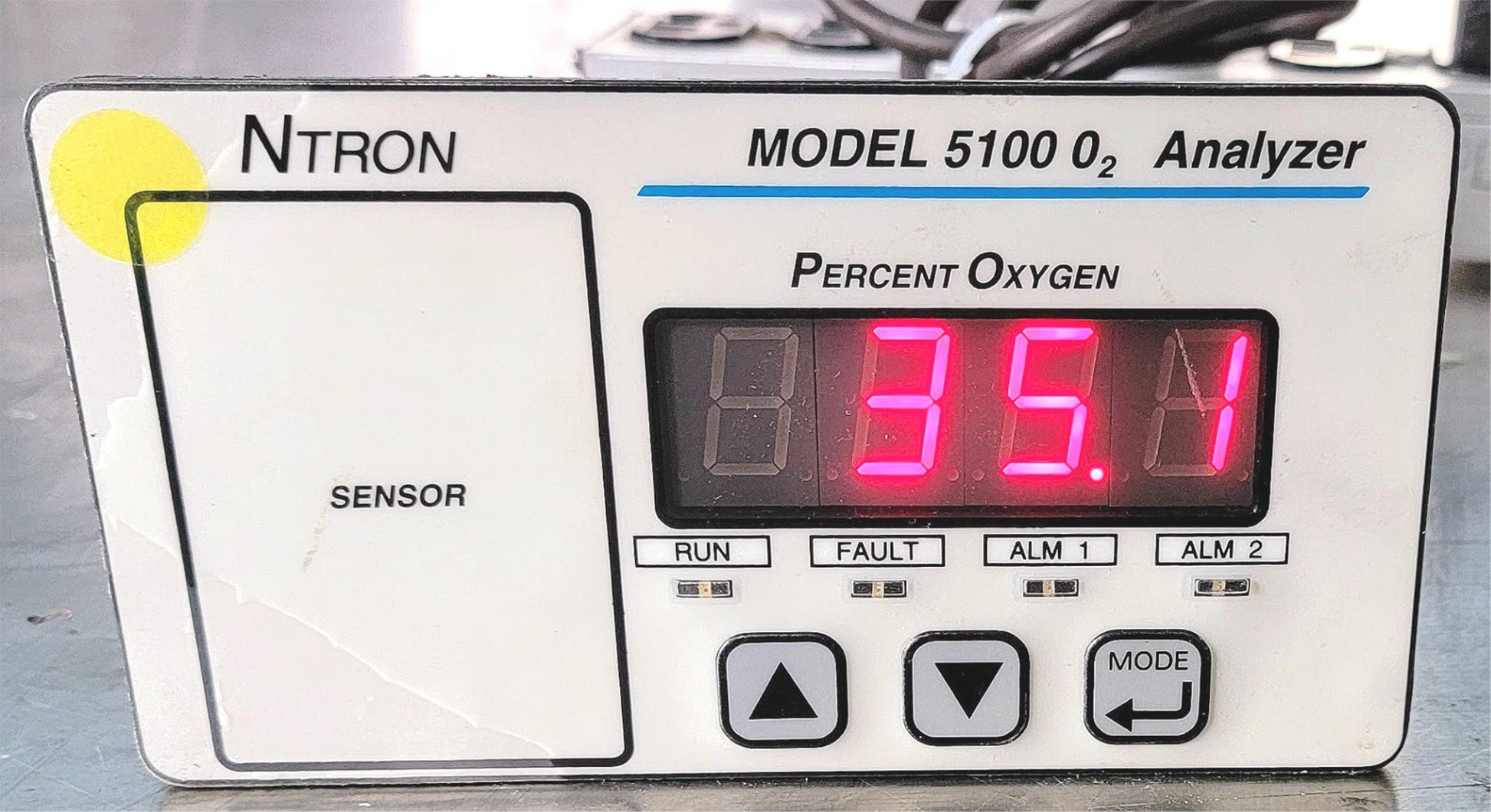

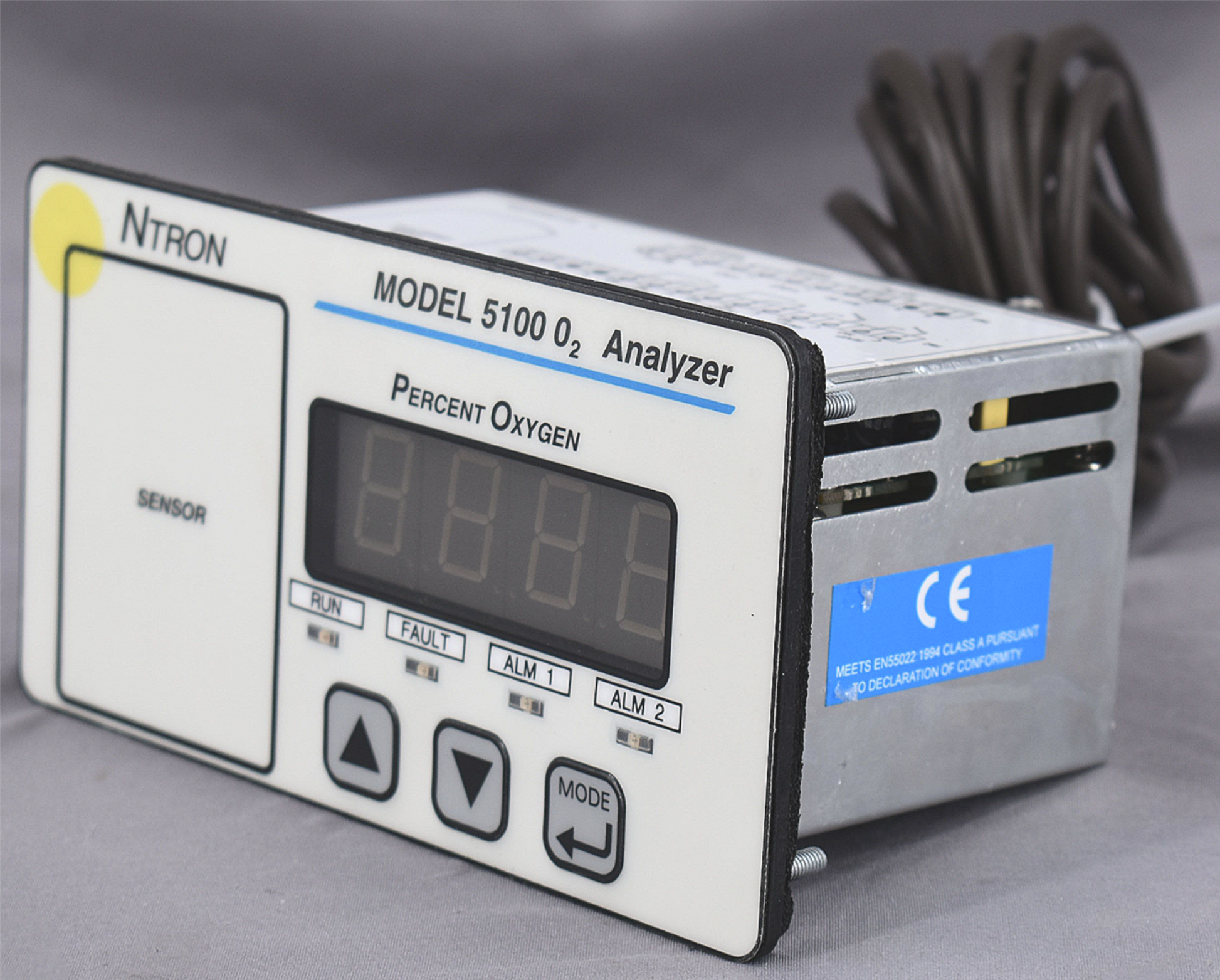

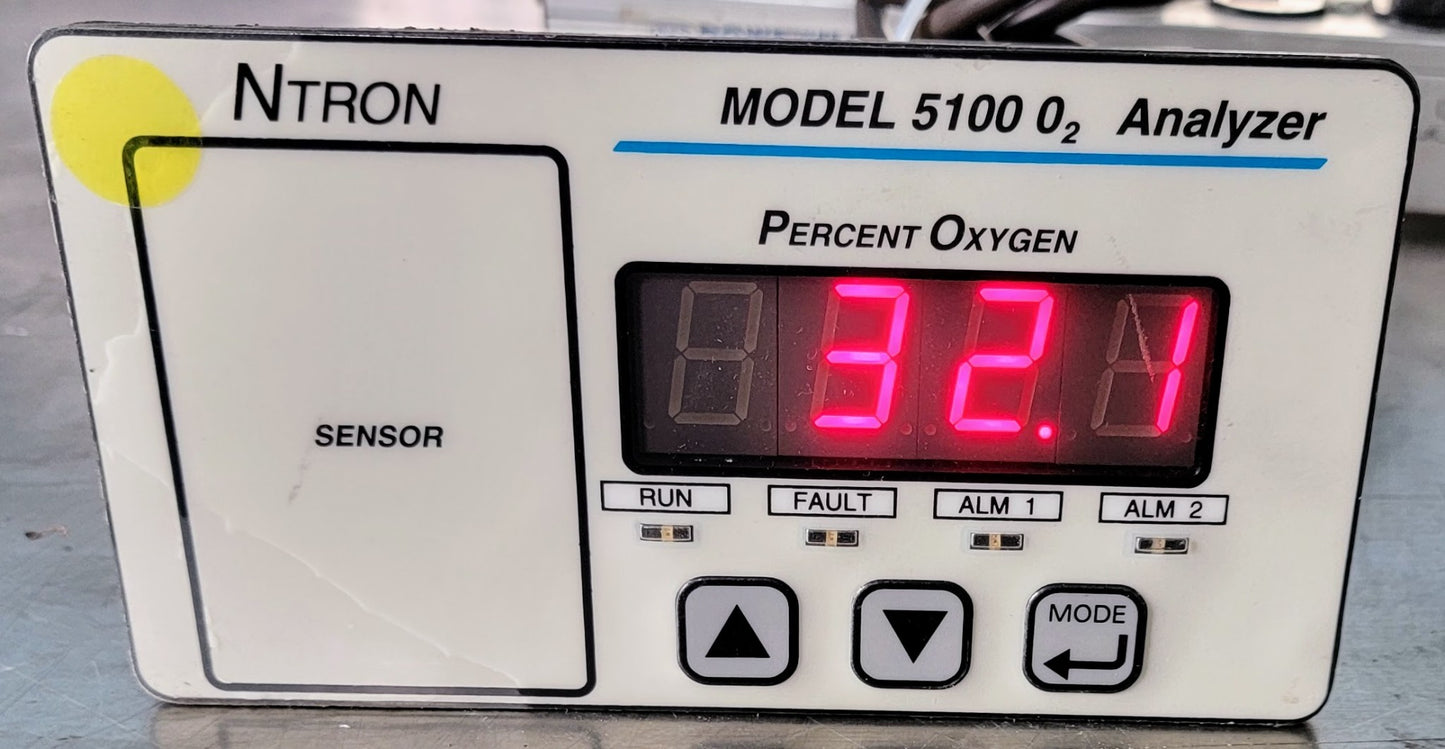

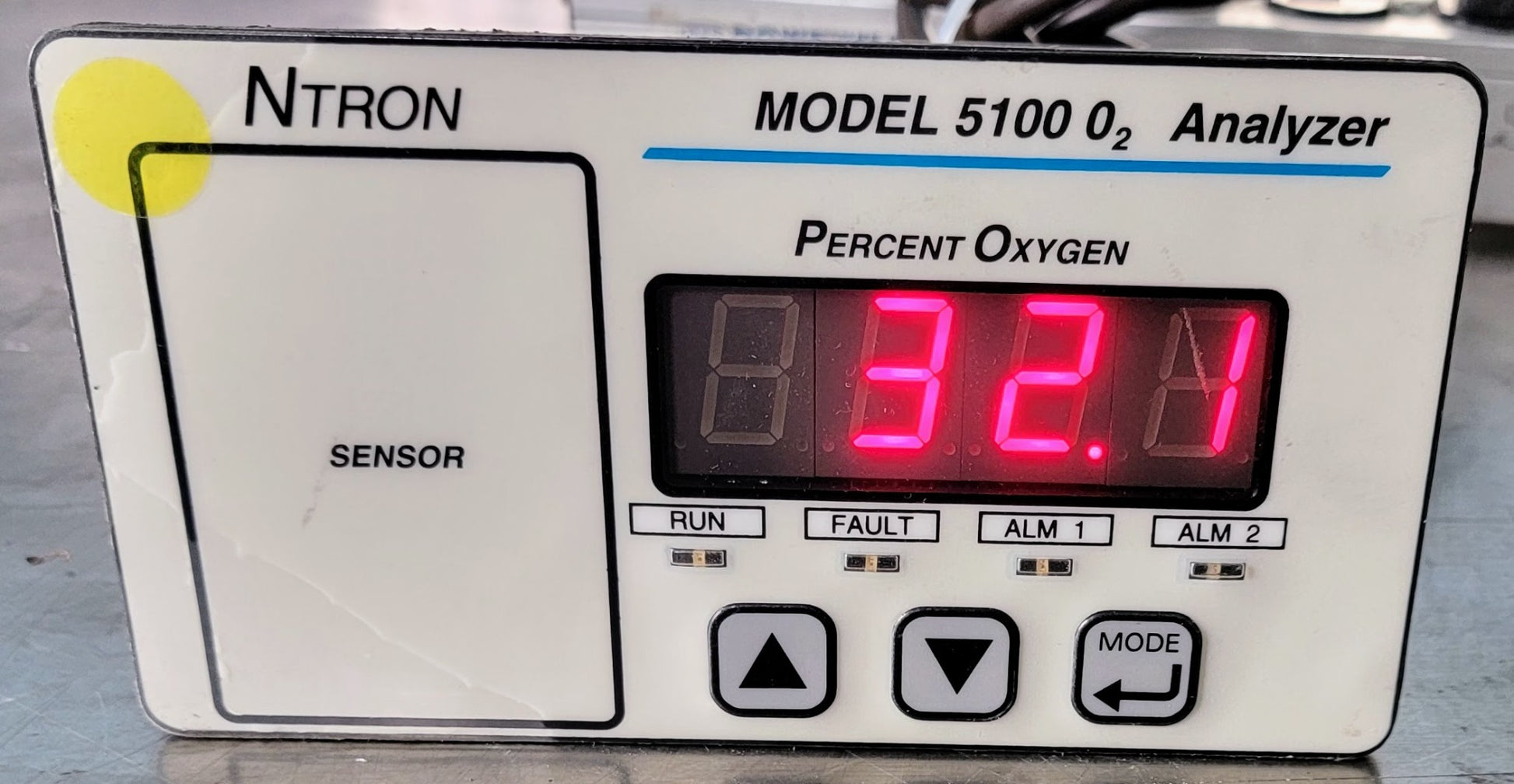

5100 Percent Oxygen Analyzer
Low-maintenance percent oxygen analyzer
The Neutronics 5100 Percent Oxygen Analyzer is a compact analyzer designed for percent oxygen gas measurement.
This analyzer features a rapid-response mini-zirconia sensor with a measurement range of 0 to 100% oxygen.
Extremely high accuracy and single point calibration make this analyzer a low-maintenance solution that delivers reliable performance for critical process control applications.
The mini-zirconia oxygen sensor is accurate to within ±0.5% of the measurement range. The response time is 15 seconds. Operating service life is 2 to 3 years, and it has an unlimited shelf life. It is not affected by position and can be exposed to high atmospheric pressures with no impact on performance. This robust sensor is unaffected by dry atmospheres or by extremely cold storage temperatures.
0 to 100% measurement range
Mini-zirconia oxide ZR500 sensor
± 0.5% accuracy
Internal or remote sensor mounting
T90 < 15 seconds
SPECIFICATIONS
Accuracy
±0.5% of range
Ambient Temperature
2 alarm relays, field adjustable 1 system fault relay, non-adj
Analog Communication
Serial RS-232 service portAnalog 0-1, 0-5,0-10 VDCand 4-20 mA
Display Size

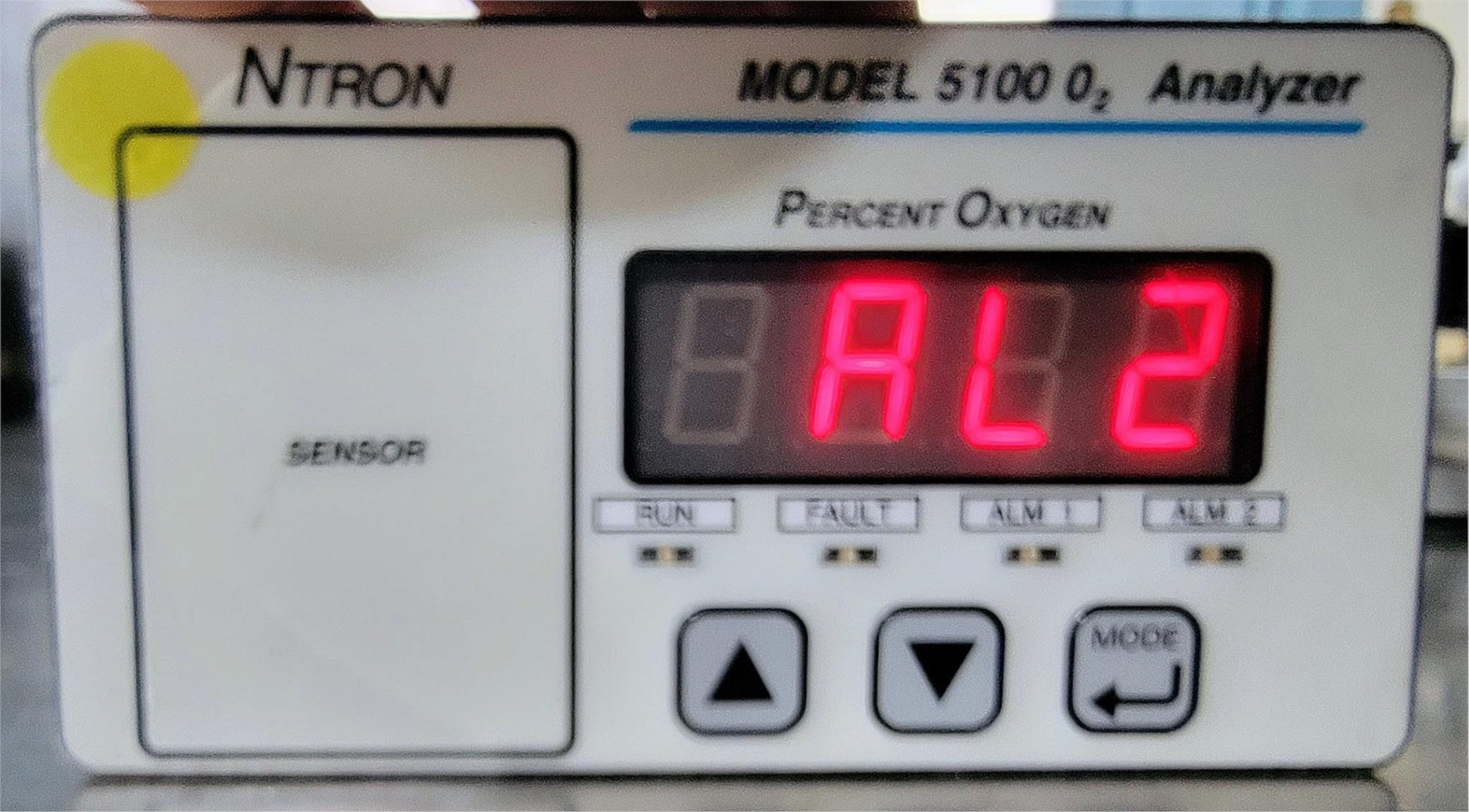

7 seg. 0.75" LED4 alphanumeric characters;LEDs for system status: run,/fault/alarm 1/alarm 2
Enclosure Rating
Ctrl panel: WeathrproofNEMA 4 (IP66)Rear electronic chassis:Nema 1, IP20
Expected Sensor Service Life
2 Years
Humidity
0 to 95% RH (non-condensing)
Measuring Range
0-1%, 0-10%, 0-25%, 0-50%, 0-100% auto
Power
90 - 264 VAC or 24 VDC
Product Dimensions (L×W×H)
Analyzer: 7" × 4.125" × 3.75" (17.78 × 10.48 × 9.53 cm) Sensor: 1.5" diam. × 3.25" long
Product Weight
3 lbs
Relay Rating
2 alarm relays, field adjustable 1 system fault relay, non-adj
Response Time
T90 < 15 sec
Sensor Type
Mini-Zirconia ZR500
