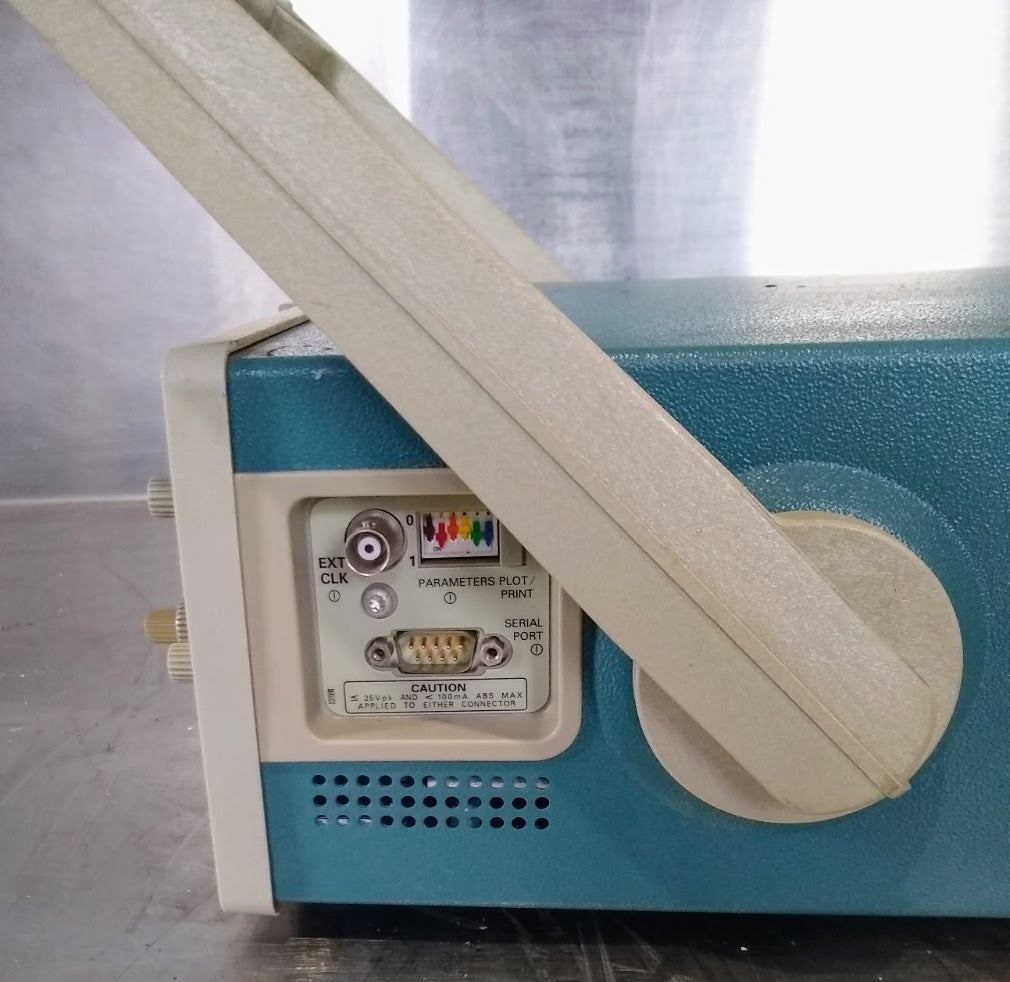

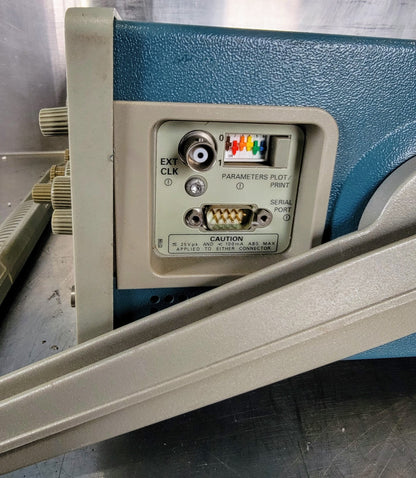

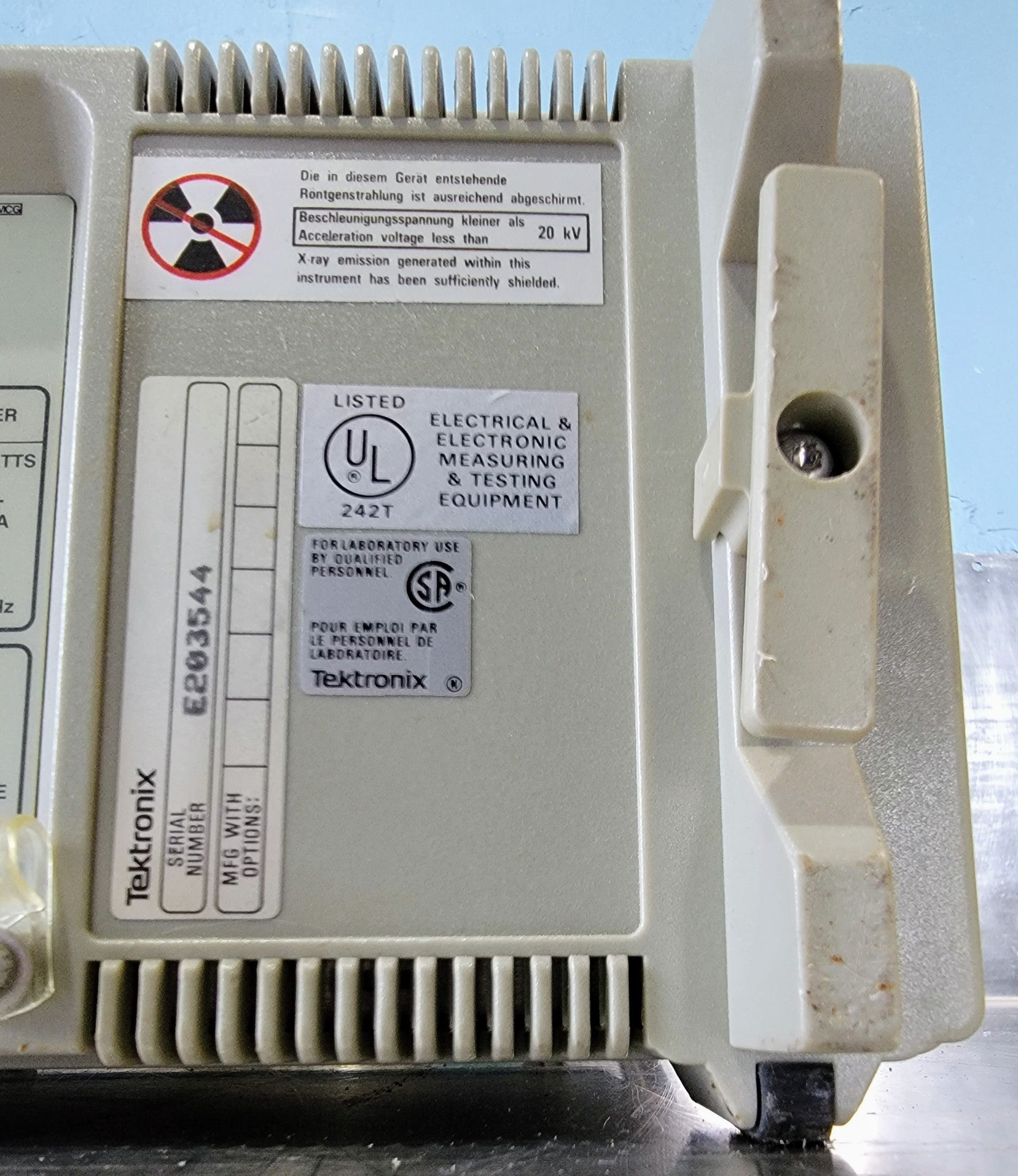

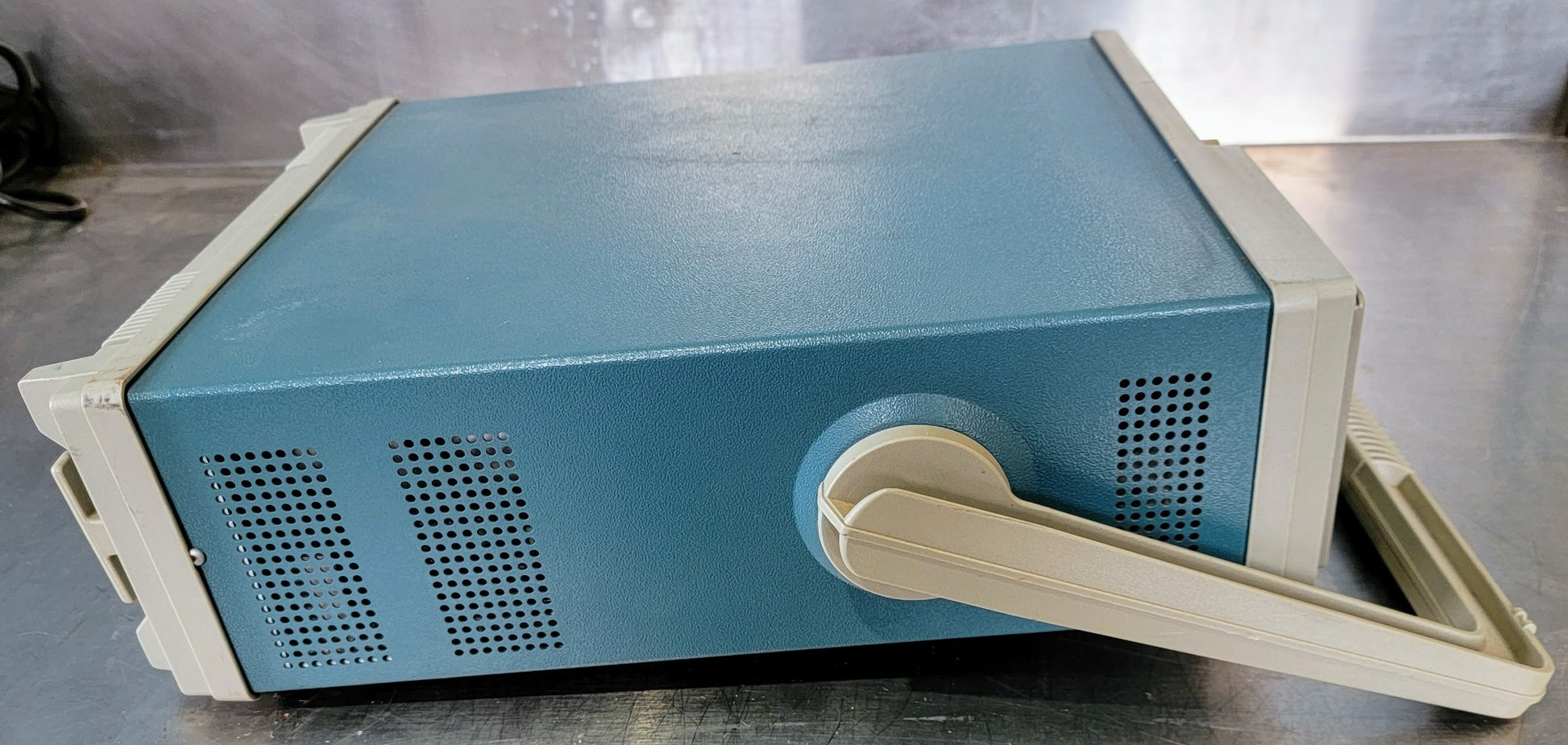

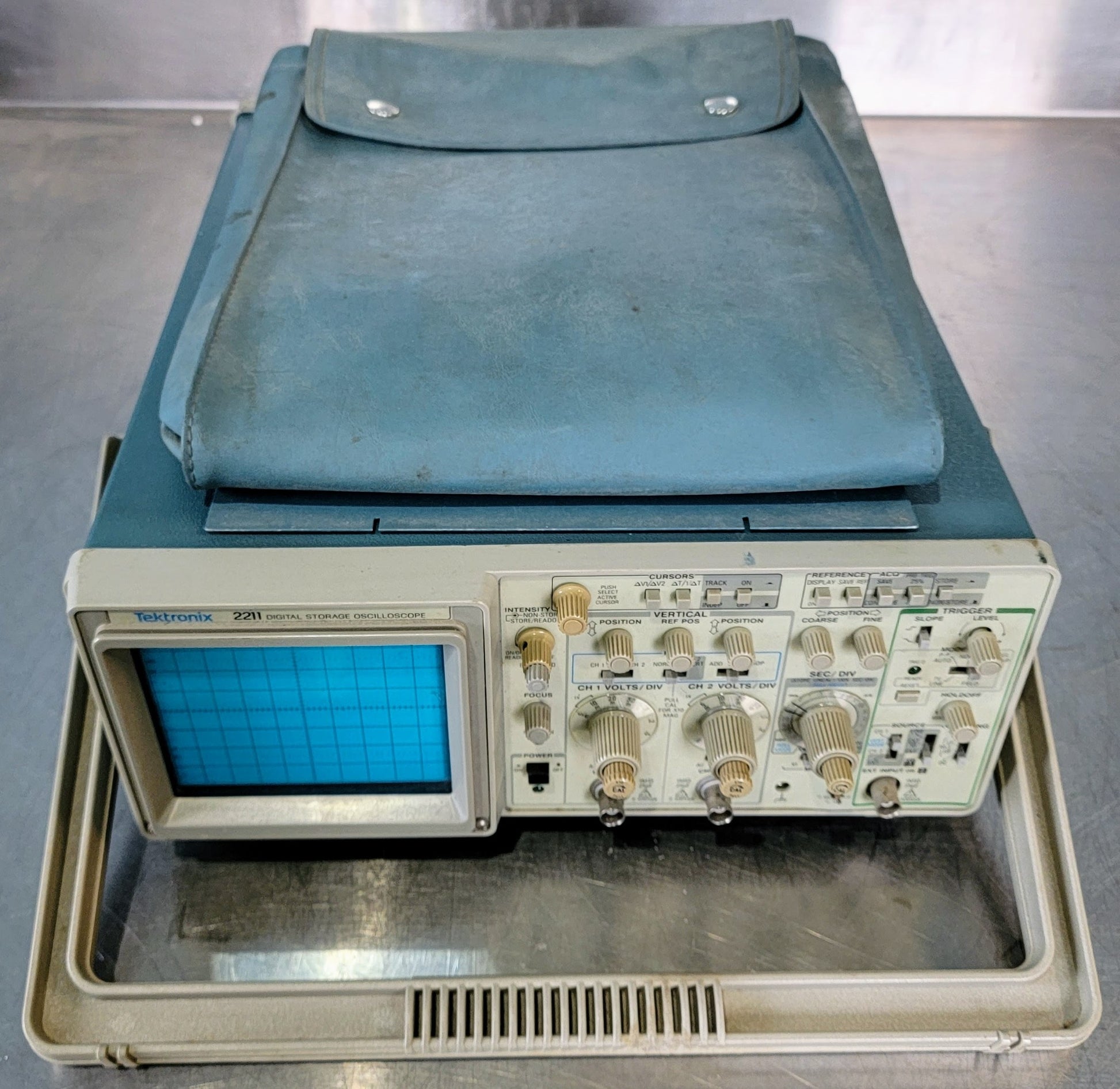

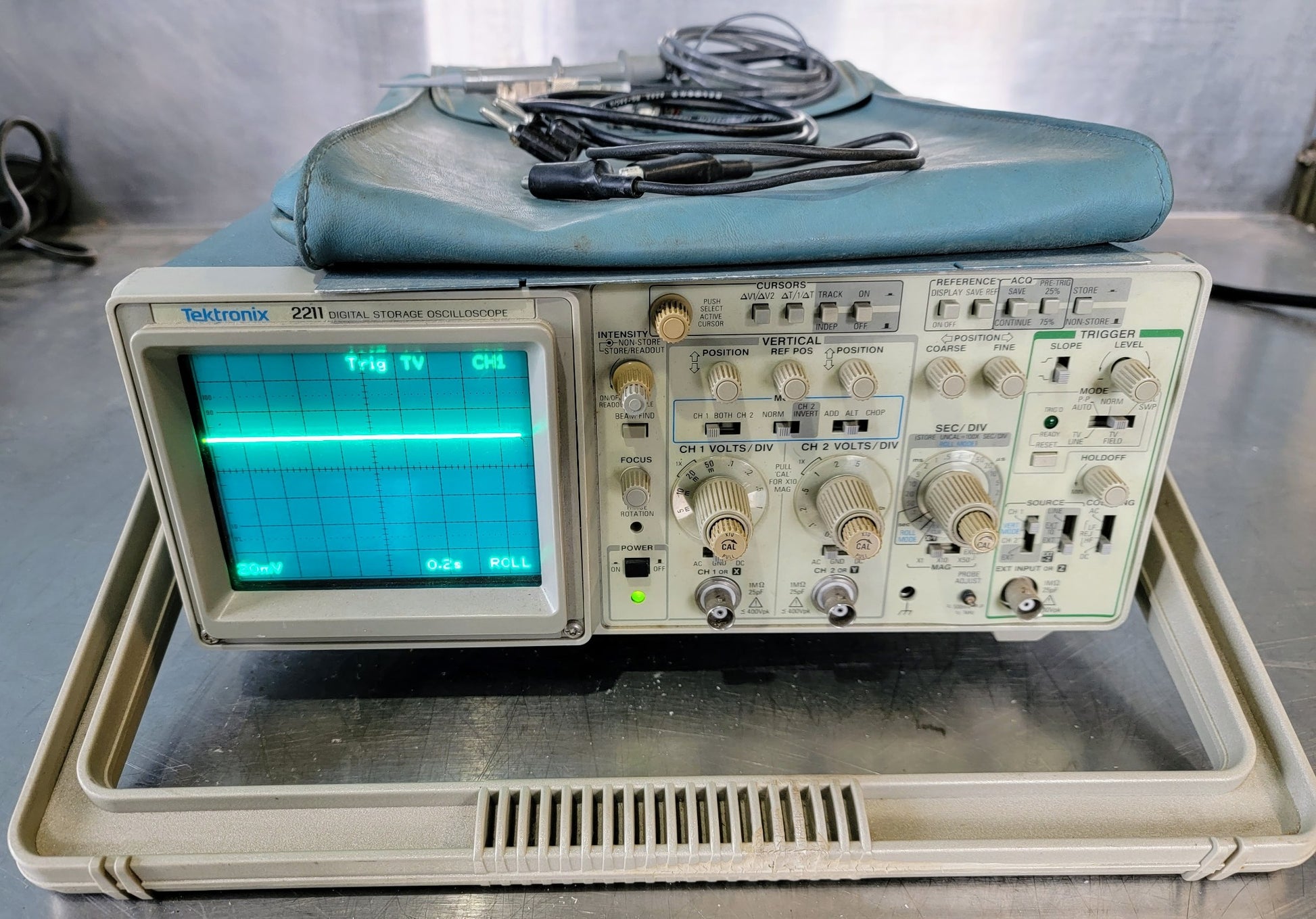

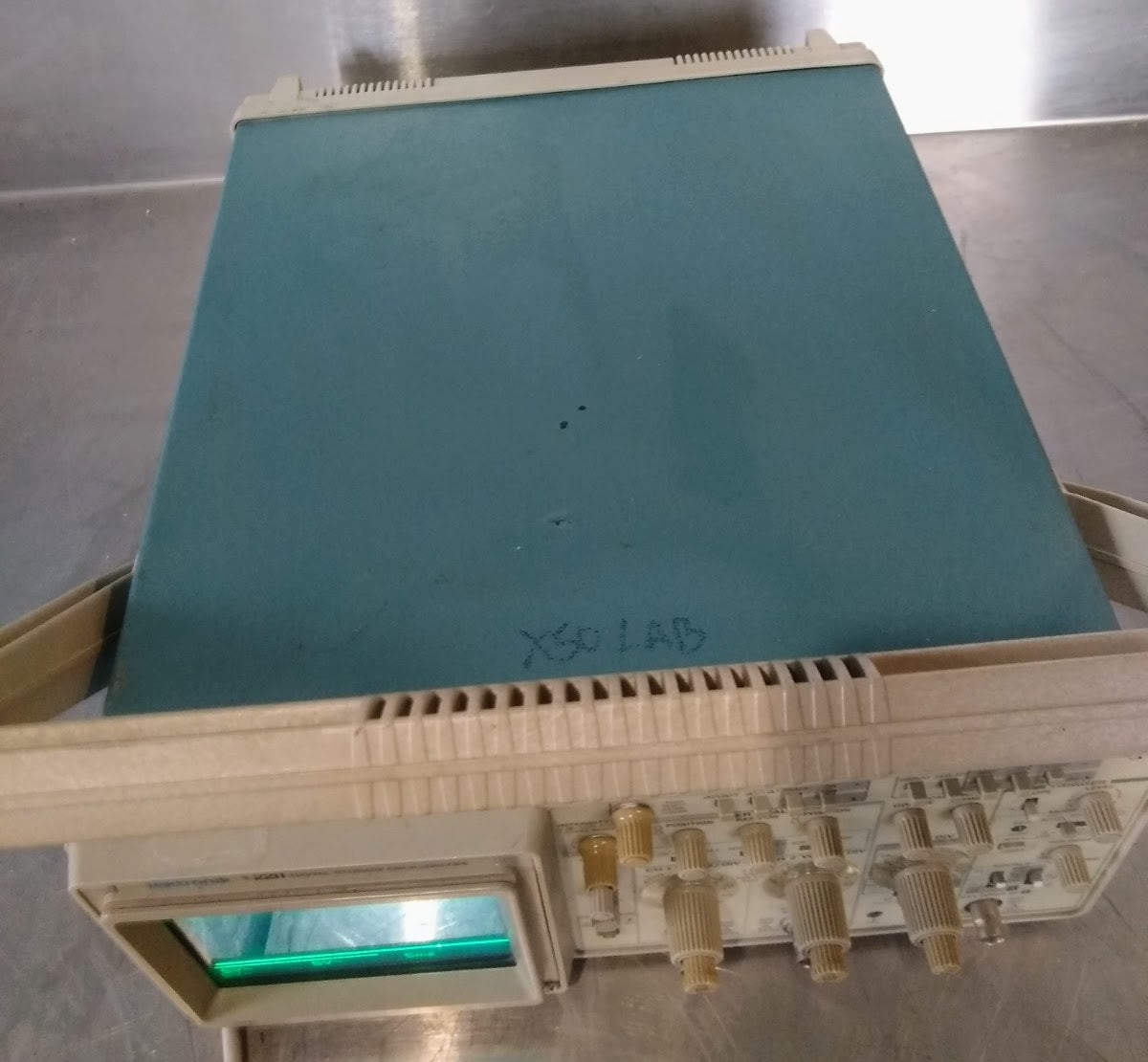

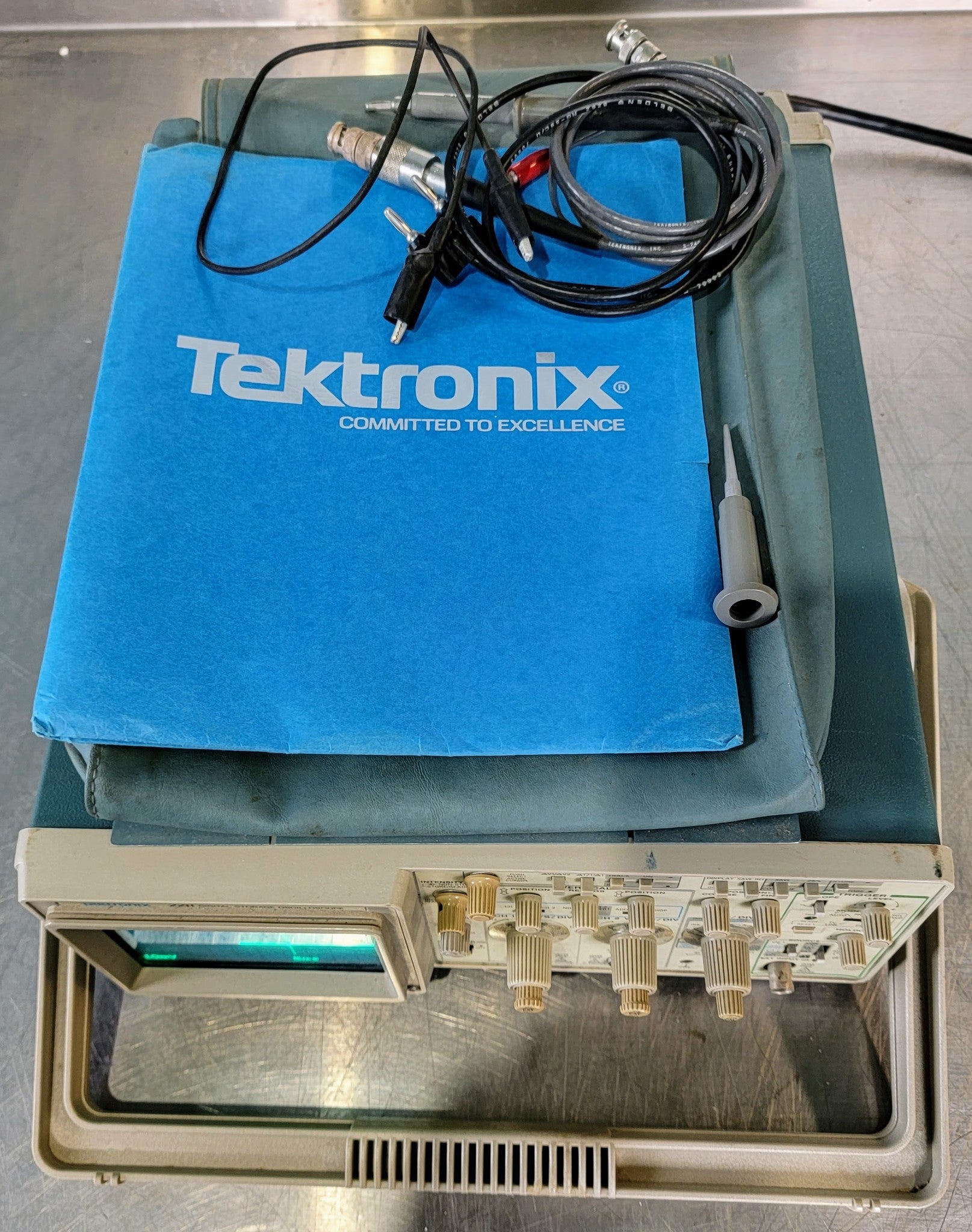

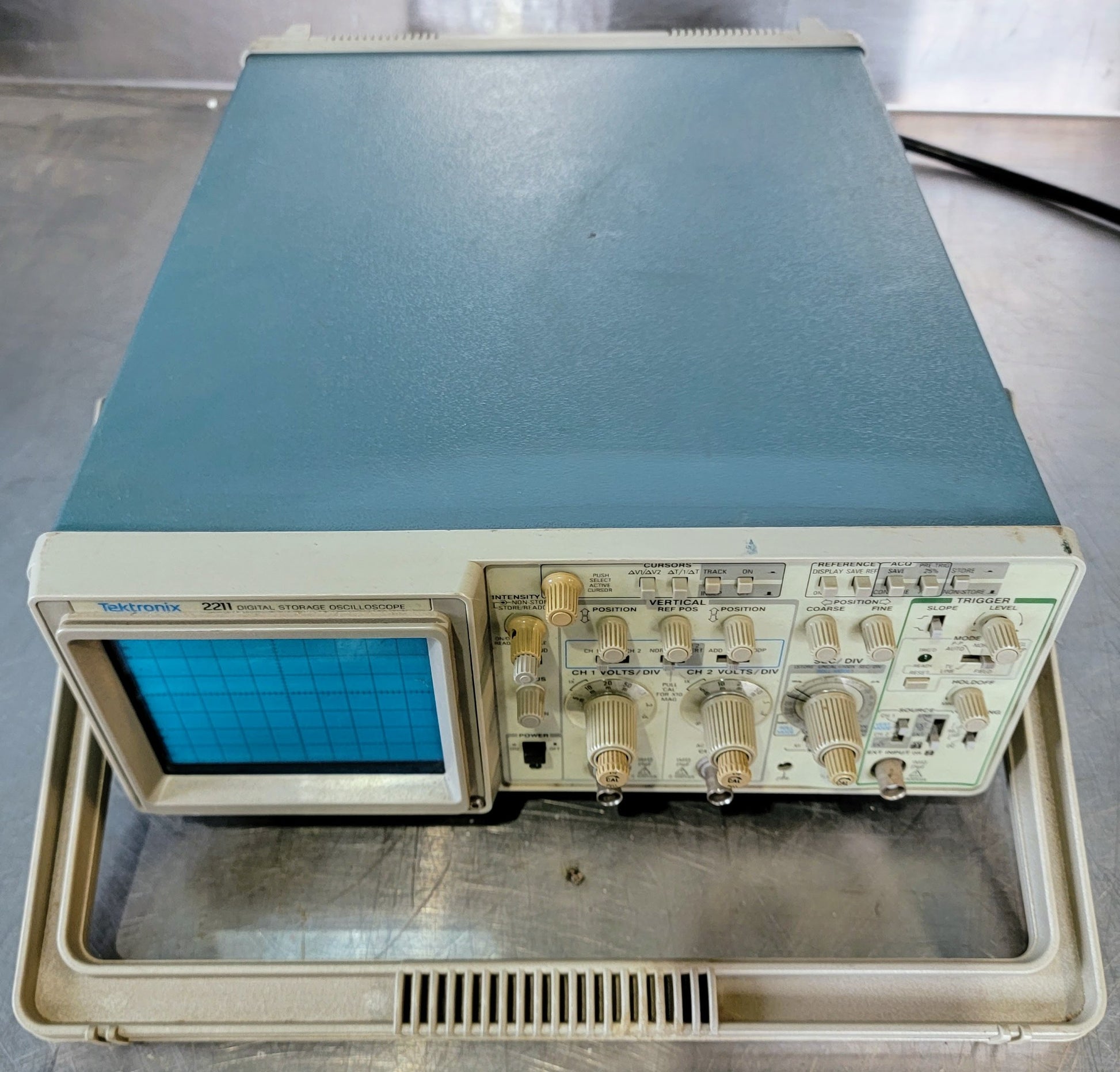

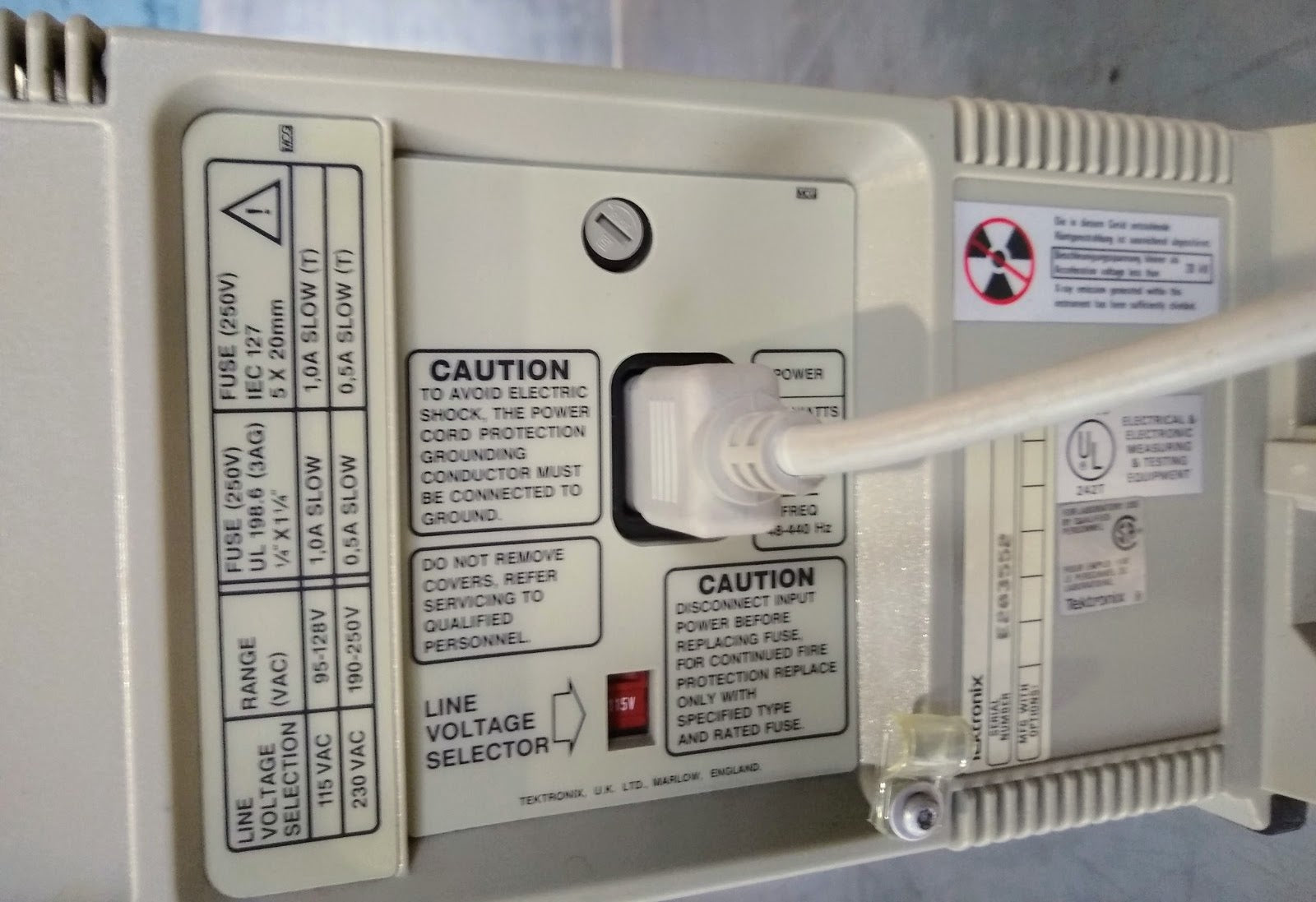

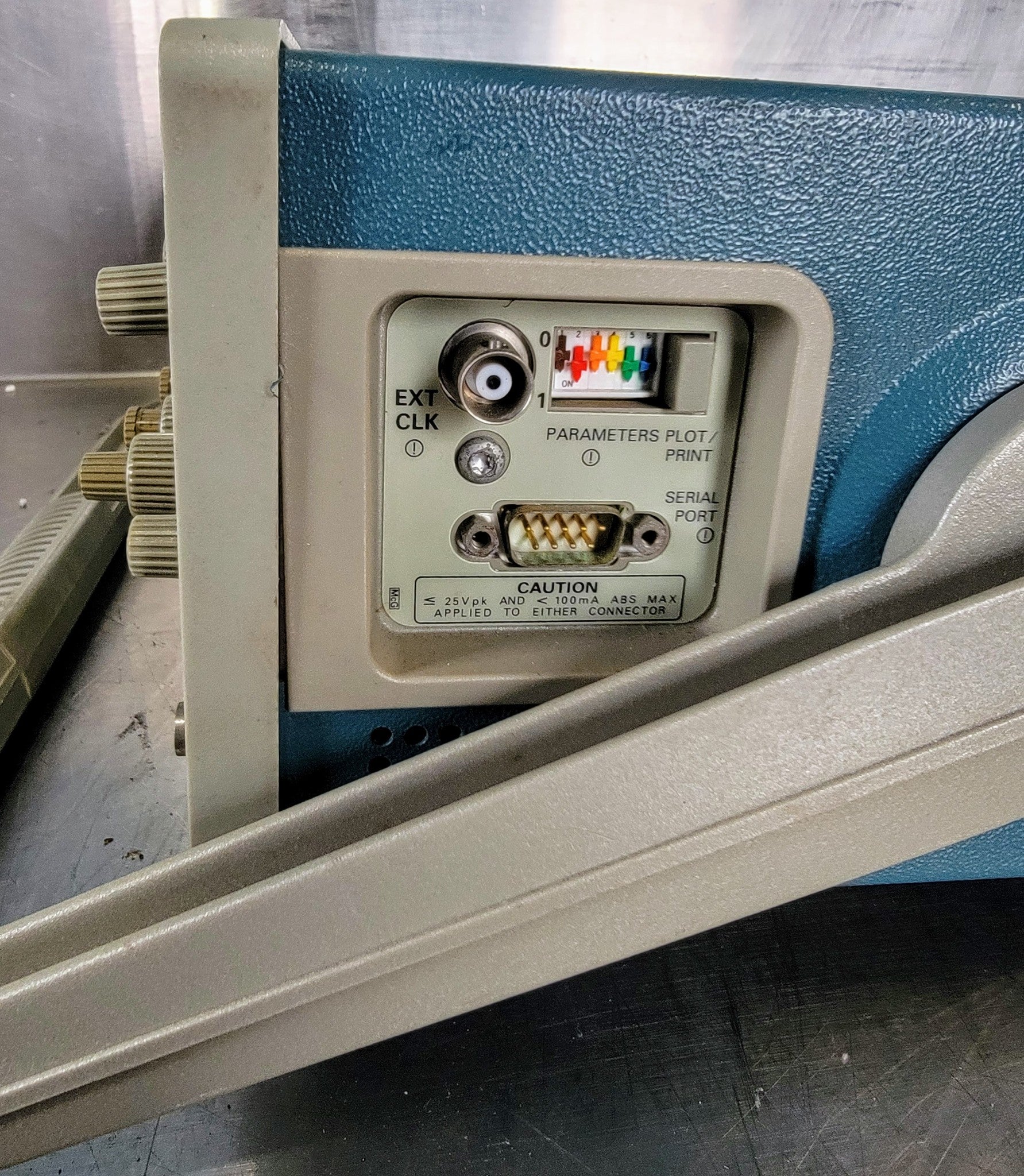

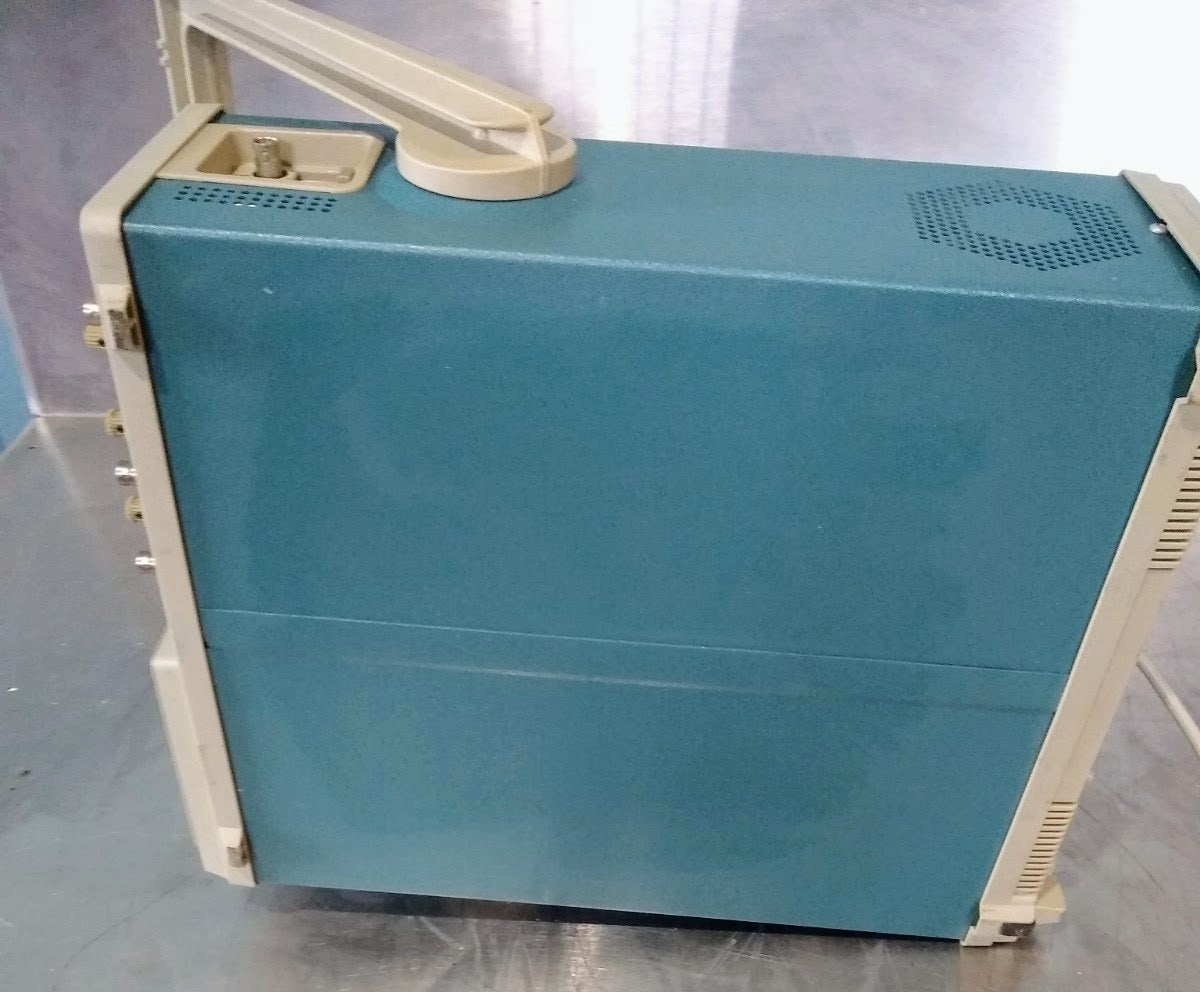

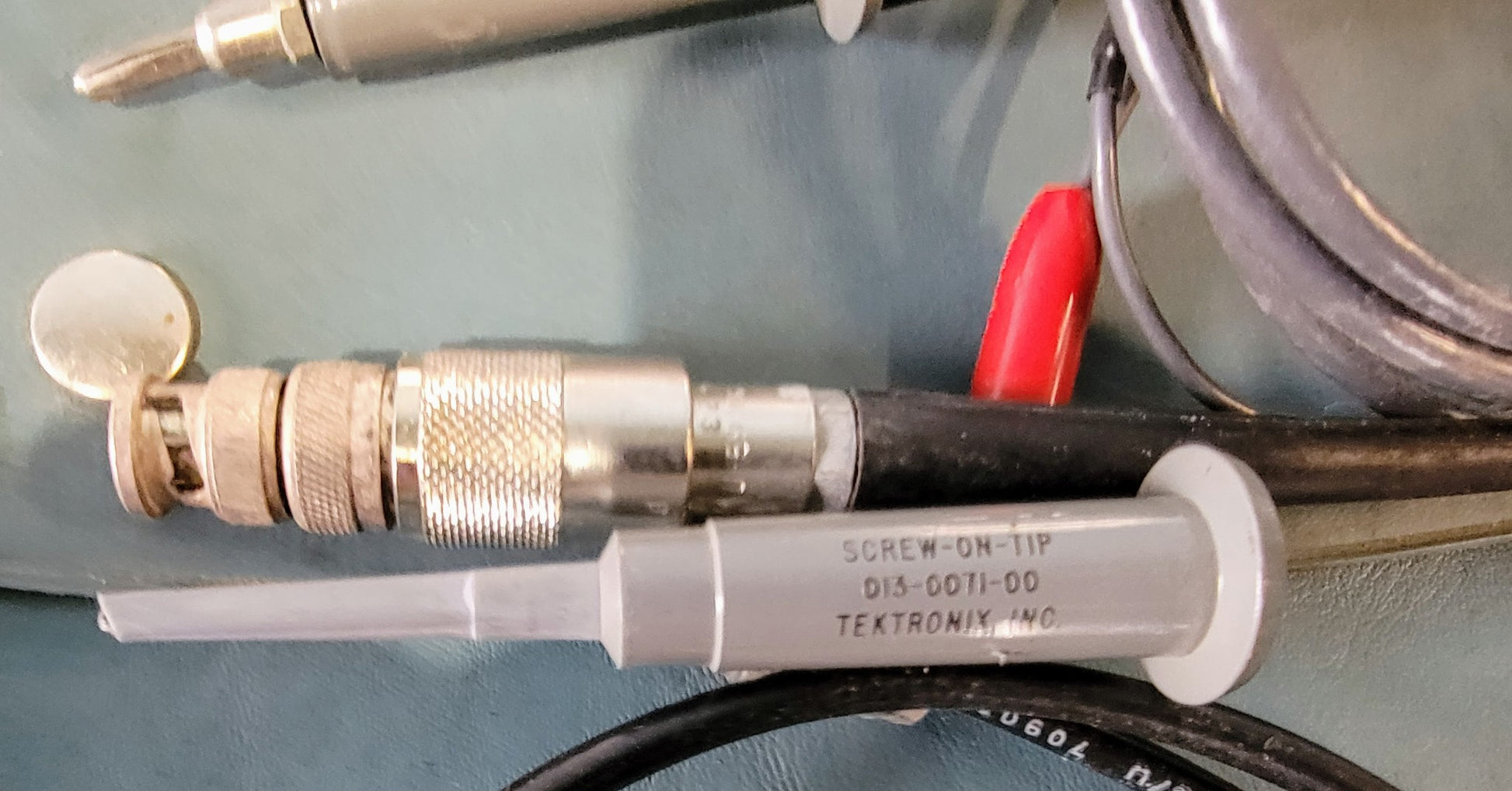

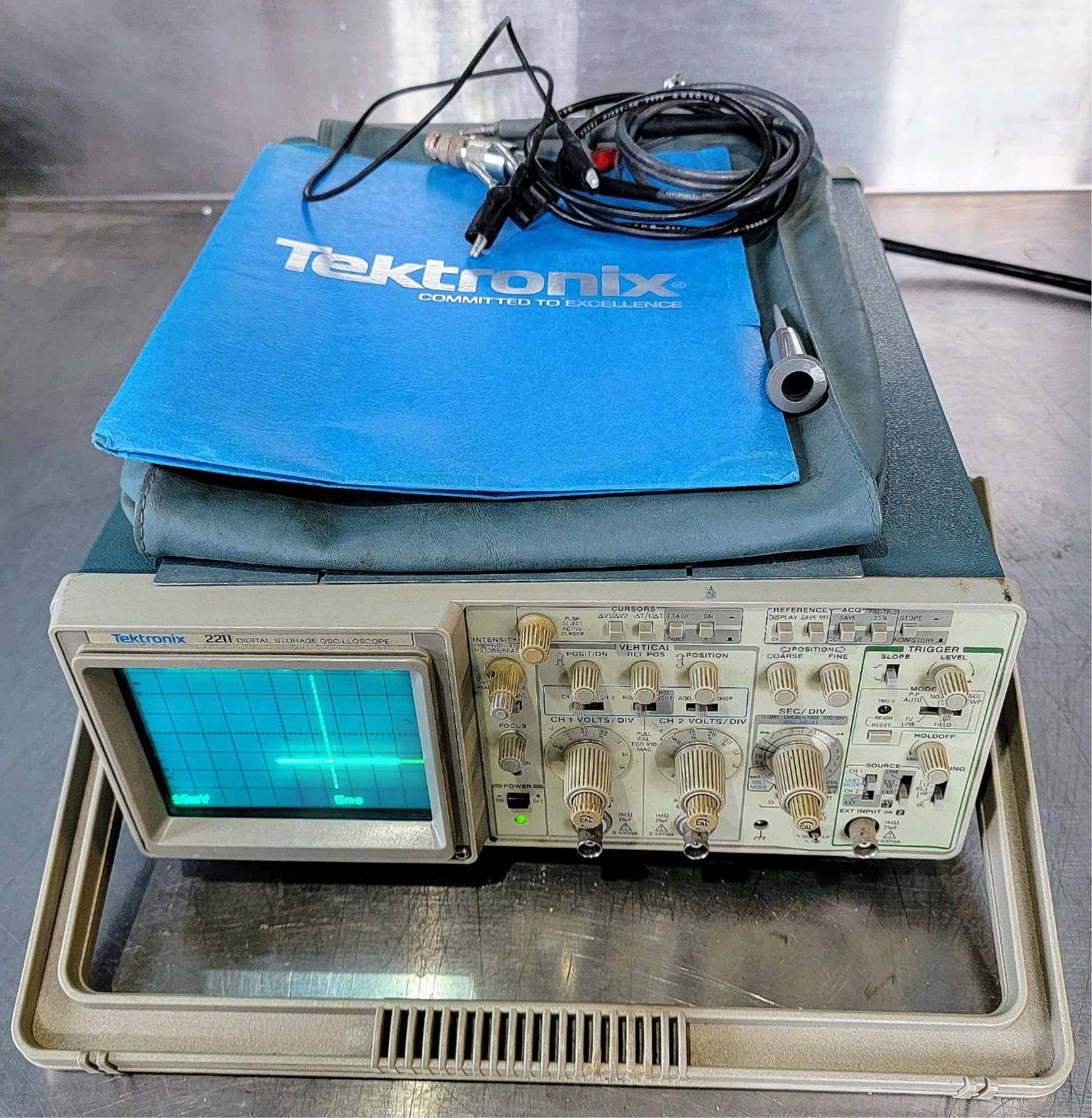

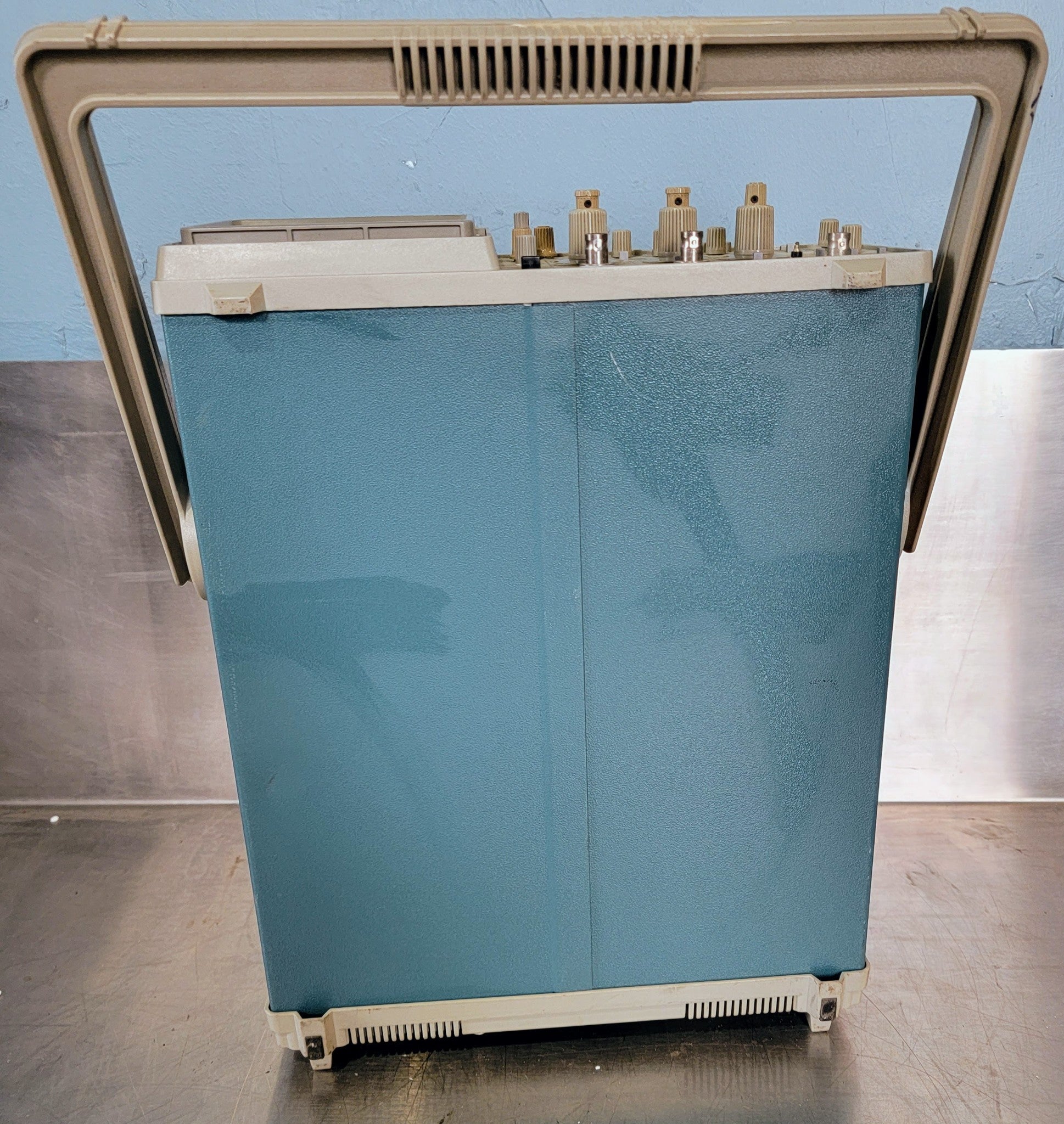

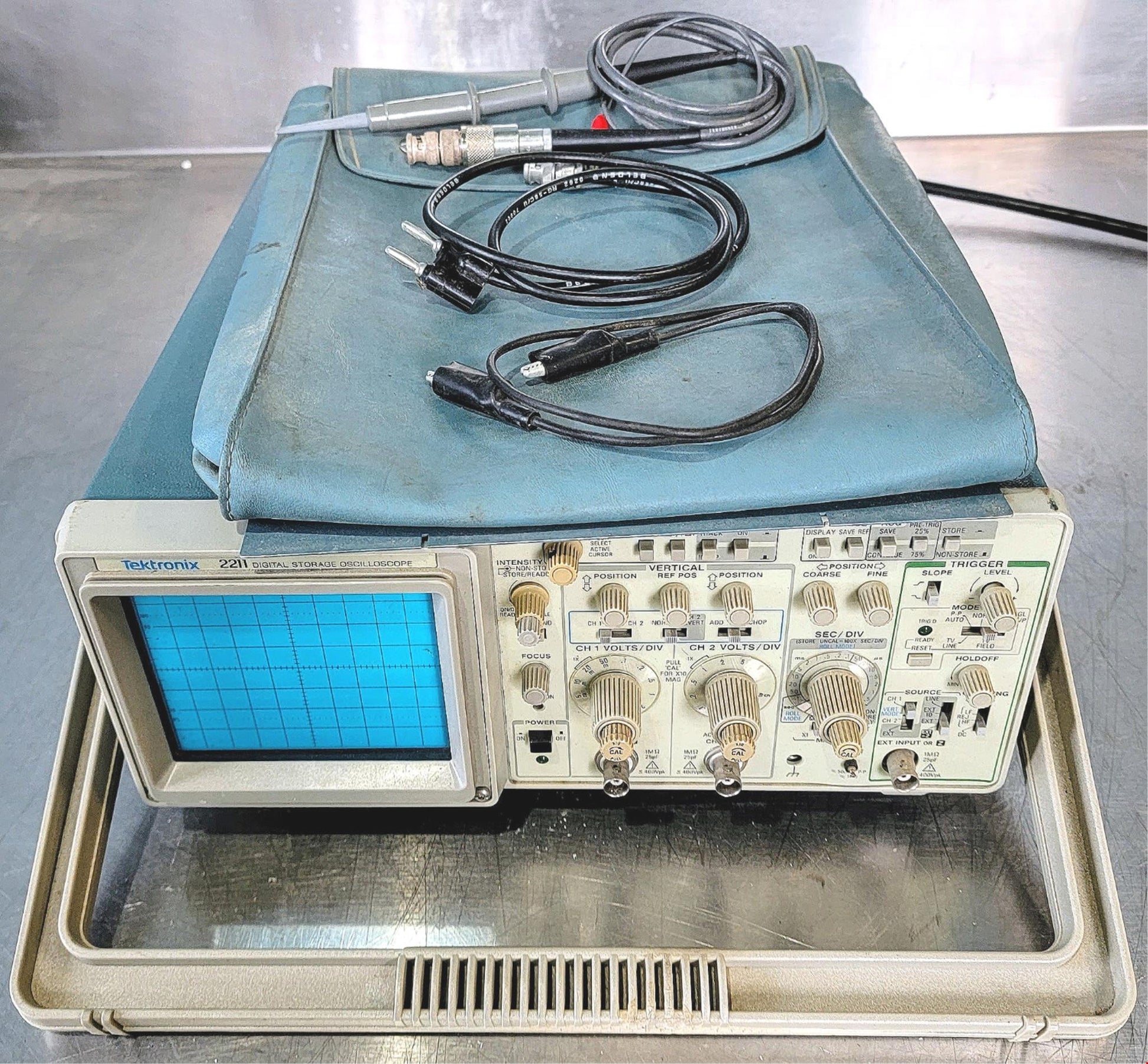

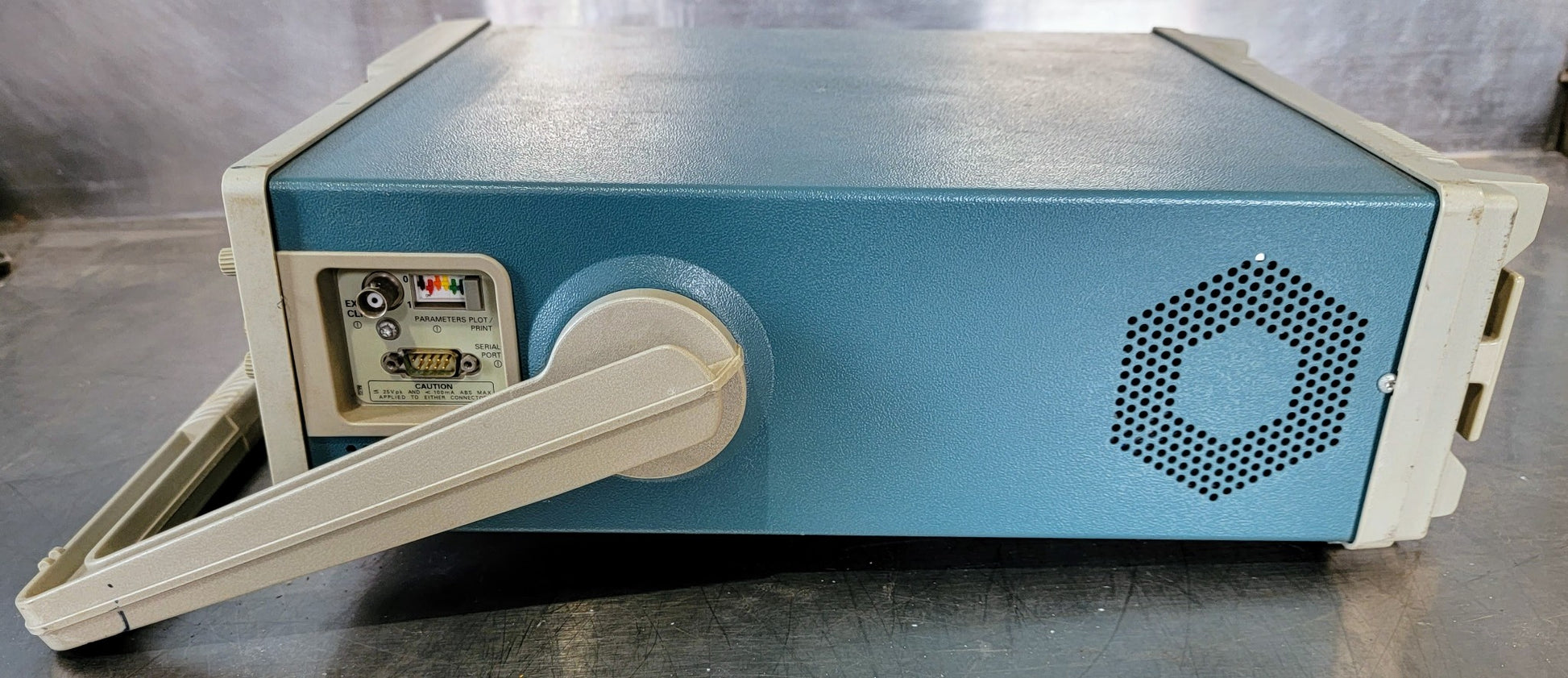

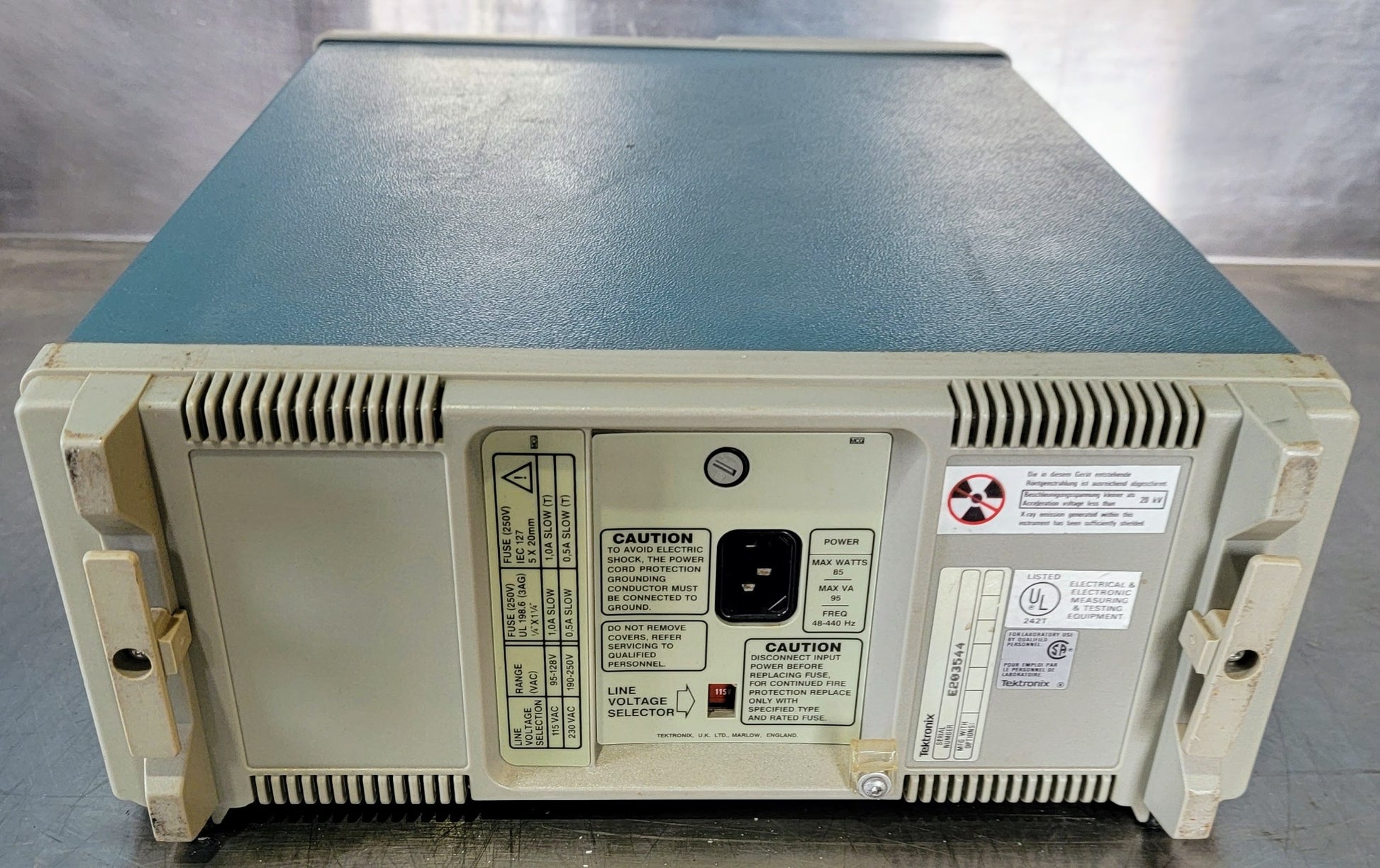

IS in very good cosmetic condition also, although there are a few small signs of previous use. Please look at the photos.

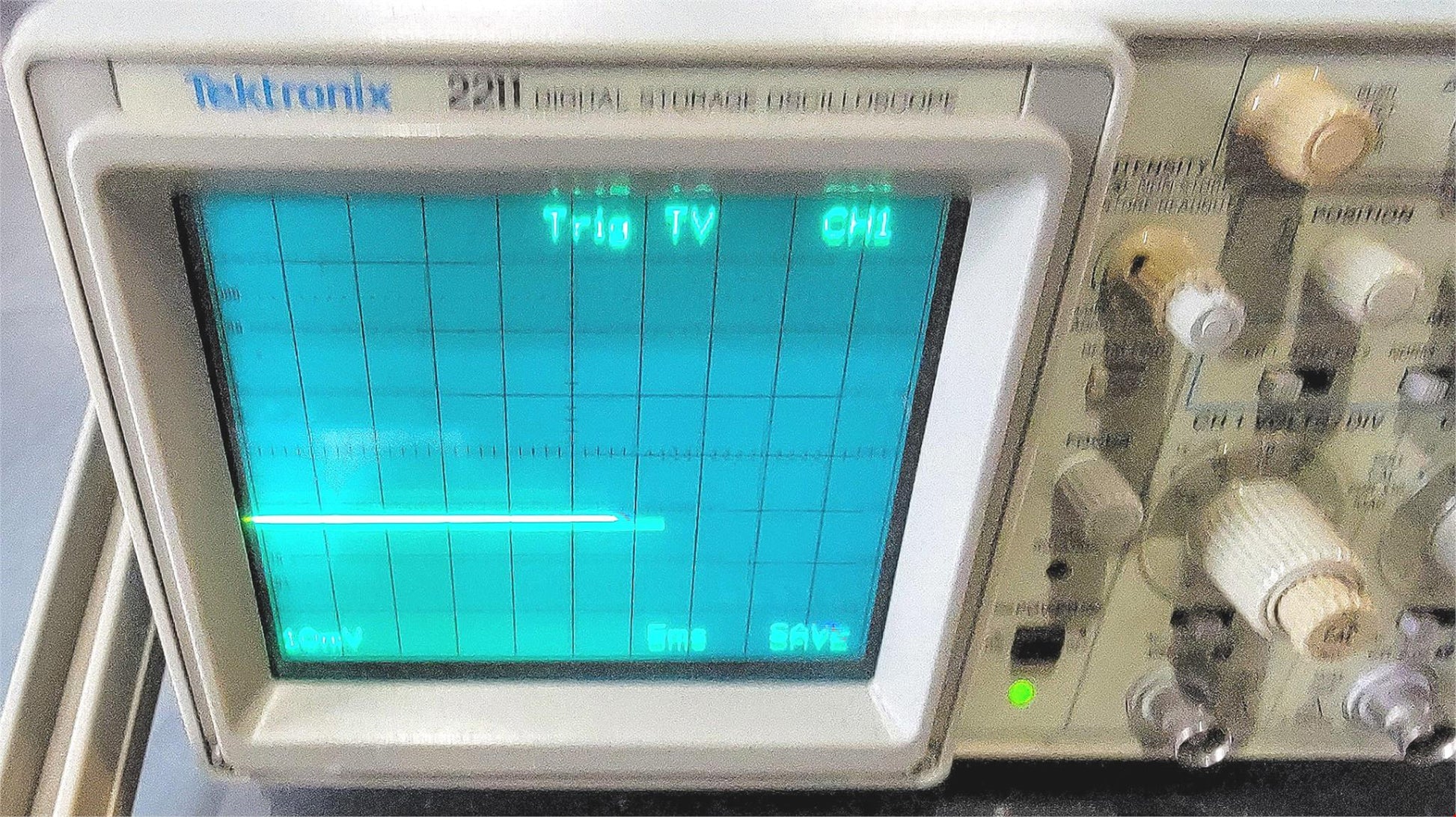

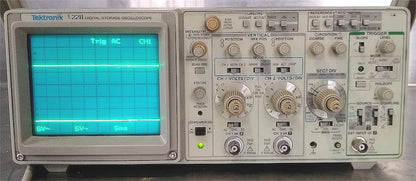

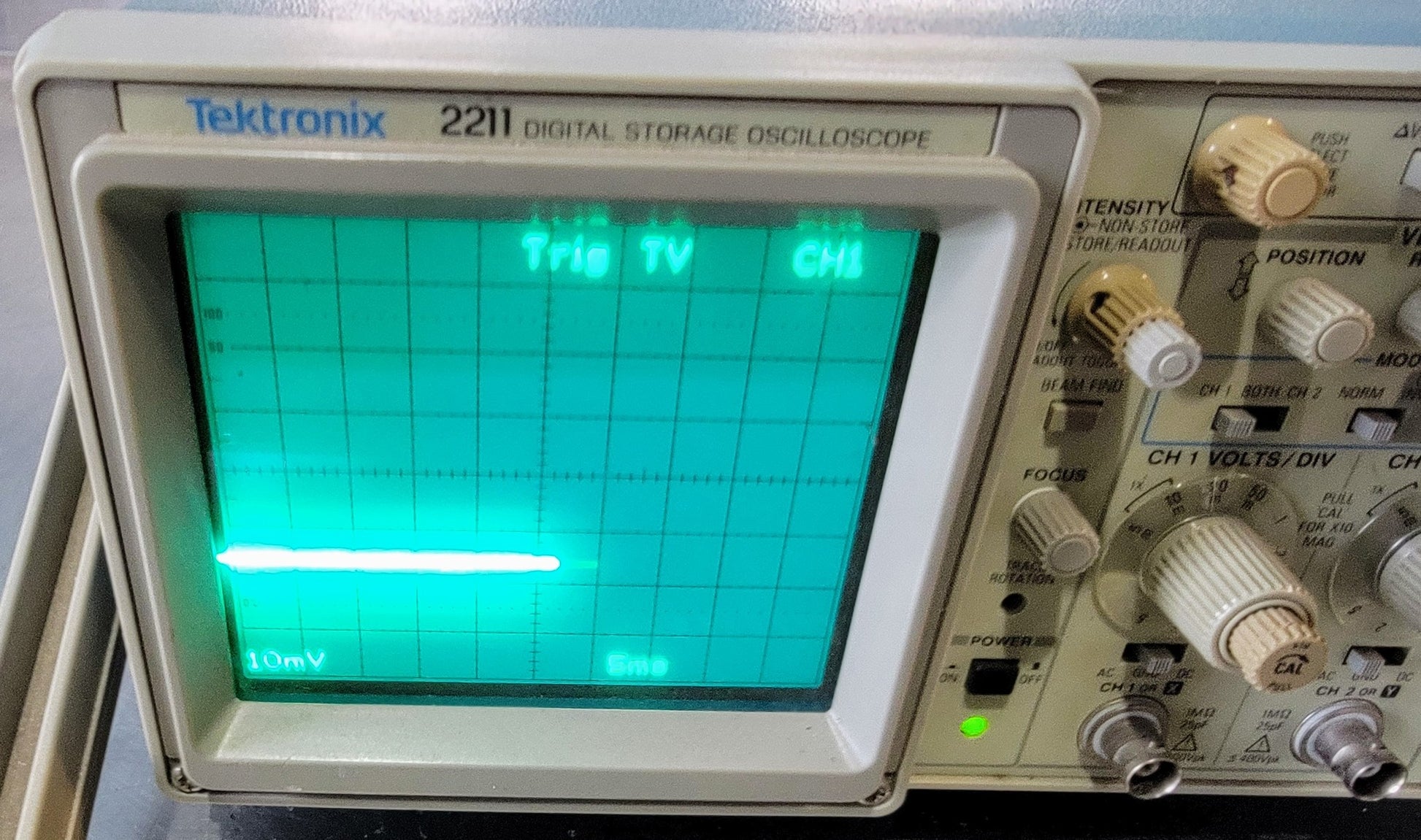

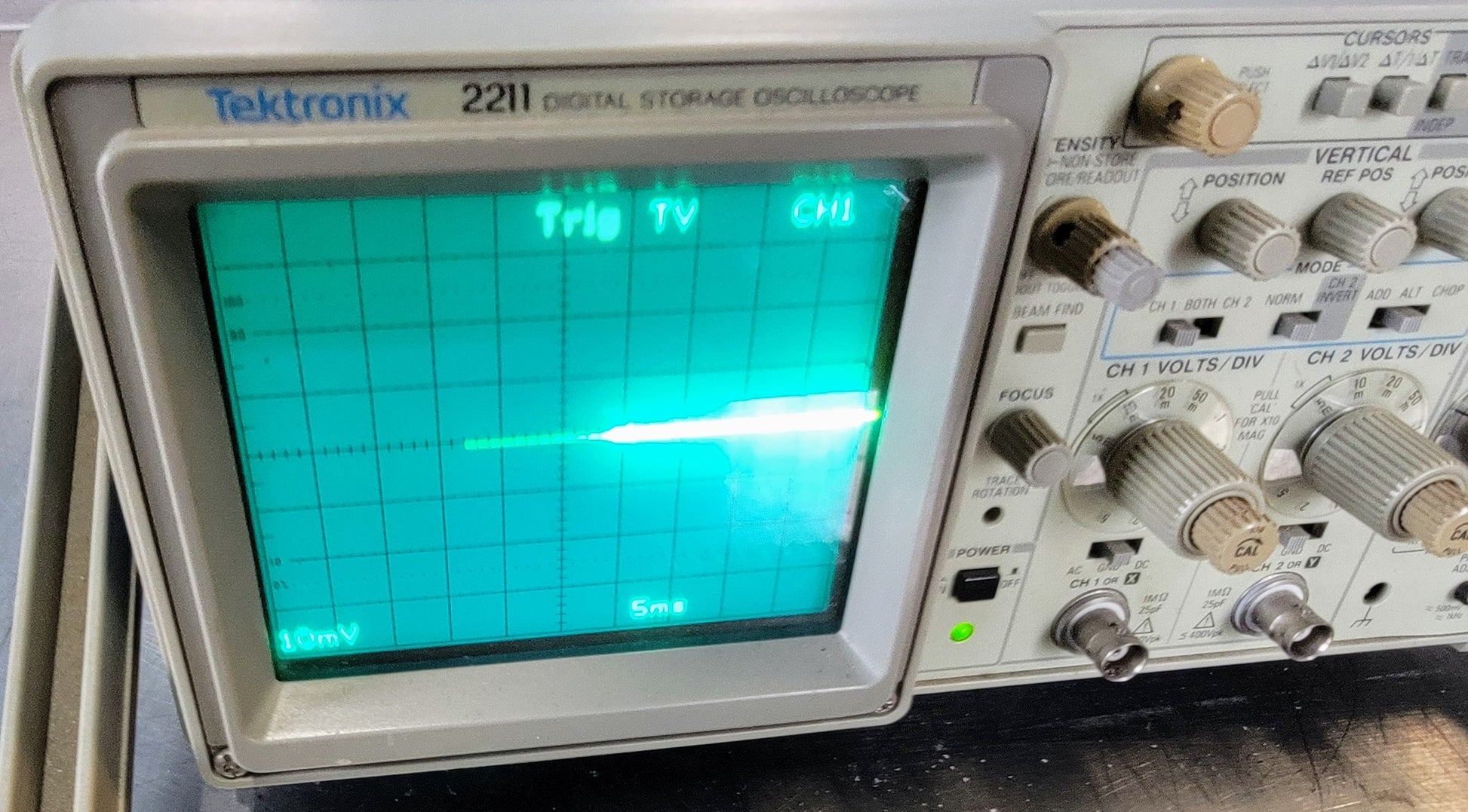

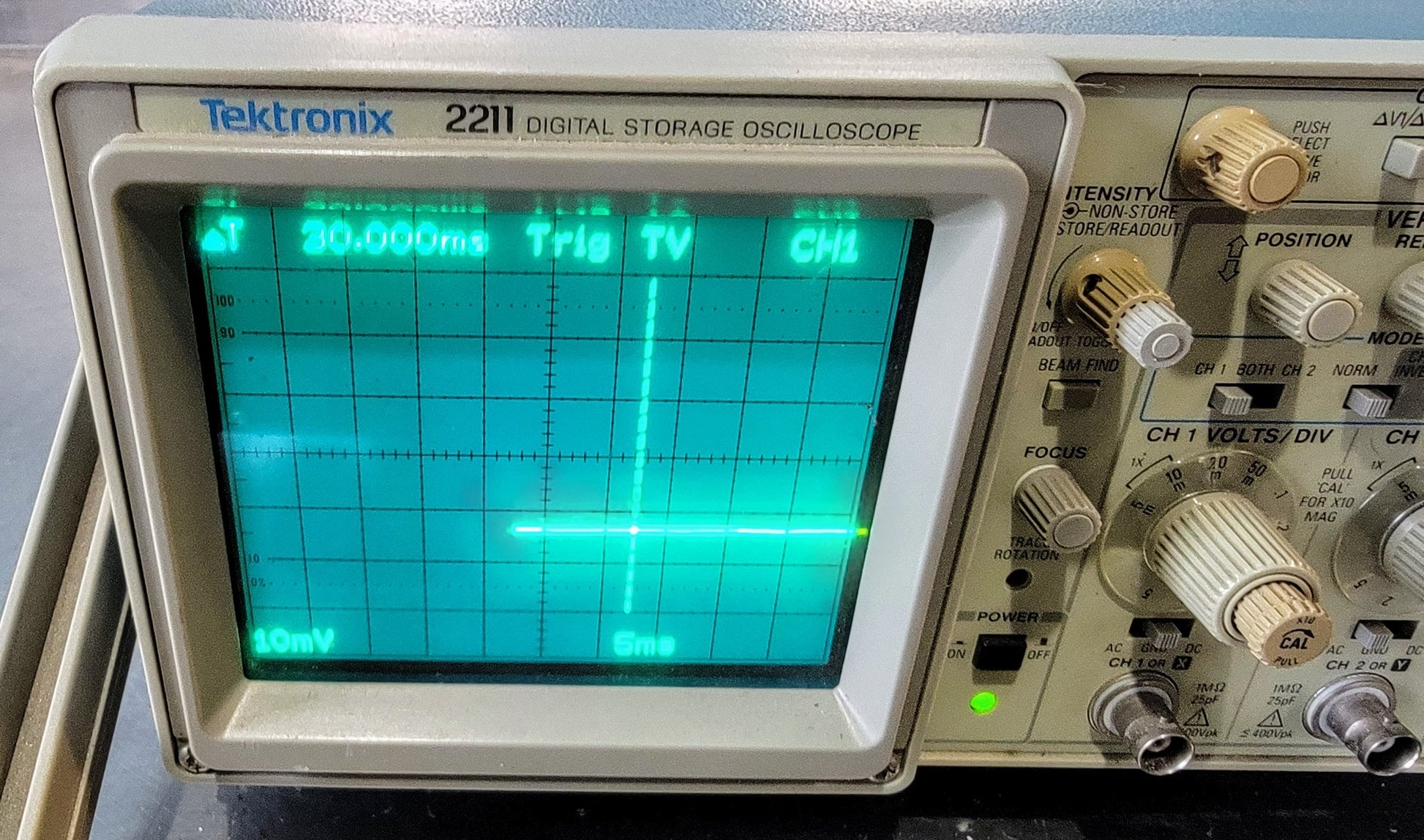

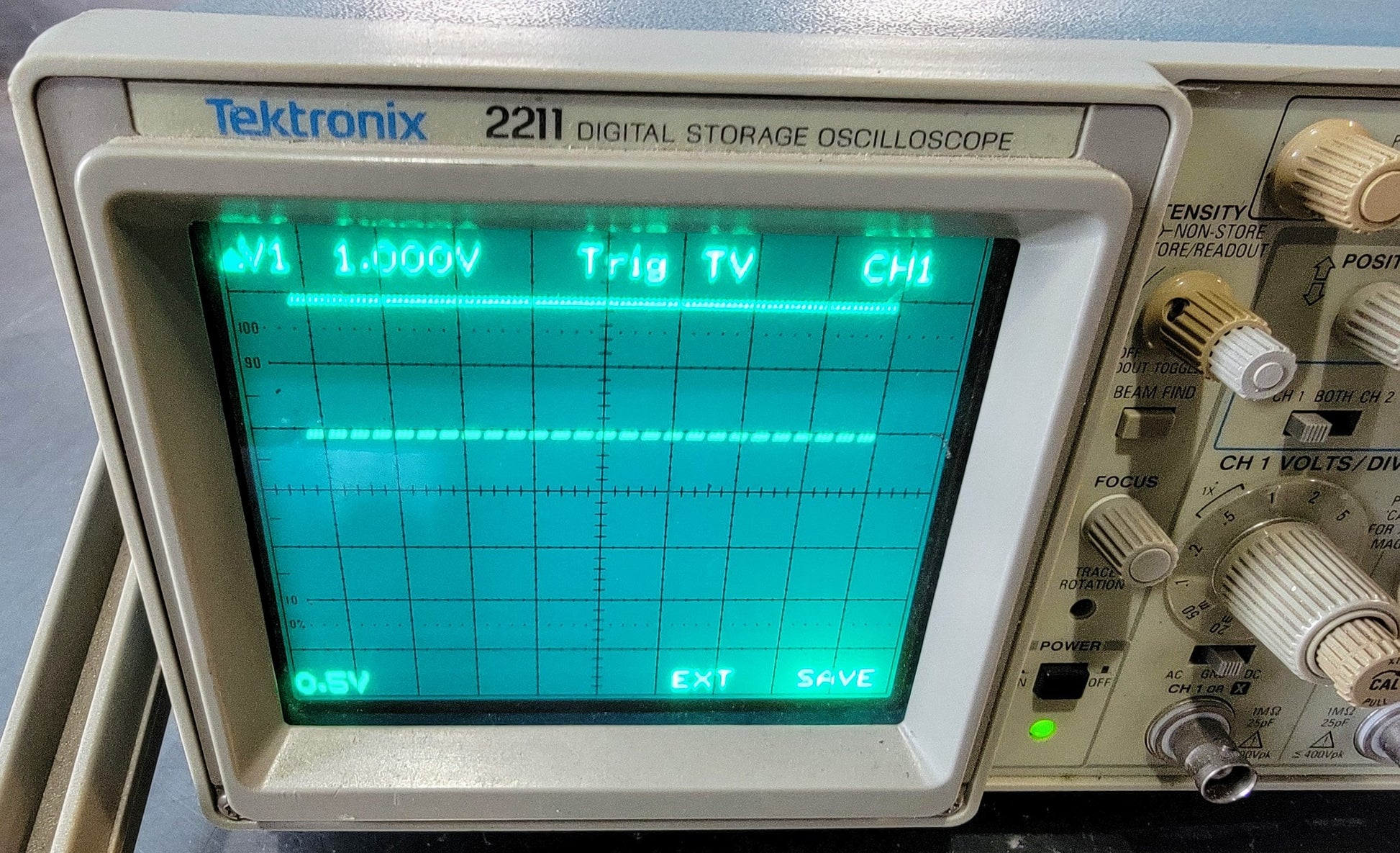

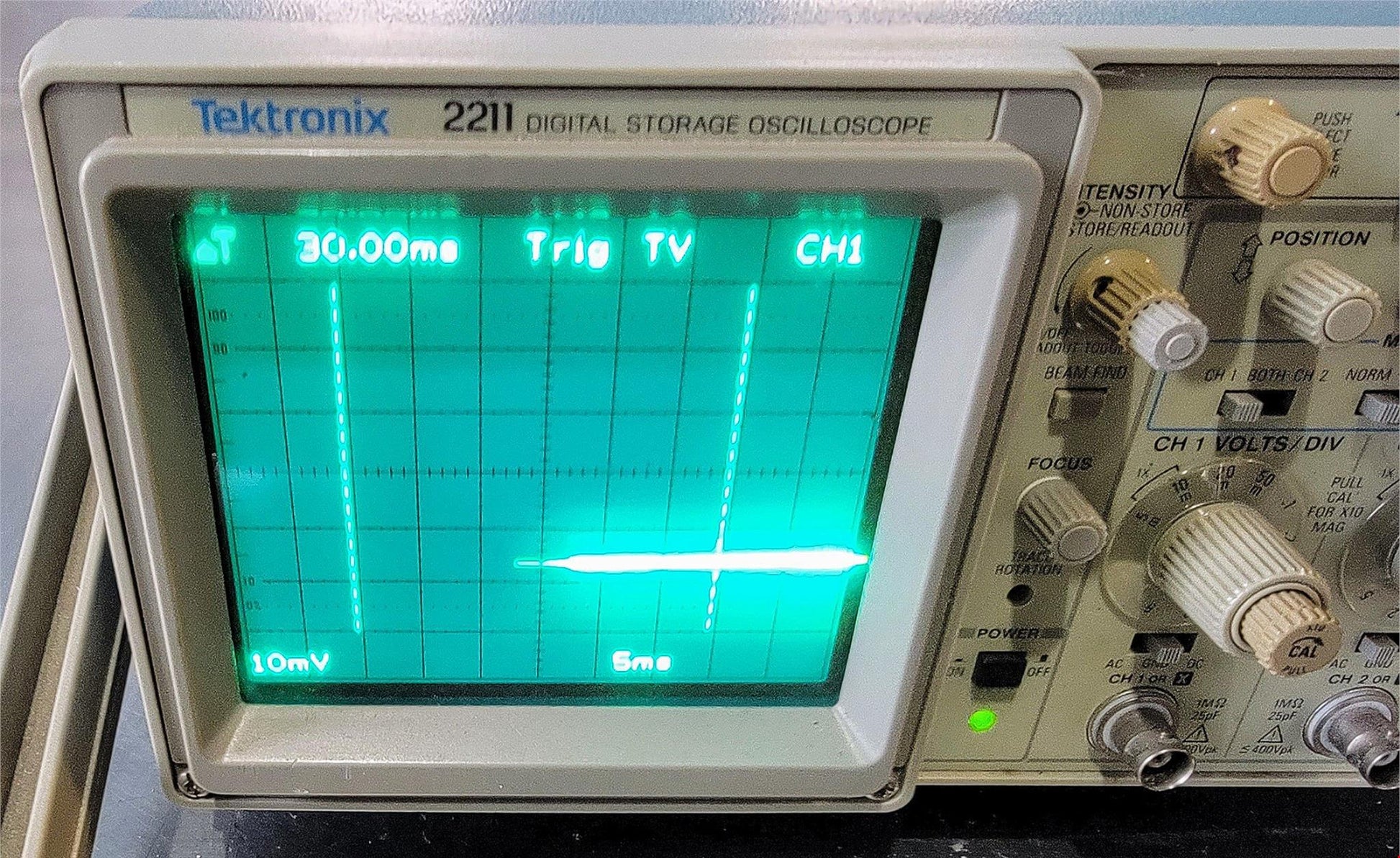

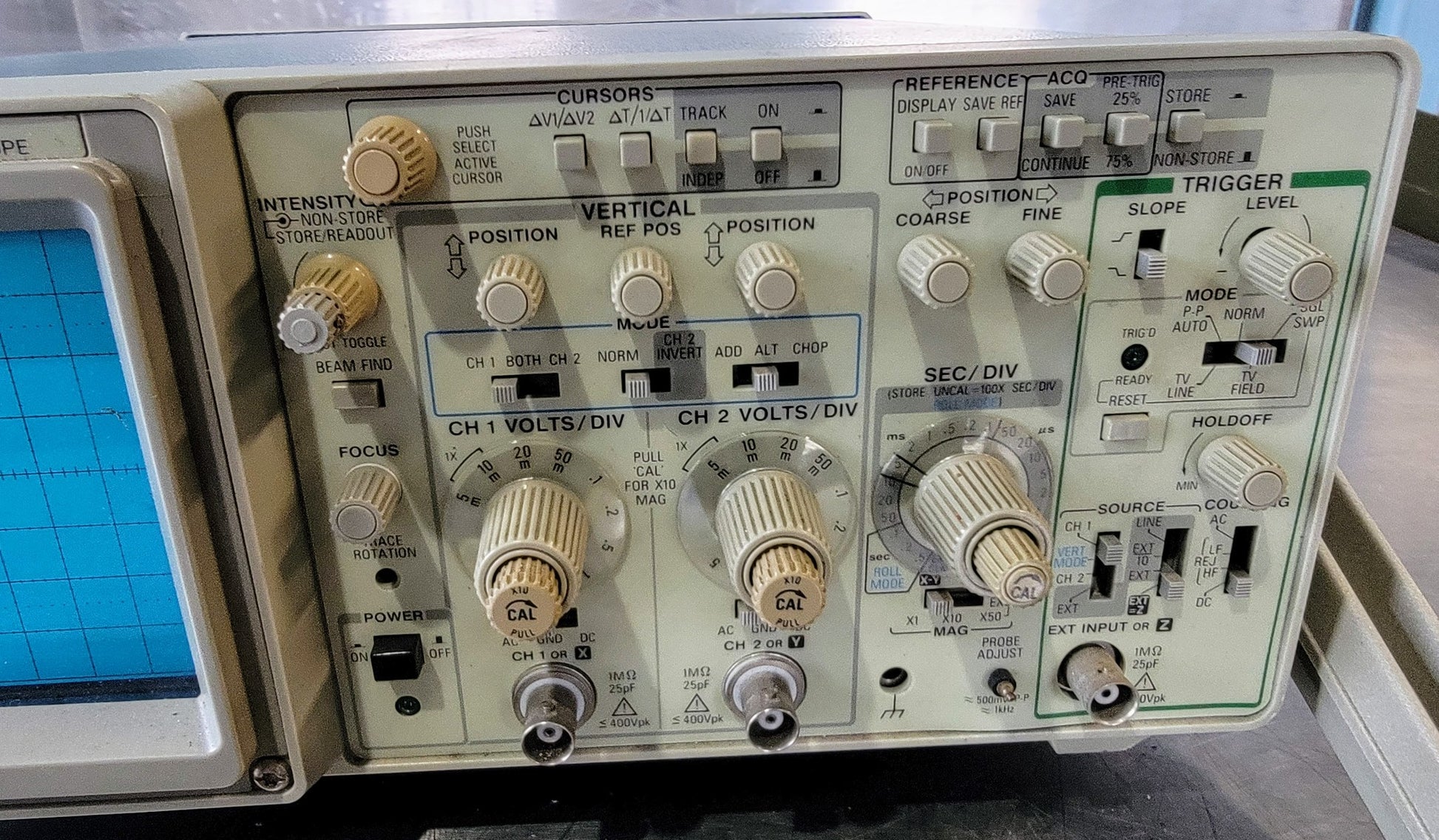

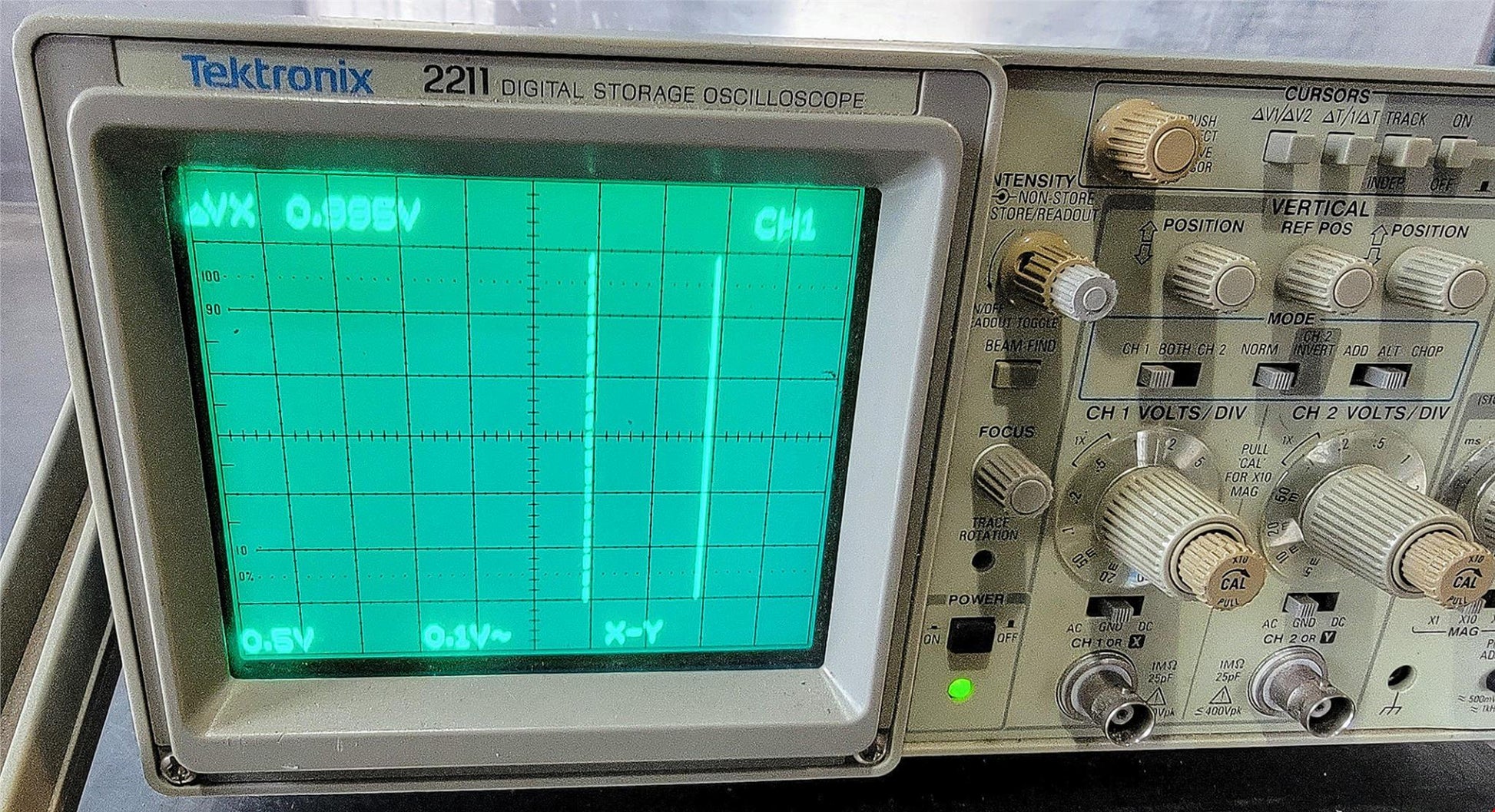

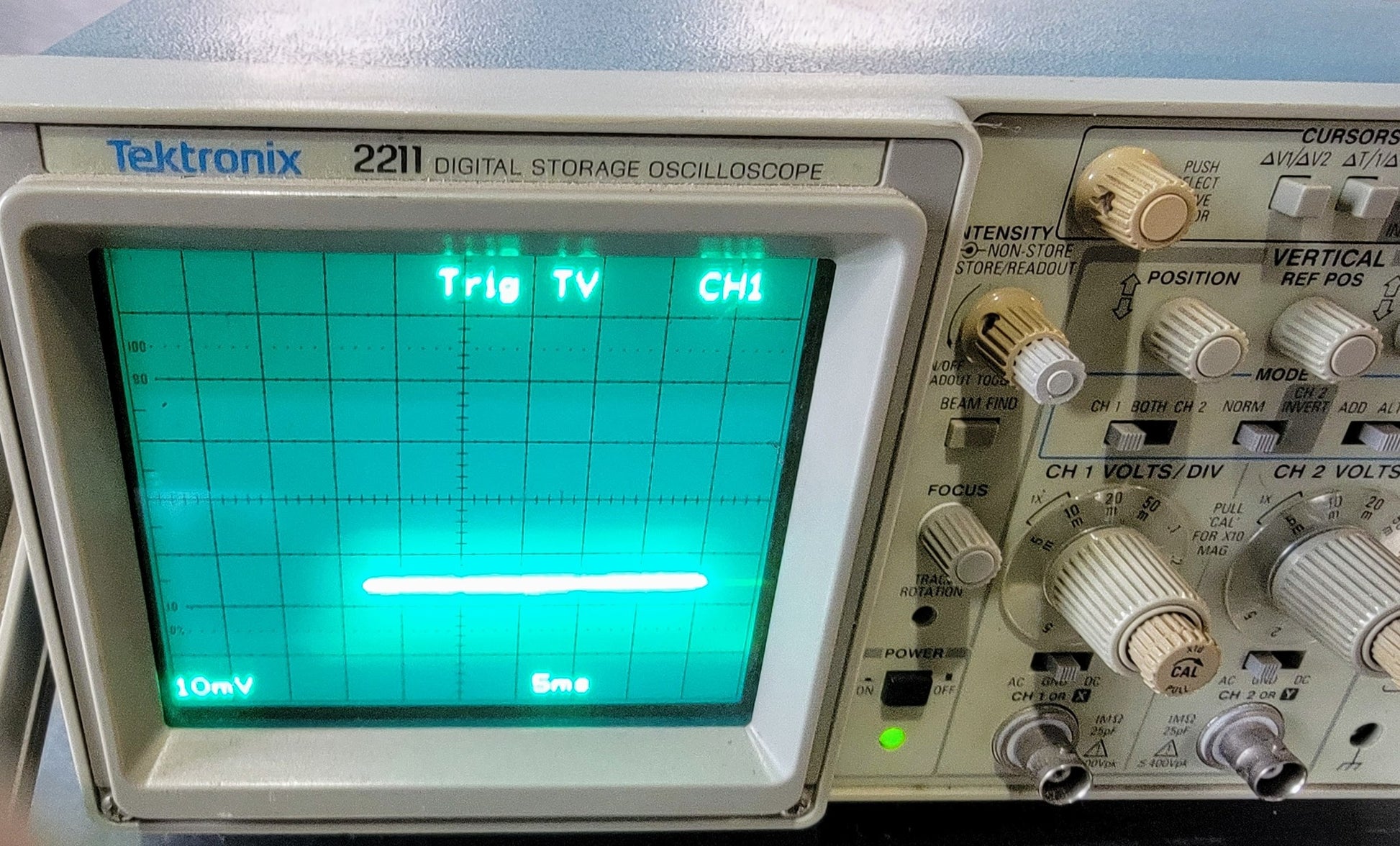

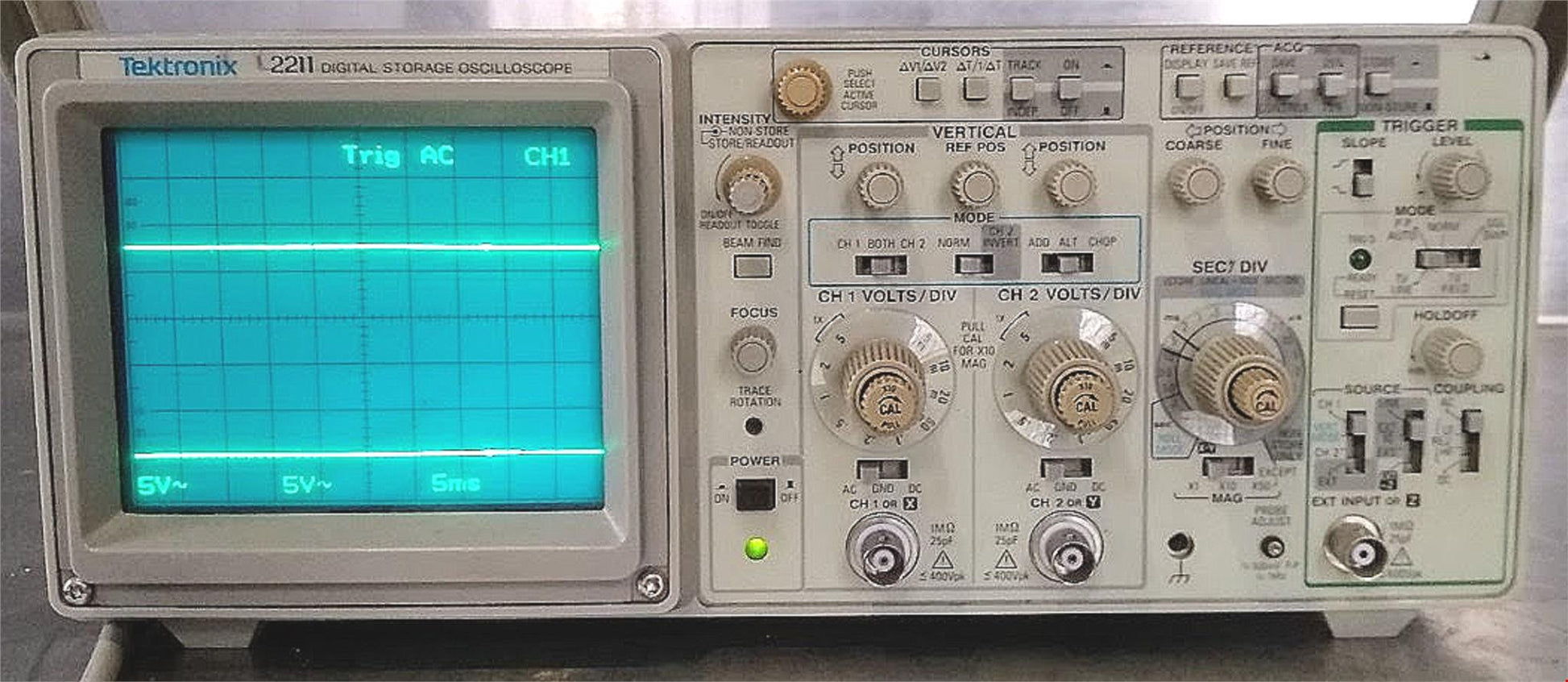

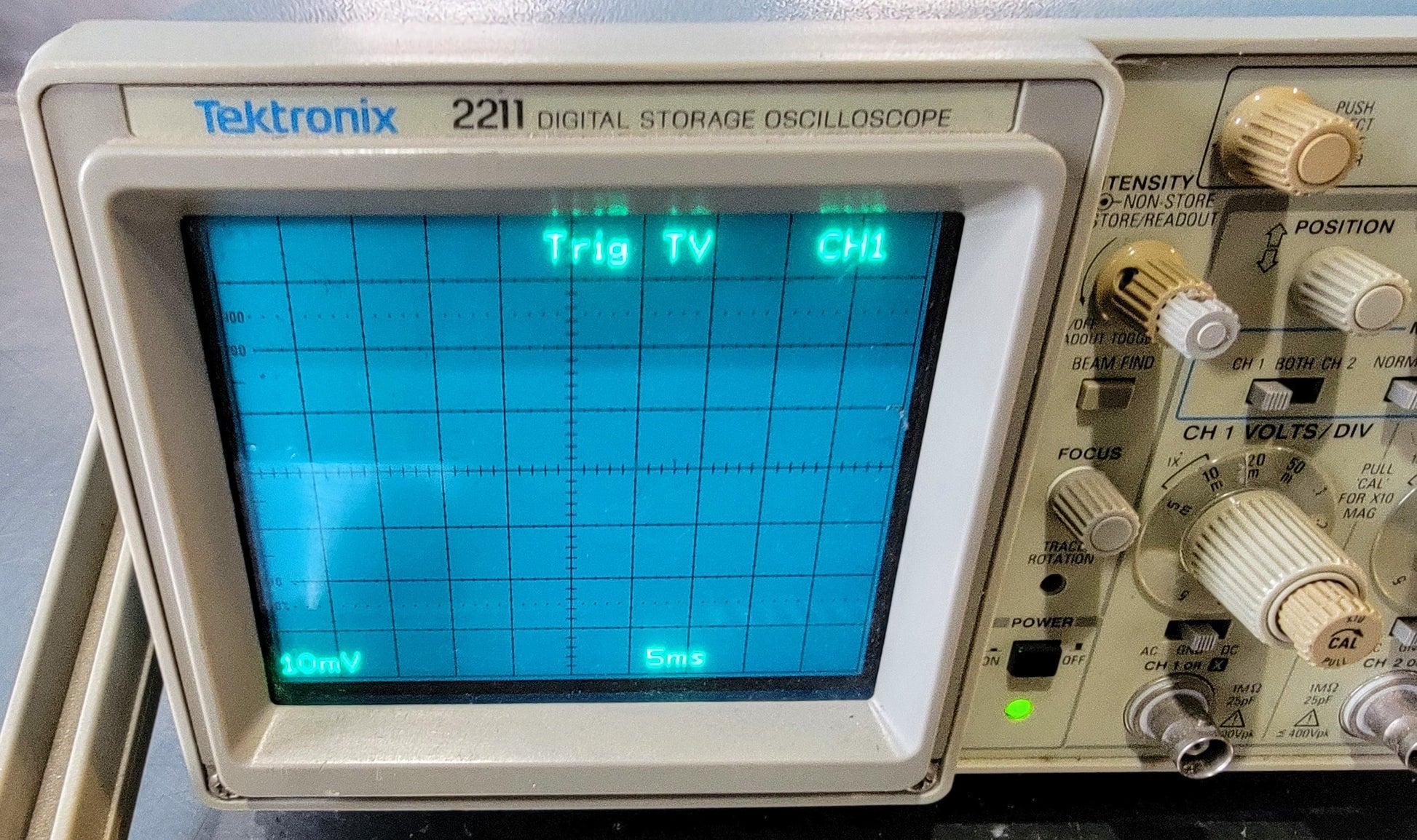

The unit powers-up bright & clear and responds to manipulation of the control panel perfectly as shown.
The unpacked dimensions of this item are approximately 19“L x 18“W x 10“H.
50 MHz Digital/Analog Oscilloscope

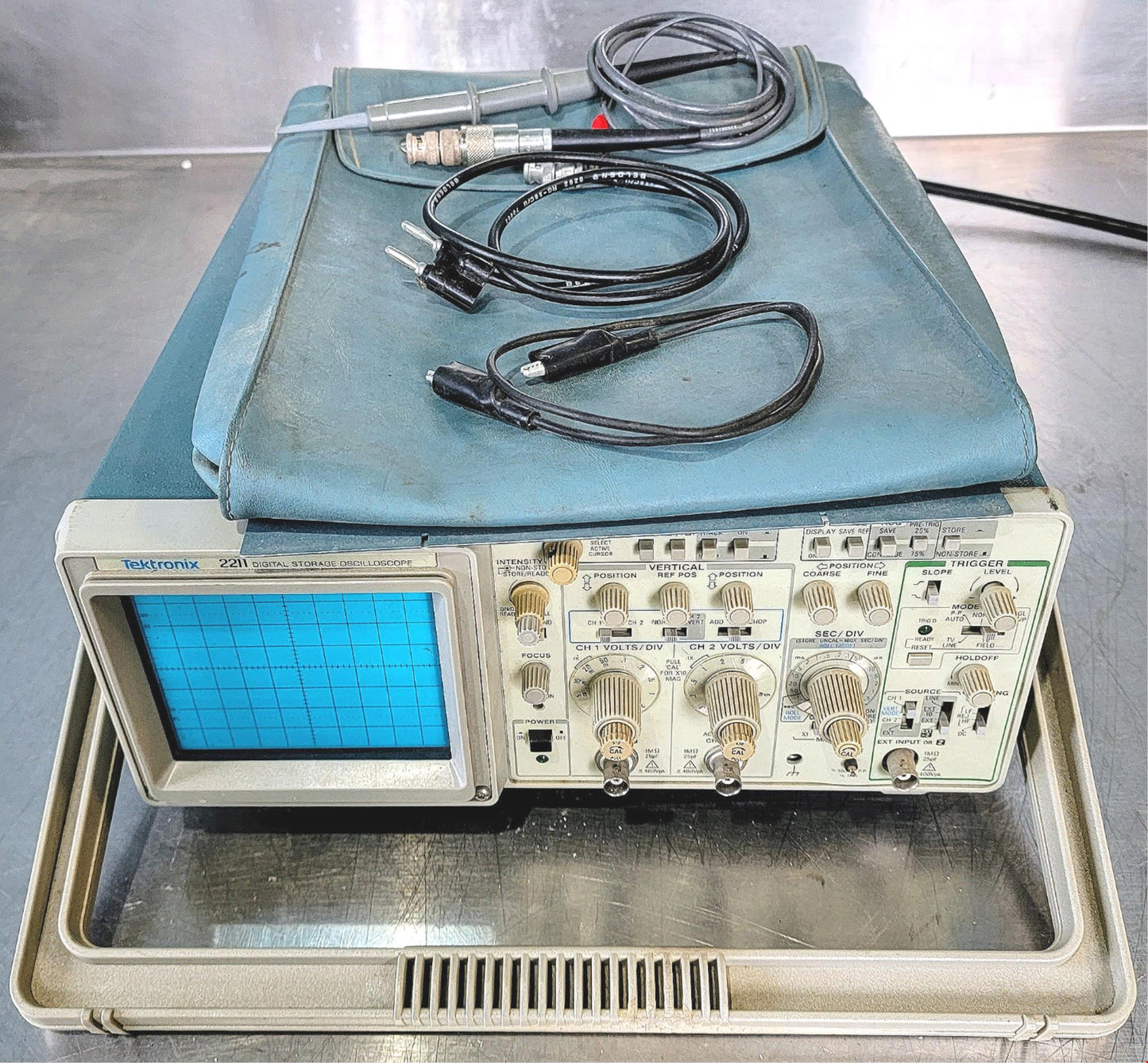

The Tektronix 2211 is a dual-channel combination analog/digital storage portable oscilloscope.
The Tektronix 2211 Oscilloscope is a 50MHz, 2 channel digital plus analog unit which provides 20 MS/s per channel sampling.
It has vertical sensitivity of 500 µV/div, 4 K per channel record length and CRT readout, including trigger level voltage.
Features:
Bandwidth: 50 MHz
Number of Channels: 2 ch
Simultaneous Channels: 2 ch
Simultaneous Maximum Sampling Rate/ch: 20 MSa/s
One ch. only max. sampling rate: 20 MSa/s
Max. Record Length: 4000 pt/sec
Min. Vertical Sensitivity: 5 mV/div
Maximum Vertical Sensitivity: 5 V/div
Rise time: 7 ns
Number of Bits: 8 bits
Input Impedance: 1 MOhm
Input Coupling: AC,DC,GN
Maximum Input Voltage: 400 Vrms
Main time base - lowest : 50 ns/div
Main time base - highest: 0.5 s/div
Timebase accuracy: 3.0 %
Trigger Source: External,Internal
Trigger Sensitivity : 0.35 mV
Display Type: CRT Monochrome
Display Size: 13 cm
