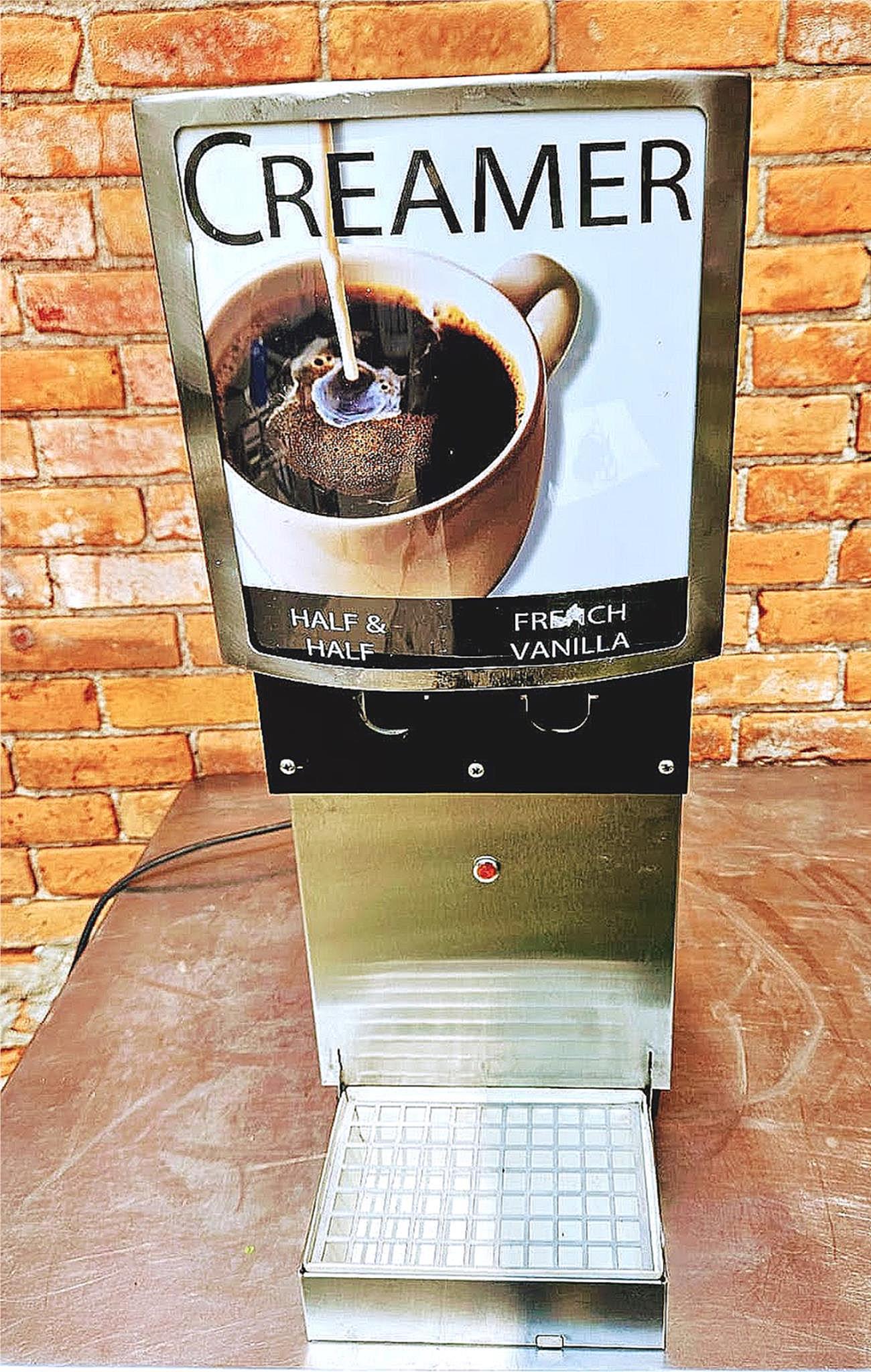

Manual for GW2 2-port and GW3 3-port Dispensers
Java Creations™ Iced Coffee & Java Works™ Creamery Classics machines.

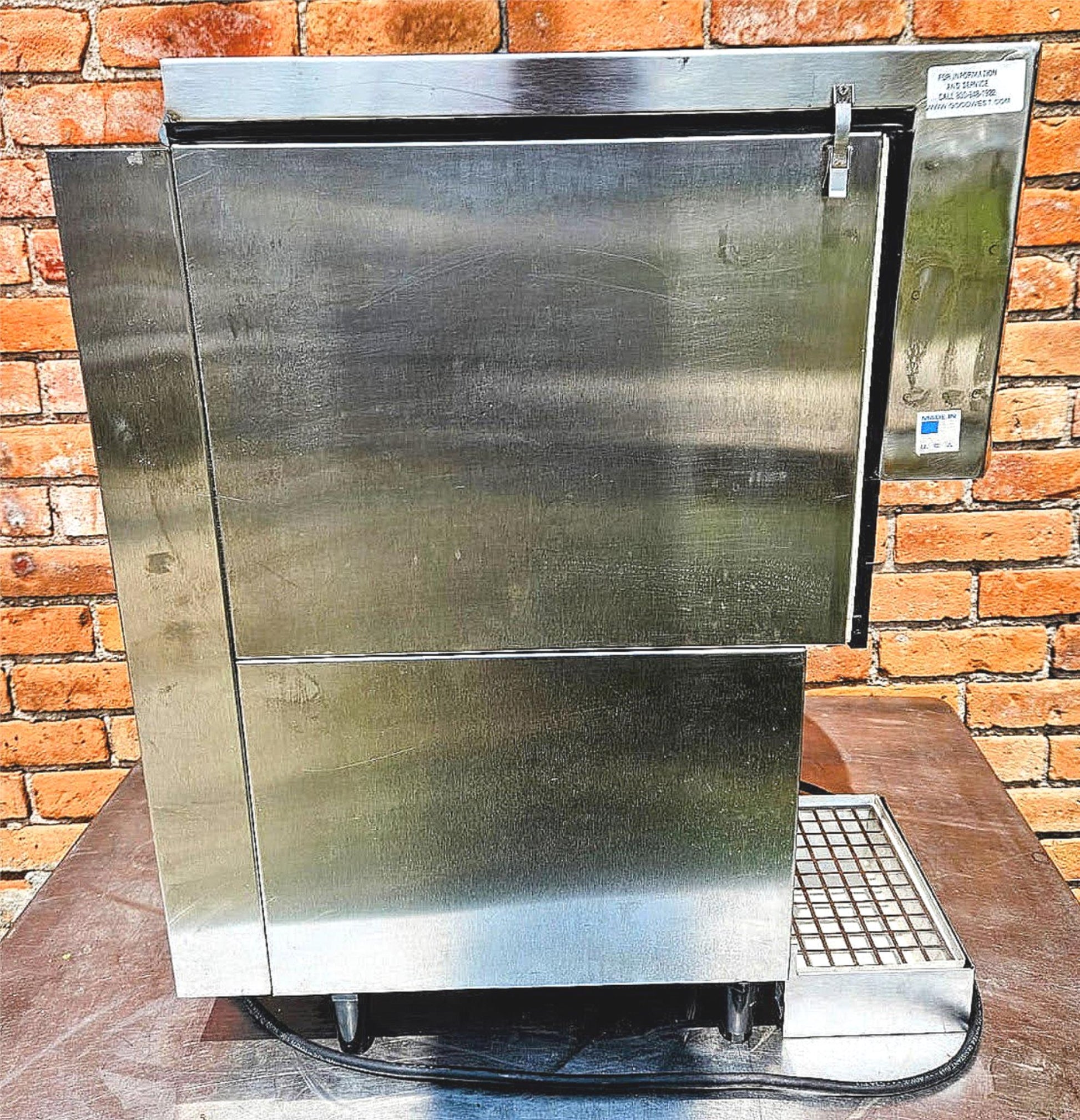

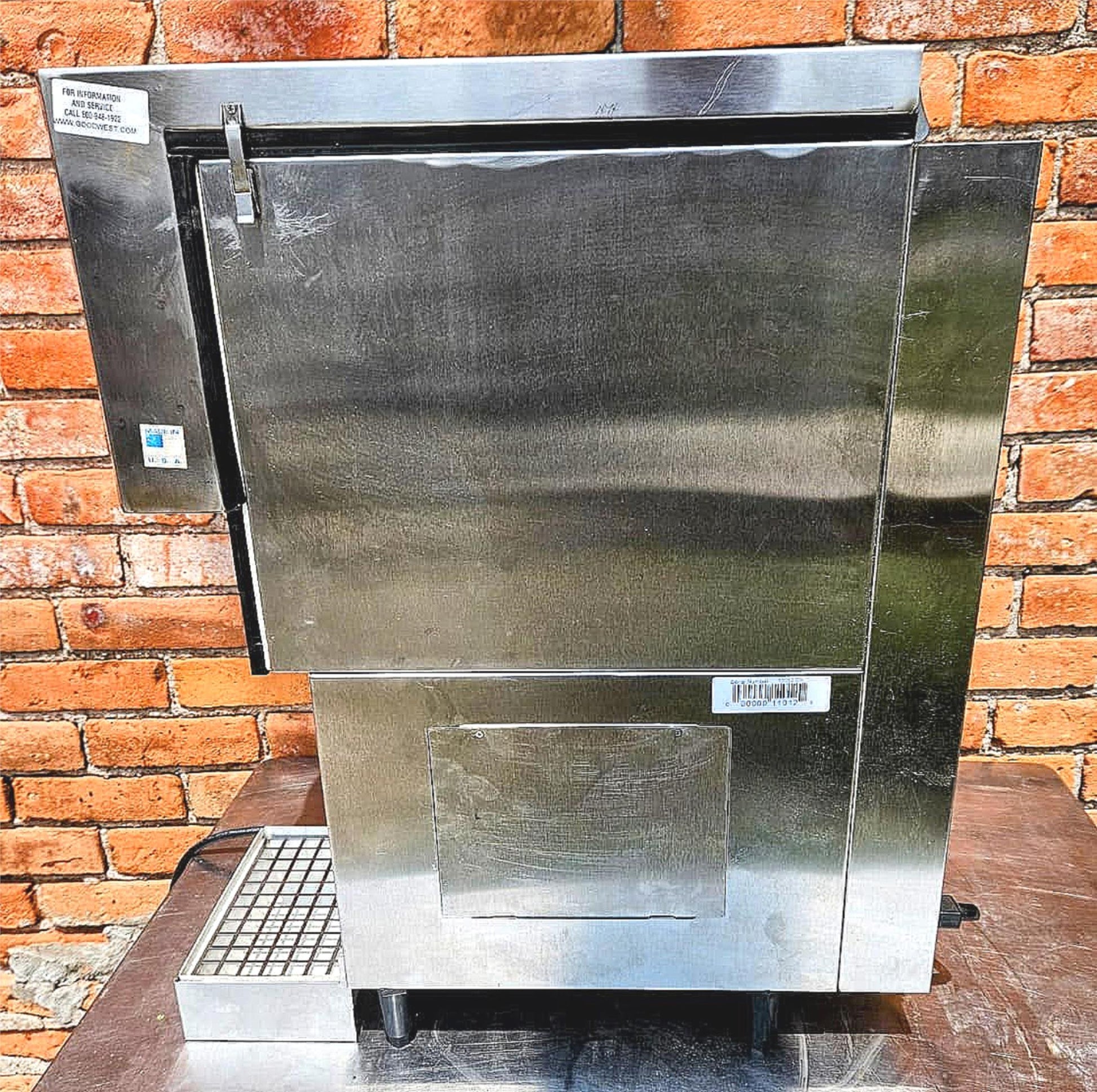

Installation and Power Connections

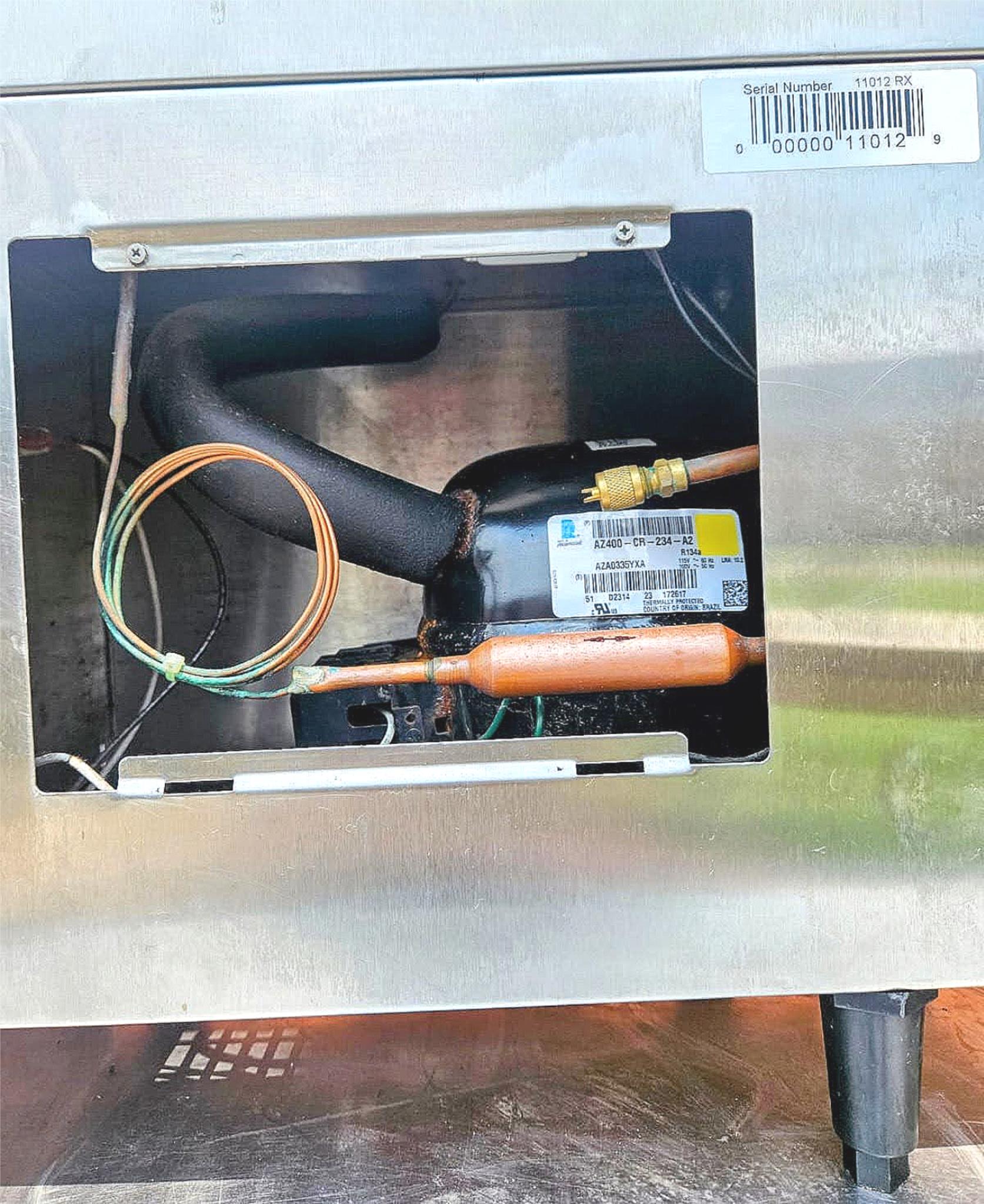

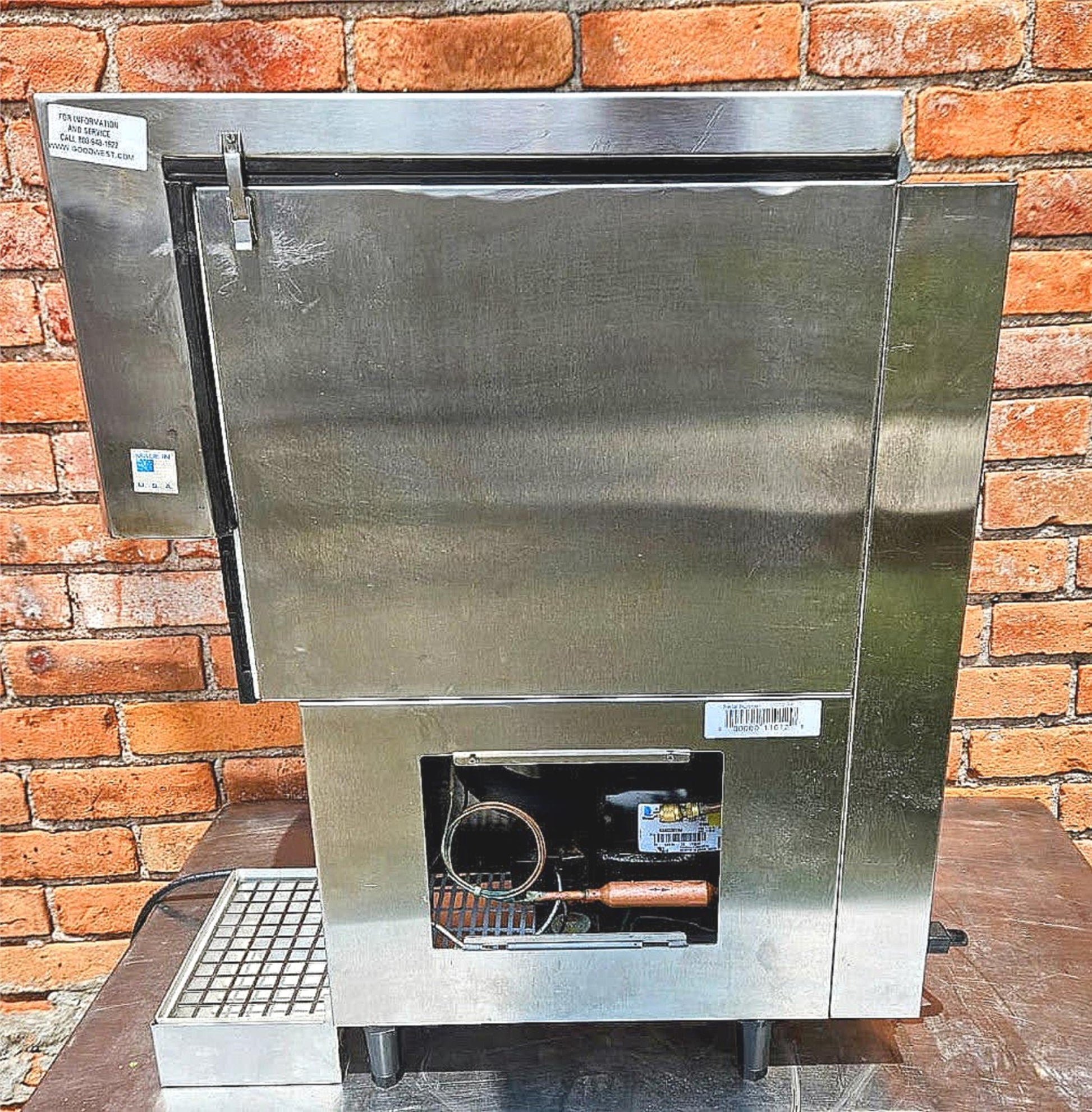

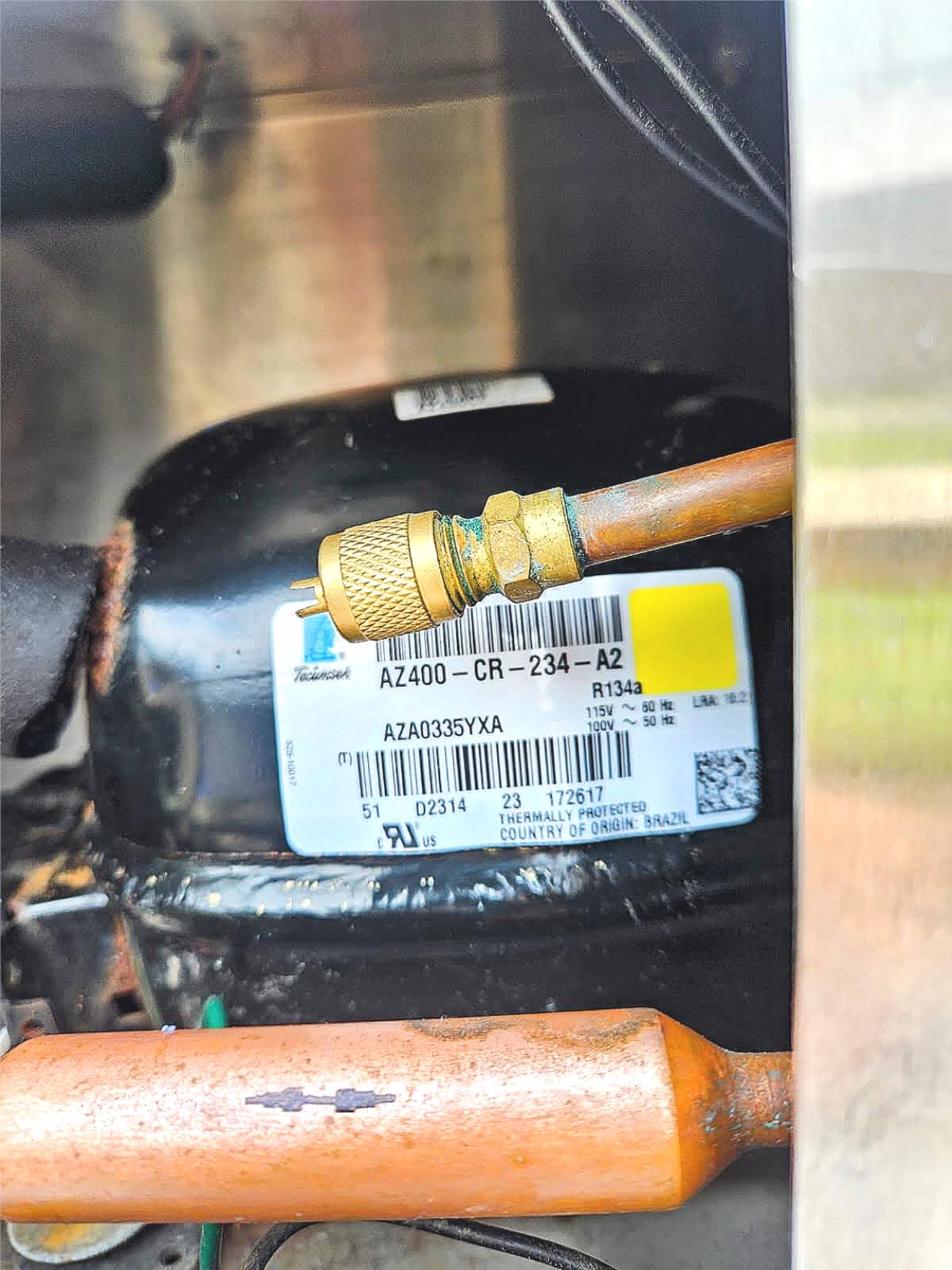

Allow the dispenser to stand for 2 hours before applying power; this ensures proper
oil return to the compressor after shipment.

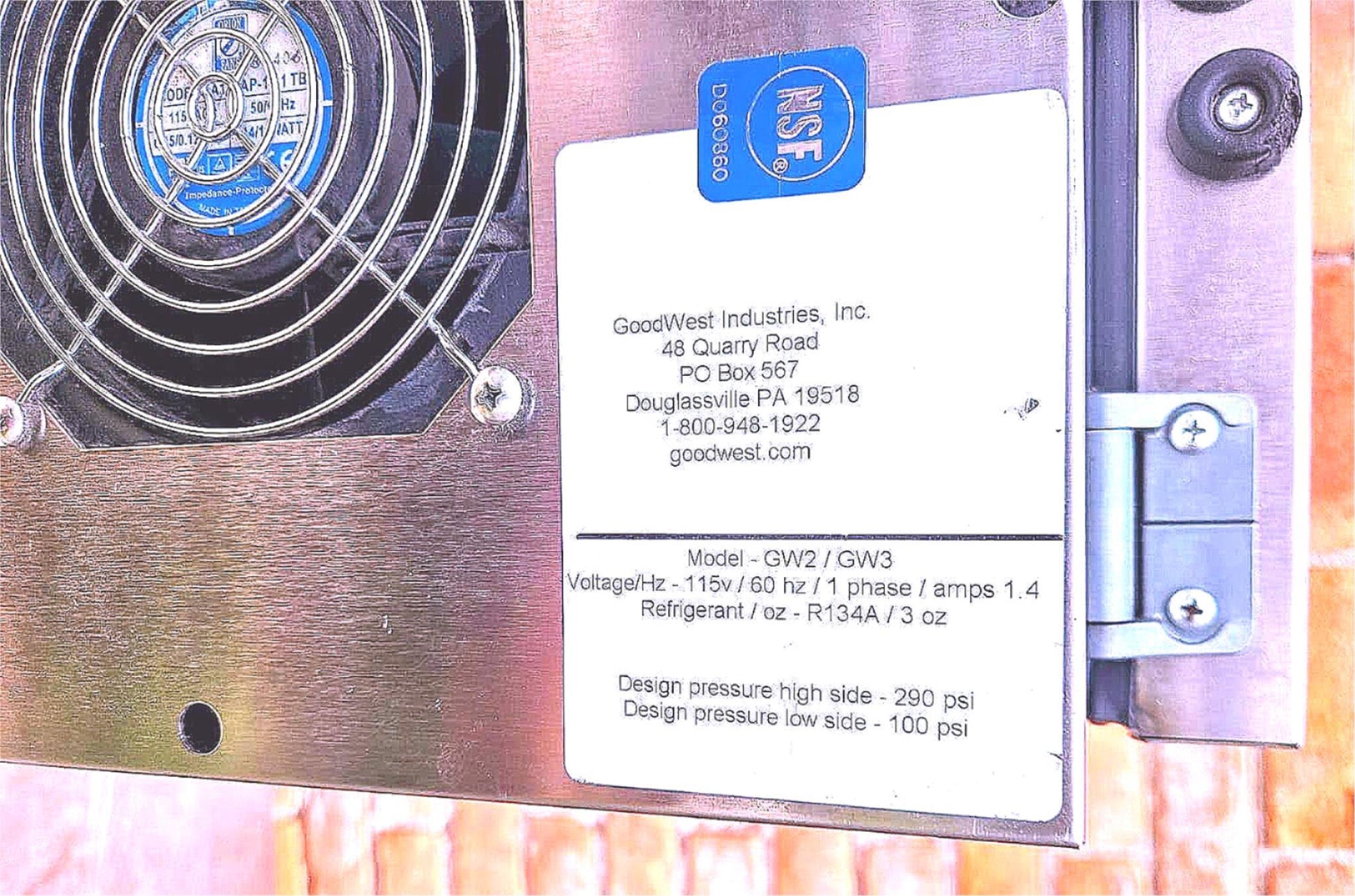

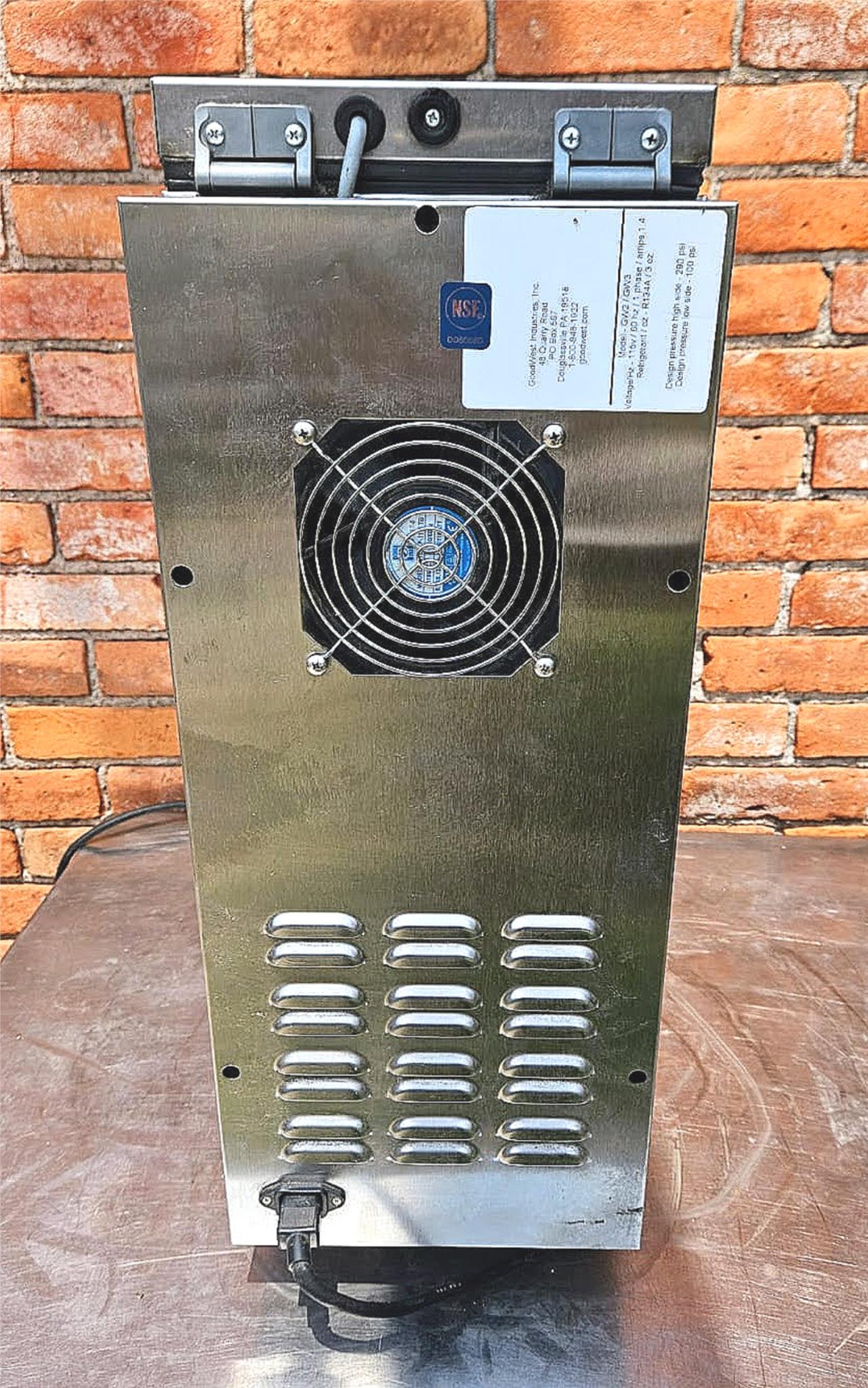

Locate the unit in an appropriate place at your coffee counter. The unit requires 115Vac
power at about 2 amps maximum. Refer to the unit rating plate for your machine.
Product Loading Instructions

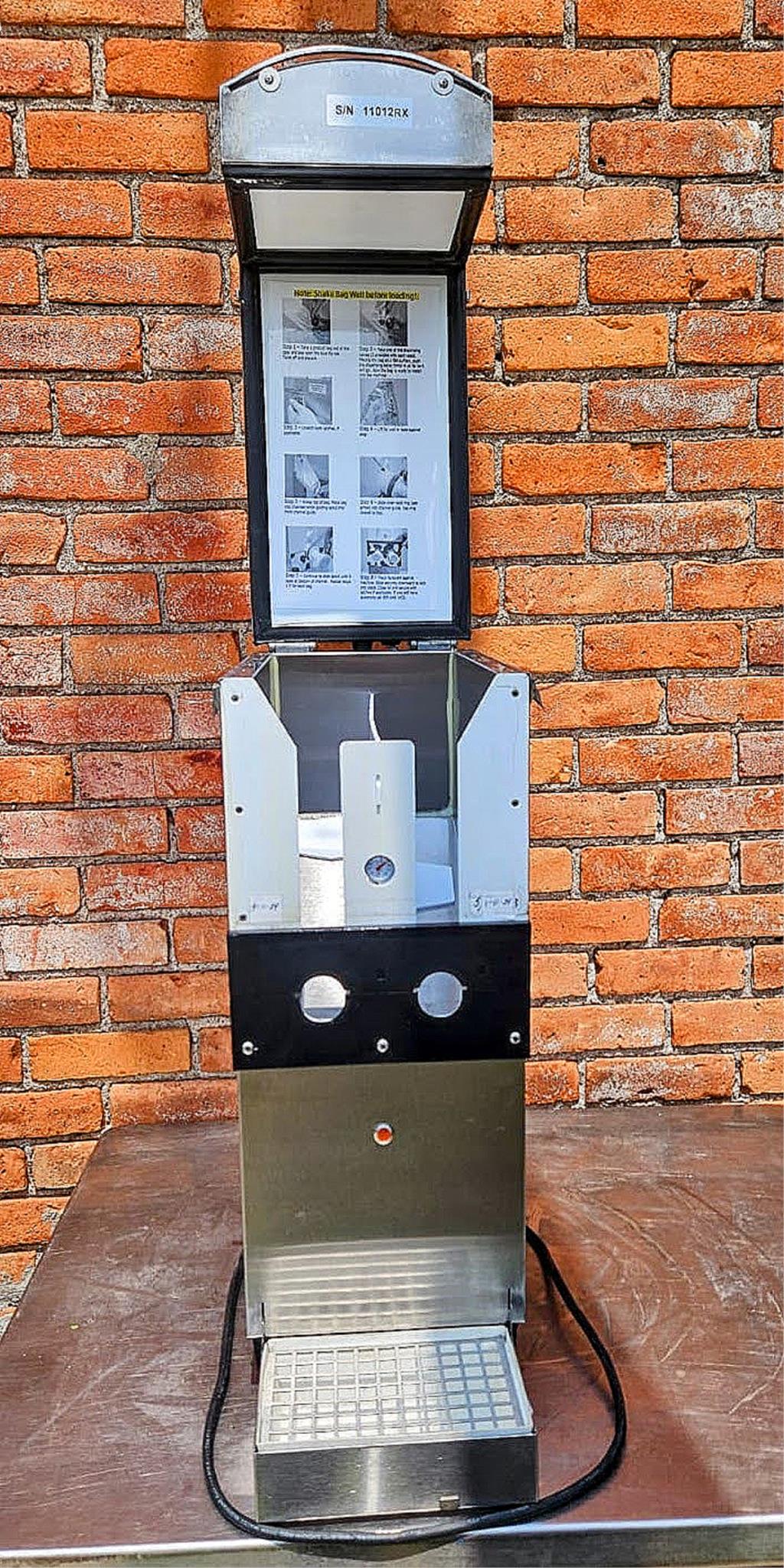

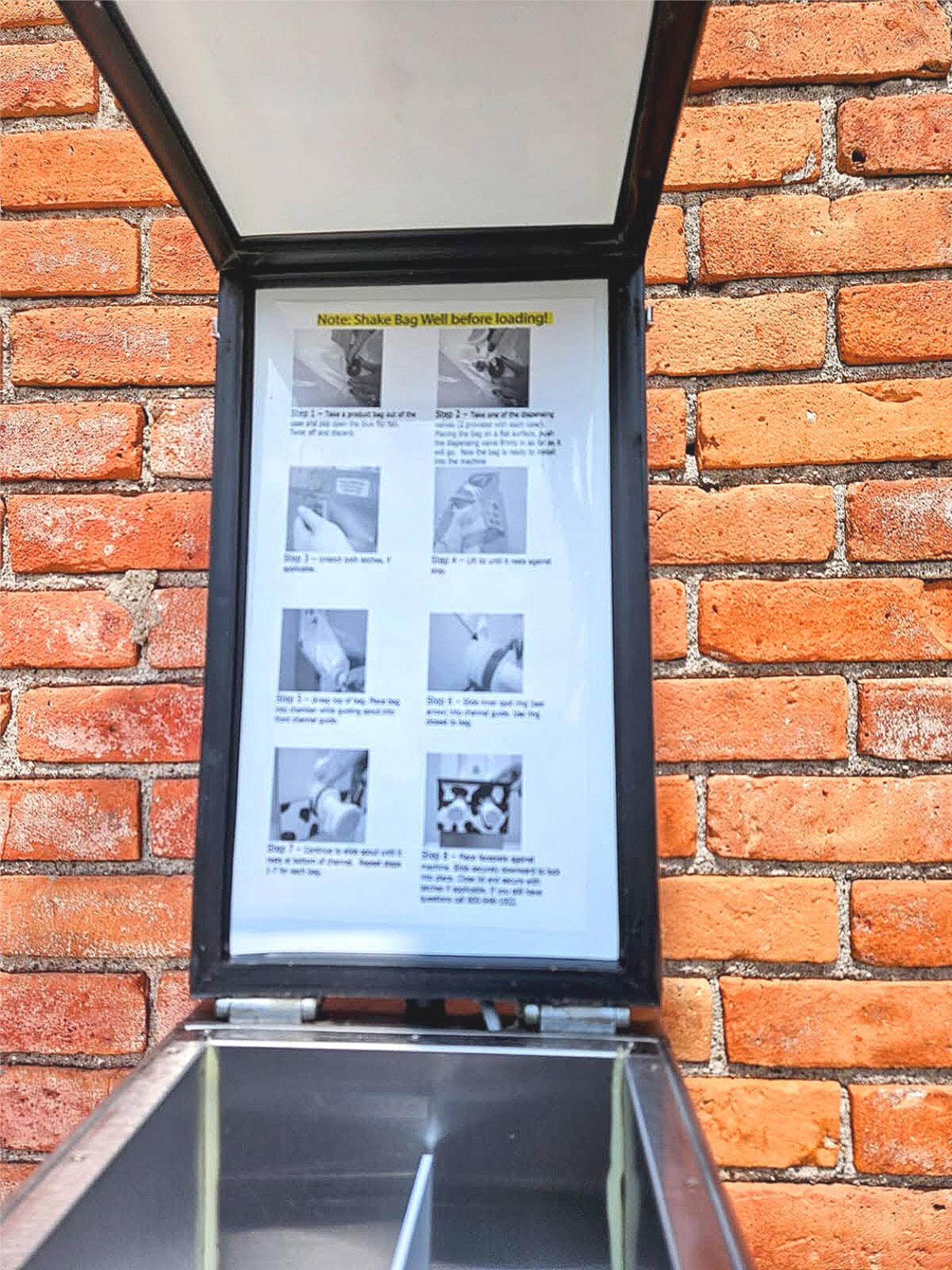

Note: Loading Instructions with picture illustrations are located on the inside of the machine
as soon as you lift the lid

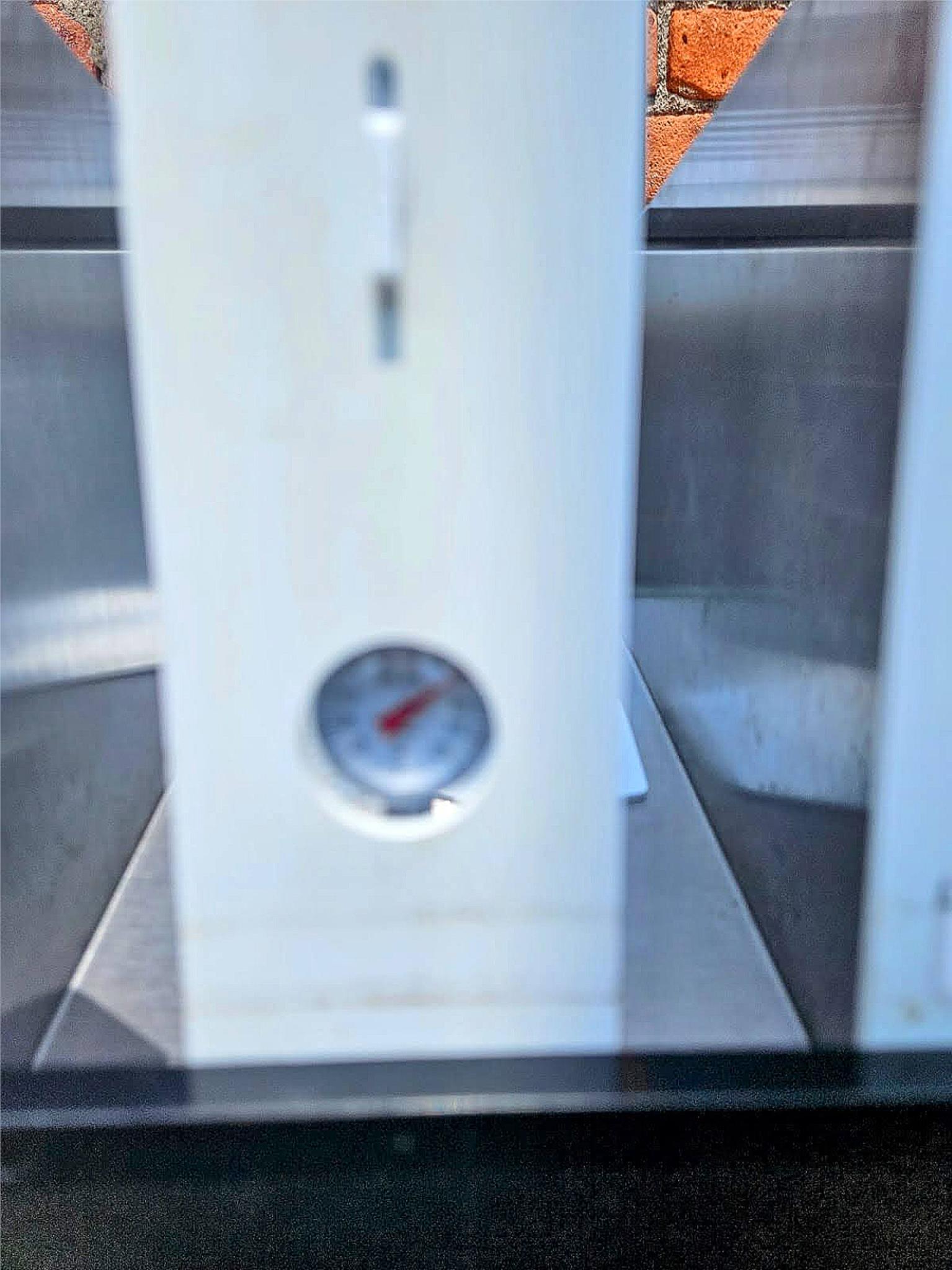

Open the two cover latches (if applicable) on the dispenser door and open it. The door
hinges have detents that will hold the door open when lifted just past the vertical
position. A rubber bumper keeps the door from falling back. Lift off the black plastic
valve retainer face plate and set it aside.

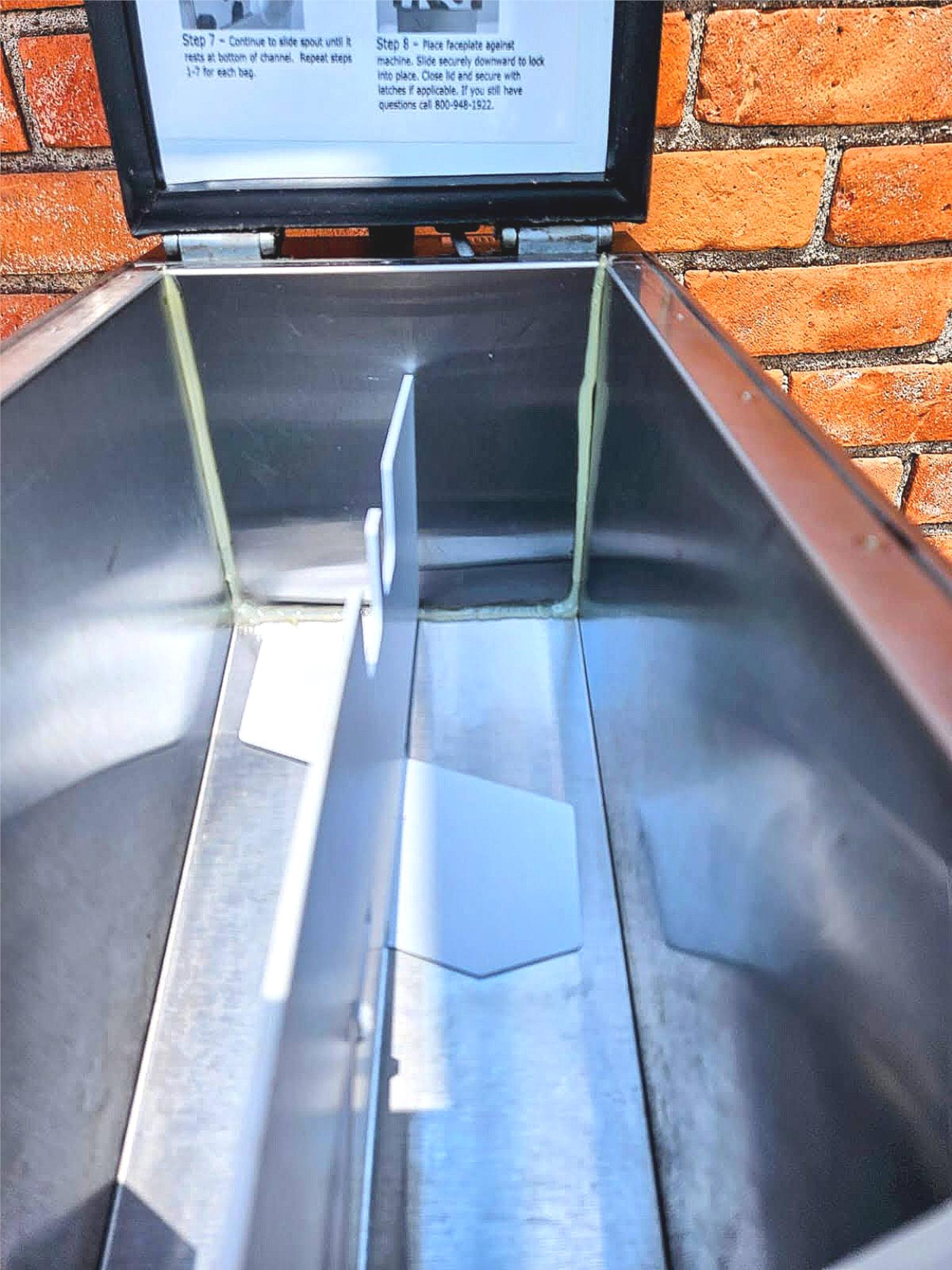

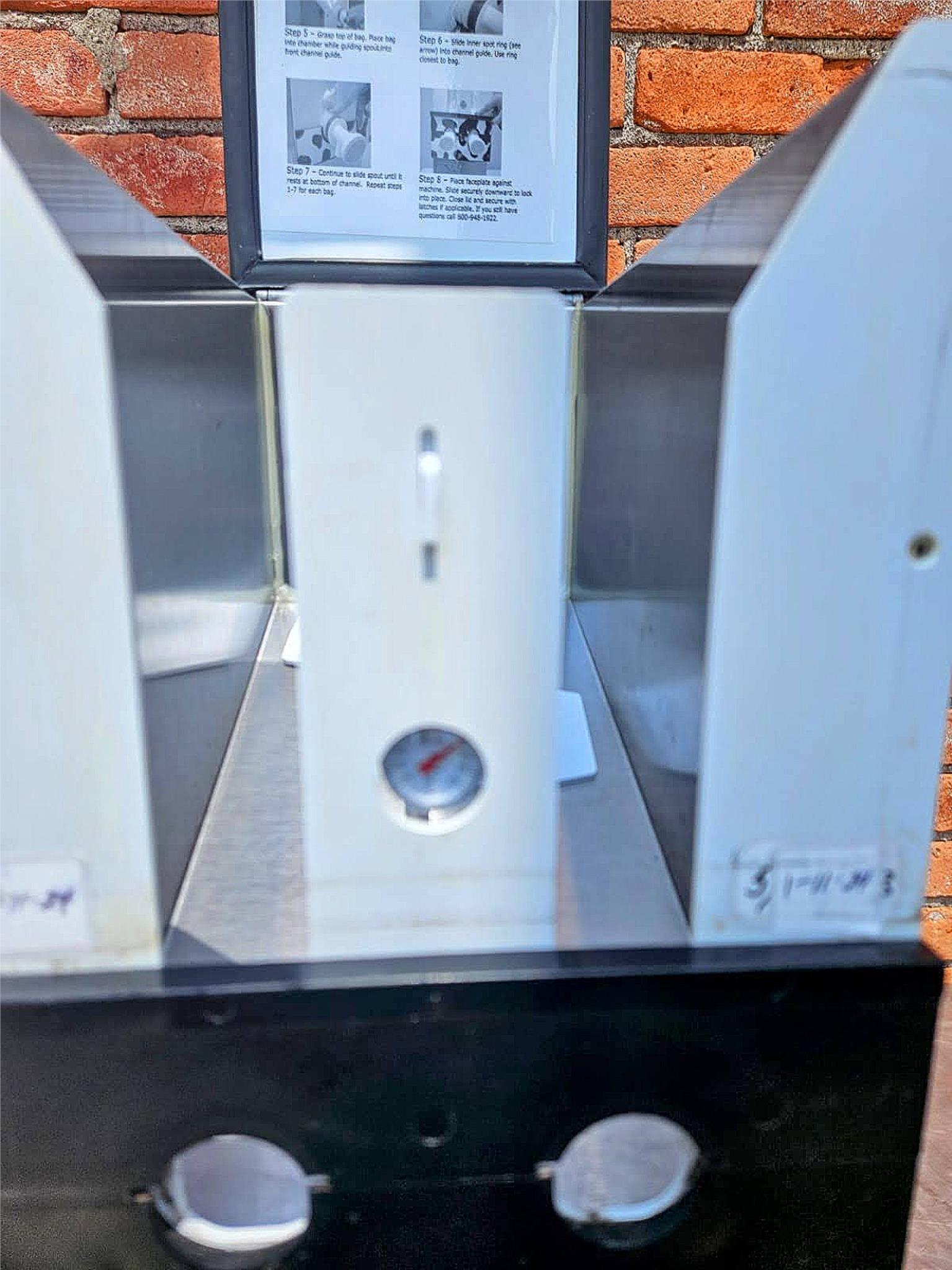

Grasp the bag and the bag valve and engage the inner ring (see picture insert at left) of
the valve with the slot in the black plastic face plate of the dispenser unit. Lower the bag
into the dispenser being careful not to pinch the plastic bag
material between the valve and the unit’s lower valve
plate. Slight pressure on the valve plate. Repeat the same
procedure with the second and/or third bag.
Slide the black plastic valve retainer over the top of the
valves. The plastic valve plates fit together with an
interlocking notch. Be sure the top valve plate is installed properly to nest with the lower
valve plate.
Close the top cover and close the two draw latches (if applicable) to hold the cover
closed and lock the valve plates together.
