4 TANNOY i7 WH COLUMN ARRAY STYLE SPEAKERS WORKING PERFECT WATCH VIDEO FREE SHIP

4 TANNOY i7 WH COLUMN ARRAY STYLE SPEAKERS WORKING PERFECT WATCH VIDEO FREE SHIP

Regular price $1,764.00 USD
Regular price Sale price $1,764.00 USD
Sale Sold out
Taxes included.

EACH PROJECT        12 YEARS SELLING EQUIPMENT WORLDWIDE!

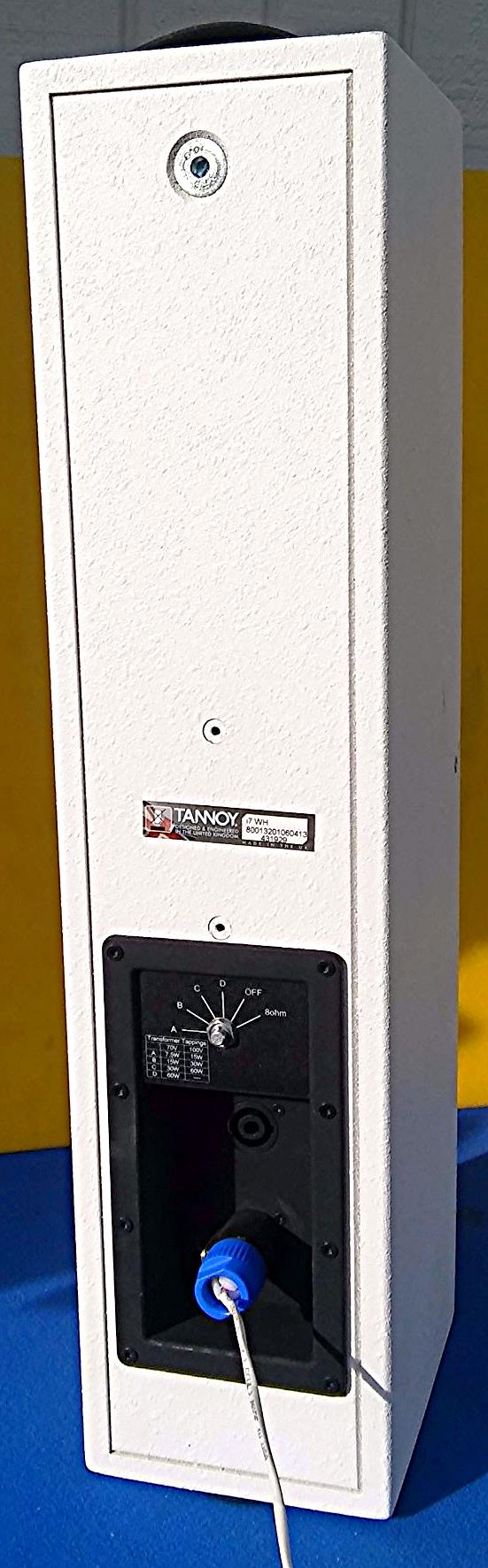

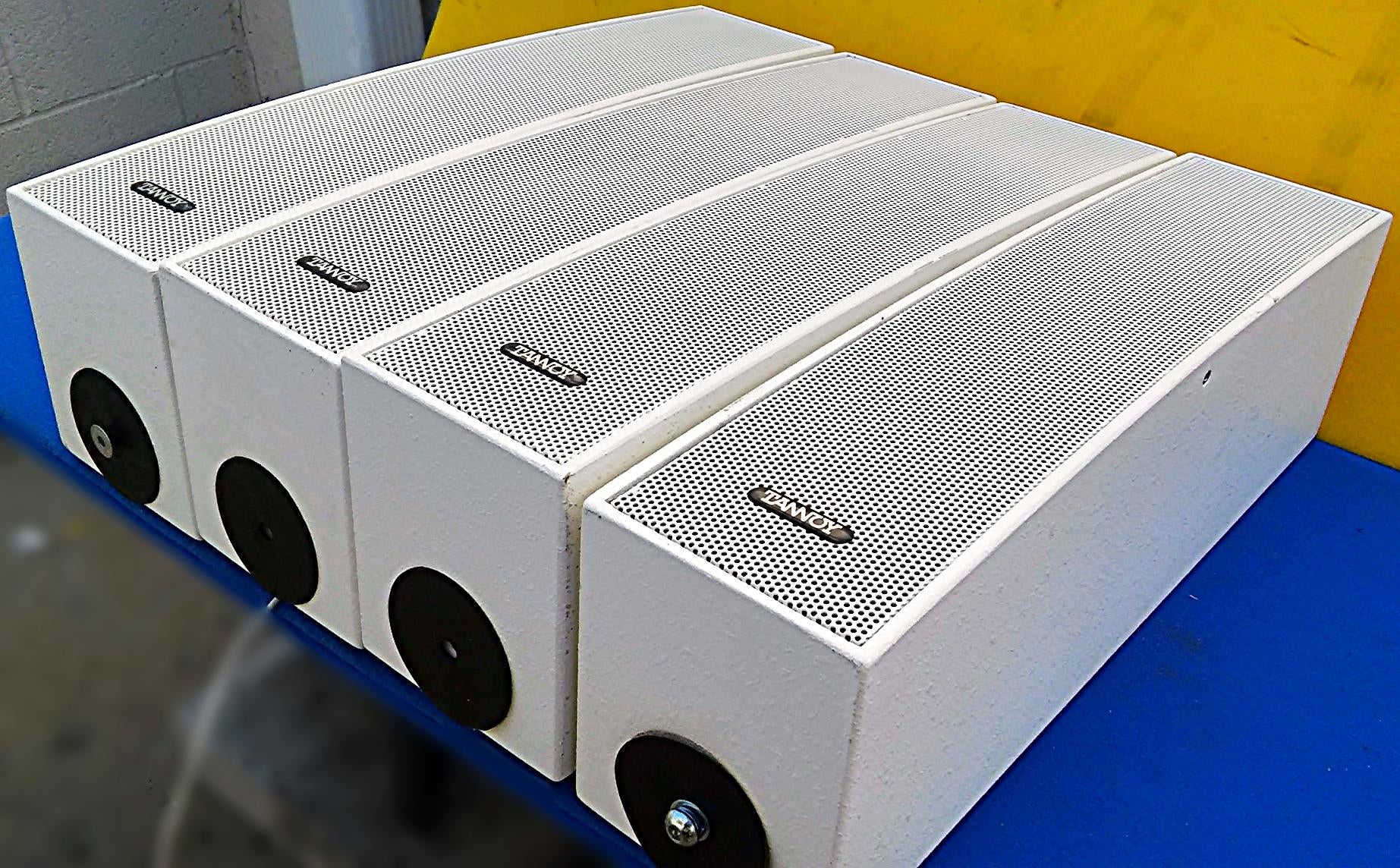

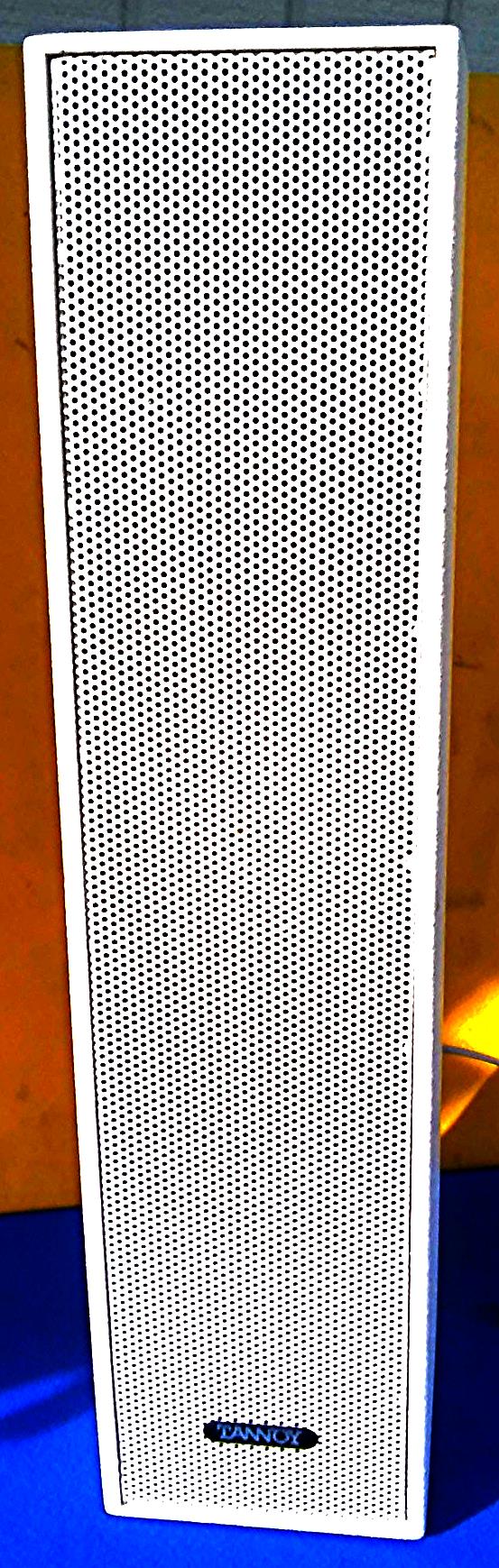

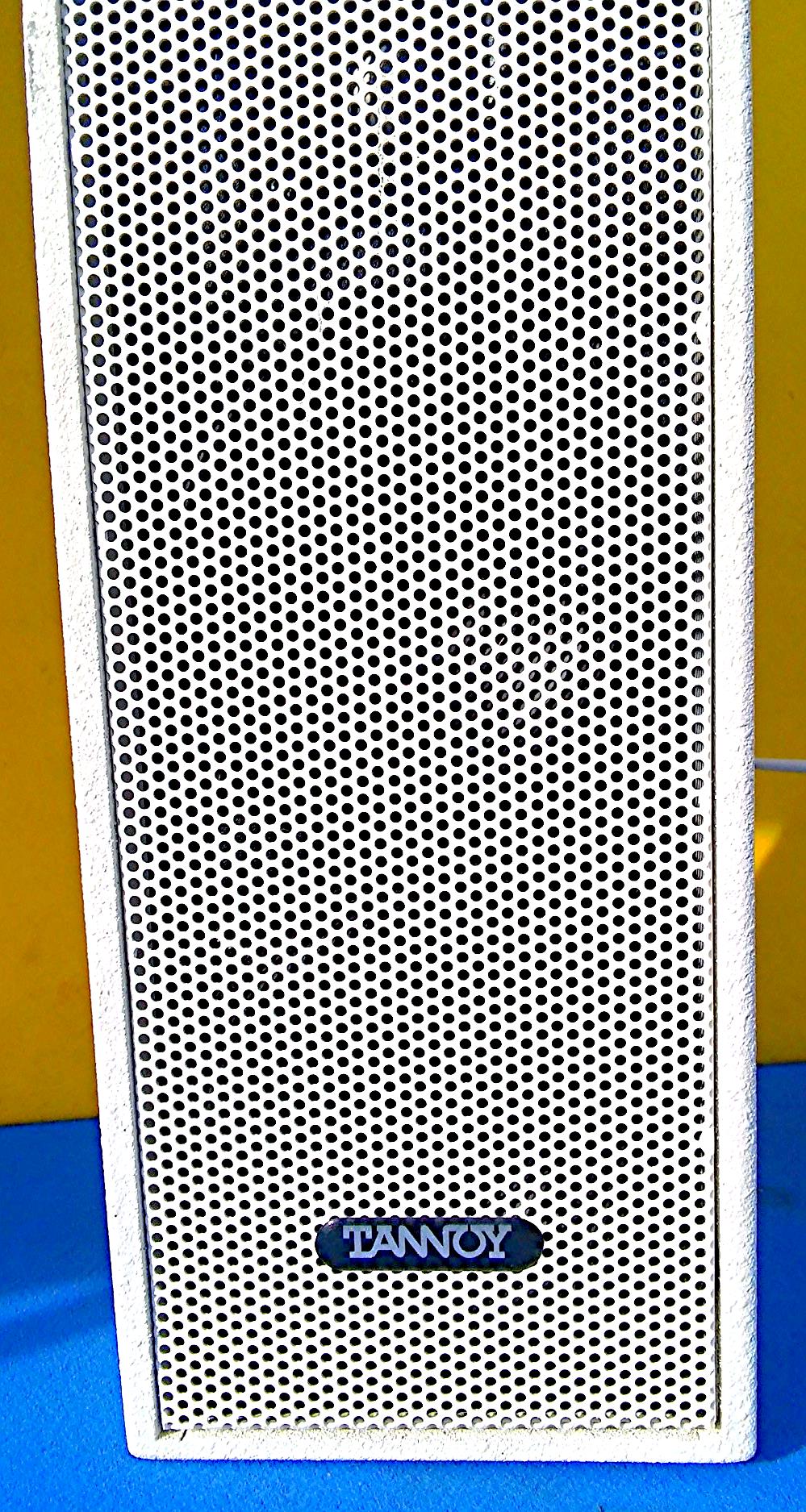

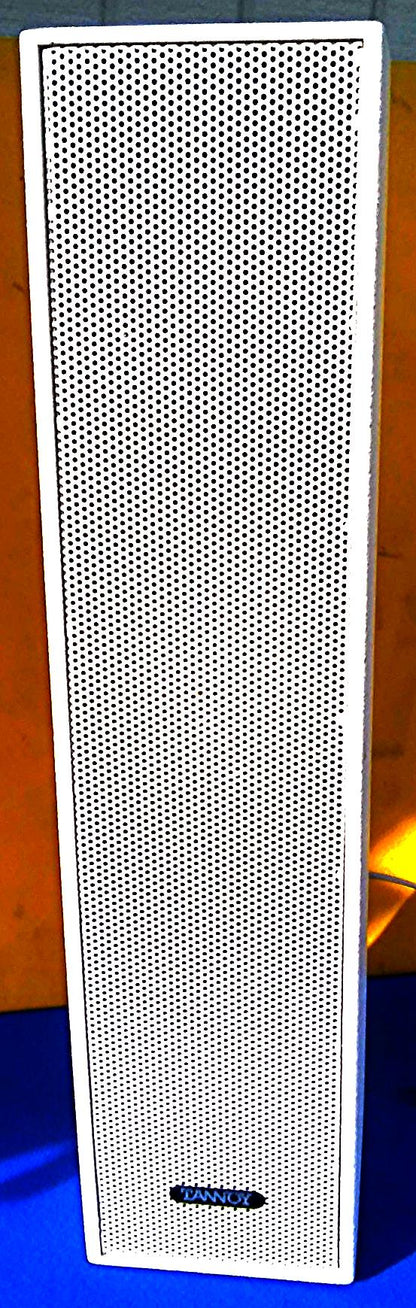

This listing is for four GREAT USED OPERATIONAL CONDITION TANNOY i7 WH COLUMN ARRAY STYLE SPEAKERS as can be Watched in the Video and also seen in the pictures.

FEEL FREE TO WATCH A VIDEO OF THESE SPECIFIC SPEAKERS WORKING BY CLICKING HERE!!!

Or you can copy and paste the following link: https://www.youtube.com/watch?v=ub6w2NynLqE&featur...

As buyer probably already knows, this system would cost at least US$ 6.000,00 Brand New and these speakers and in Great condition, have always been very well taken care of: ALWAYS!!!

Exactly as if you bought them Brand New at the Store these Speakers come without the Back Connector wire hook up so you will need to buy the wire hook up on the side so as to install them to your source or amplifier. We actually have two of these hook ups here and will include them with these 4 so you can use them immediately out of the box, all you will need to do now will be to buy two extra ones, we will include two hook up connectors Free of Charge to you!!!!

This TANNOY i7 WH COLUMN ARRAY STYLE SPEAKER SYSTEM came from a university studio that didn't use them much so they have ALWAYS been very well taken care and that's why they WORK SO PERFECTLY.

Passive 8ohm Or 70V Operation

Applications :

  • Auditoria / Lecture Theatres
  • Ballrooms and Convention Centres
  • Bars & Restaurants
  • Concourses
  • Houses Of Worship
  • Museums & Galleries
  • Transport Hubs

Please feel free to check all Technical Information online by clicking HERE!!!

Description:

TANNOY i7 ลำโพง Column/Array style Speakers

Tannoy i7-W Column Loudspeaker - The Tannoy i7 slim cabinet column loudspeaker is designed for acoustically difficult applications where wide yet controlled coverage is required for high quality music and speech reinforcement.

The Tannoy i7 slim cabinet column loudspeaker is designed for acoustically difficult applications where wide yet controlled coverage is required for high quality music and speech reinforcement.

The i7, available in Charcoal or White, consists of four 100mm (4”) low frequency direct radiating drive units and one 25mm (1”) titanium tweeter positioned as a line source.

The coupling effects in the vertical plane result in a narrow (70°) and controlled coverage pattern, with extremely wide horizontal coverage (110°).

The complex frequency shading and integration techniques employed in the internal passive crossover network result in a smooth and uniform frequency response from 100Hz to 20kHz.

The controlled dispersion characteristics of the i7 direct sound into the desired space while minimizing reflections from the ceiling, making it ideal for use in highly reverberant environments.

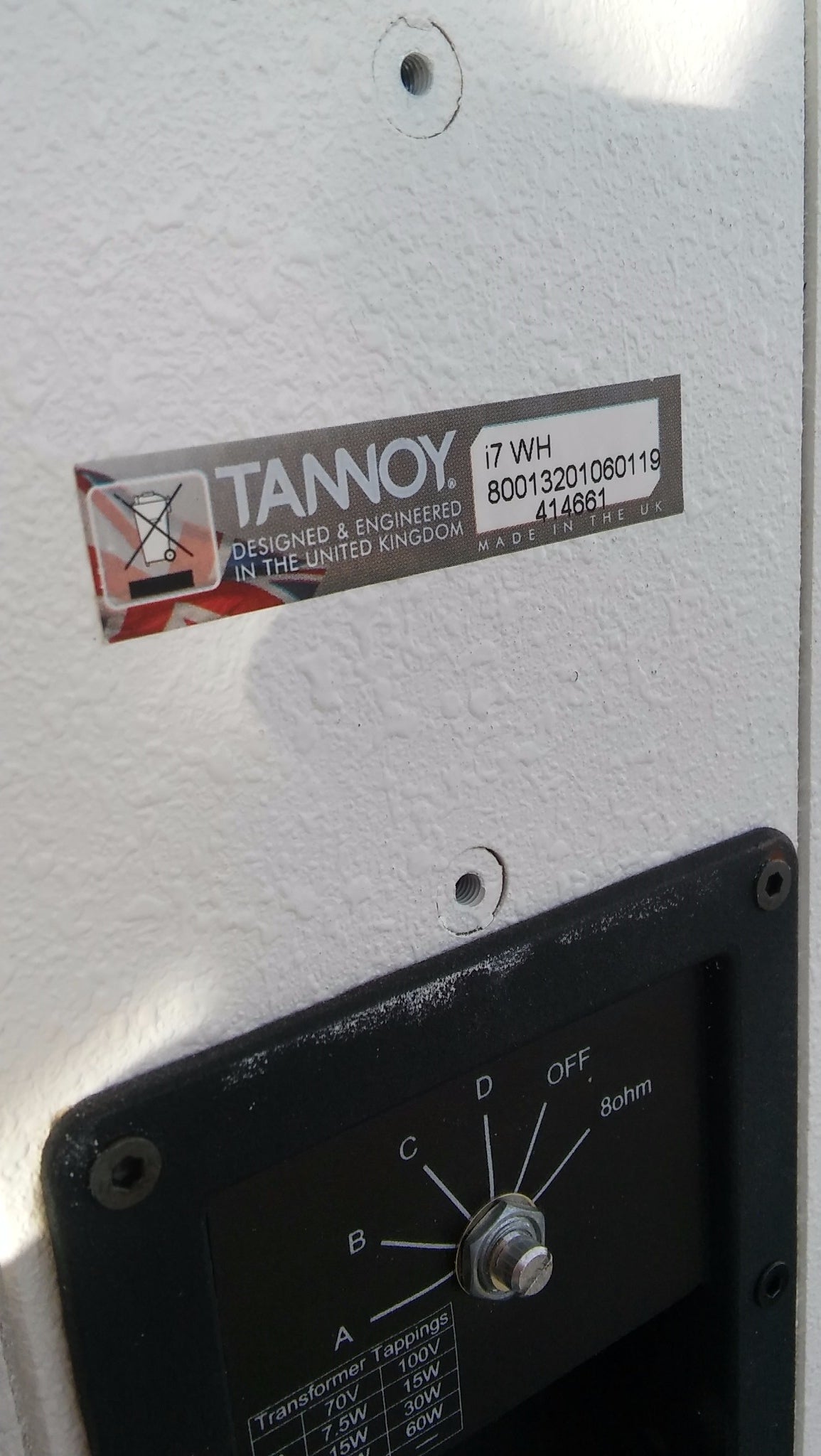

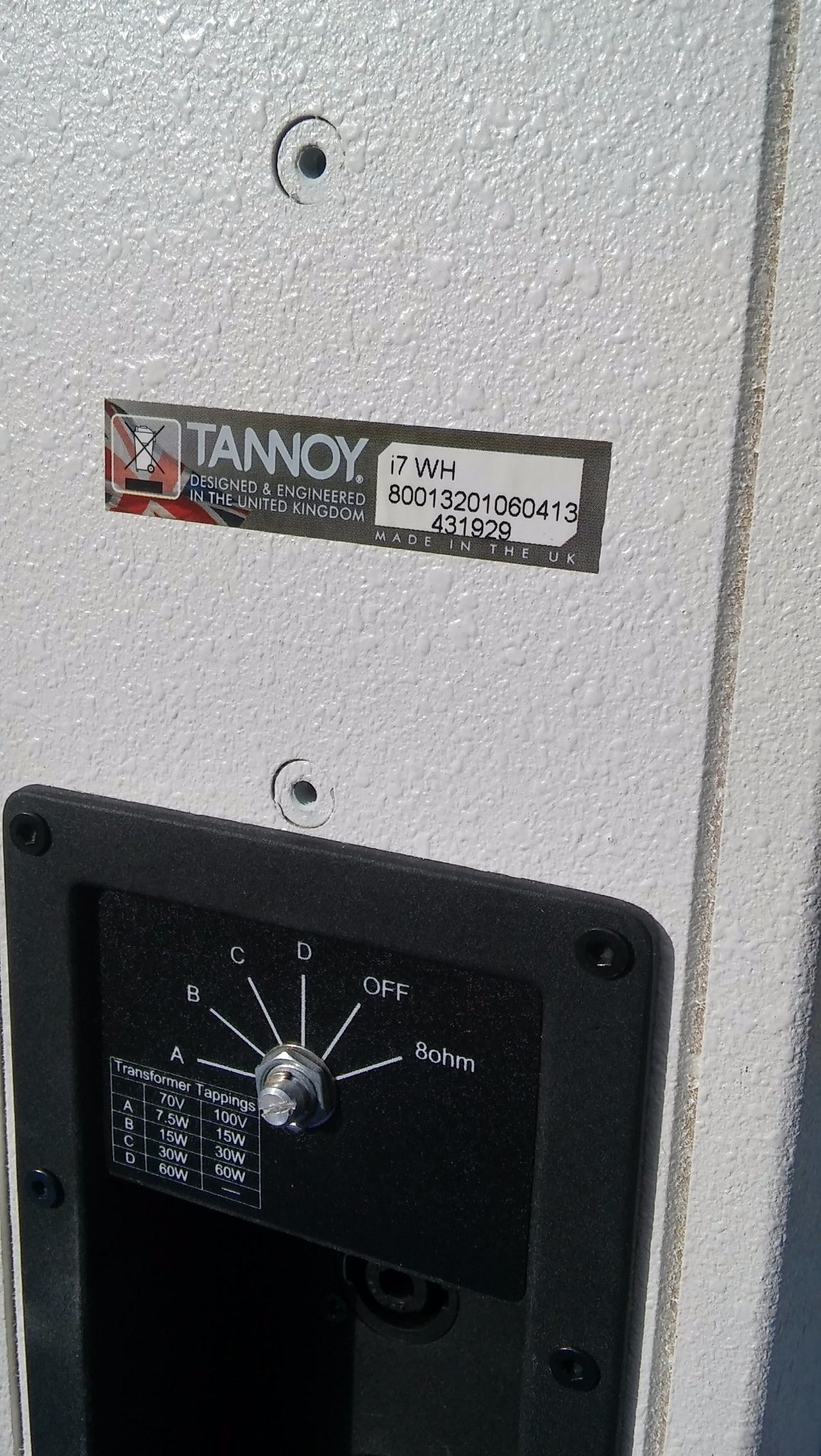

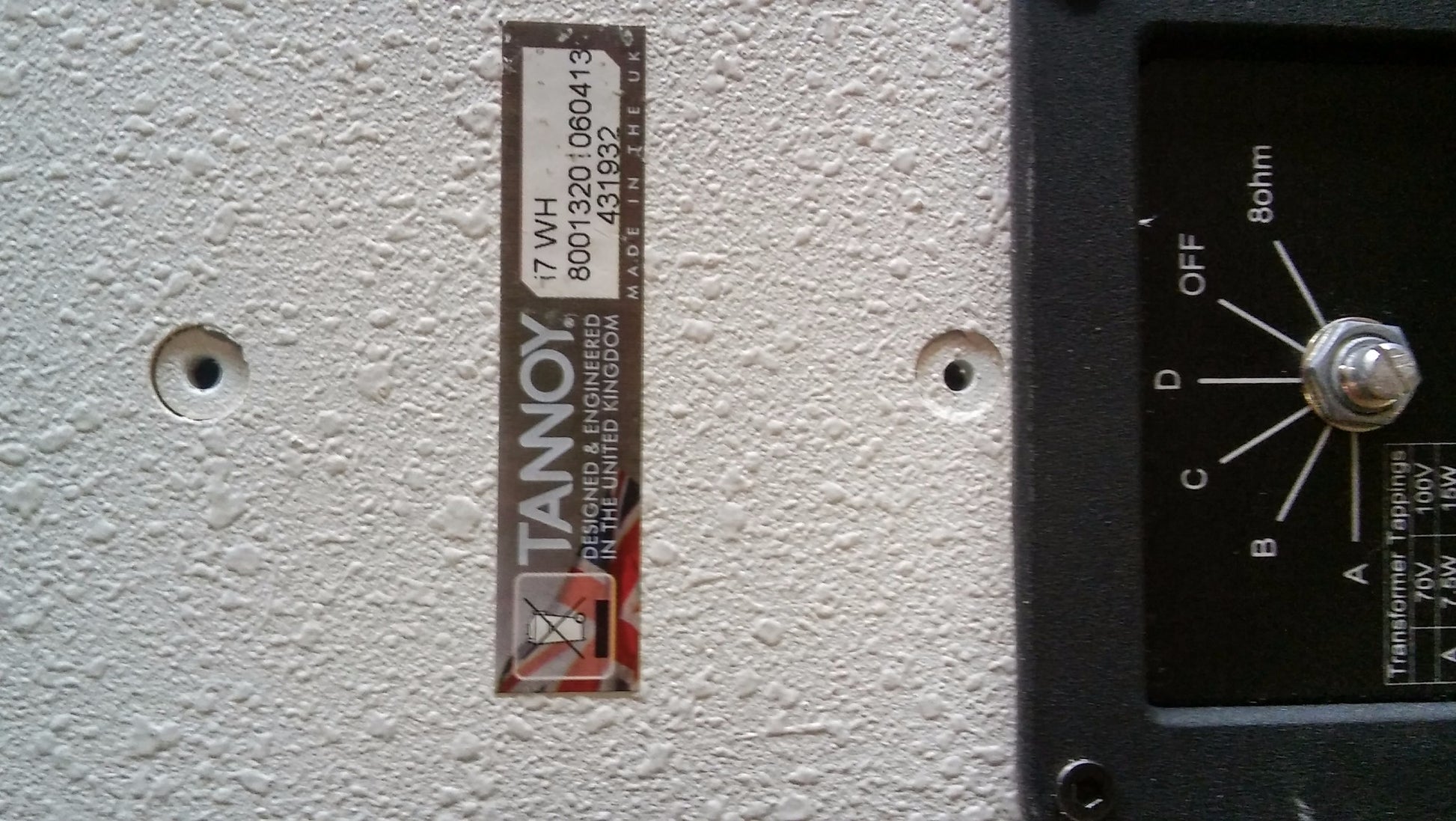

The i7 can operate as a low impedance (8 ohms), or 100 Volt / 70.7 Volt distributed line system with the switches located on the rear termination panel.

The Tannoy THP 60 Watt transformer, included in the i7, can be selected for 60, 30, 15, 7.5 Watts, providing high system sensitivity with low insertion loss.

The shallow cabinet profile ensures discreet installations close to a wall or ceiling without sacrificing vertical coverage.

The i7’s versatile mounting bracket – i7 MAB (multiple angle bracket) – permit easy vertical, horizontal and tilt adjustments for mounting and flying applications.


Specifications :

PERFORMANCE
System type Column source loudspeaker
Recommended Amplifier Power Up to 180W / 8 Ohms
Power Handling (2) Average: 90W
Programme: 180W
Peak: 360W
Sensitivity 2.83 Volts @ 1 metre (3) Anechoic: 89dB
Half Space: 92dB
Maximum SPL \r\n

Average: 108dB
Average: 106.5dB (60W tapping on transformer)
Peak: 114dB

Wattage Tap Selections 60, 30, 15, 7.5 Watts
Switchable Transformer Options 70 Volt / 100 Volt or 8 Ohms
Impedance 8 Ohms
CROSSOVER
Frequency 1.8 kHz, 2.5 kHz
Type Passive
DRIVE UNIT
Dispersion 110 x 50 (H x V)
Driver Complement 4 x 100mm (4.00”) bass unit
1 x 25mm (1.00”) titanium tweeter
CONSTRUCTION
Enclosure 7.88 litre MDF infinite baffle with perforated steel grille
Finish Textured charcoal or white - paintable to any colour to match the install decor
Connectors 2 x Speakon NL4MP IN / OUT

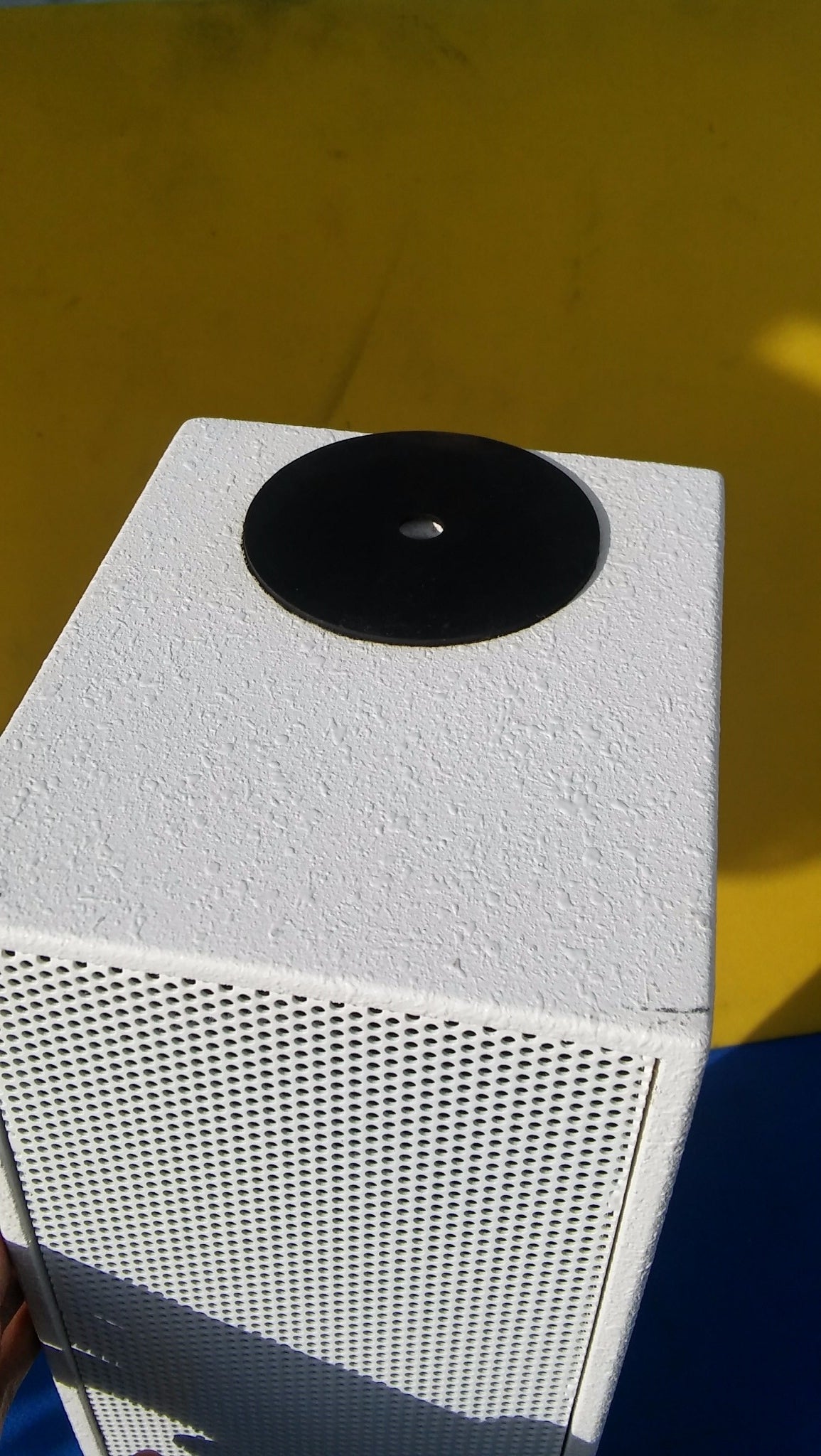

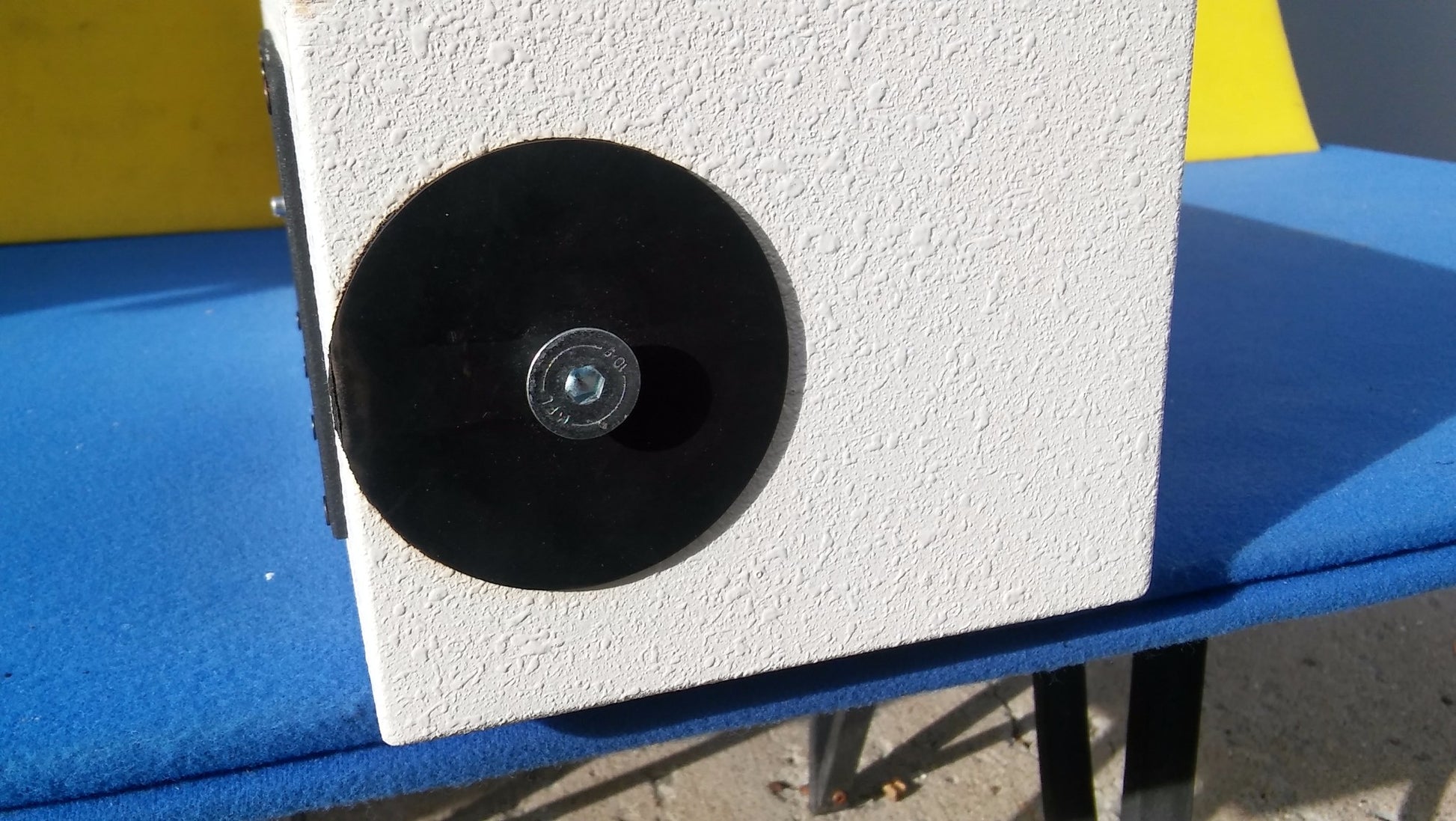

Fittings 2 x M10 threaded inserts for i7Y & i7 MAB brackets
Mounting Options Yoke (i7Y)
Multiple angle bracket (i7 MAB)

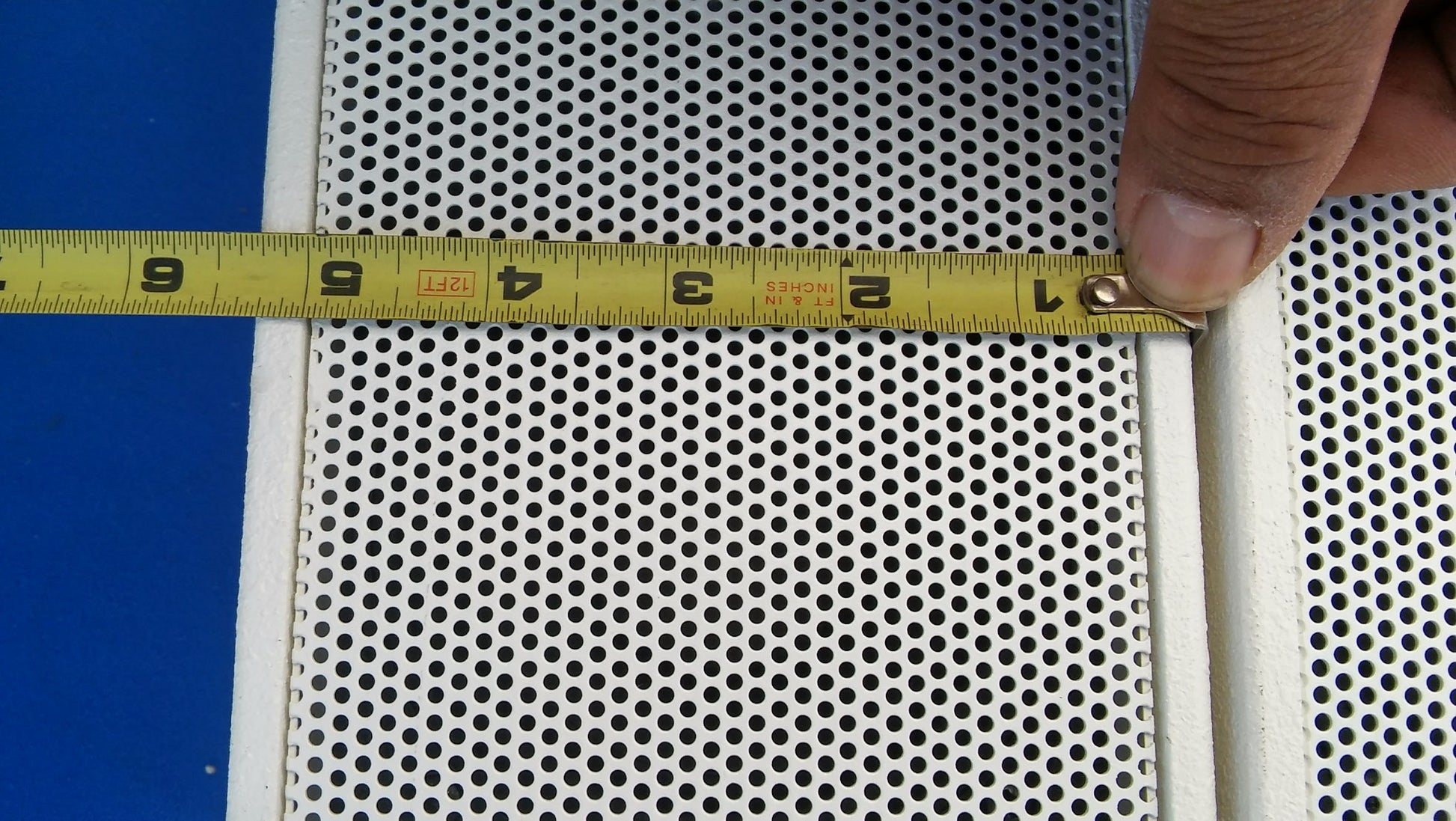

Dimensions 572 x 135 x 173.8mm
(22.52 x 5.31 x 6.84?€œ)
Weight (each) 9kg
(19lbs 13oz)

Feature.

- Slim line profile, allowing discreet installation.
- Switchable 70 Volt / 100 Volt or 8 ohms.
- Multi tab voltage and wattage.
- THP 60 line transformer providing low insertion loss resulting in a more dynamic performance with extended bandwidth.
- Wide controlled dispersion (110° x 70°).
- Multiple angle bracket (i7 MAB) and i7 yoke.
Inventory

161116

MANUAL can be found online by clicking HERE!!

Technical Information can be found by copying and pasting the following online link: http://www.audiocity2u.com/Speaker/Tannoy/TANNOY-i...

Warranty

90 DAYS

Service or Questions

 734 395-9417

CONDITION

Working Condition

Working

Cosmetic Condition

VERY GOOD CONDITION AS CAN BE SEEN IN PICTURES

SHIPPING

Shipping Continental USA

 FREE

Shipping Canada & International

 CALCULATED

Shipping to Puerto Rico, Alaska & Hawaii

CALCULATED

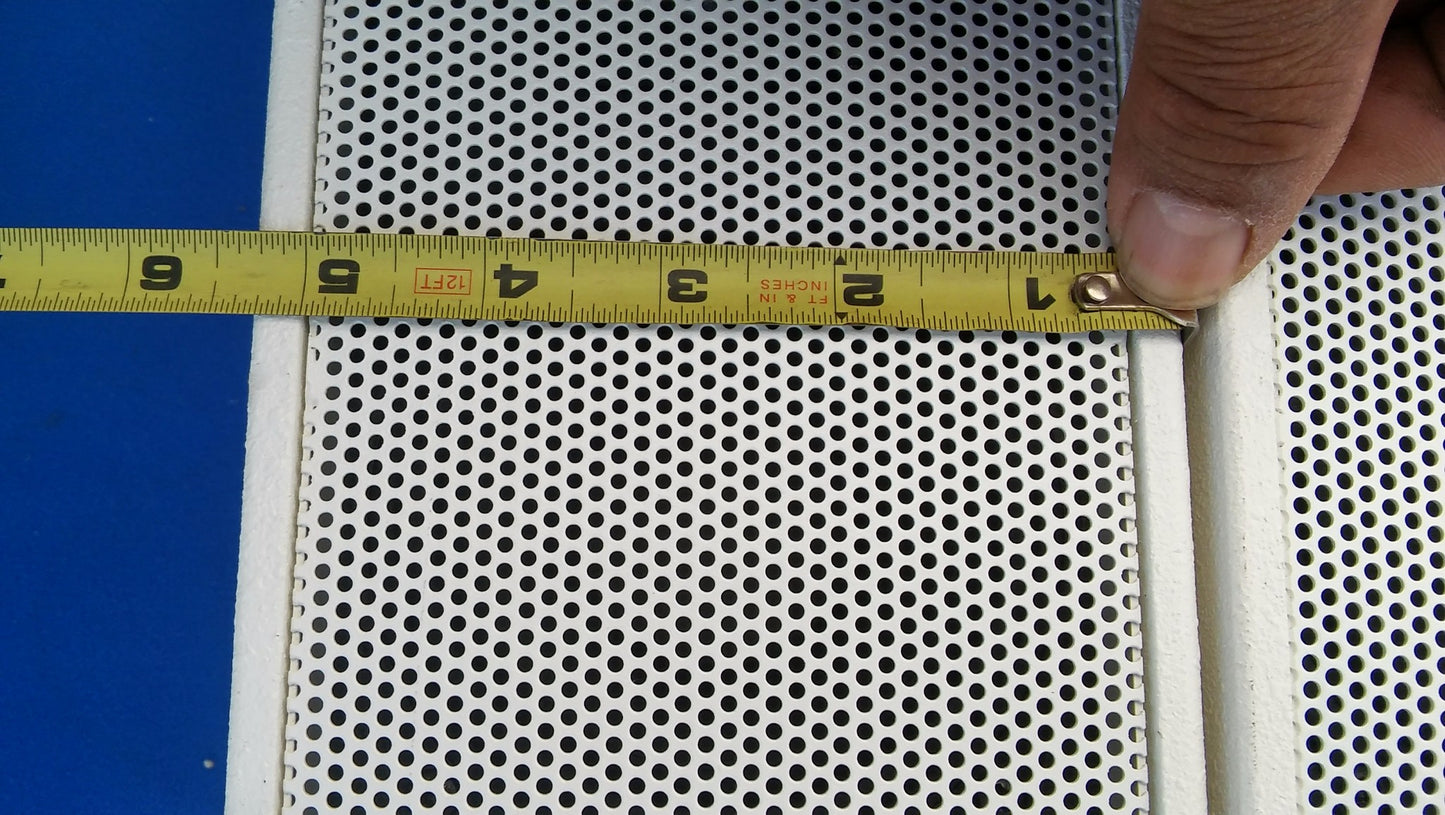

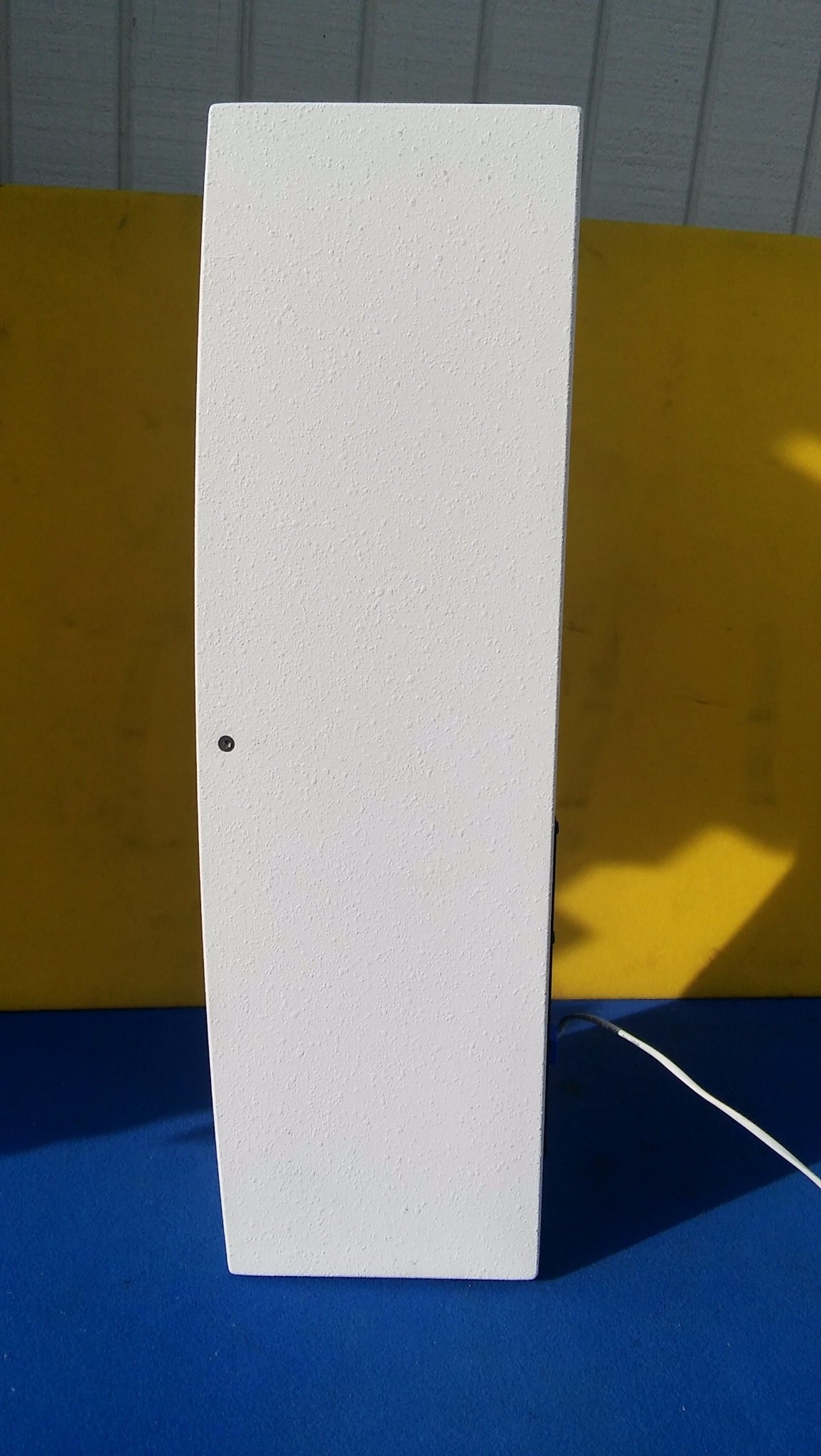

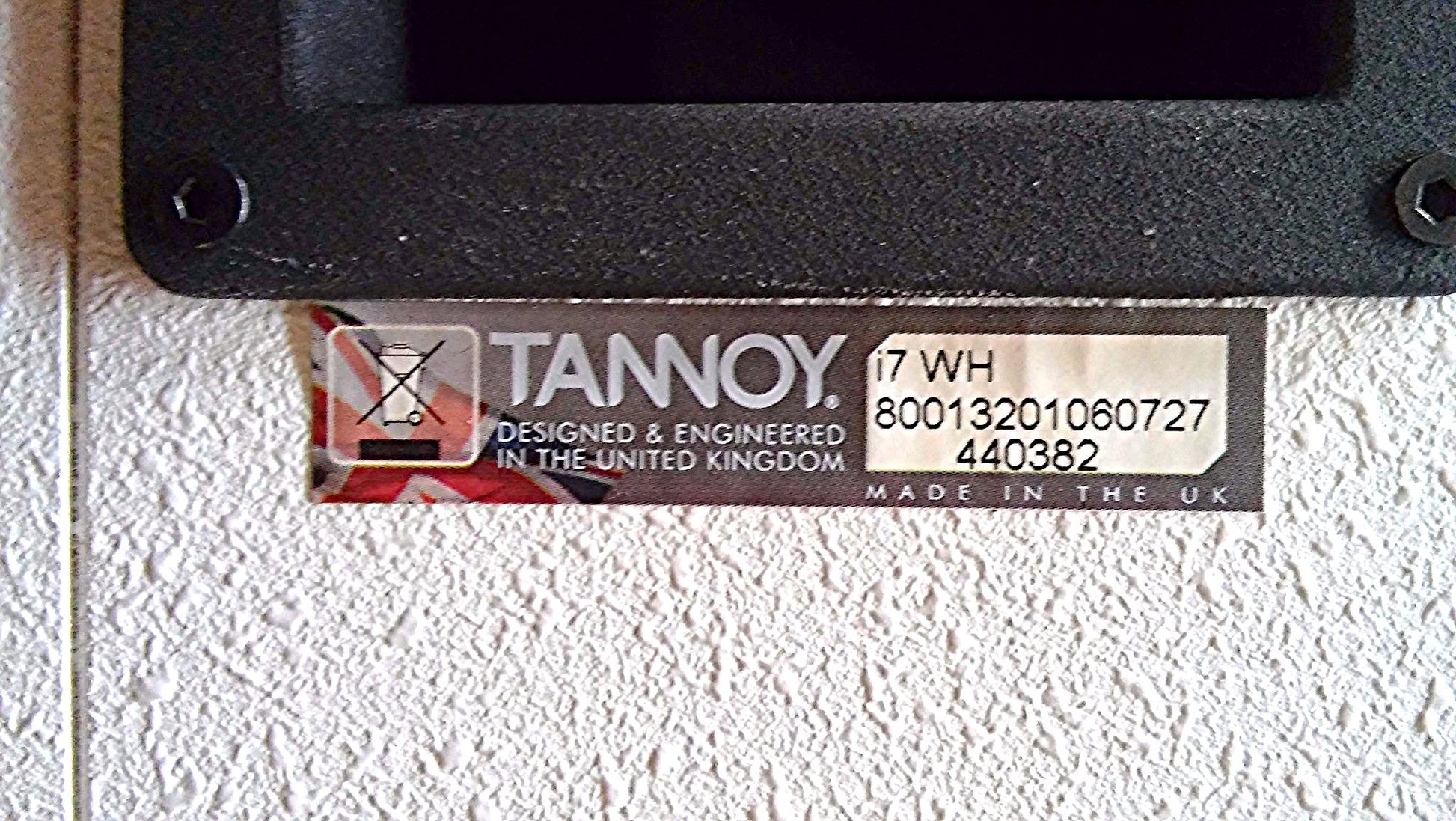

Please carefully check all the pictures below! Do not assume anything, if you don't see it, then it's not included! Please feel free to ask questions if you have any doubt, we'll respond immediately.


 ~NOUS PARLONS FRANÇAIS~

~PARLIAMO ITALIANO~
~HABLAMOS ESPANOL~
~FALAMOS PORTUGUES~

 ! MAGGIUA!!!
