2.5CuFt THERMO LINDBERG BLUEM OV700G GRAVITY OVEN LAB 90-DAY-WARRANTY FREE-SHIP

Name: 2.5CuFt THERMO LINDBERG BLUEM OV700G GRAVITY OVEN LAB 90-DAY-WARRANTY FREE-SHIP
Brand: EachProject
SKU: IF_044BBDB7-1-1-2-3-1-1-1-2-1-1-1-1-1-1-1-1-1--2-1
Price: 1200.00 USD
Availability: OutOfStock

$1,200.00 USD

Sale Sold out

Taxes included.

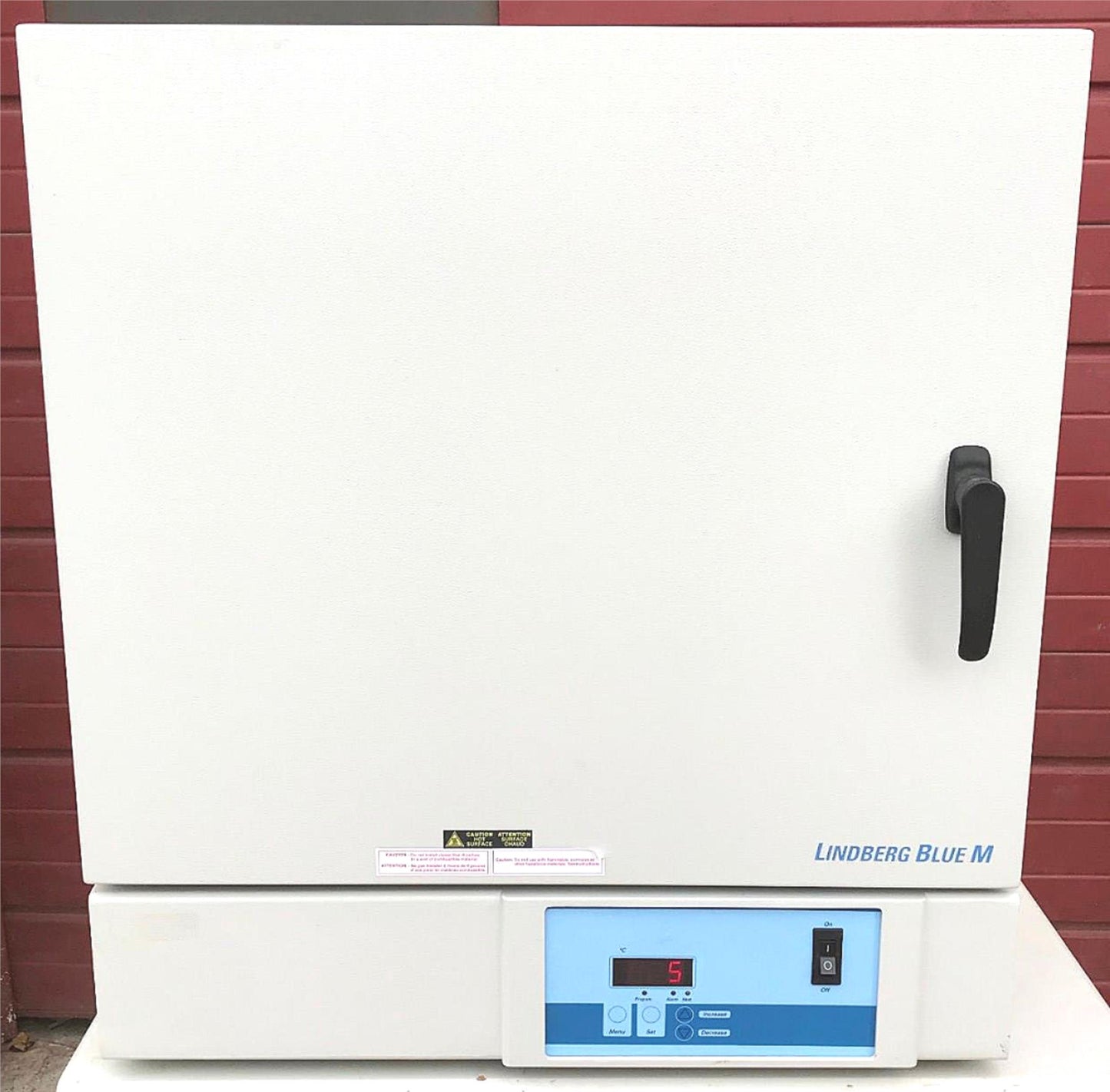

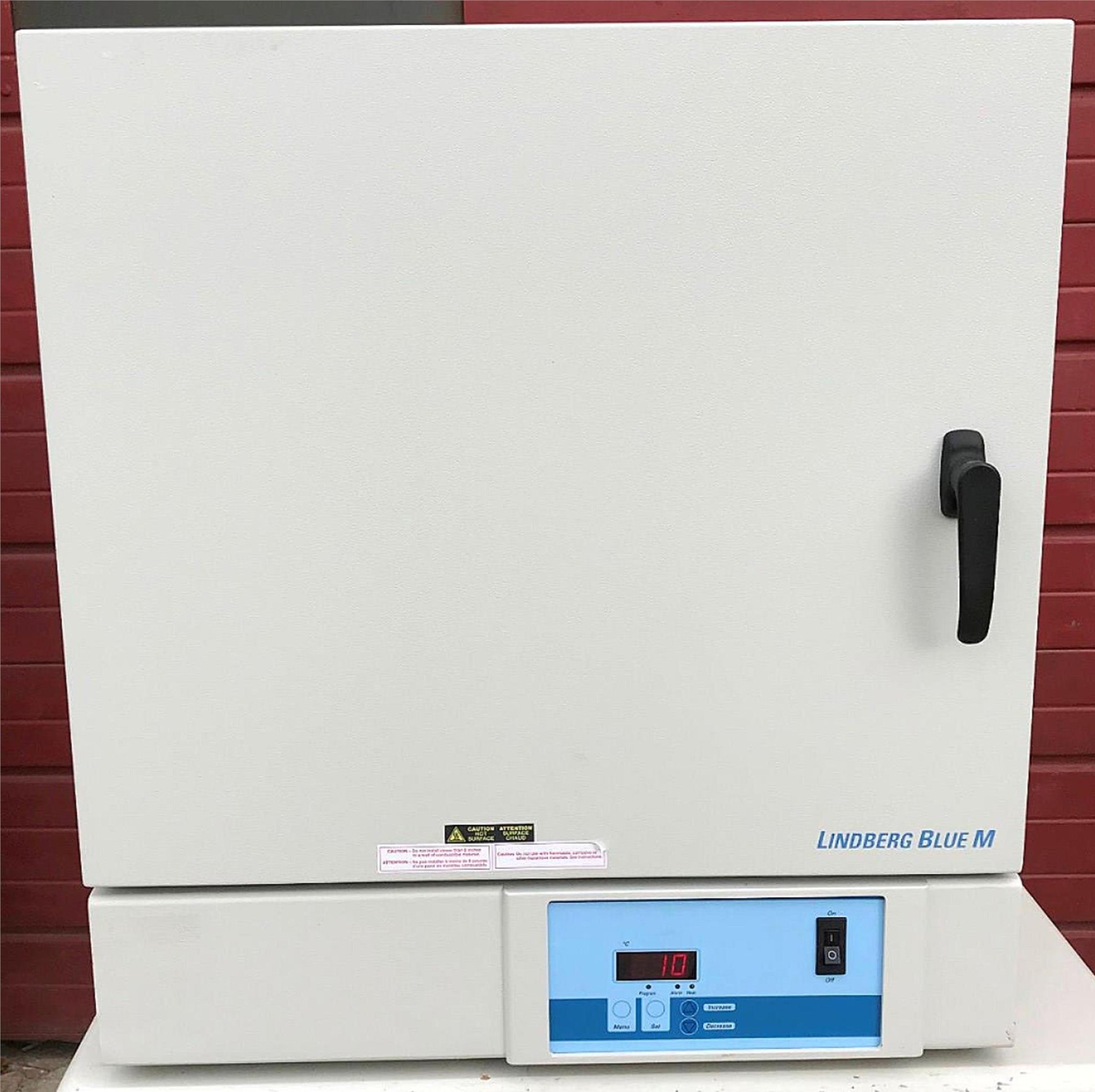

This listing is for a WONDERFUL CONDITION LINDBERG BLUE M Category LB305545G OV700G GRAVITY OVEN FURNACE LAB HOSPITAL CLINIC as can be Seen in the Pictures.

THIS IS BIG SIZED FOR A LINDBERG BLUE M at 2.5 Cu. Ft. (70.8 L)!!!

Unit is in EXCELLENT condition removed from working environment November 2019, seems it hasn't been used at all as can be seen in the pictures.

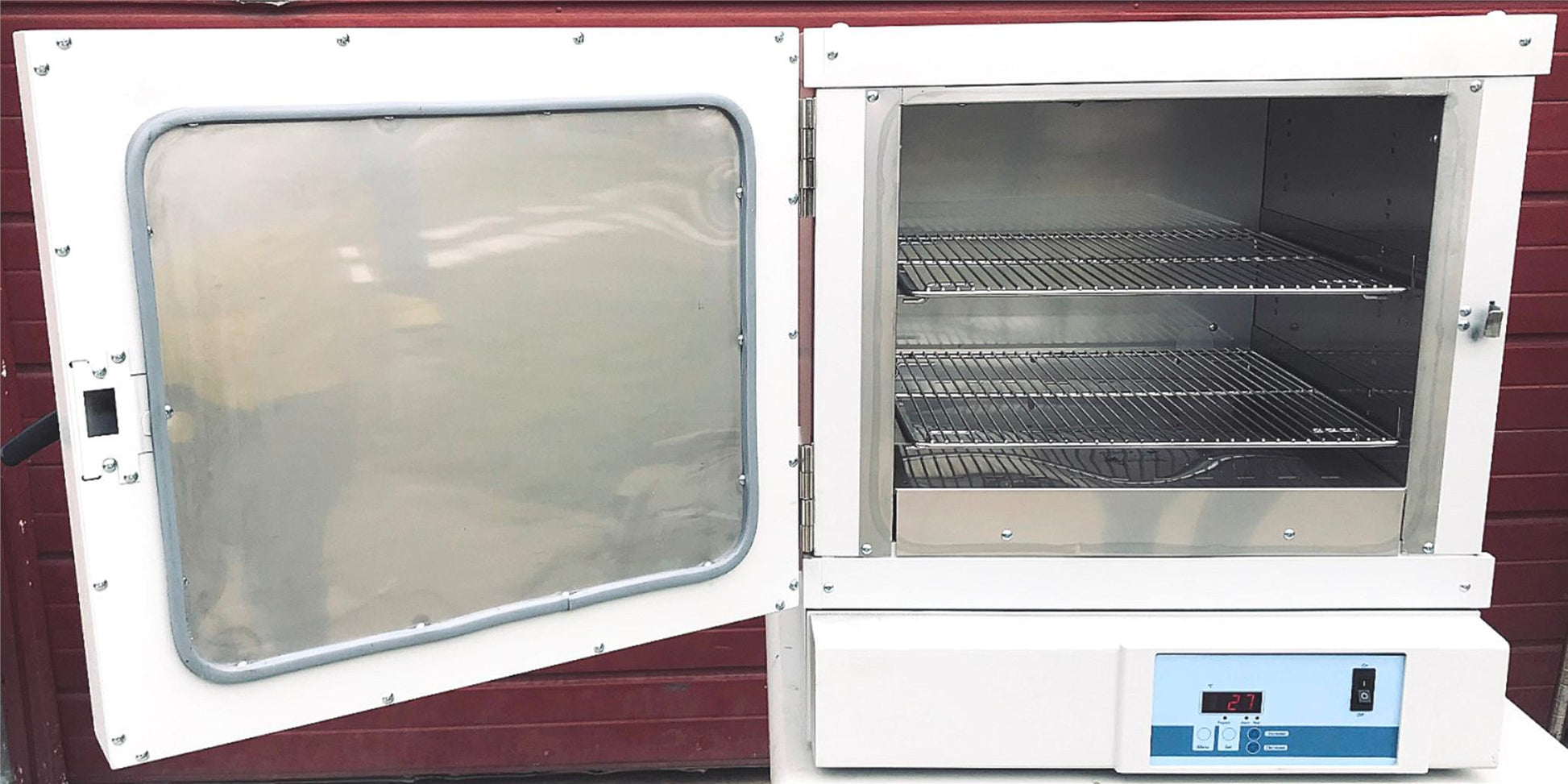

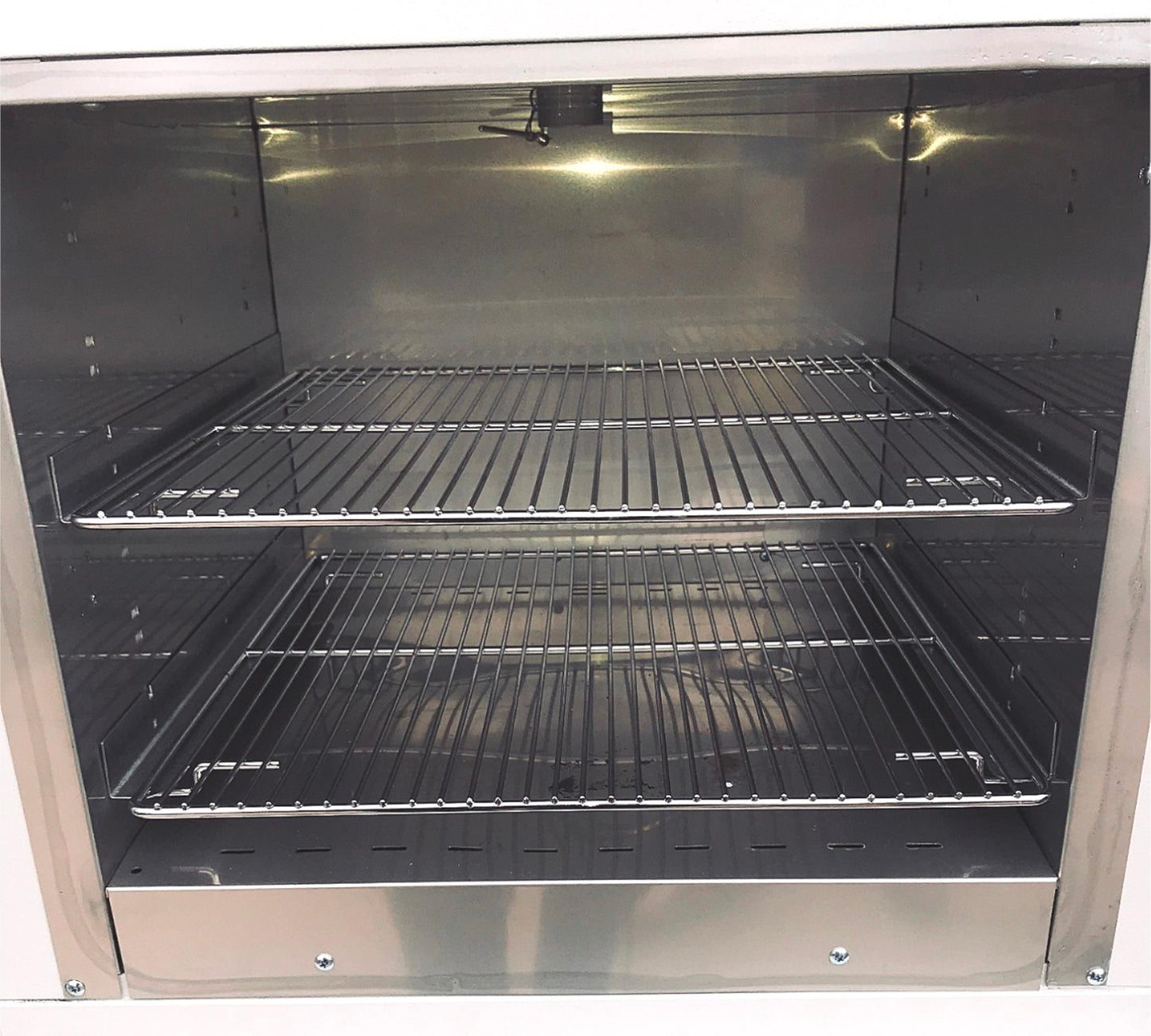

DOES INCLUDE THE TWO ORIGINAL TRAYS!!!

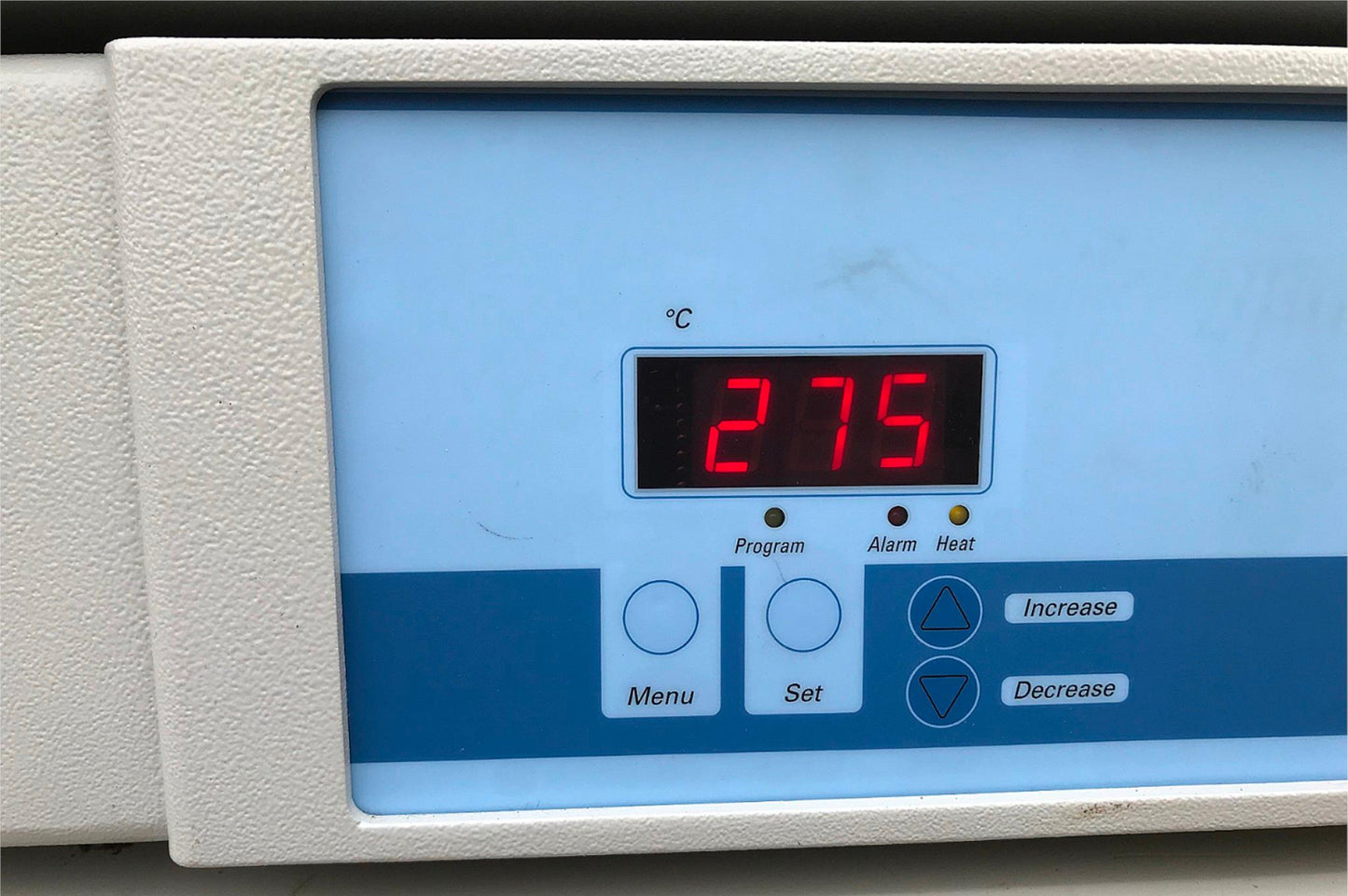

WE ACTUALLY MANAGED TO RAISE THE TEMPERATURE TO 275 DEGREES, STABILIZED AT 275 DEGREES SO THIS IS TRULY AN AMAZING OVEN!!!

Description:

Description

For gentle heating and drying

Efficient wall and door insulation maintain safe exterior temperature to prevent burns while saving energy

Silicone gasket on the oven door prevents heat loss and ensures energy efficiency

Enamel-painted steel exterior and corrosion-resistant stainless-steel interior ensure easy cleaning and durability

Thermo Scientific Lindberg OV700G, Category LB305545G Blue M Gravity Convection Oven, 2.5 Cu. Ft. (70.8 L), 50°C To 275°C,

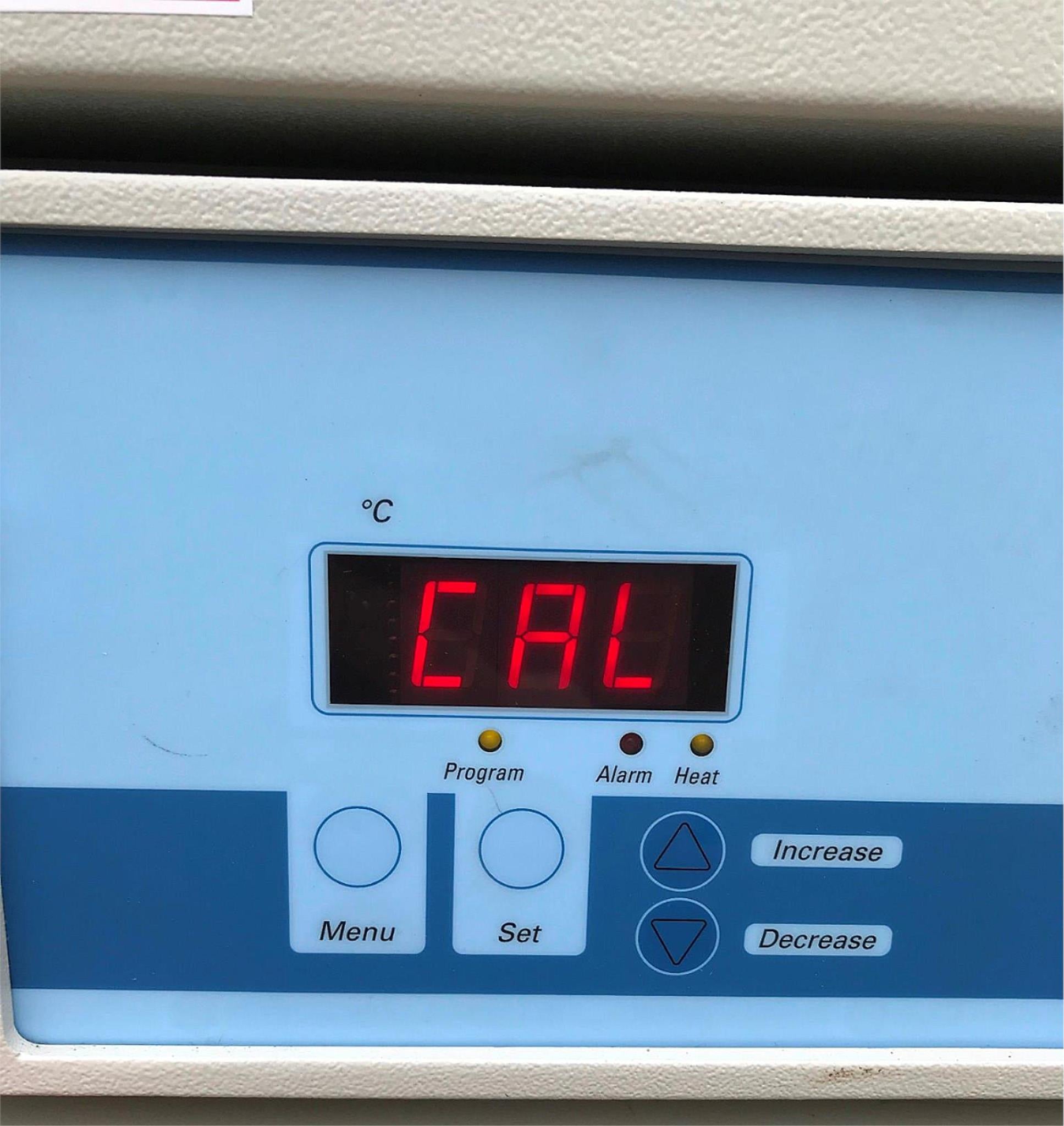

Microprocessor Control

Gravity convection gently moves air vertically through the oven chamber to heat samples. Easy-to-read microprocessor control panel displays detailed information on current temperature, set-point, and heater condition and over temperature alarm. Setting the oven temperature in 1°C increments is simple with no tuning required; settings are stored in memory when oven is off. Built-in safety backup maintains temperature control at 5°C above set point if the primary control fails -- a circuit breaker protects the oven from power surges.

Applications:

Aging Processes

Quality Control

Baking

Gentle Drying

Electronic Parts Drying

Powder Drying

Granulates Drying

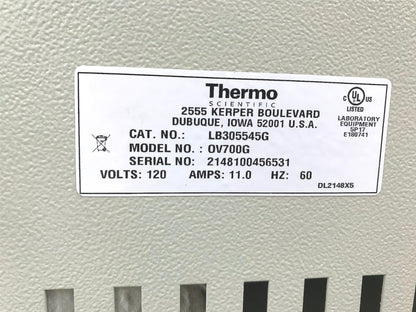

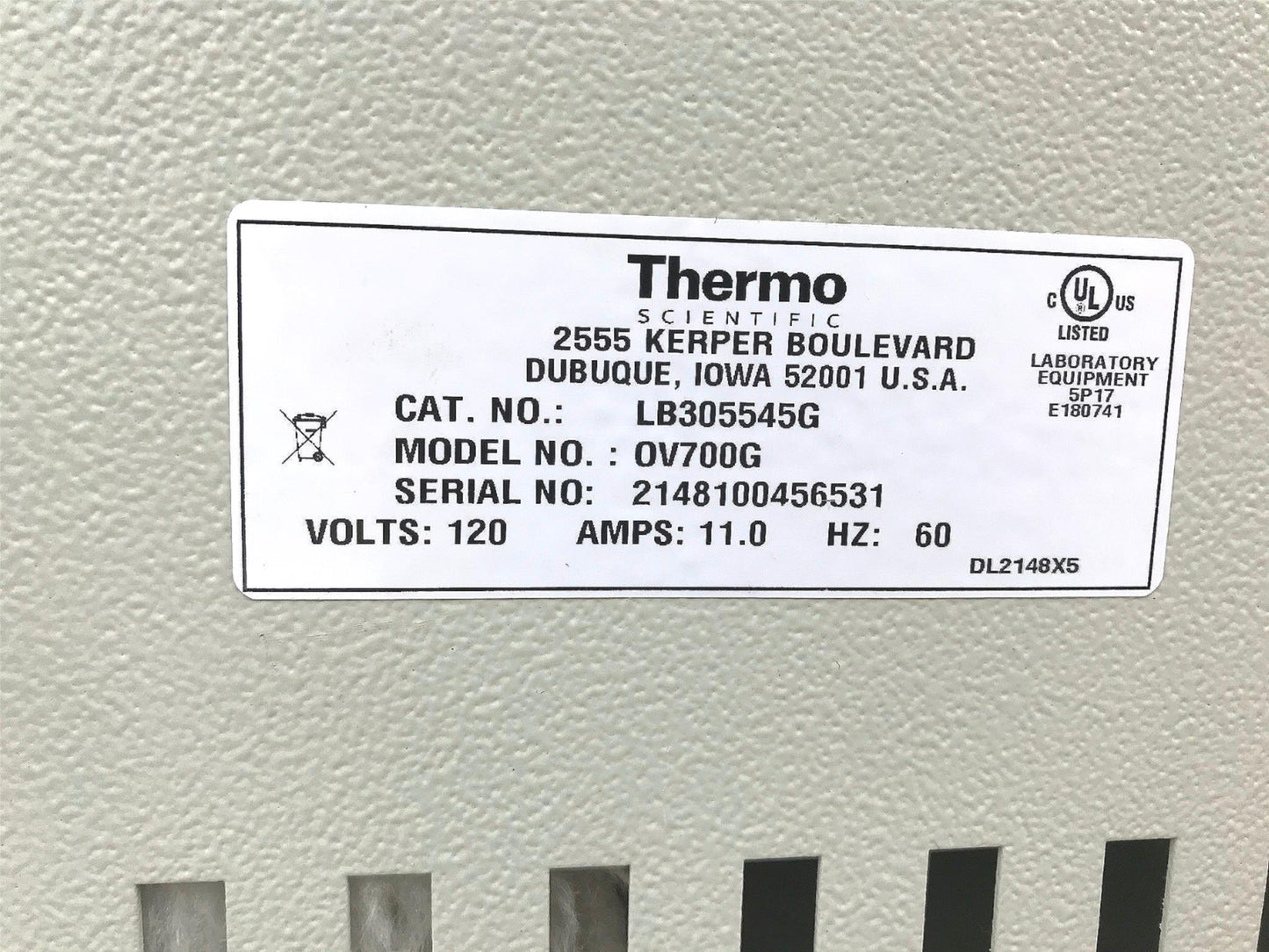

The Unit's Serial Number Tag Reads:

Model Number: OV700G

Category Number: LB305545G / Model Number: OV700G

Serial Number: 2148100456531

Power Requirements: 120 V, Single Phase, 60 Hz

Temperature Range: up to 275°C

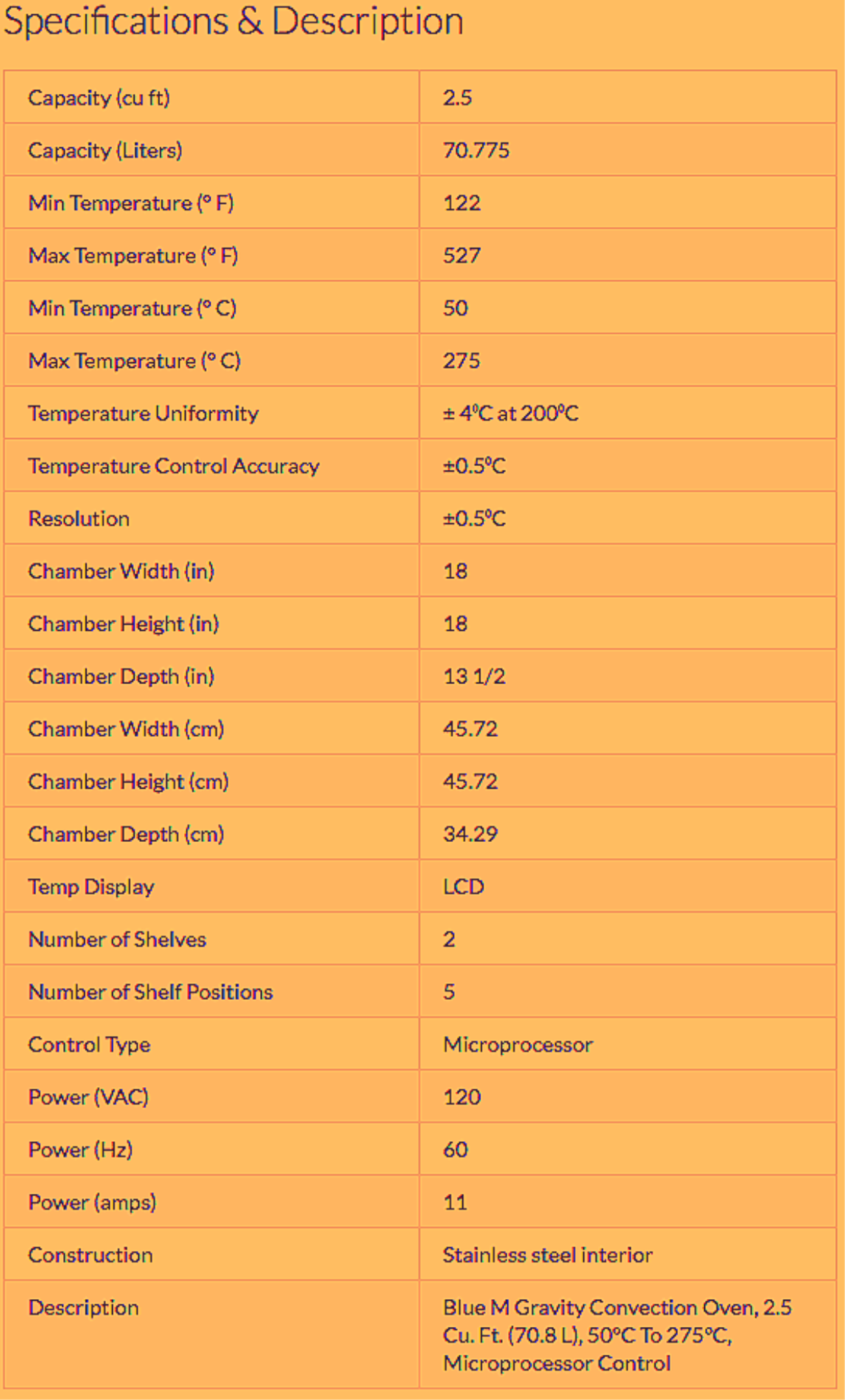

Specifications:

Capacity: 2.5 cu. ft. (70.7 liters)

Electrical Requirements: 120 V, 50/60 Hz, Single Phase

Cabinet Finish: Painted

Shelf Positions: 2

Interior Dimensions: Width 18" x Height 18" x Depth13,5"

Weight: 110 lbs

Temperature Range: up to +275°C

Temperature Uniformity: ±4% at 200°C. Actual performance may vary depending on load, chamber size, sample placement, ambient temperature and environmental conditions.

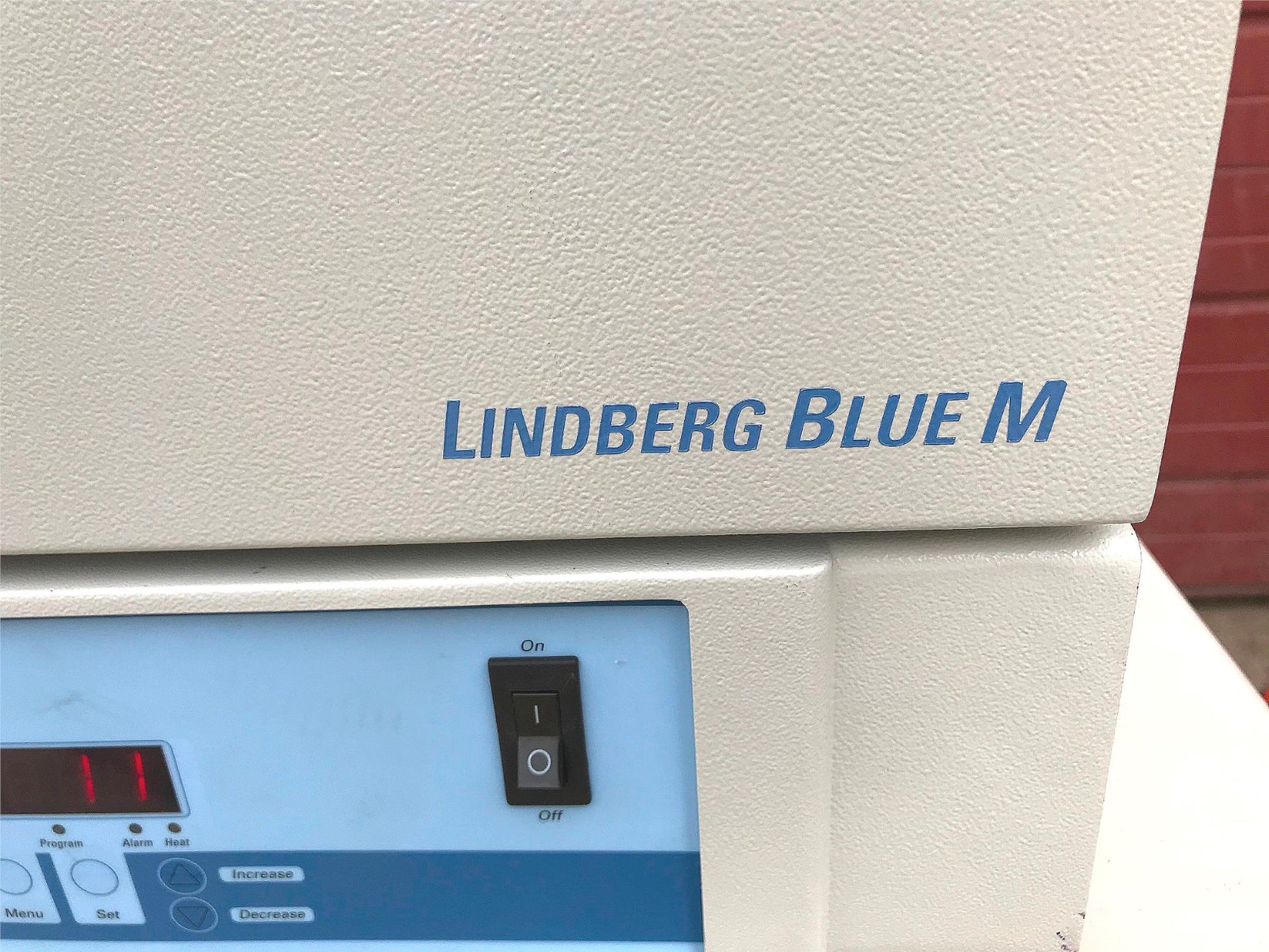

Controller: Integral microprocessor digital control with LED temperature display, resolution to 1°C; main power ON/OFF switch with power ON indicator light

Control Accuracy: ±0.5%

Overtemperature Control Safety: Factory set, indepdent. Interrupts power to oven until manually reset

Heating Elements: Long life, low-watt density elements, enclosed and protected

Interior Construction: Corrosion resistant 304 polished stainless steel

Exterior Construction: Double-wall, heavy gauge steel with scratch-resistant finish, adjustable door latch and hinges

Insulation: Fiberglass, minimum 3" (76.2 mm) on all sides. Peripheral silicon door seal to minimize heat loss

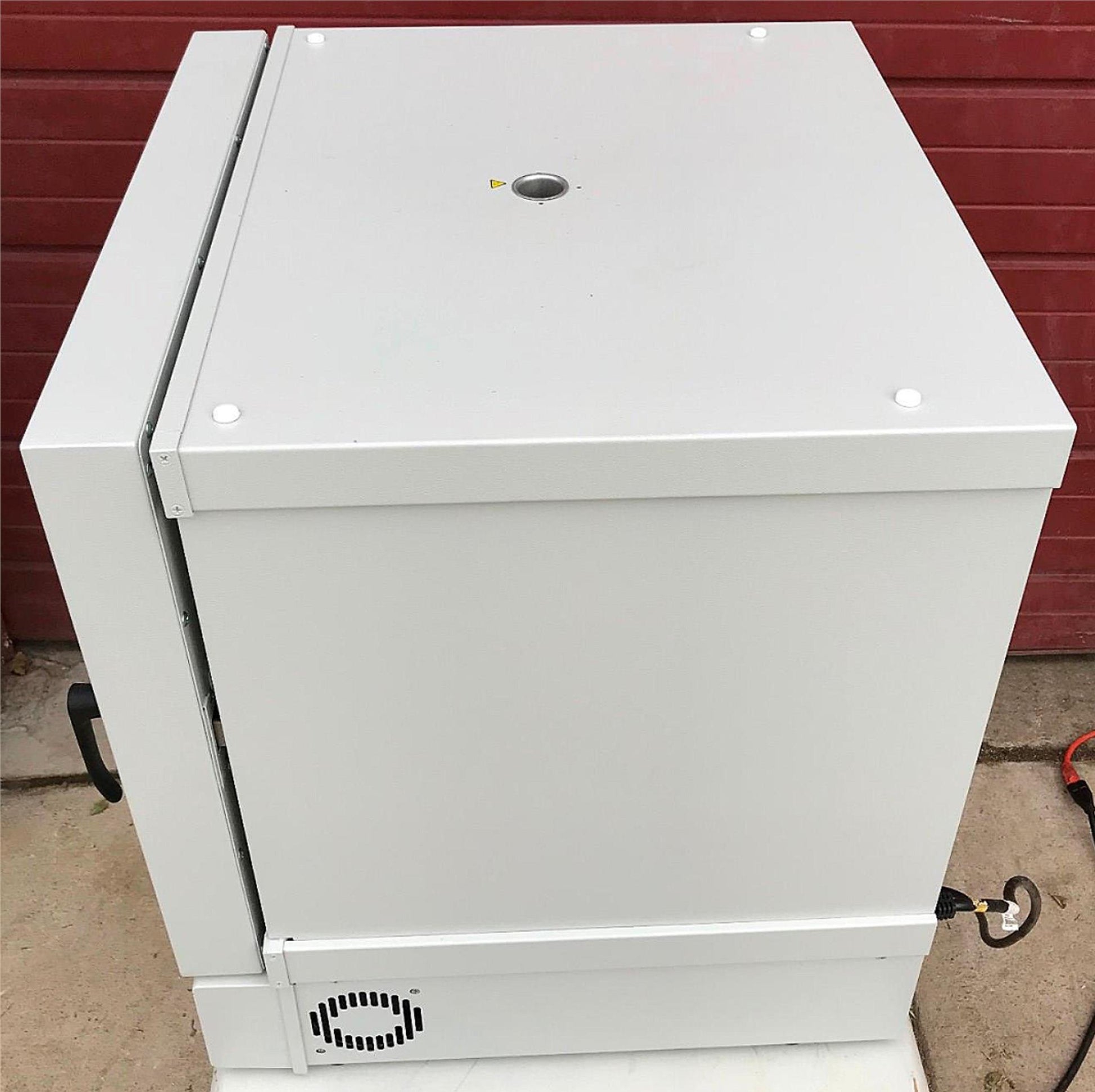

Vent: Top center, 1.75", adjustable.

Air Exchange: Intake ports at bottom allow fresh air entry to establish gravity airflow pattern

Heat-Up Rates:

Ambient to +100°C: 18 Minutes

Ambient to +200°C: 47 Minutes

Ambient to +275°C: 106 Minutes

Cool-Down Rates:

+275°C to +200°C: 32 Minutes

+275°C to +150°C: 61 Minutes

+275°C to +100°C: 120 Minutes

+275°C to +50°C: 252 Minutes

Stainless Steel Interior

Over-Temperature Protection

Each gravity convected model generates a unique air flow through perforated stainless steel shelves to achieve temperature uniformity without blowers. The temperature controller/display is located on the front panel.

This OV700G oven uses a Eurotherm 2132 PID Temperature Controller to give stable ‘straight line’ temperature control.

Condition:

EXCELLENT WONDERFUL OVERALL CONDITION AS CAN BE SEEN IN THE PICTURES

Fully tested and working perfectly.

This unit came from the Pharmacy School of a Federal University and has ALWAYS been very well taken care of, we actually believe it has never been used at all.

Stock 191911
