1966 HP HEWLETT HARRISON 6202B REGULATED DC POWER SUPPLY 90DAYWARRANTY FREE SHIP

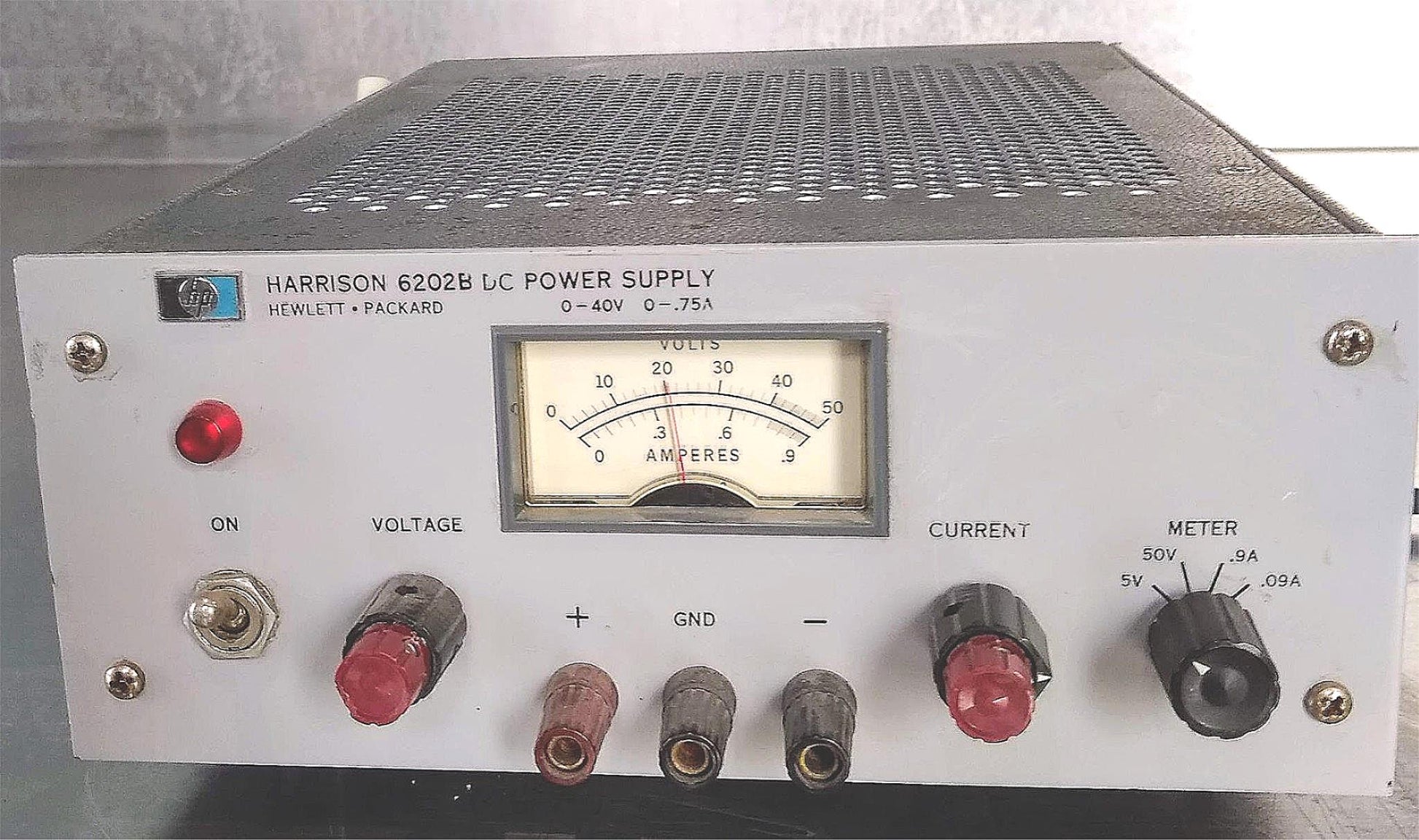

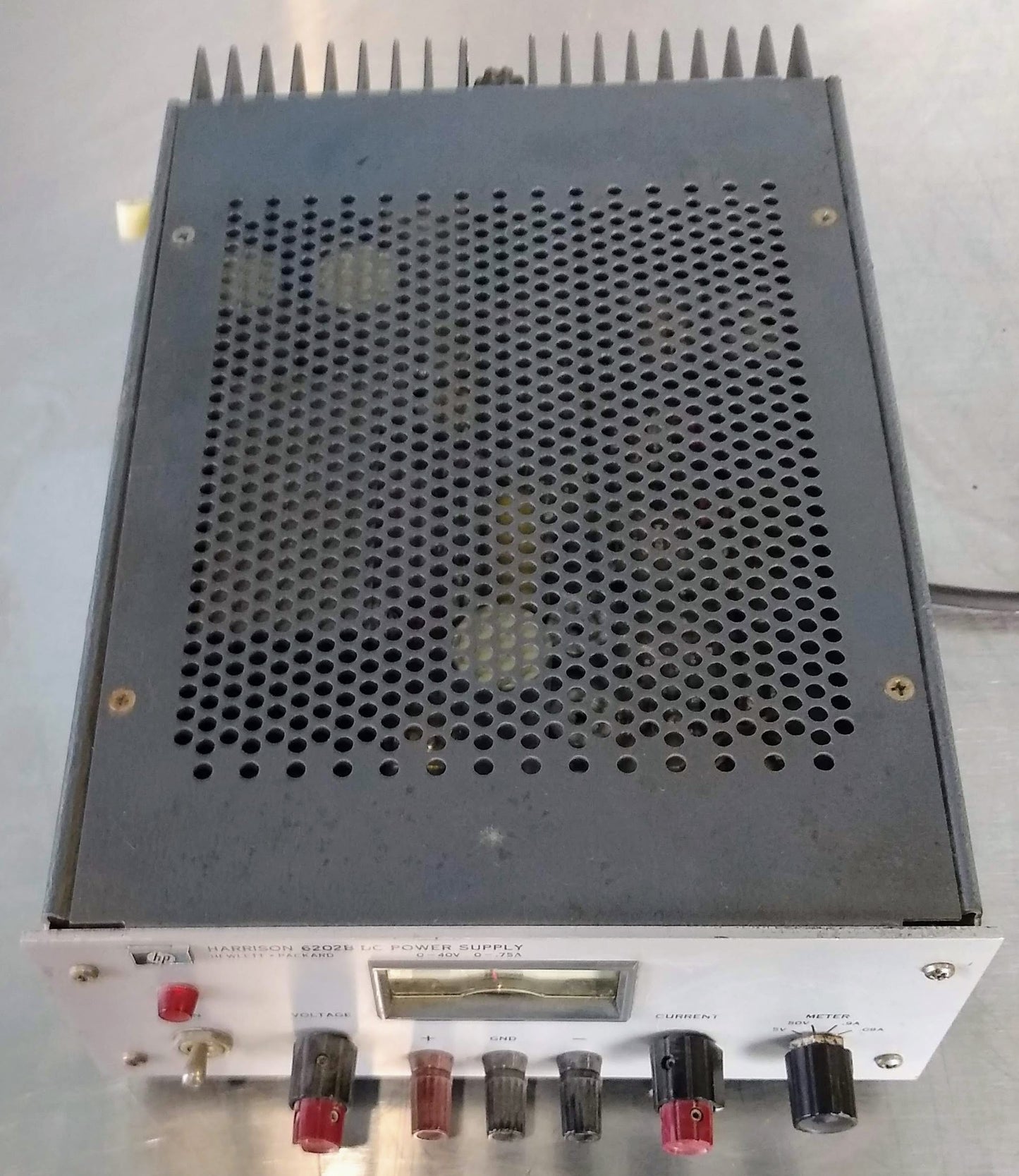

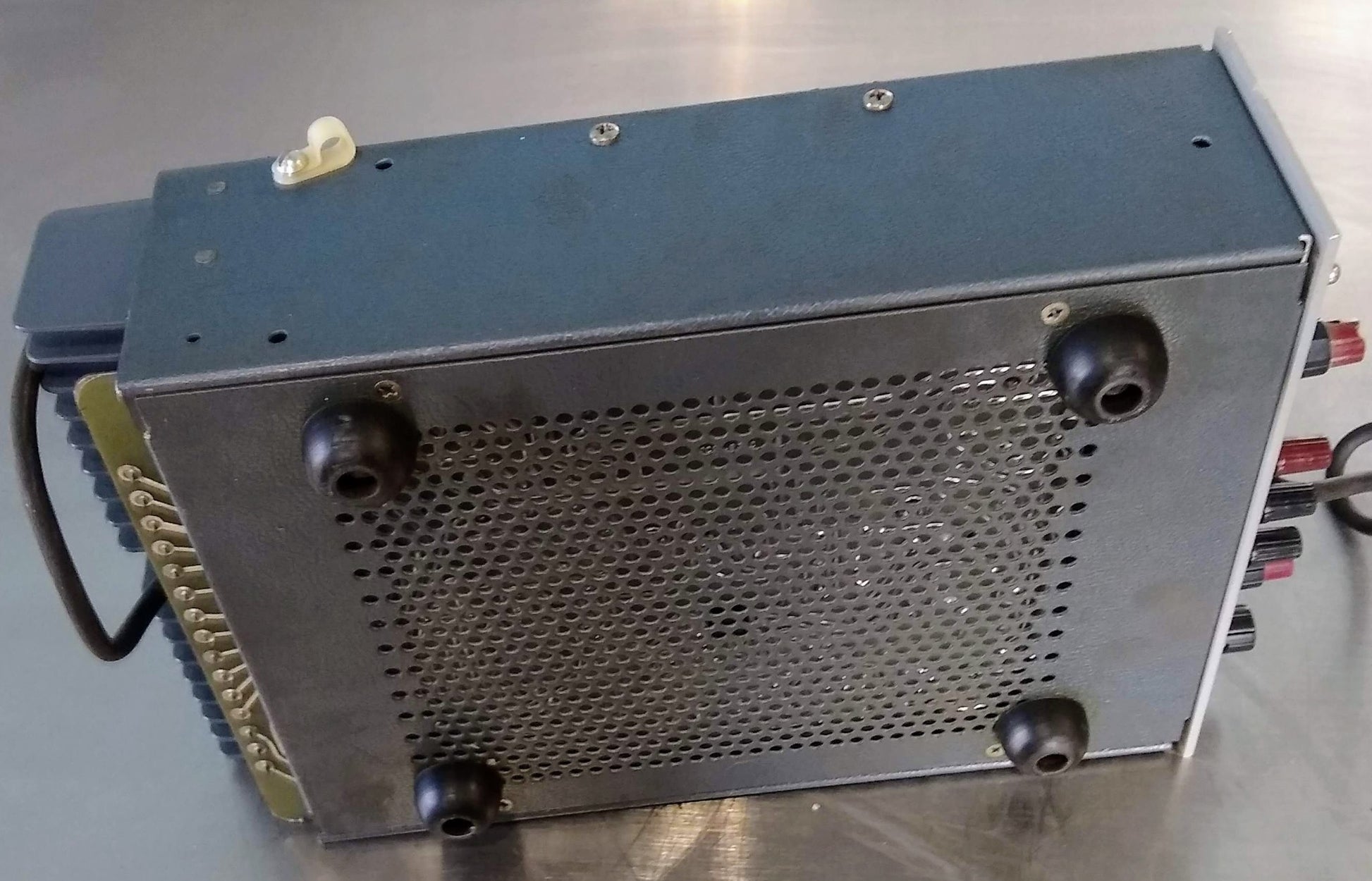

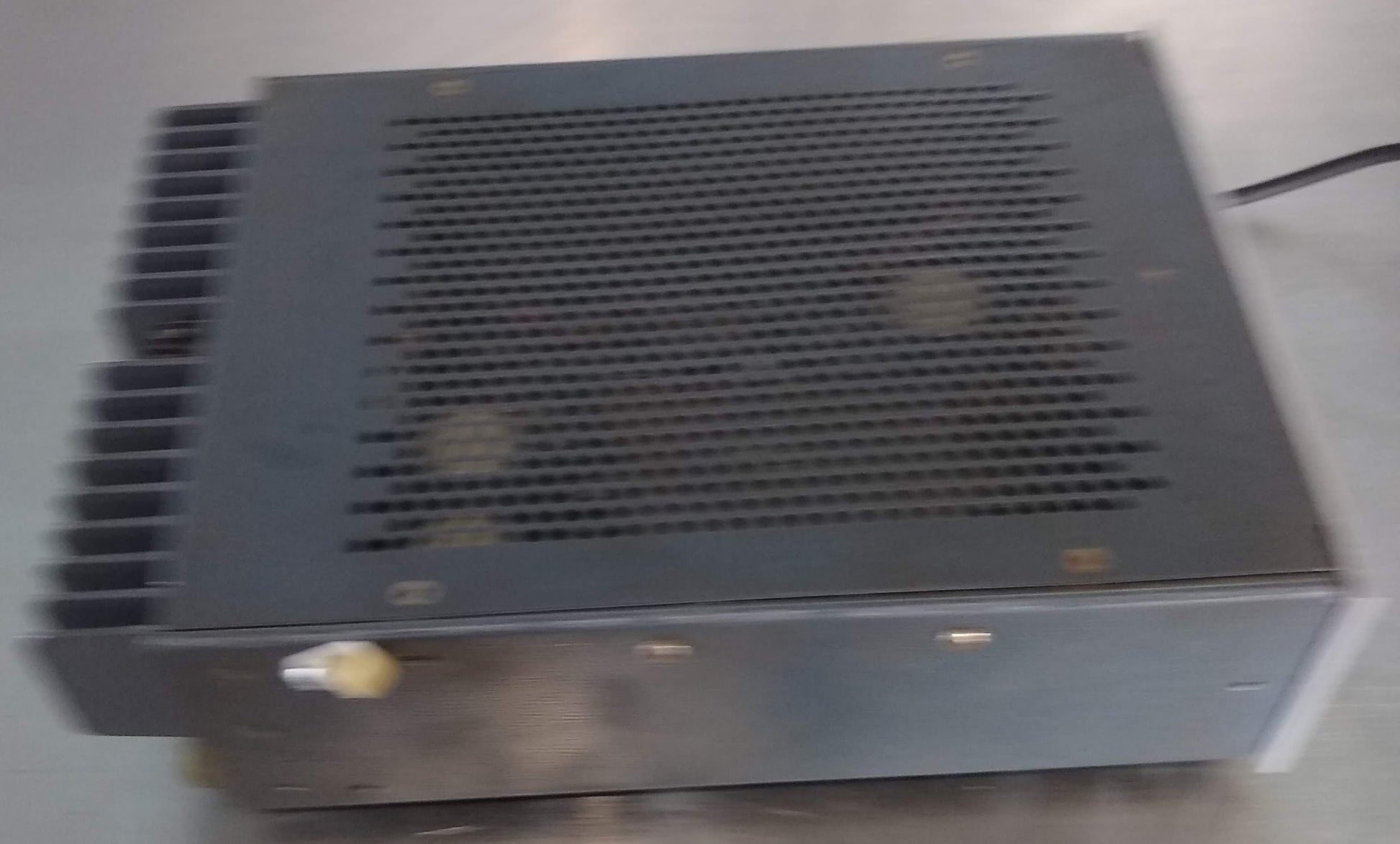

You are bidding on a Perfect Operational Condition 1966 HP HEWLETT HARRISON 6202B REGULATED DC POWER SUPPLY as can be seen in the pictures!

This HP HEWLETT HARRISON 6202B REGULATED DC POWER SUPPLY HAS BEEN FULLY TESTED, DOES WORK and includes the Power Cord!

Feel free to check manufacturer's Operational Manual by GOOGLING the following link: http://www.radiomanual.info/schemi/ACC_powersupply/Hewlett_Packard_6200B_serv_user.pdf

This unit has been fully tested and will Last a Lifetime, that's why we're comfortable offering a 90 DAY WARRANTY!

Equipment Description

This HP HEWLETT HARRISON 6202B REGULATED DC POWER SUPPLY is in very good cosmetic condition also.

Specifications:

HP Harrison 6202B Power Supply 0-40V 0-.75A.

Weight 14.2 lbs

Dimensions 18 × 12 × 12 in

This power supply is completely transistorized and

suitable for either bench or relay

rack operation. It is a dual range, compact, well-

regulated, Constant Voltage/Constant Current,

supply. The unit can furnish either a 0-20 volt,

1.5 ampere, output or a 0-40 volt, 0.75 ampere,

output. The operating mode is selected by means

of the front panel RANGE switch. The output can be

continuously adjusted for both voltage and current

throughout either output range. The front panel

CURRENT controls can be used to establish the out-

output current limit (overload or short circuit) when

the supply is used as a constant voltage source

and the VOLTAGE controls can be used to establish

the voltage limit (ceiling) when the supply is used

as a constant current source .

1-3 The power supply has both front and rear

terminals . Either the positive or negative output

terminal may be grounded or the power supply can

be operated floating at up to a maximum of 300

volts off ground .

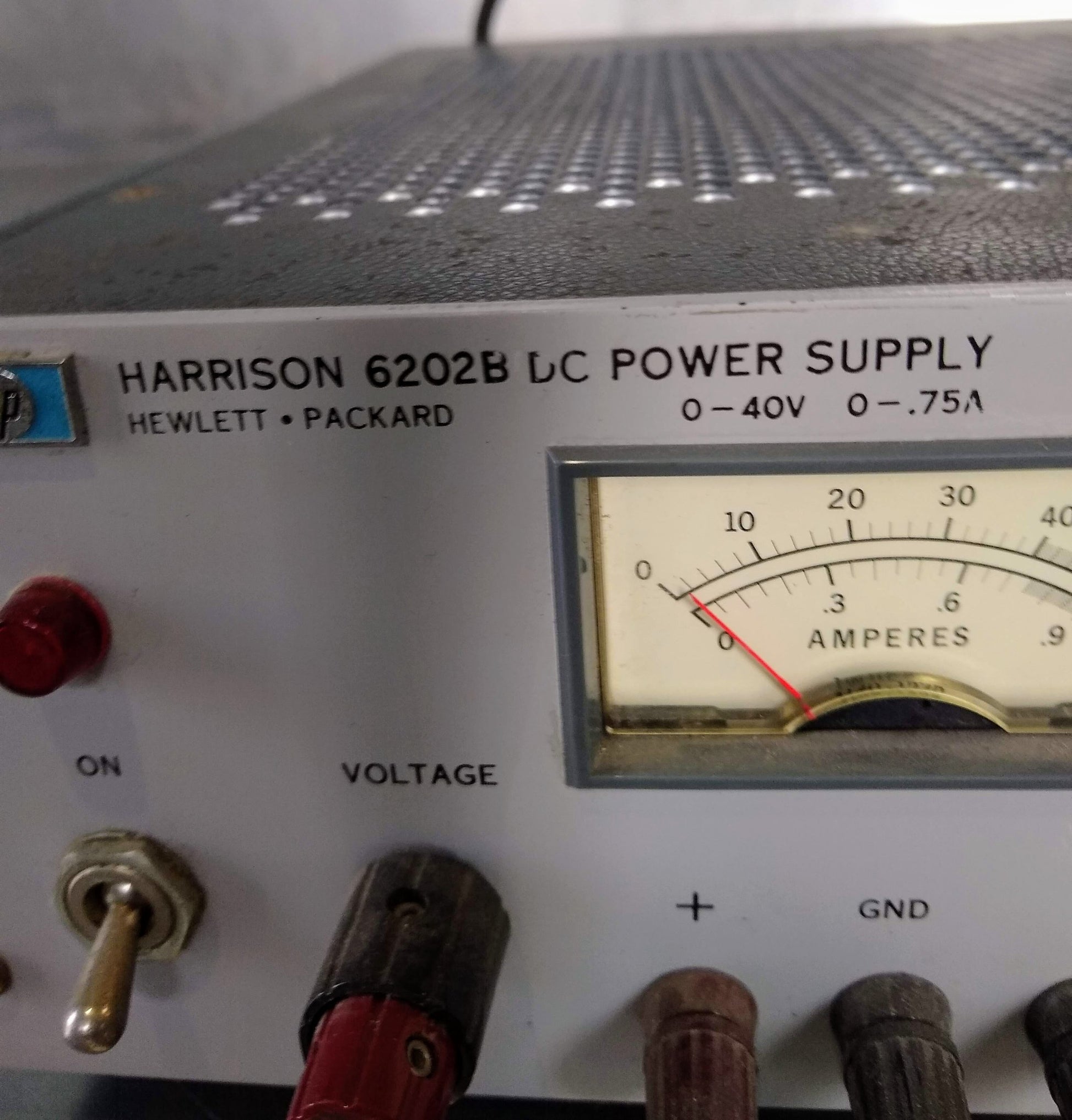

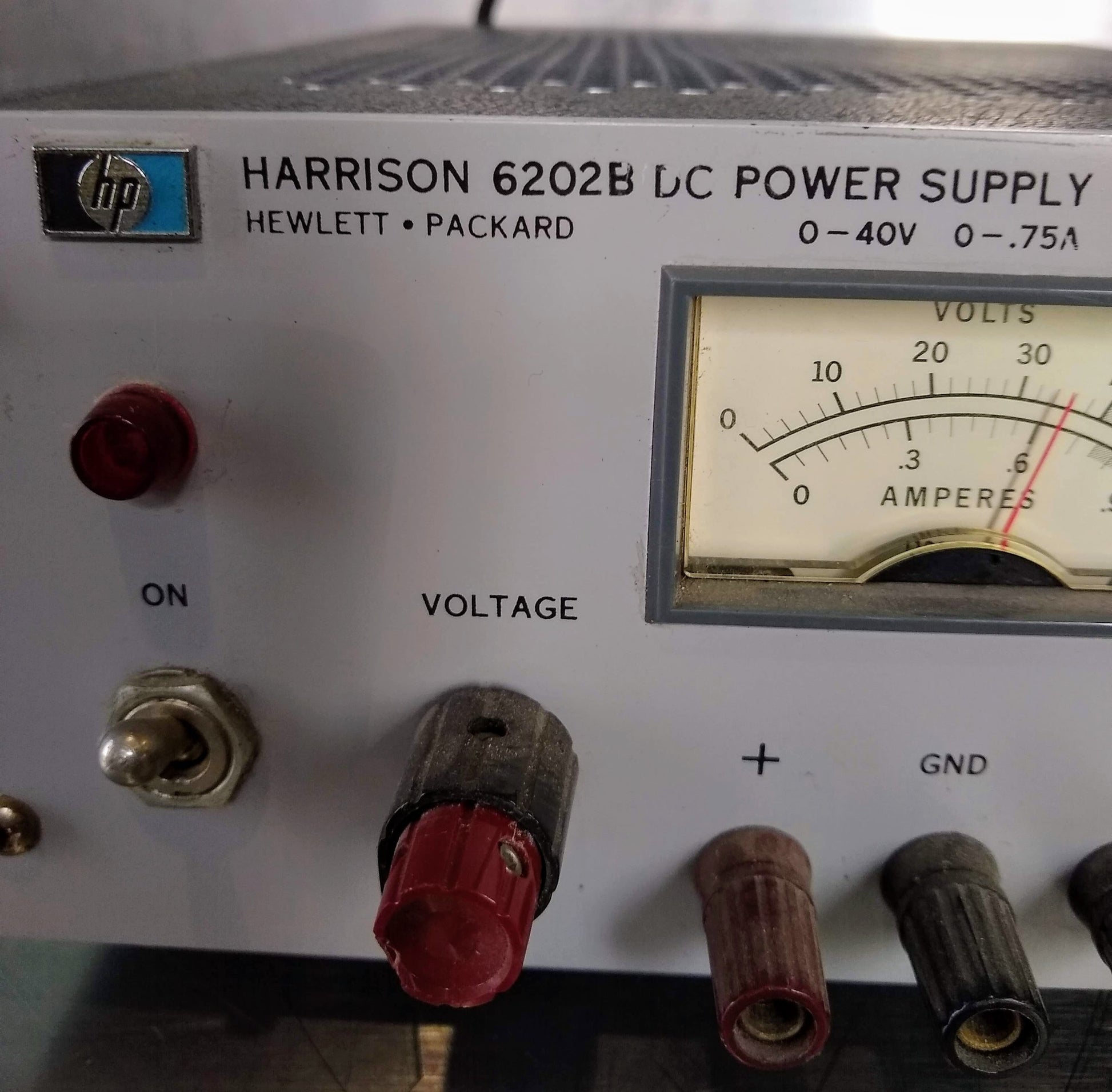

1-4 A single meter is used to measure either out-

put voltage or output current in one of two ranges

HP Harrison 6202B Power Supply 0-40V 0-.75A.

Weight 14.2 lbs

Dimensions 18 × 12 × 12 in

This power supply is completely transistorized and

suitable for either bench or relay

rack operation. It is a dual range, compact, well-

regulated, Constant Voltage/Constant Current,

supply. The unit can furnish either a 0-20 volt,

1.5 ampere, output or a 0-40 volt, 0.75 ampere,

output. The operating mode is selected by means

of the front panel RANGE switch. The output can be

continuously adjusted for both voltage and current

throughout either output range. The front panel

CURRENT controls can be used to establish the out-

output current limit (overload or short circuit) when

the supply is used as a constant voltage source

and the VOLTAGE controls can be used to establish

the voltage limit (ceiling) when the supply is used

as a constant current source .

1-3 The power supply has both front and rear

terminals . Either the positive or negative output

terminal may be grounded or the power supply can

be operated floating at up to a maximum of 300

volts off ground .

1-4 A single meter is used to measure either out-

put voltage or output current in one of two ranges

1-4 A single meter is used to measure either output voltage or output current in one of two ranges

for each operating mode. The voltage or current

range is selected by a METER switch on the front

panel.

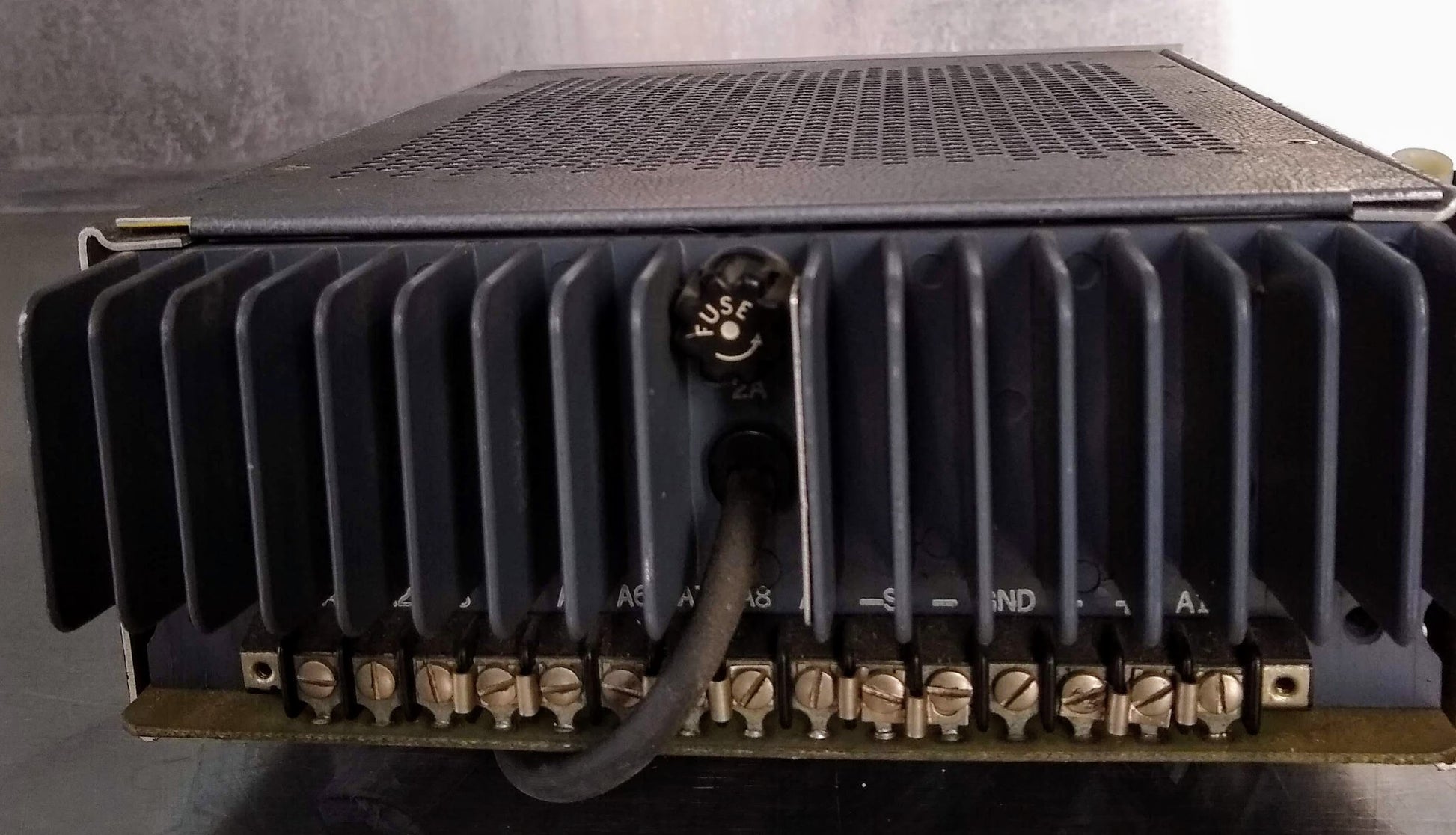

1-5 The programming terminals located at the rear

of the unit allow ease in adapting to the many operational capabilities of the power supply. A brief

description of these capabilities is given below:

a. Remote Programming

The power supply may be programmed

from a remote location by means of an external

voltage source or resistance .

b. Remote Sensing

The degradation in regulation which

would occur at the load because of the voltage drop

which takes place in the load leads can be reduced

by using the power supply in the remote sensing

mode of operation.

c. Series and Auto-Series Operation

Power supplies may be used in series

when a higher output voltage is required in the

voltage mode of operation or when greater voltage

compliance is required in the constant current mode

of operation. Auto-Series operation permits one

knob control of the total output voltage from a

"master" supply.

d. Parallel and Auto-Parallel Operation

The power supply may be operated in

parallel with a similar unit when greater output current capability is required . Auto-Parallel operation

permits one knob control of the total output current

from a "master" supply.

e. Auto-Tracking

The power supply may be used as a "master" supply, having control over one (or more)

"slave" supplies that furnish various voltages for a system.

> Full 90 Day Warranty

Tiengo cuenta de SKYPE, conta te-me via el nombre: itibas usando SKYPE sin costo algun.

Thank you so much for checking our listing out, for the past 16 years we have strived to offer the best customer satisfaction ever, I guess our feedback rating proves that, what better than that can we show!!!

COSMETIC NOTES:VERY GOOD cosmetic condition as can be seen in the pictures.

Stock # 212403
