13CFM TUTHILL KINNEY POSITIVE DISPLACEMENT VACUUM PUMP KS-13 460RPM WATCH VIDEO

This listing is for a PERFECT OPERATIONAL CONDITION  TUTHILL KINNEY POSITIVE DISPLACEMENT VACUUM PUMP as can be Watched in the Video and also Seen in the pictures.

FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING FAST & FURIOUSLY BY CLICKING https://www.youtube.com/watch?v=zCZzfVsYQYo

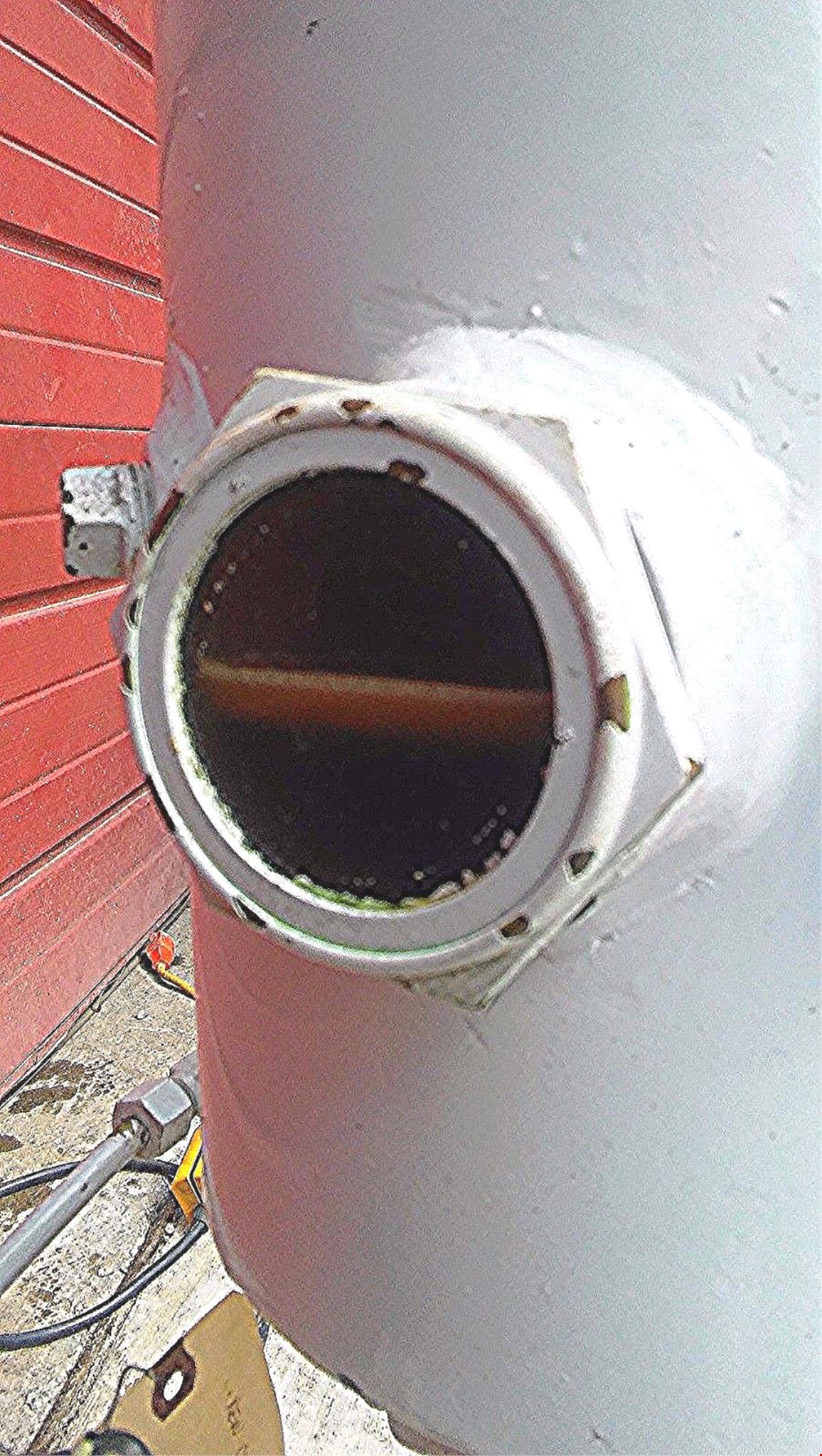

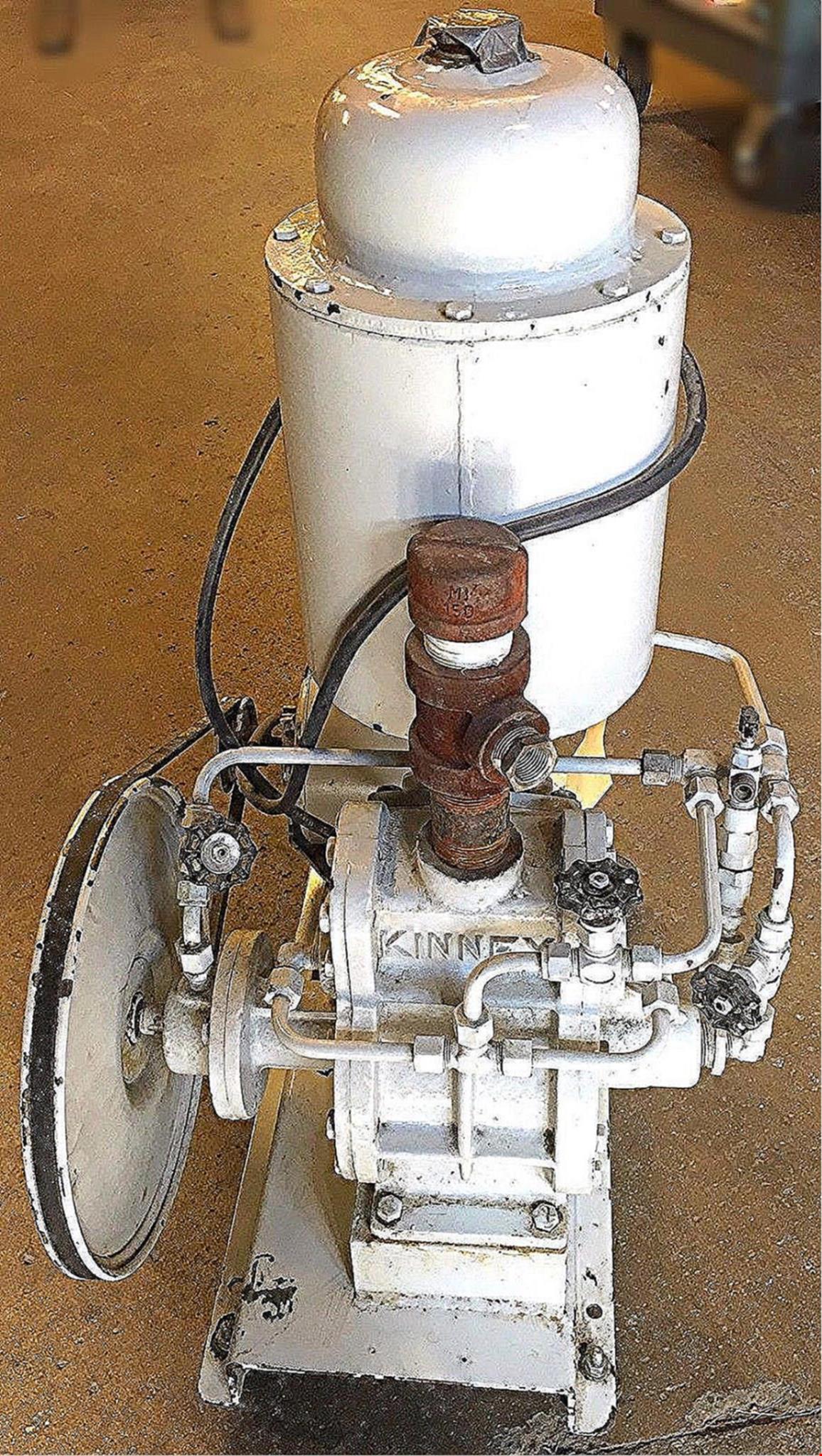

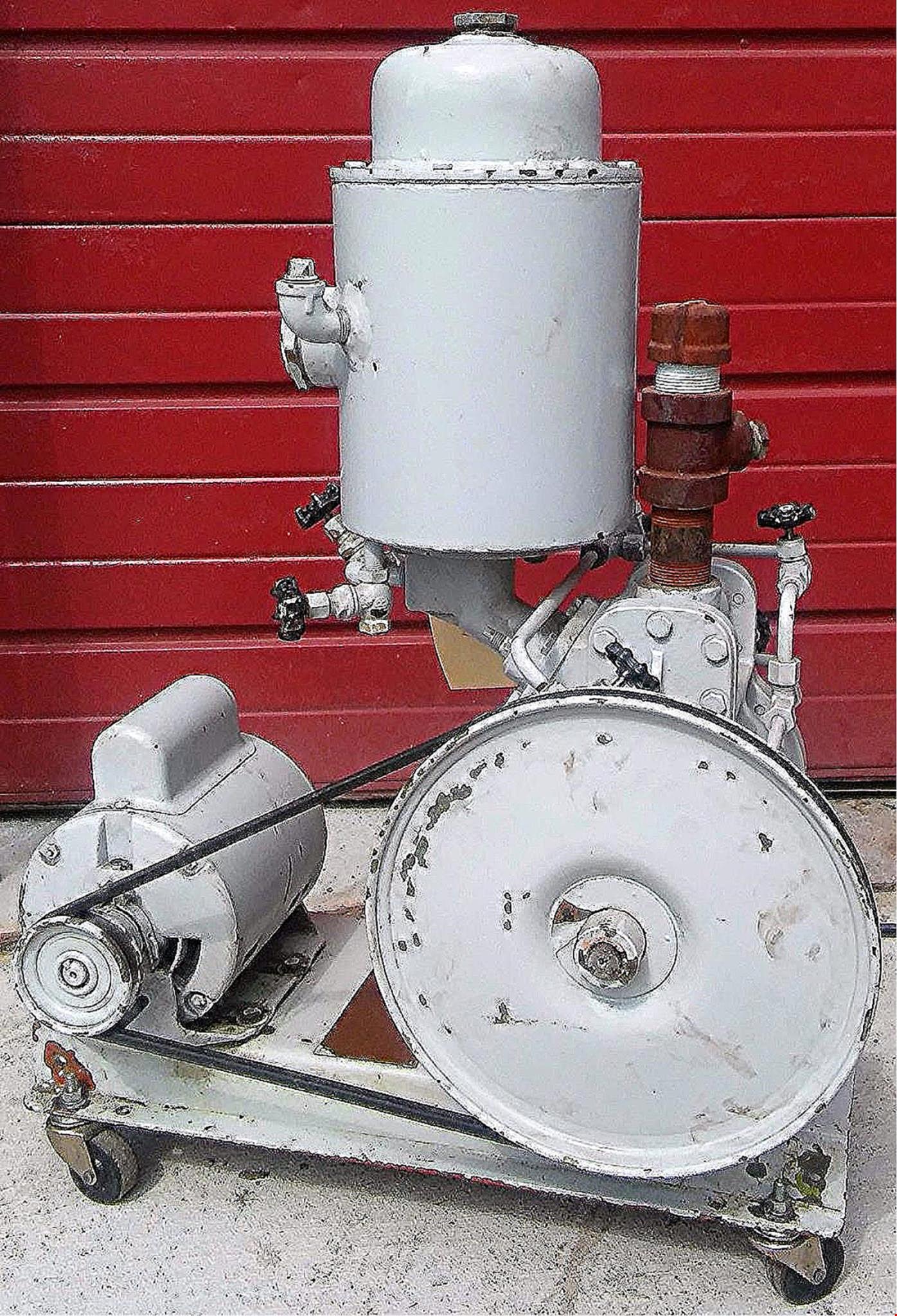

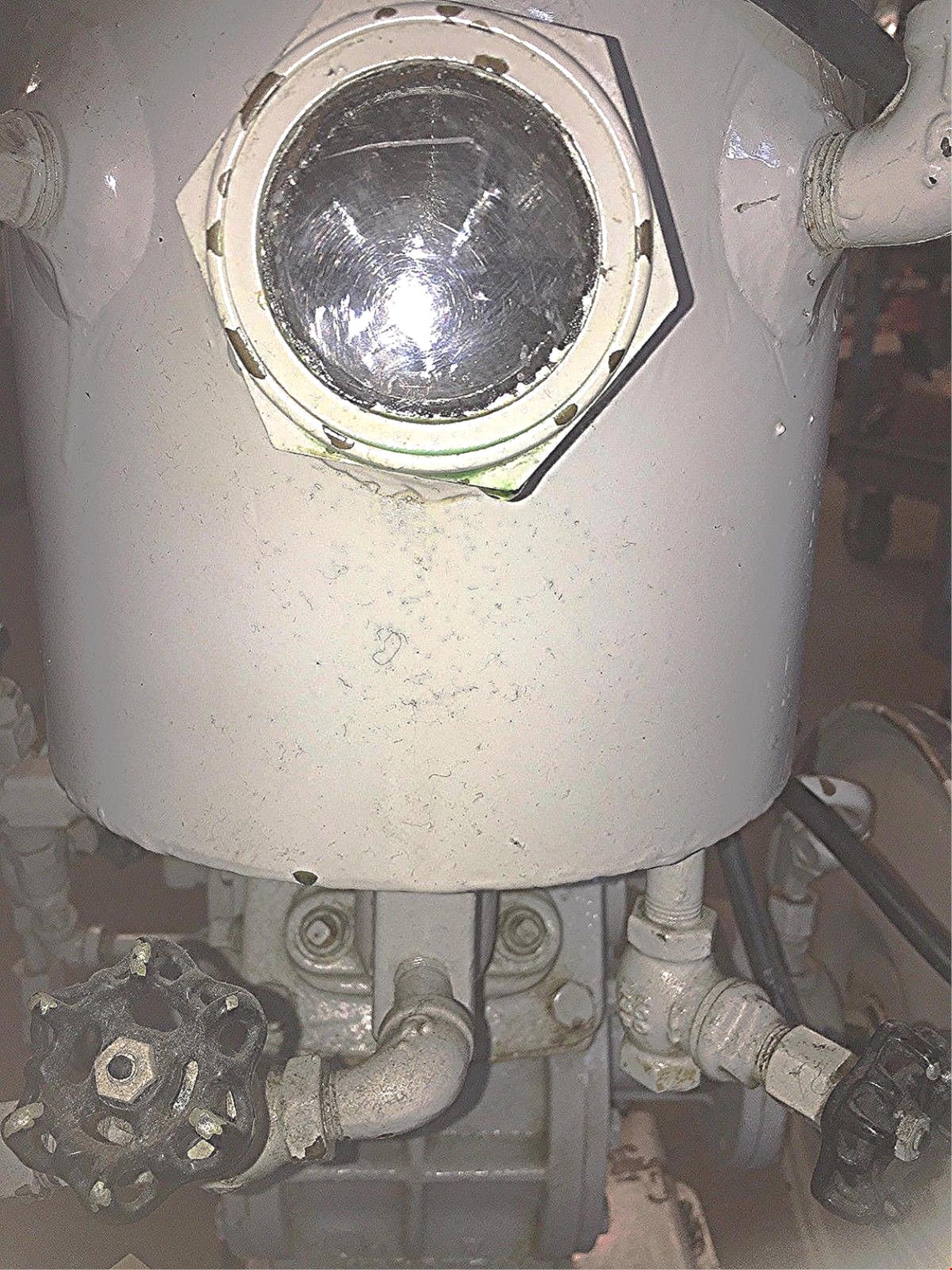

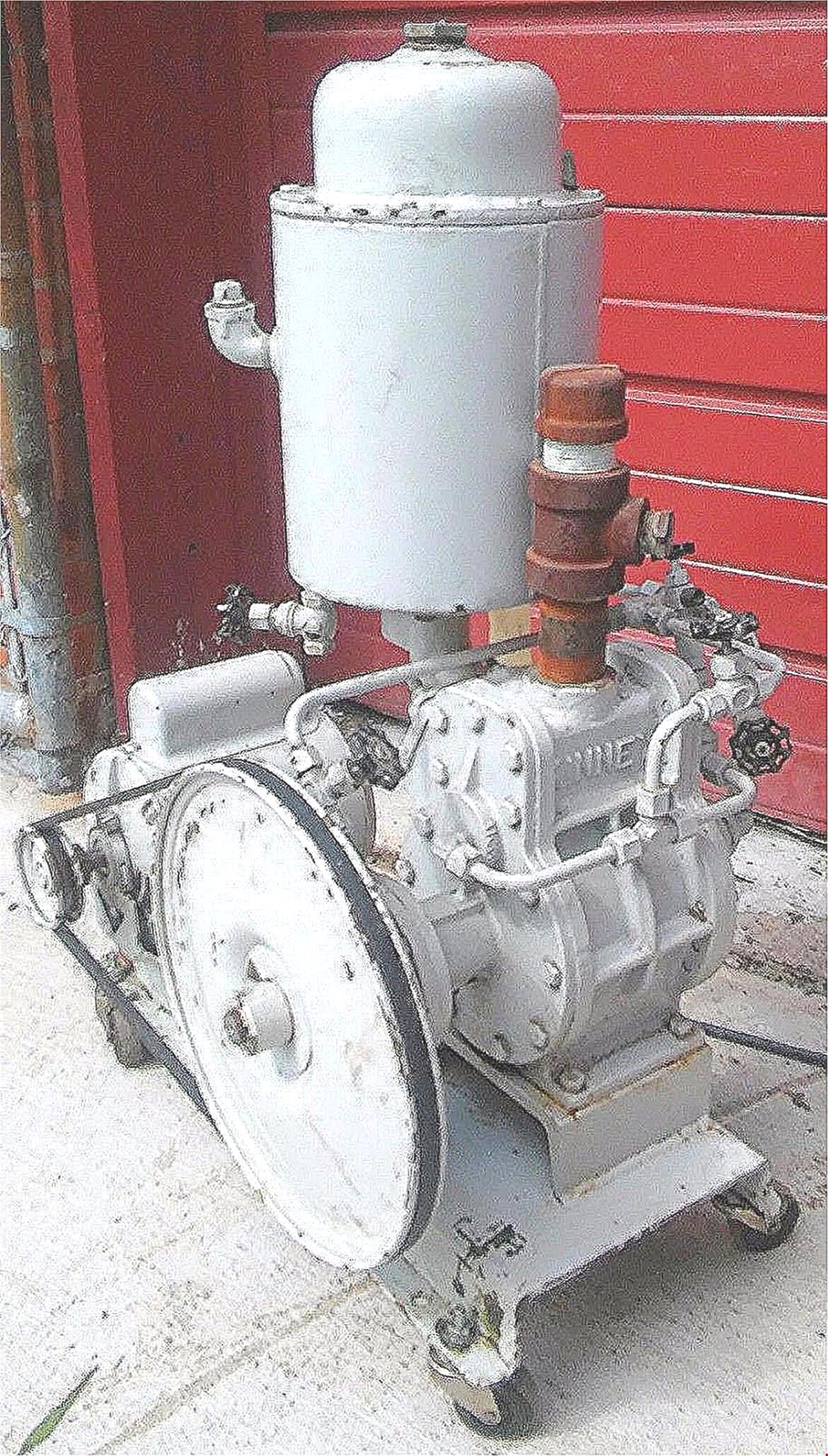

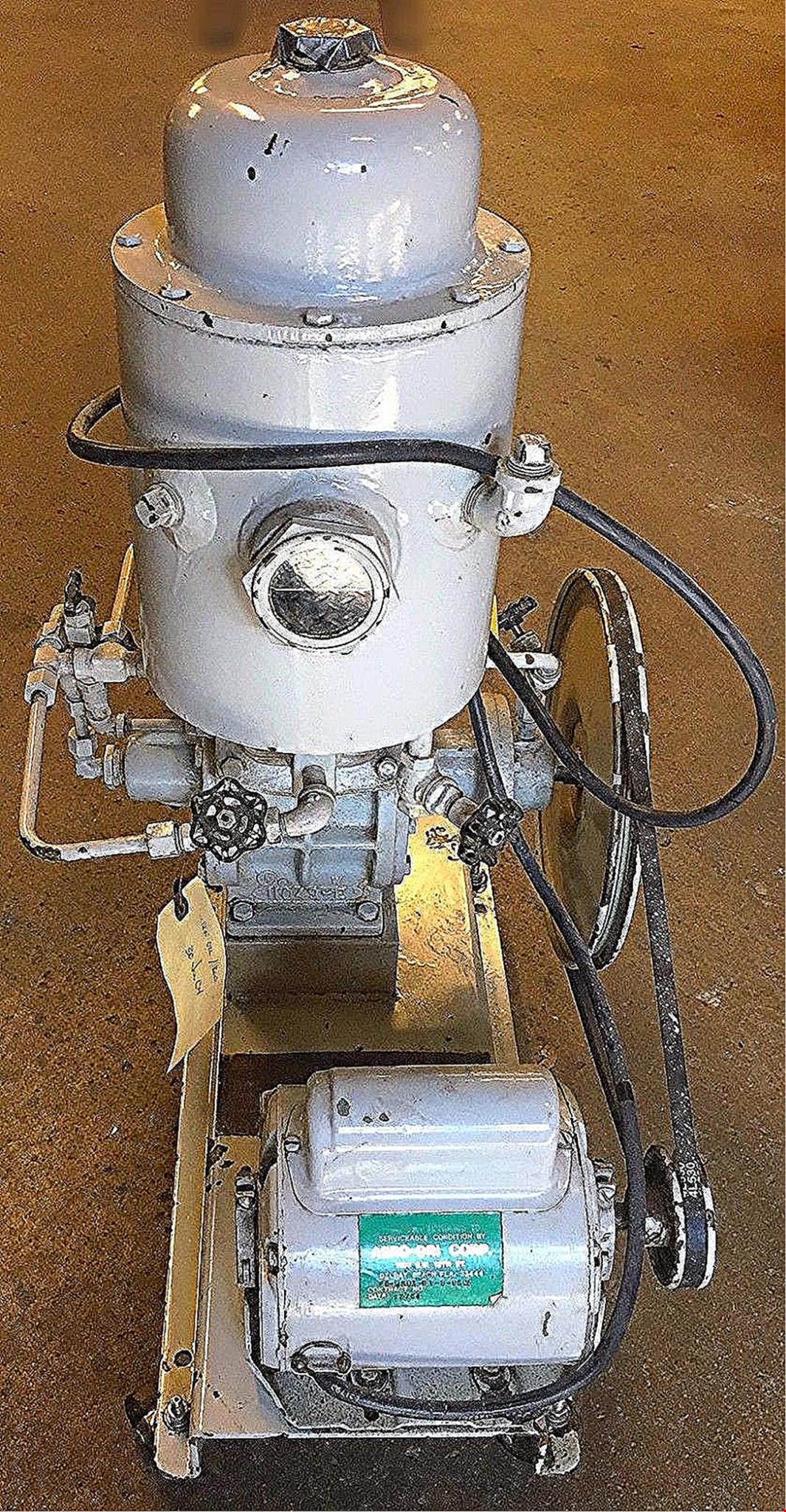

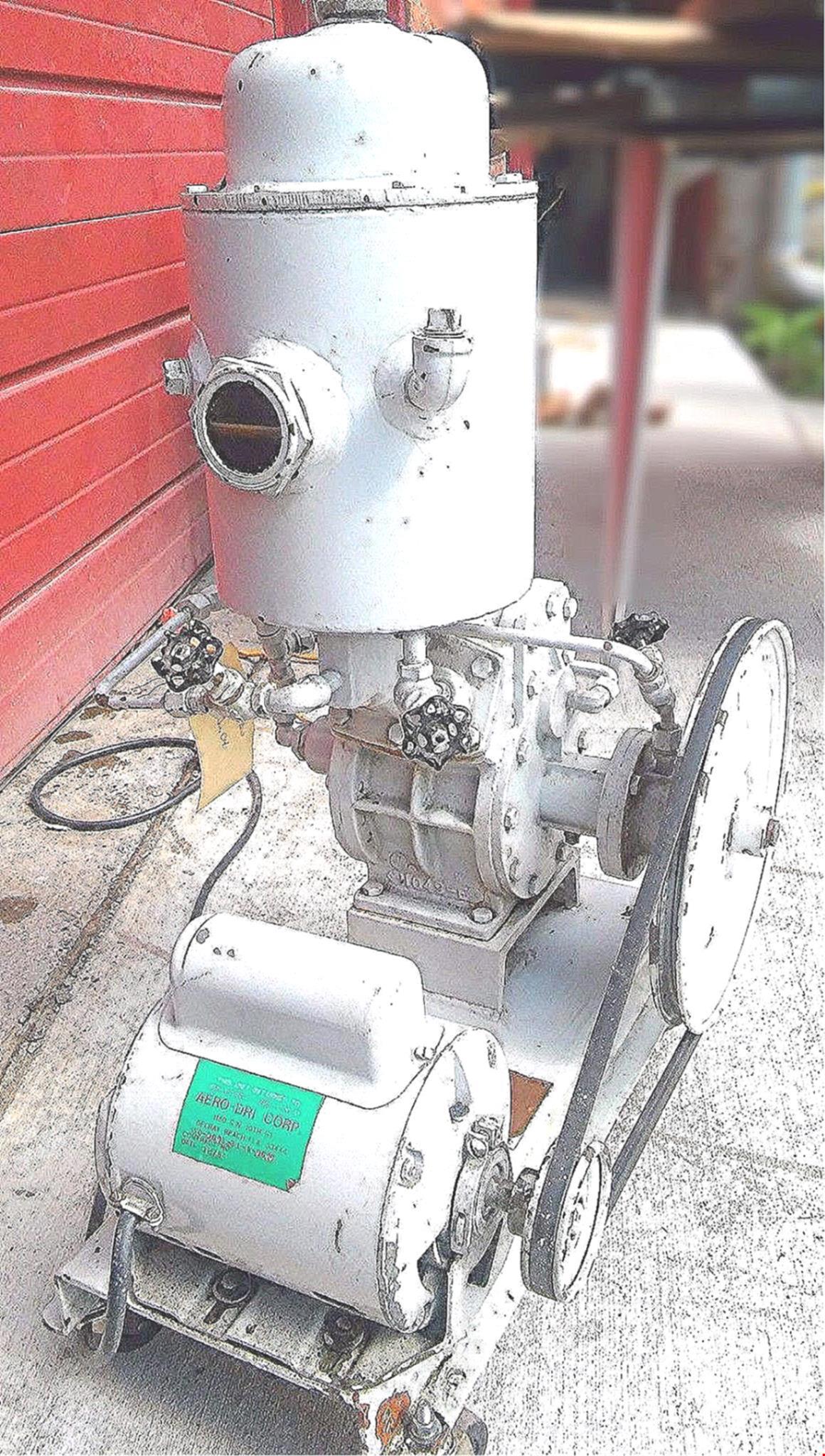

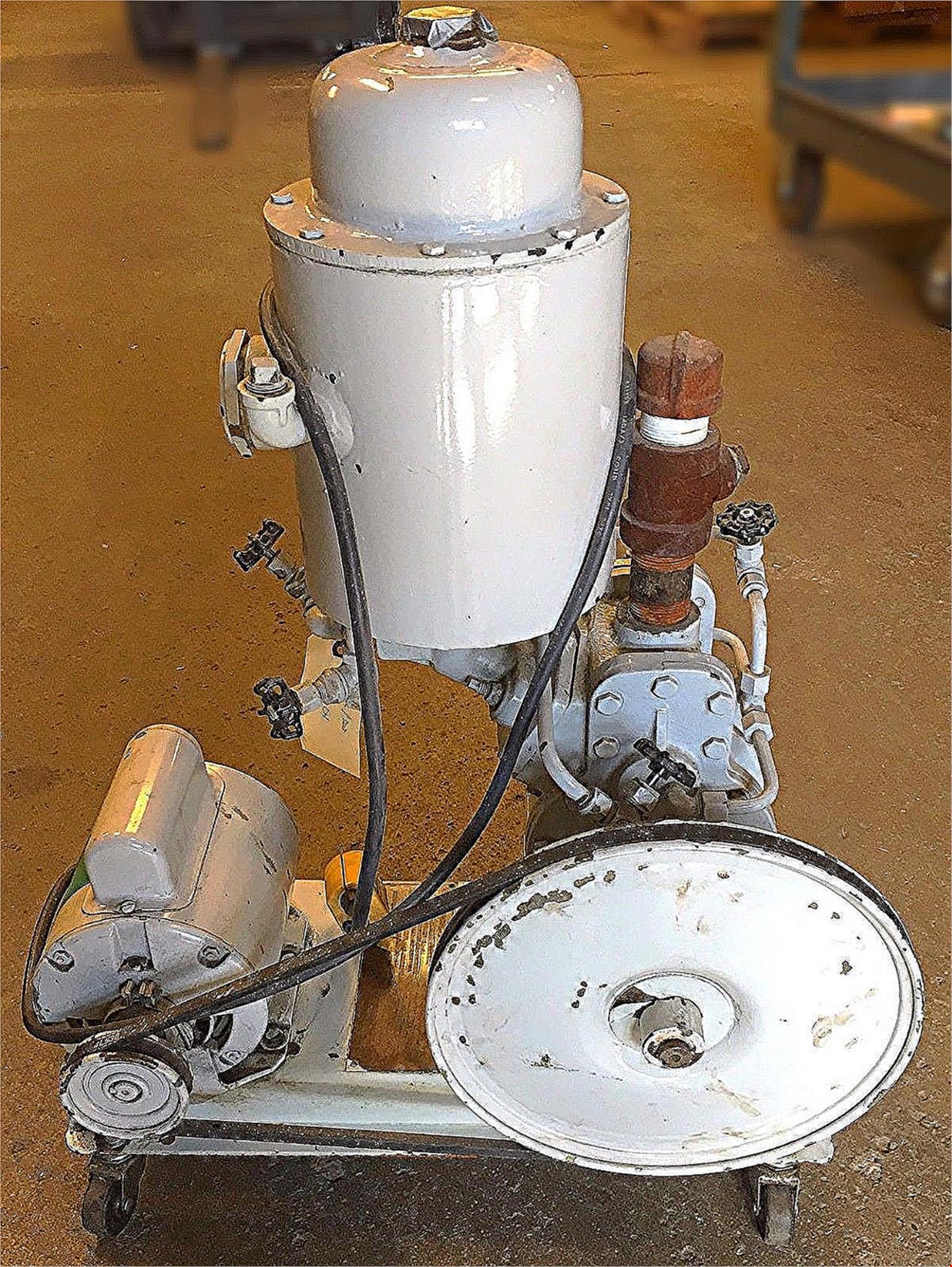

Single Stage Duplex Design. Water cooled. Rated 130 CFM @ 10 microns, “V”Belt driven, requires motor.  Mounted on base with oil separator and belt guard.

Offered Cleaned, Painted as can be seen in the pictures. Shop tested as can be watched in the video.

COOLING: WATER

MOTOR SIZE: 1/2 HP

PUMP SPEED: 460 RPM

MOTOR SPEED: 1725 RPM

DISPLACEMENT: 13 C.F.M.

OIL CAPACITY: 1 GALLON

INLET CONNECTION:     1 1/4 N.P.T.

OUTLET CONNECTION: 1       N.P.T.

Dimensions: 24" L x 15" W x 37" H

Shipping Weight: 210 lbs

Positive displacement pump

A partial vacuum may be generated by increasing the volume of a container. To continue evacuating a chamber indefinitely without requiring infinite growth, a compartment of the vacuum can be repeatedly closed off, exhausted, and expanded again. This is the principle behind a positive displacement pump, for example the manual water pump.

Inside the pump, a mechanism expands a small sealed cavity to reduce its pressure below that of the atmosphere. Because of the pressure differential, some fluid from the chamber (or the well, in our example) is pushed into the pump's small cavity.

The pump's  cavity is then sealed from the chamber, opened to the atmosphere, and squeezed back to a minute size.

Mechanism of a Vacuum  Pump

Positive displacement pumps use a mechanism to repeatedly expand a cavity, allow gases to flow in from the chamber, seal off the cavity, and exhaust it to the atmosphere.

Positive displacement pumps are the most effective for low vacuums.

This unit has been very well taken care of.

As you can see, it is in wonderful operational & cosmetic condition you see in the pictures.

Guaranteed NO disappointment on this TUTHILL KINNEY POSITIVE DISPLACEMENT VACUUM PUMP!!!

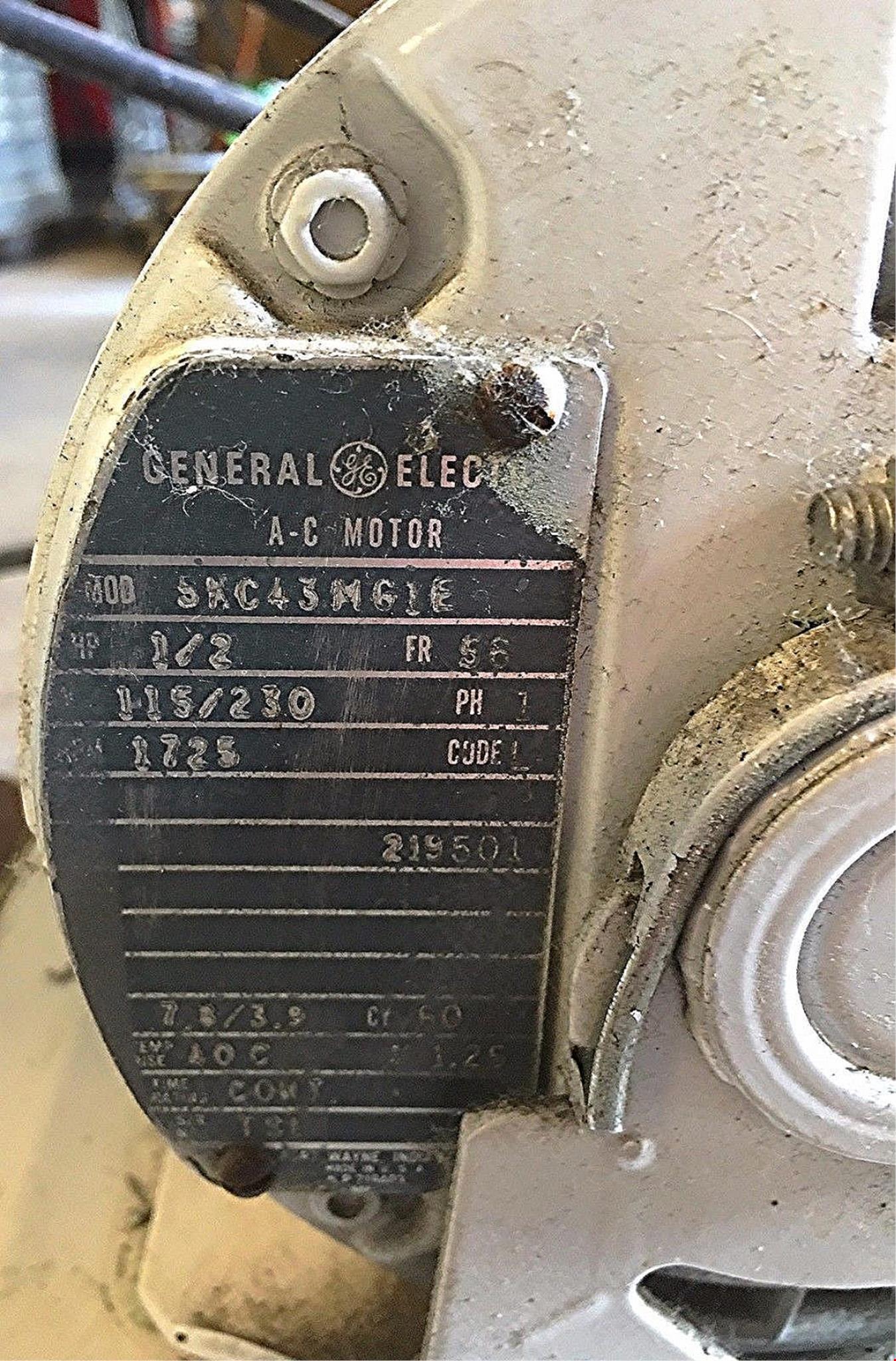

Kinney Electric Positive Displacement Vacuum Pump

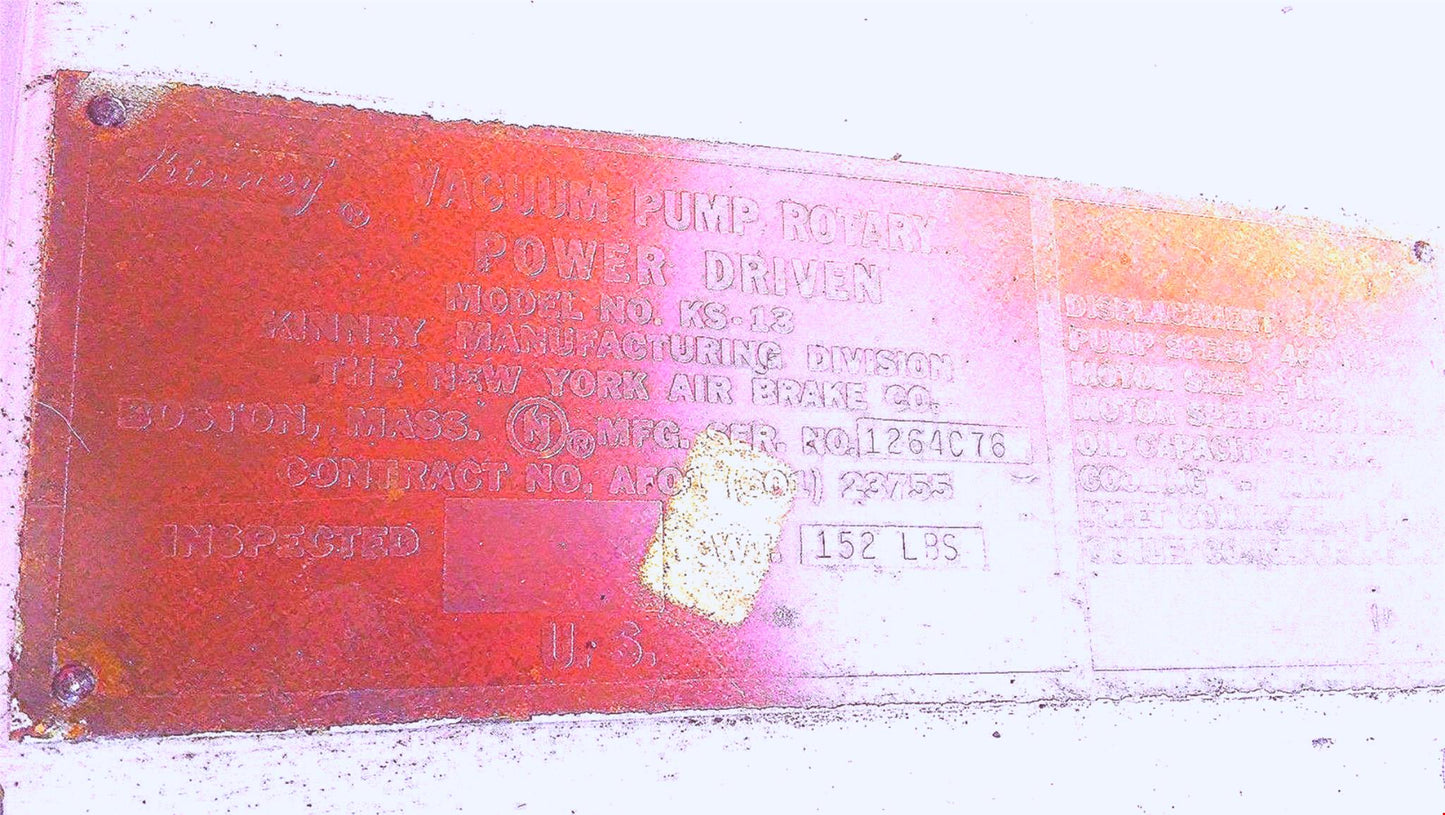

Model 11049-E, Serial 11056L

115/230 volts, 1⁄2 HP, 1 phase

Please check manufacturer's Specification Technical Data Sheet by GOOGLING the following link: md-kinney.com/en-us/

Stock # 160101
