100%WARRANT BIOSEMI INSTRUMENTATION ACTIVE TWO AD-BOX ADC-16 EEG SYSTEM FREESHIP

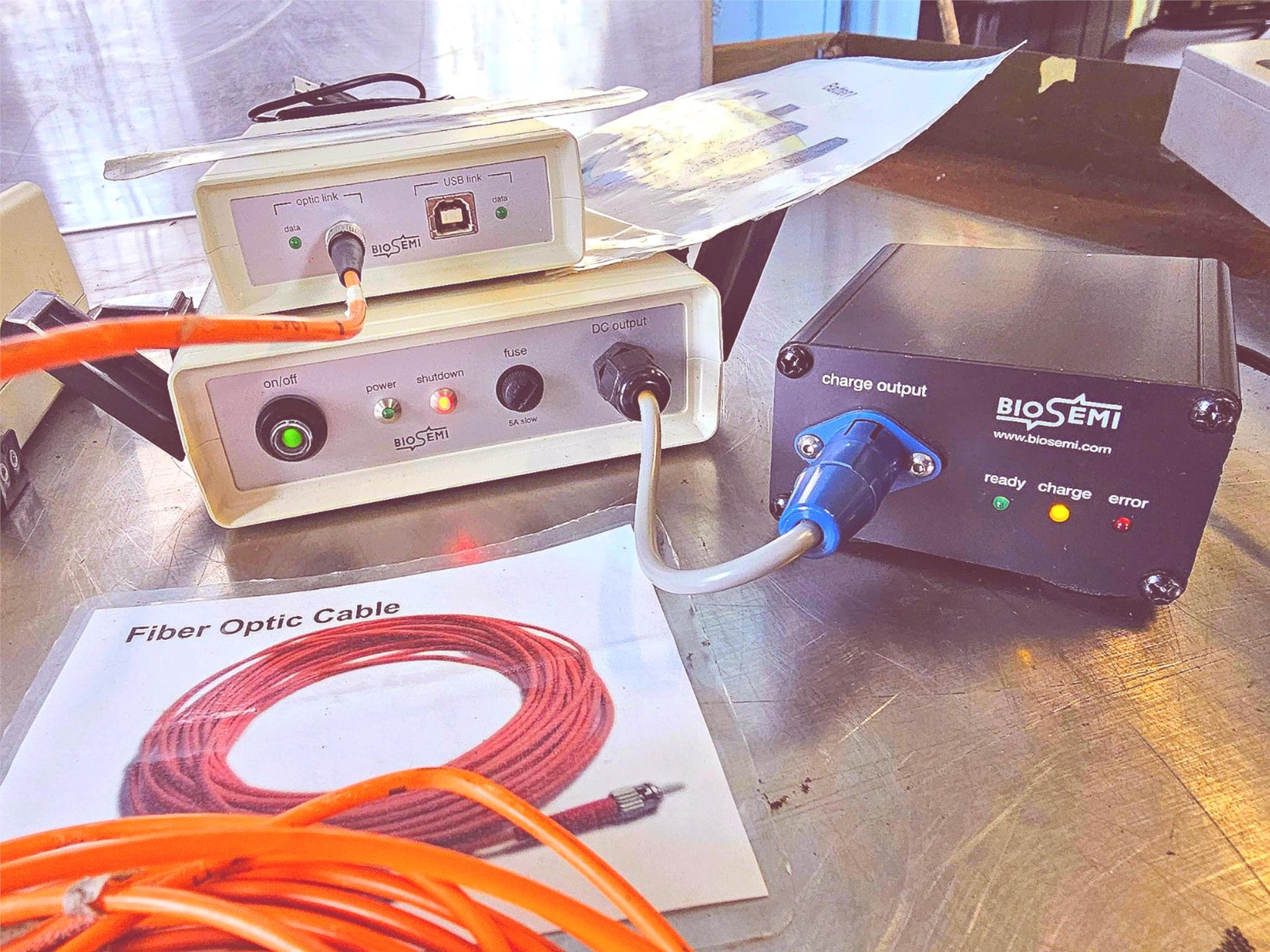

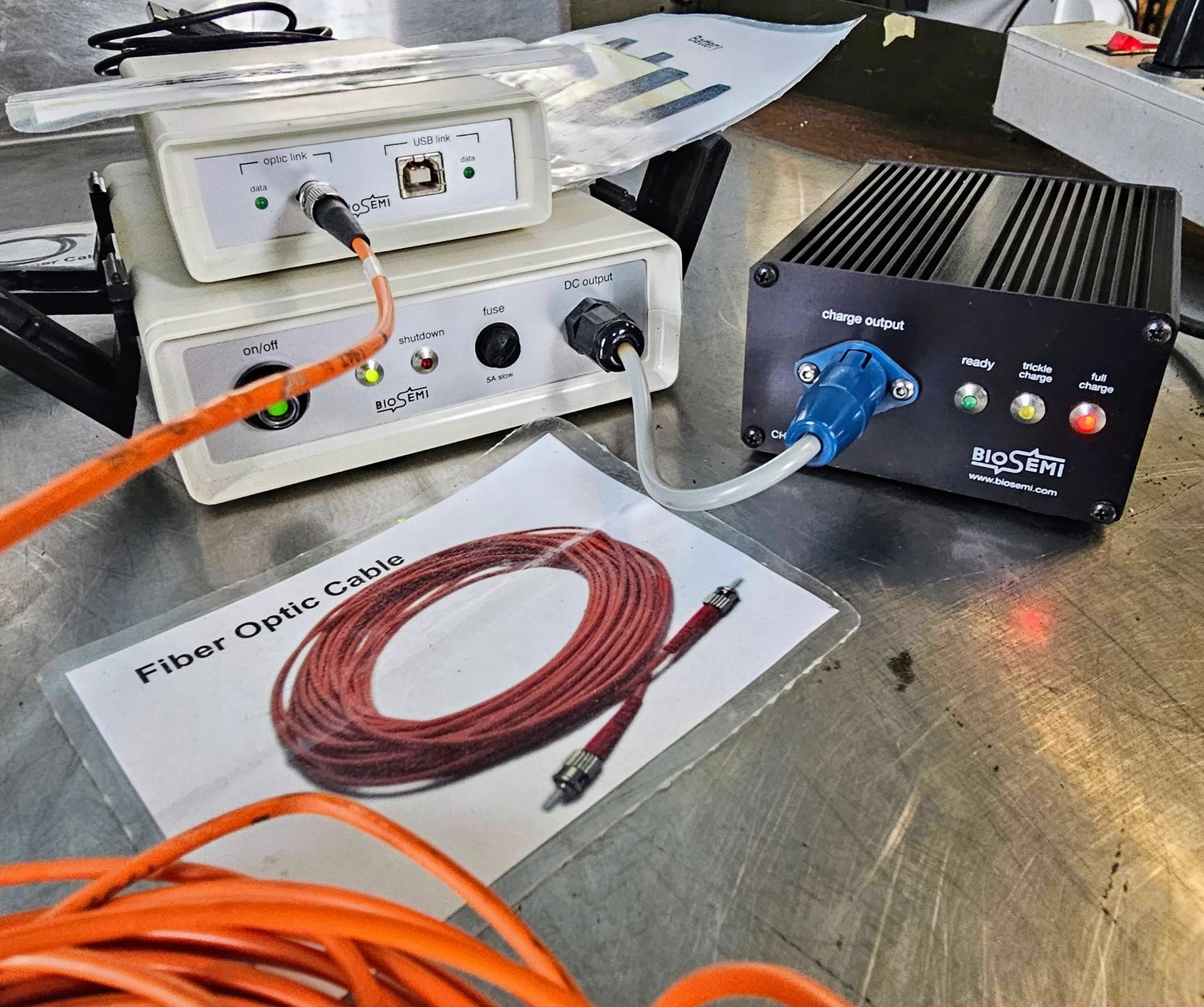

This listing is for a 100% TESTED BIOSEMI INSTRUMENTATION ACTIVE TWO AD-BOX ADC-16 EEG SYSTEM as can be seen in the pictures.

These units came from a Federal University and has always been very well taken care of and that's why we are able to offer a 90-DAY-WARRANTY on it!

Manufacturer: BioSemi Instrumentation

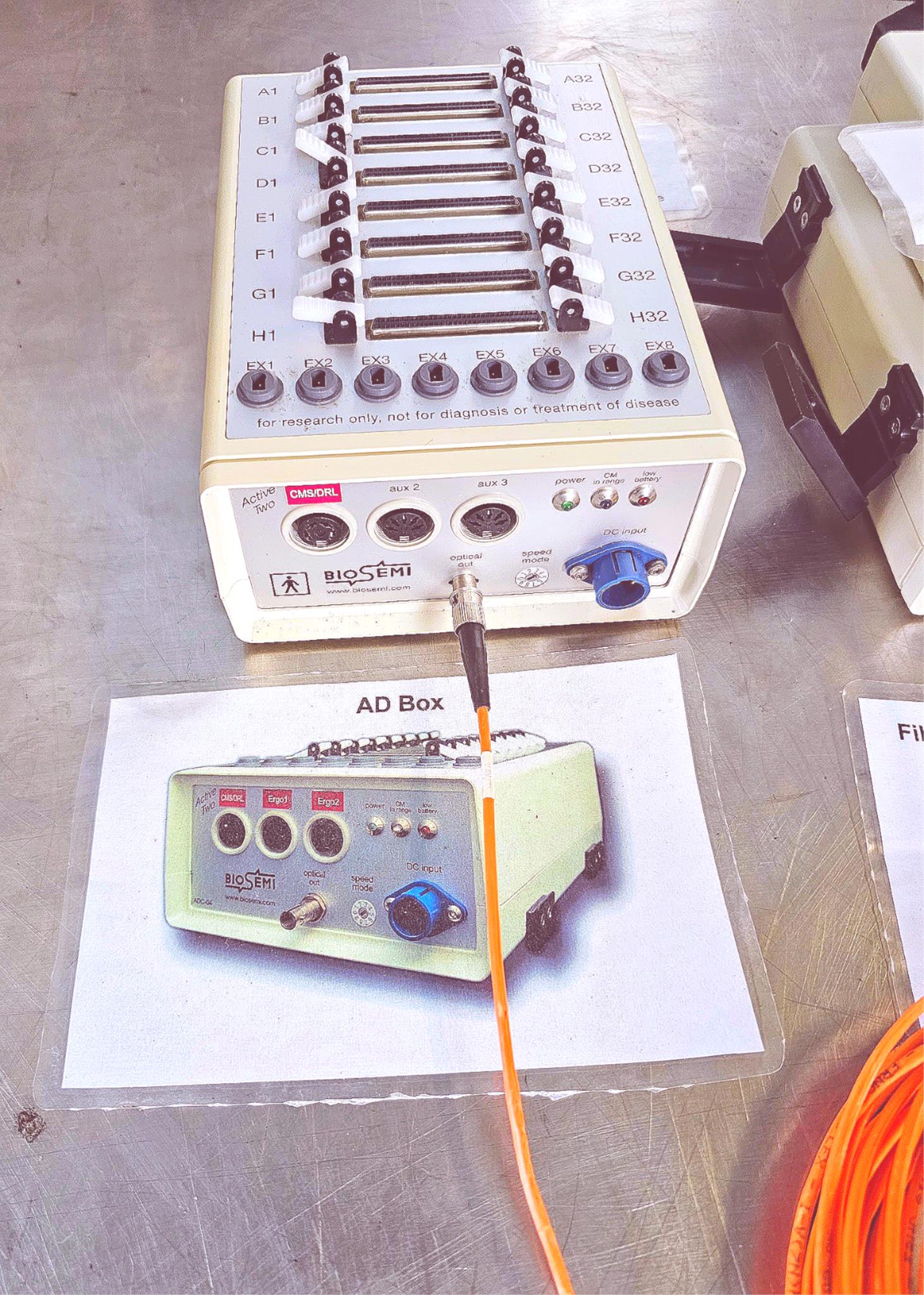

Model: ActiveTwo AD-Box ADC-16

Type: EEG System

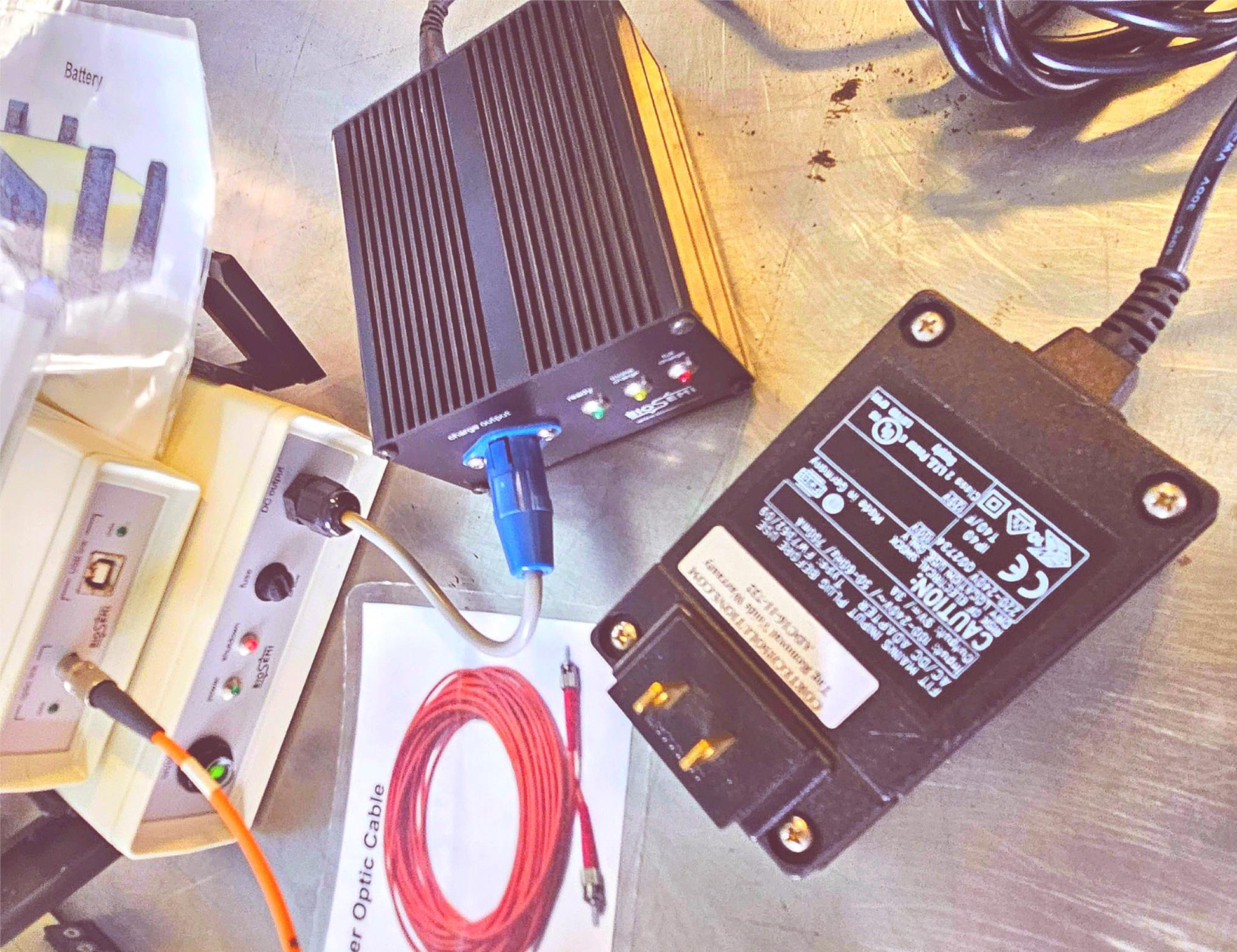

Comes as shown in the pictures. The Power Cord IS included but no other Cable or Accessory come with it!

Technical information below in ITALICS BLUE was taken from the web:

neurospec.com/Products/Details/1000/activetwo

DESCRIPTION

The BioSemi ActiveTwo system is equipped with up to 280 channels, a DC amplifier and 24-bit resolution, setting world-leading standards for multi-channel, high resolution, biopotential measurement systems for research applications. The ActiveTwo system is a further development of the successful ActiveOne system, which was the first commercially available system with active electrodes. Advances in technology have allowed BioSemi to significantly increase the number of channels, digital resolution, input range, and sample rate, without any increase in size, power consumption or costs. The second-generation active electrodes are smaller in size with less cable weight, while offering even better specs in terms of low-frequency noise and input impedance. The BioSemi ActiveTwo system upholds superiority over competing designs.

System Features

Up to 256+8+2 channels in a single box.

Second generation active electrode: smaller size, less weight and strain-relief.

Flexible coloured electrode labelling system.

24-bit ADC per channel, unsurpassed S/N ratio and linearity.

Improved digital resolution, LSB value is 31nV.

Full DC operation, the largest input range in the industry (524mVpp).

User-selectable sample rate, high sampling available.

Full range of auxiliary sensor inputs available.

The BioSemi ActiveTwo system is fast to set up and does not require skin preparation for achieving reliable measurement. The ActiveTwo system is compatible with MEG/MCG and suitable for EEG, ECG as well as EMG measurements, allowing graphical programming (LabVIEW) on PC and Mac. The ActiveTwo is battery powered with high-speed fibre optic data transfer, which makes the subject fully optically and galvanically isolated from any mains. The BioSemi ActiveTwo system is specifically designed to be used in research applications only. The system benefits from freely configurable hardware and completely open-source software.

Technical Specifications

Configurations

Sample-rate options: 2048 Hz 4096 Hz 8192 Hz 16,384 Hz

Max. number of channels at selected sample rate: 256 128 64 32

Bandwidth (-3dB): DC - 400 Hz DC - 800 Hz DC - 1600 Hz DC - 3200 Hz

Absolute sample rate accuracy (over temp range: 0-70 C): 0.1 Hz 0.2 Hz 0.4 Hz 0.8 Hz

Total input noise (Ze < 10 kOhm): 0.8 uVRMS 1.0 uVRMS 1.4 uVRMS 2.0 uVRMS

Full bandwidth: (5 uVpk-pk) (6 uVpk-pk) (8 uVpk-pk) (12 uVpk-pk)

System Specifications

Low-pass response:

5th order sinc digital filter 1/f noise (Ze < 1 MOhm):

1 uVpk-pk @ 0.1..10Hz Channel separation:

> 100 dB Leakage current, single fault:

< 50 uArms

High-pass response:

Fully DC-coupled Amplifier current noise:

< 30 fArms Common Mode Rejection Ratio:

> 80 dB @ 50 Hz Trigger inputs:

16 inputs on optical receiver

(isolated from subject section), TTL level

Digitalization:

24 bits, 4th order Delta-Sigma modulator with 64x oversampling, one converter per channel Input bias current:

< 10 pA per channel Isolation Mode Rejection Ratio:

> 160 dB @ 50 Hz Trigger outputs:

15 outputs on the optical receiver

(isolated from subject section), TTL level

Sampling skew:

< 10 ps Input impedance Active Electrode:

300 MOhm @ 50 Hz (1012 Ohm // 11 pF) Power Consumption:

4 Watt @ 256 channels

inversely proportional with the number of installed channels PC interface:

USB2.0

Relative sample rate accuracy (jitter):

< 200 ps DC offset:

< 0.5 mV Battery capacity, standard battery:

25 Watt-hour, 3 cell sealed lead-acid

(double capacity battery is available as an option) Size of front-end, including battery-box (H x W x D):

120 x 150 x 190 mm

Quantization-resolution:

LSB 31.25 nV, guaranteed no missing codes DC drift:

< 0.5 uV per degree Celsius Battery life on standard battery:

> 5 hours @ 256 channels

inversely proportional with the number of installed channels Weight of front-end, including battery-box:

1.1 kg

Gain accuracy:

1% Input range:

+262 mV to -262 mV Battery charge time (with external fast charger):

< 3.5 hours for a 100% charge Environment: Indoor use

Temperature: +10°C to +40°C

Humidity: 30 to 75%

Pressure: 700 hPa to 1060 hPa

Anti aliasing filter:

fixed first order analog filter, -3dB at 3.6 kHz Distortion:

< 0.1 % Leakage current, normal operation:

< 1 uA rms.

THIS SALE IS FOR JUST WHAT IS SHOWN IN THE PICTURES OR MENTIONED IN THE DESCRIPTION. THERE ARE NO ADDITIONAL PARTS, CABLES, SOFTWARE, POWER SUPPLIES, AC ADAPTERS, TUBING, OR ANY OTHER ACCESSORIES.

Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures and that's why we can offer a 90-DAY-WARRANTY on this unit.

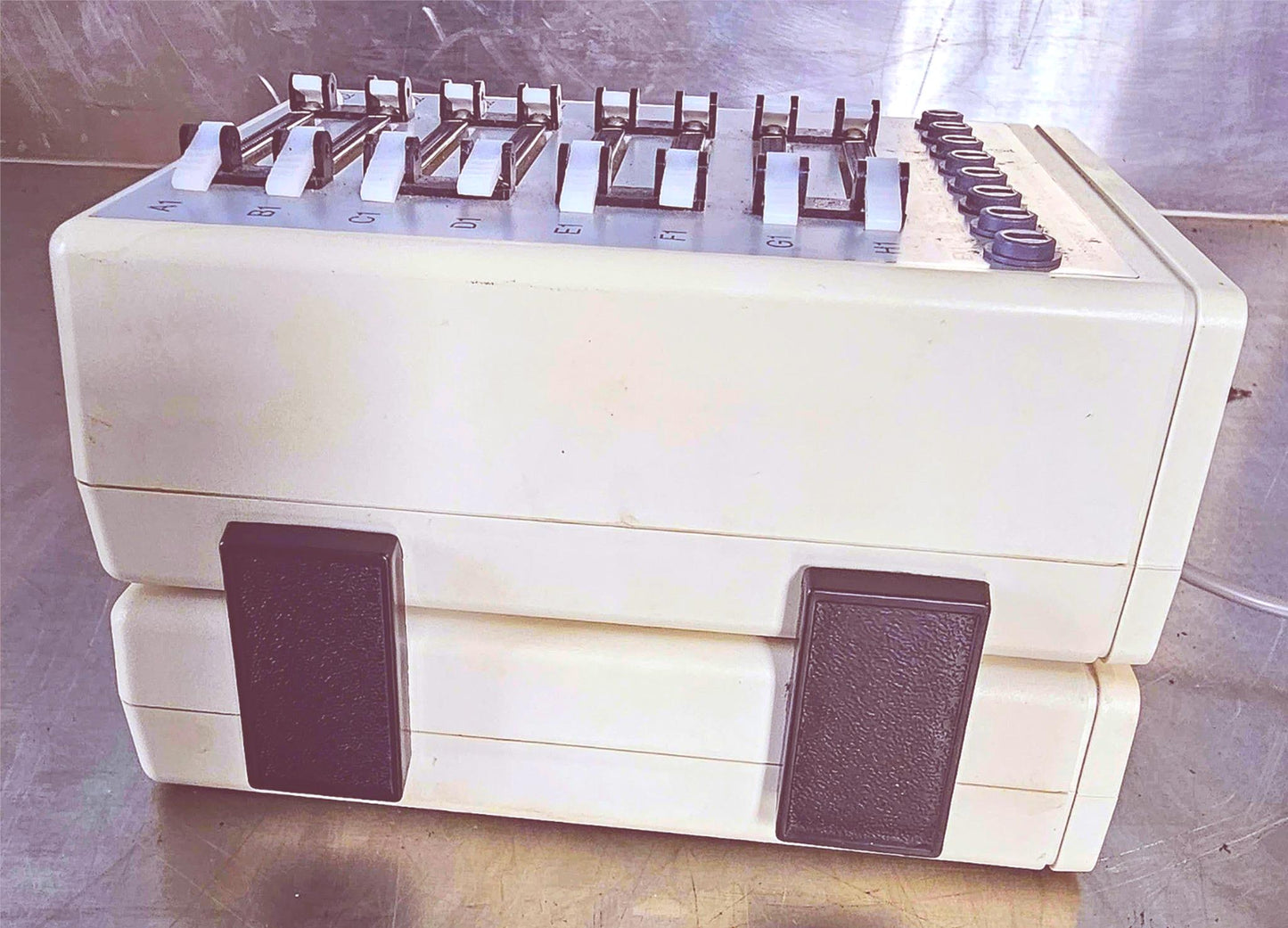

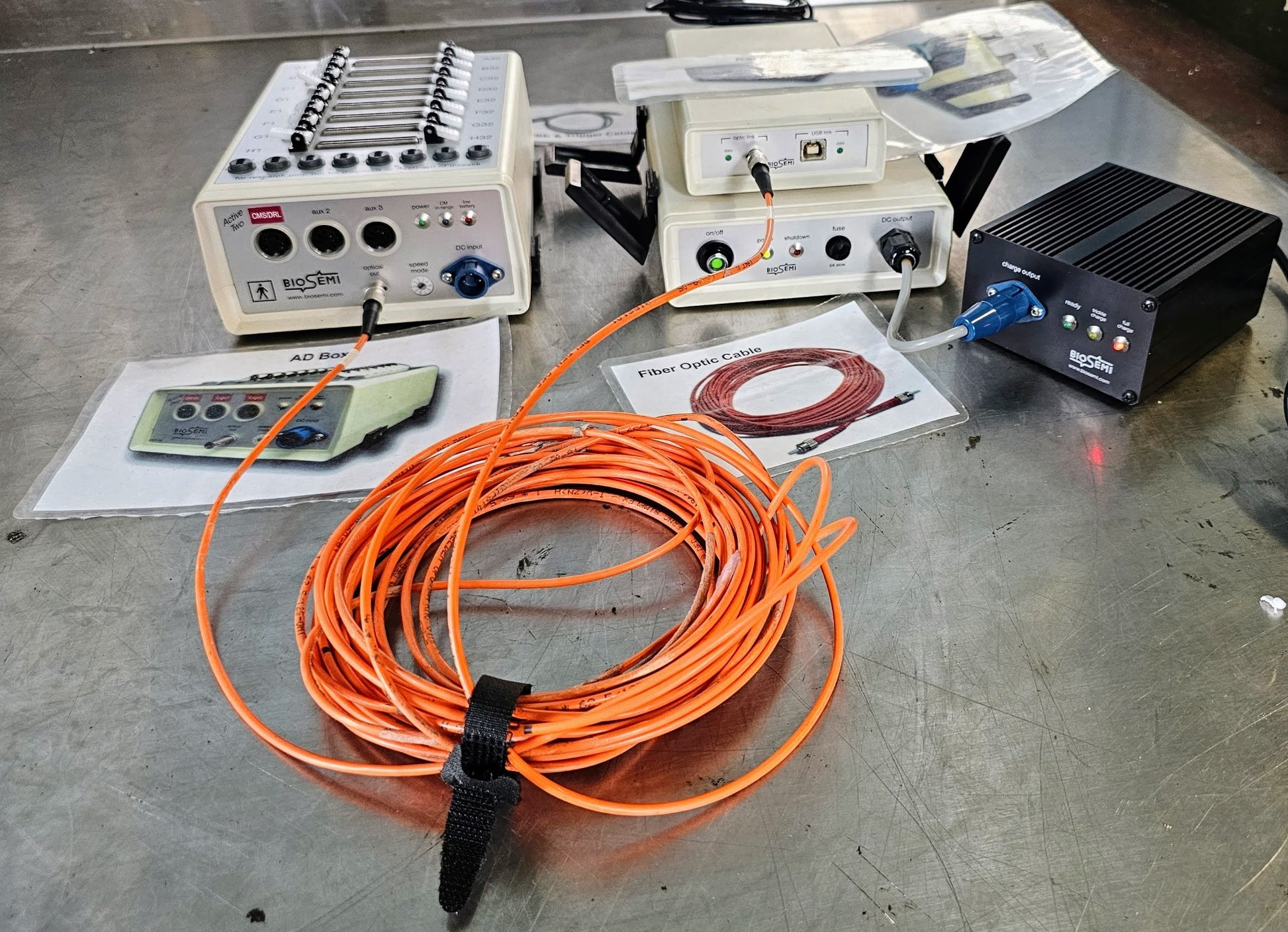

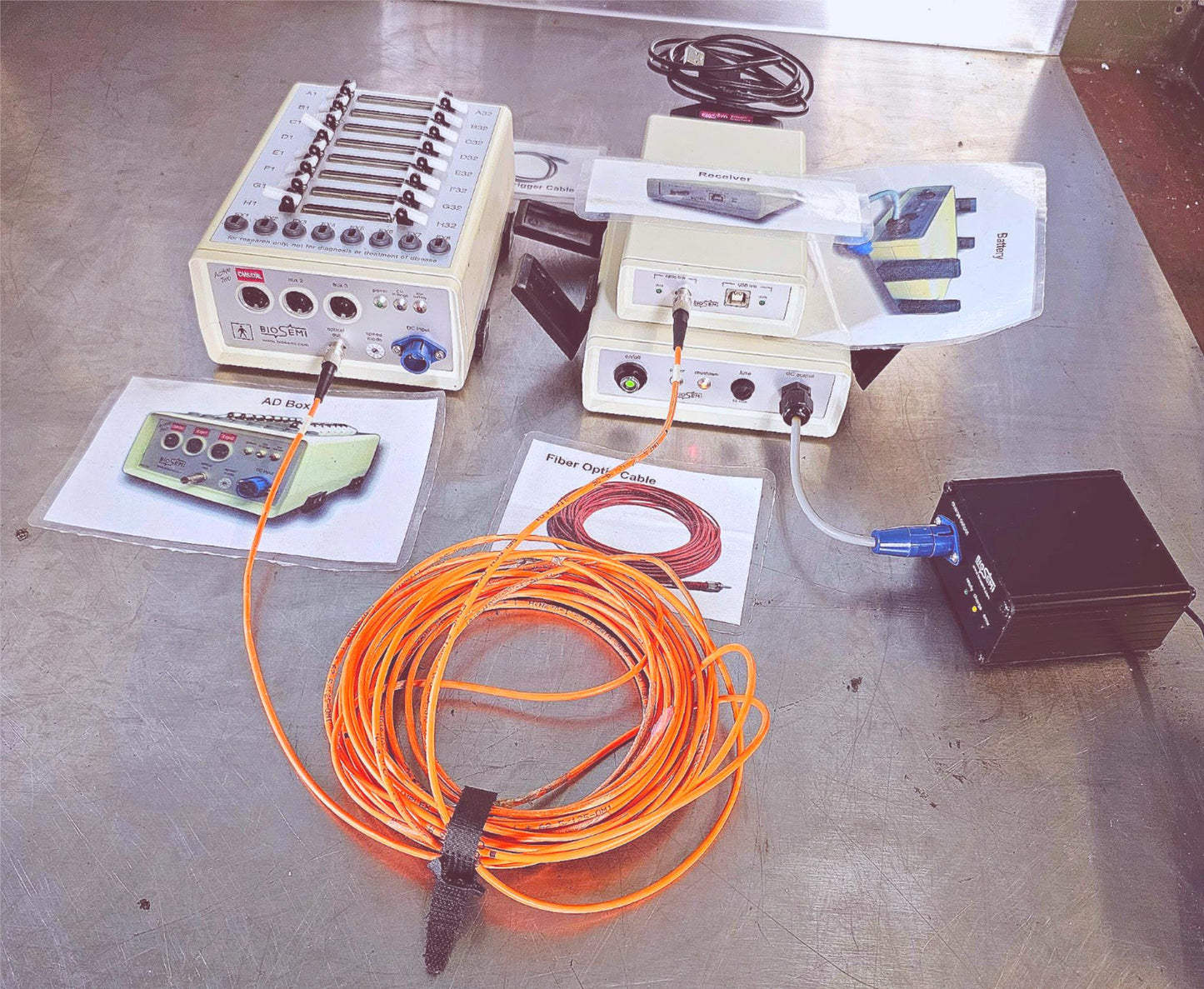

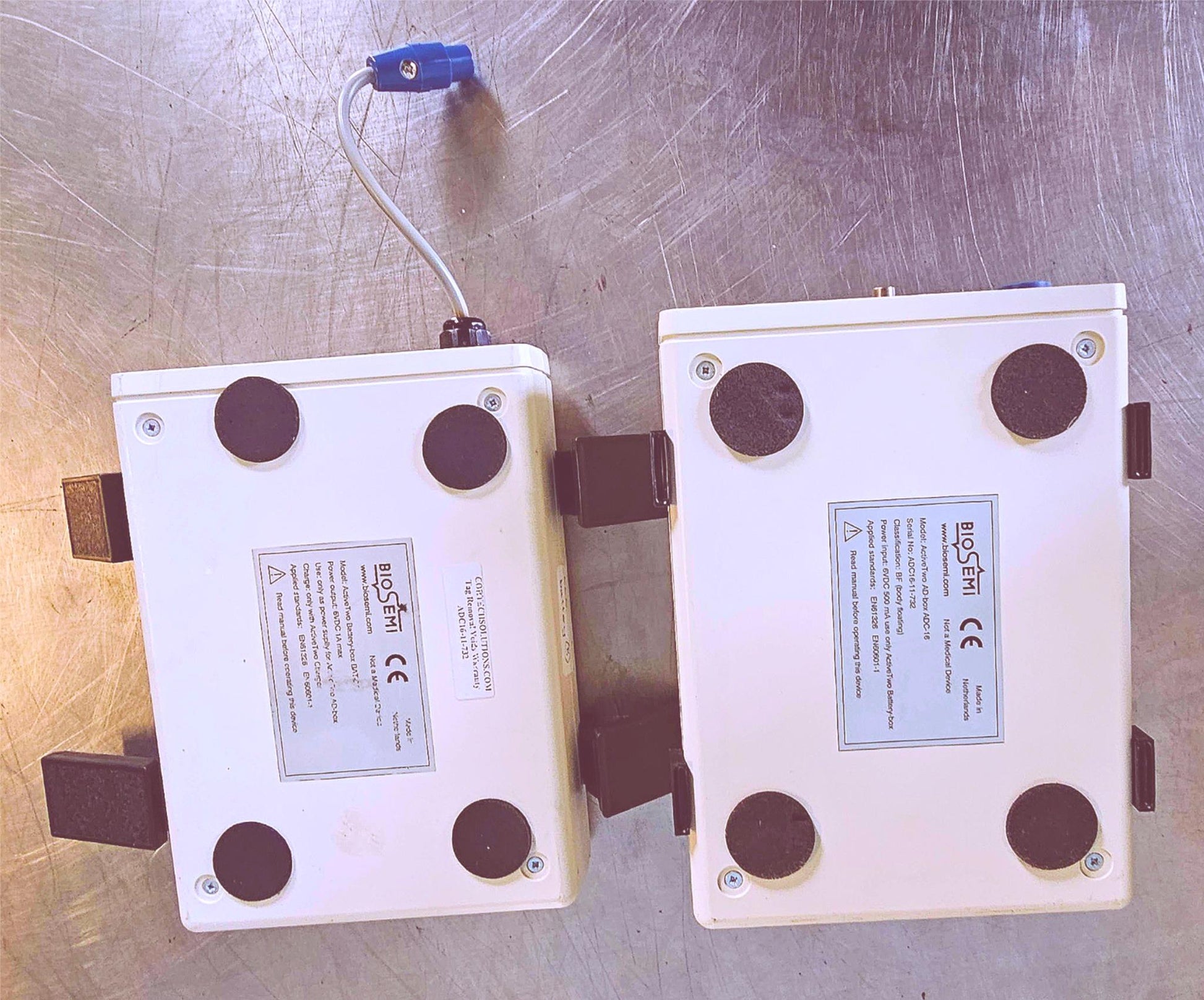

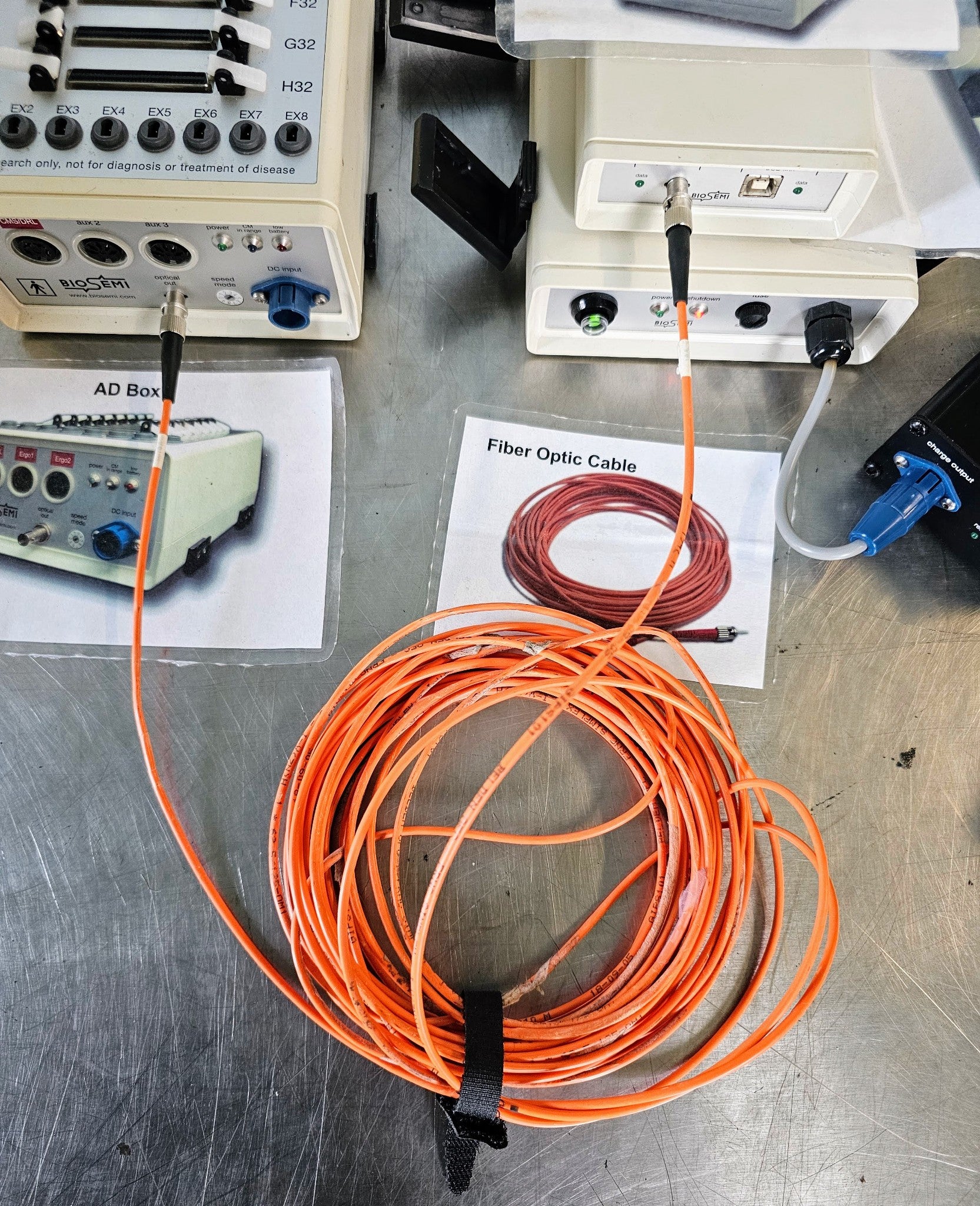

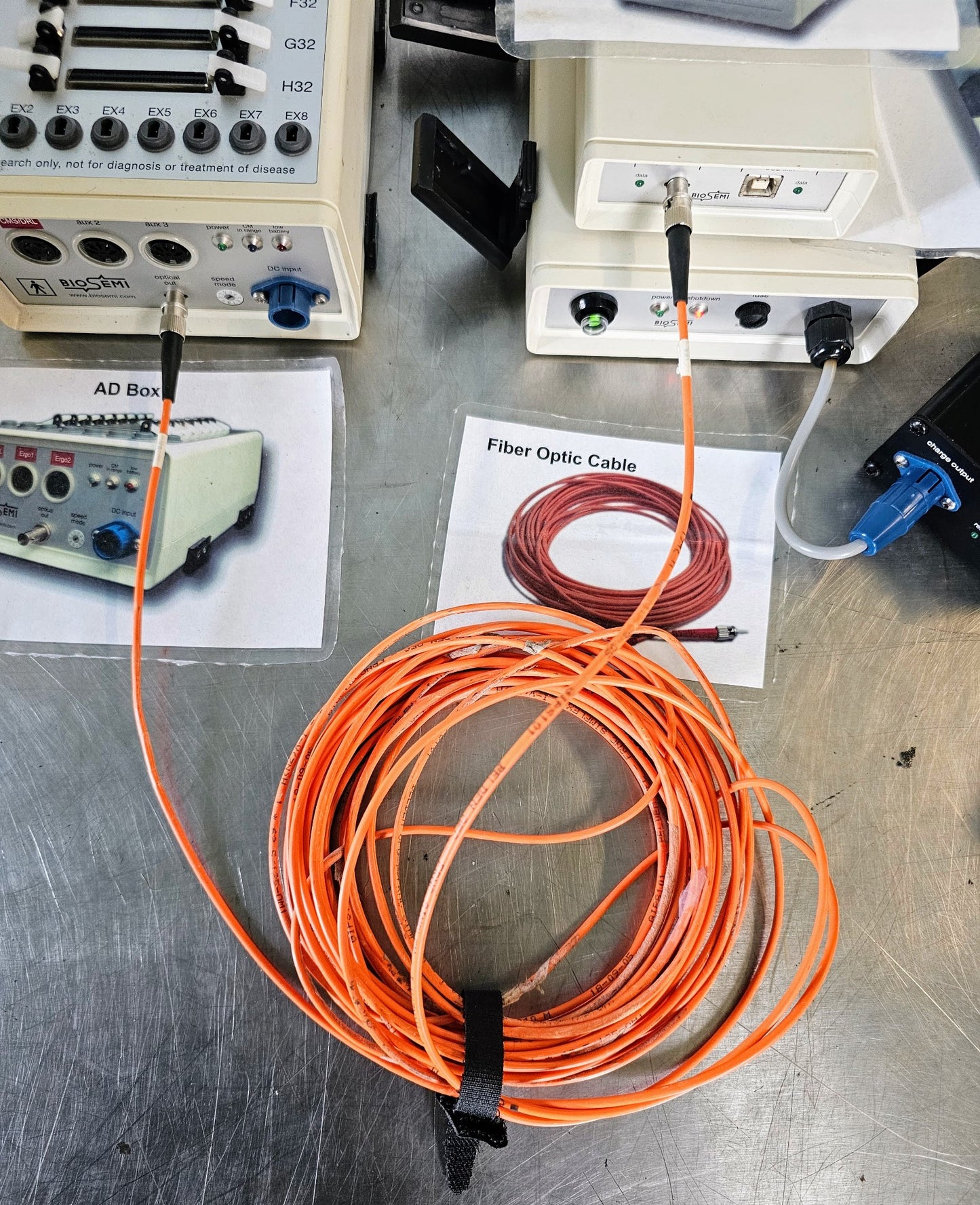

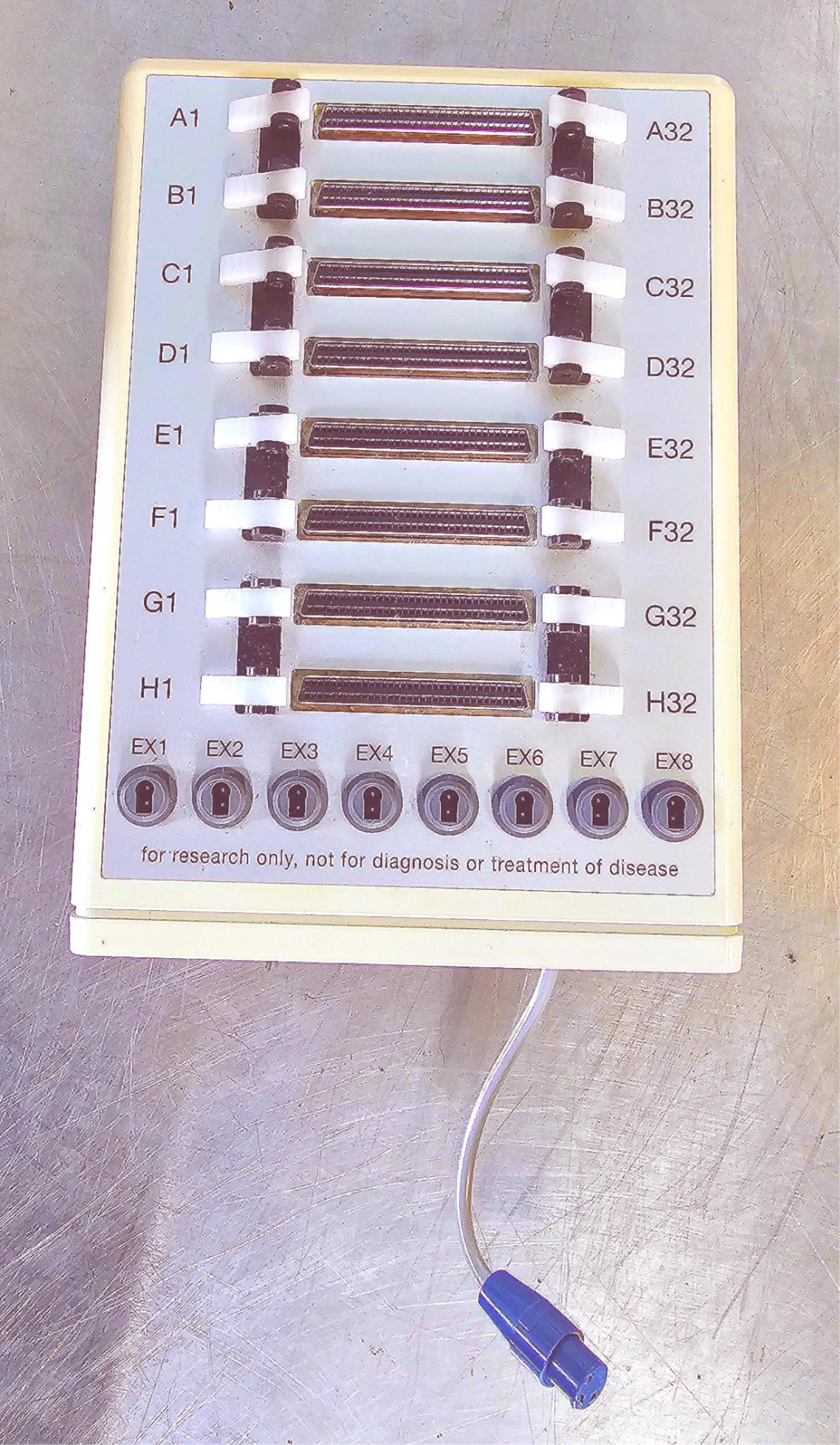

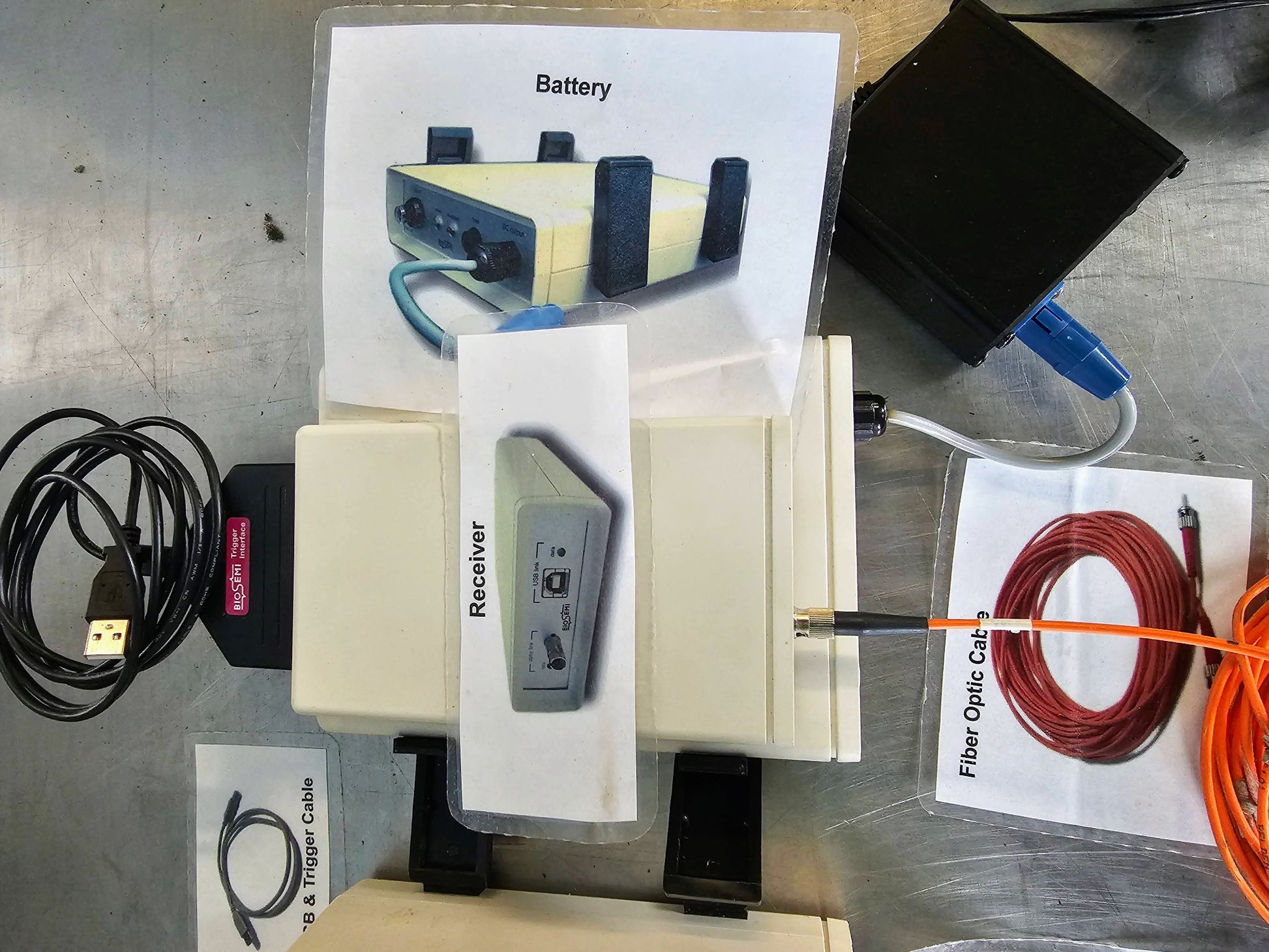

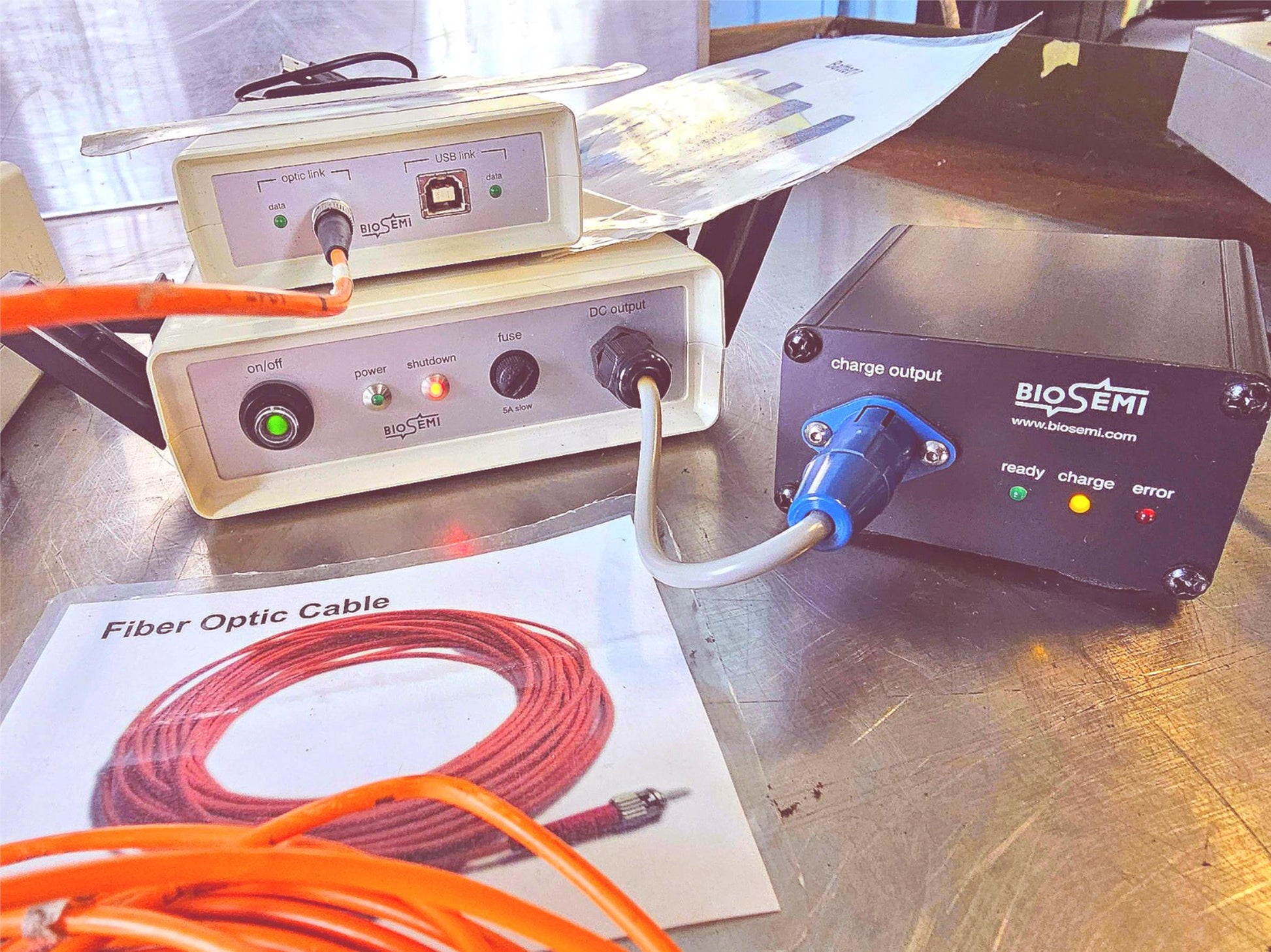

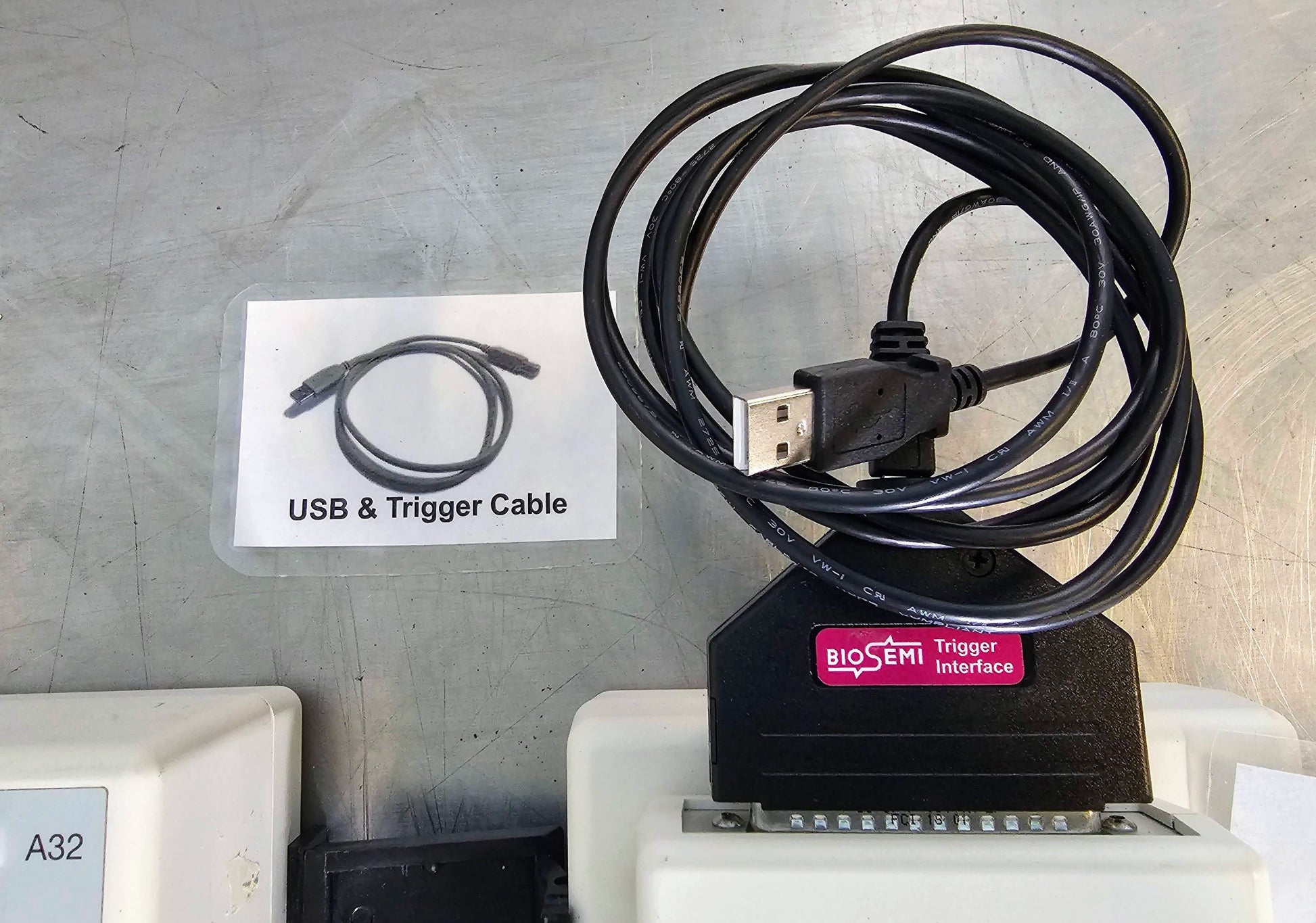

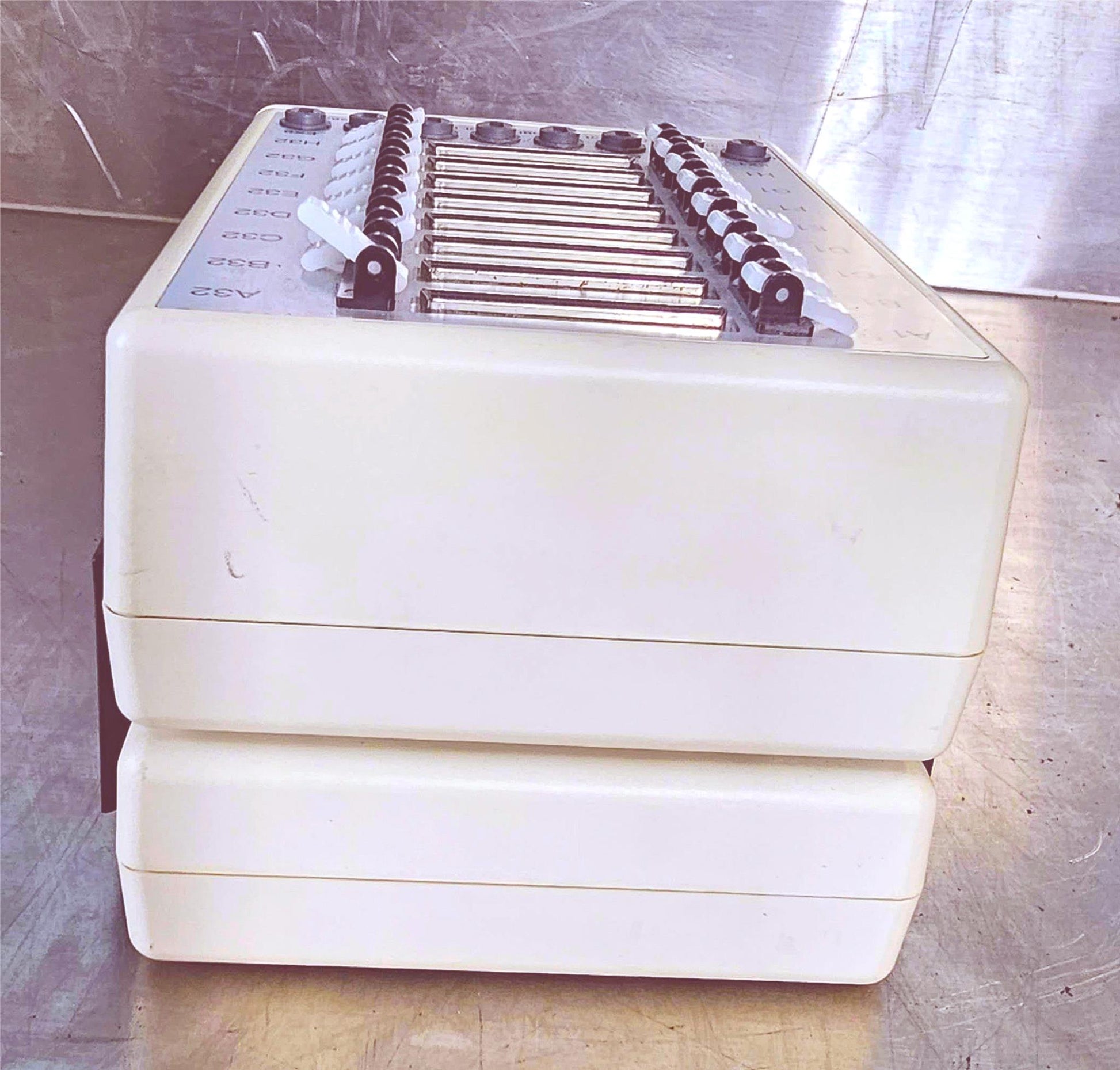

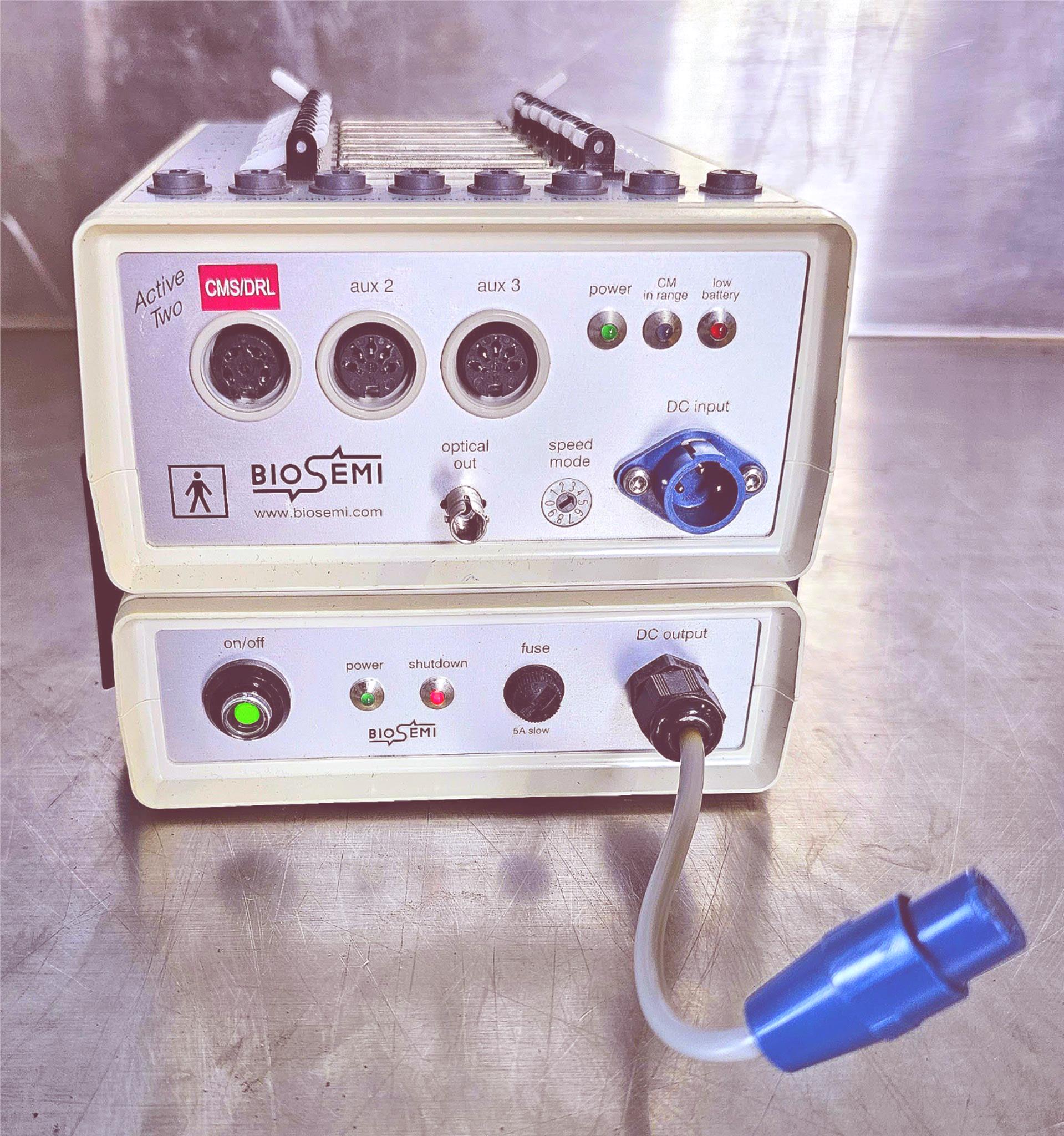

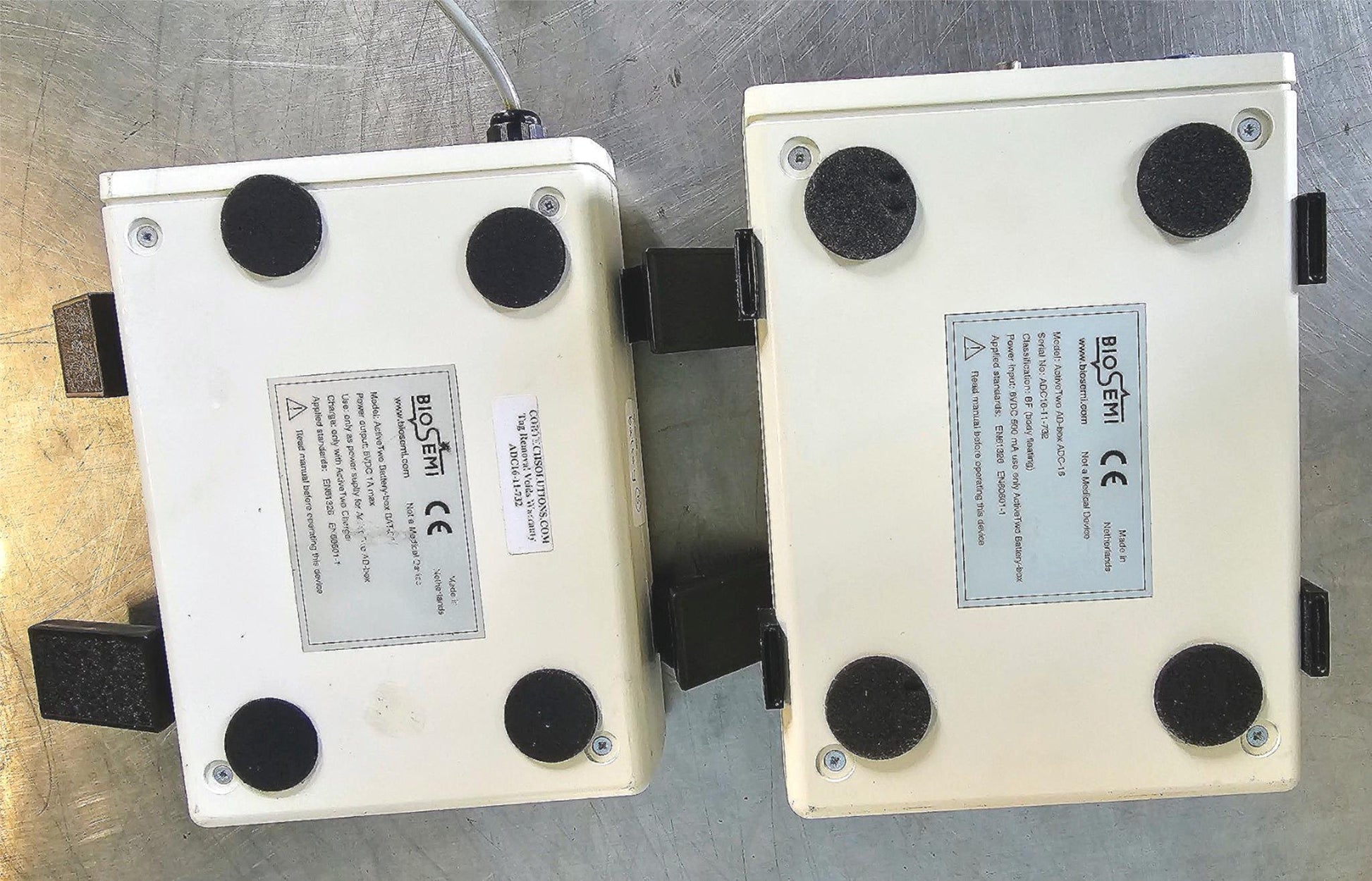

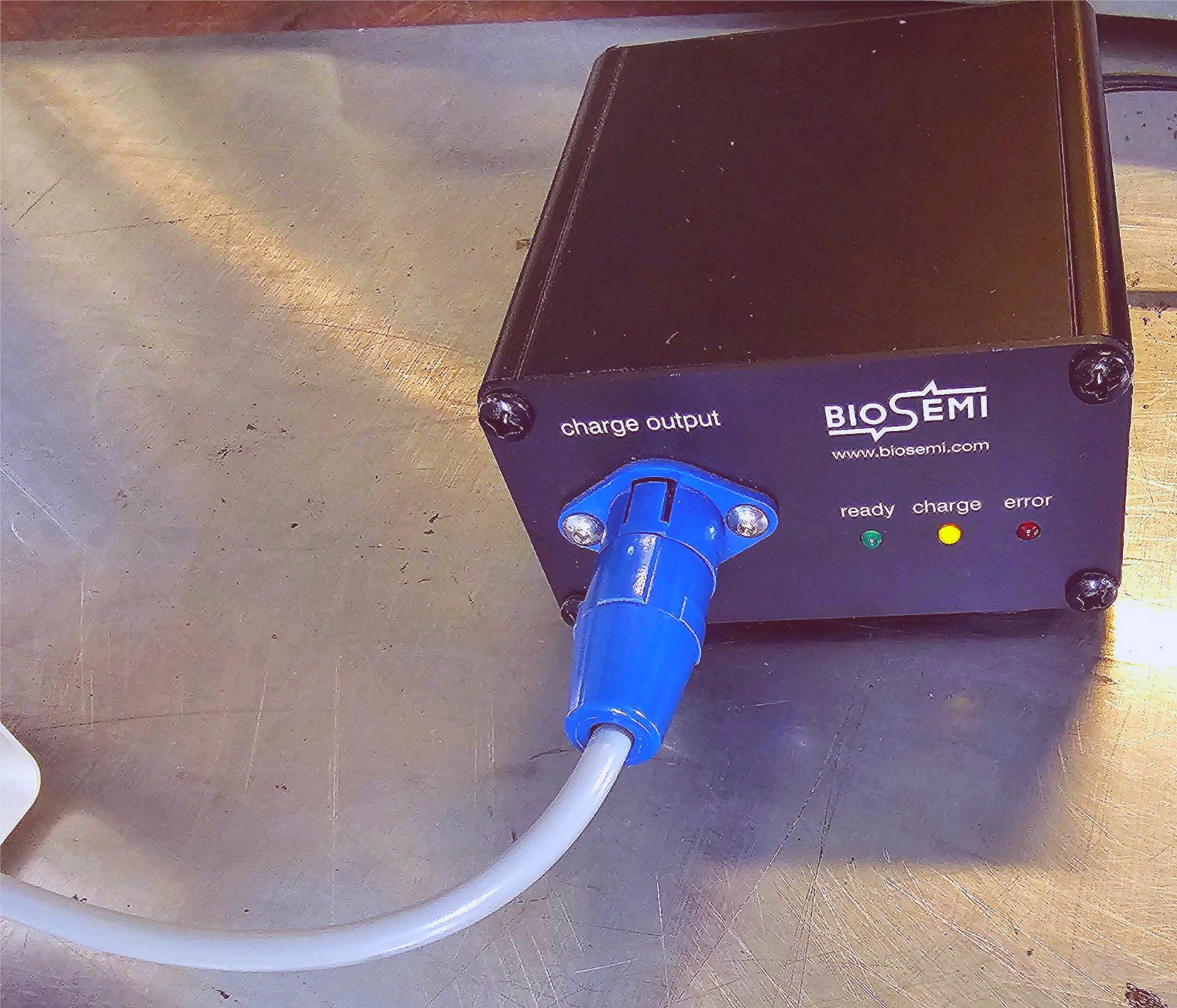

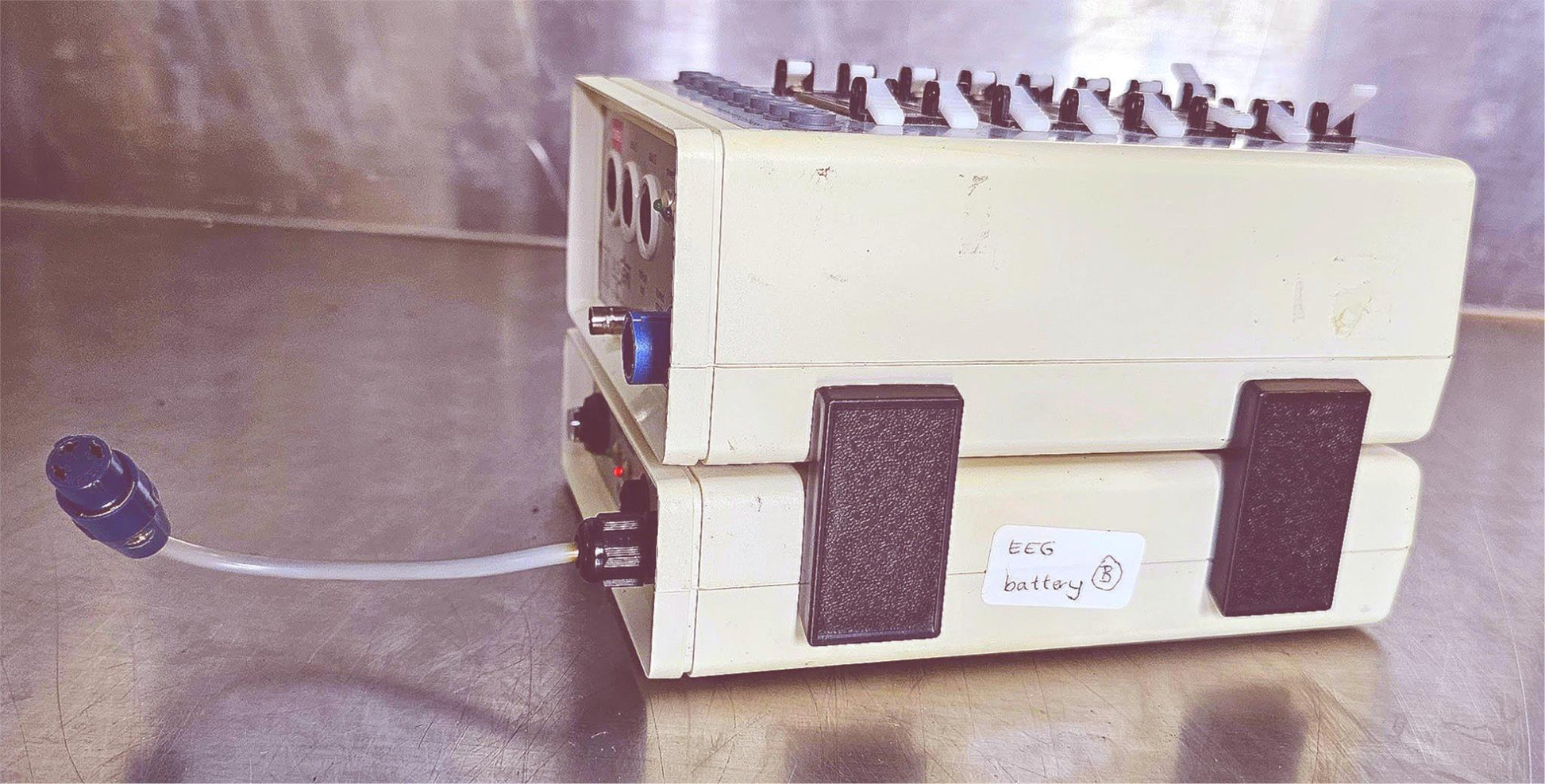

Picture is actual item buyer will receive.

Used and in excellent working order.

INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!

Stock # 231308
