100% SUTTER LAMBDA 10-2 OPTICAL FILTER CHANGER FLUORESCENCE MICROSCOPY FREE SHIP

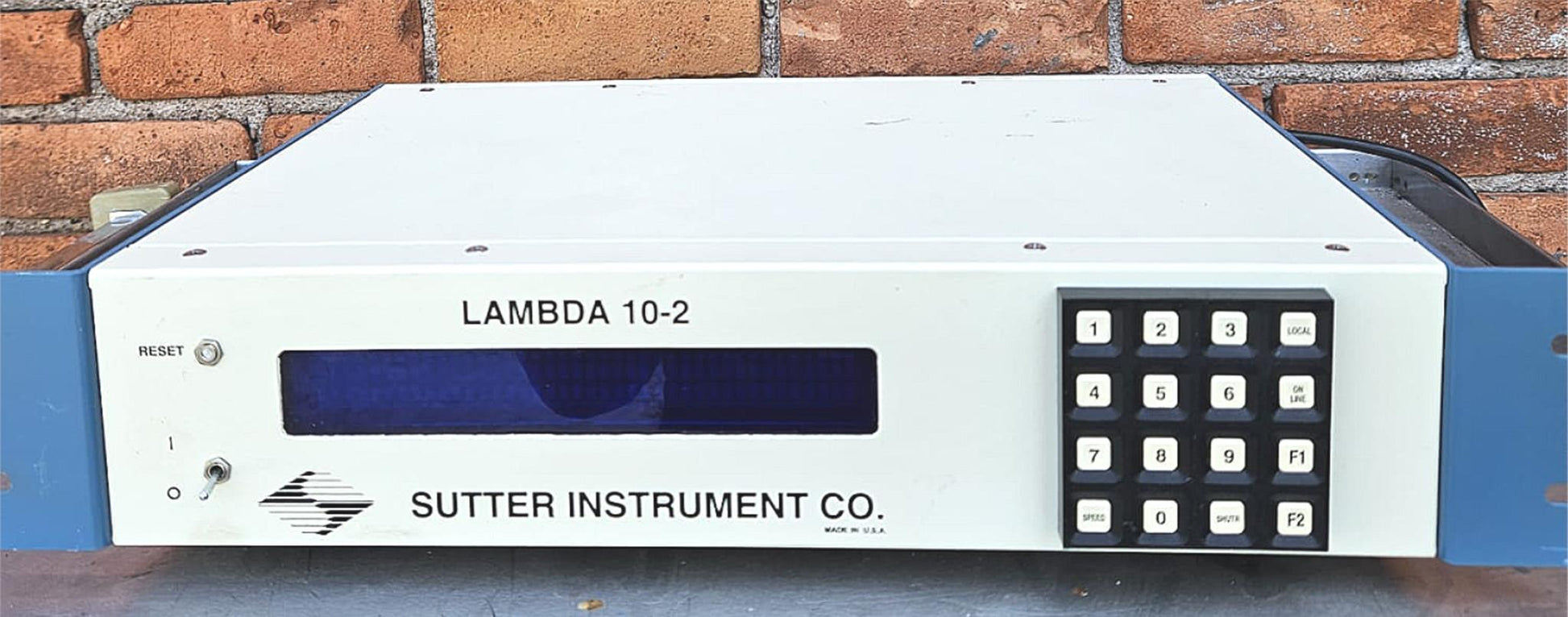

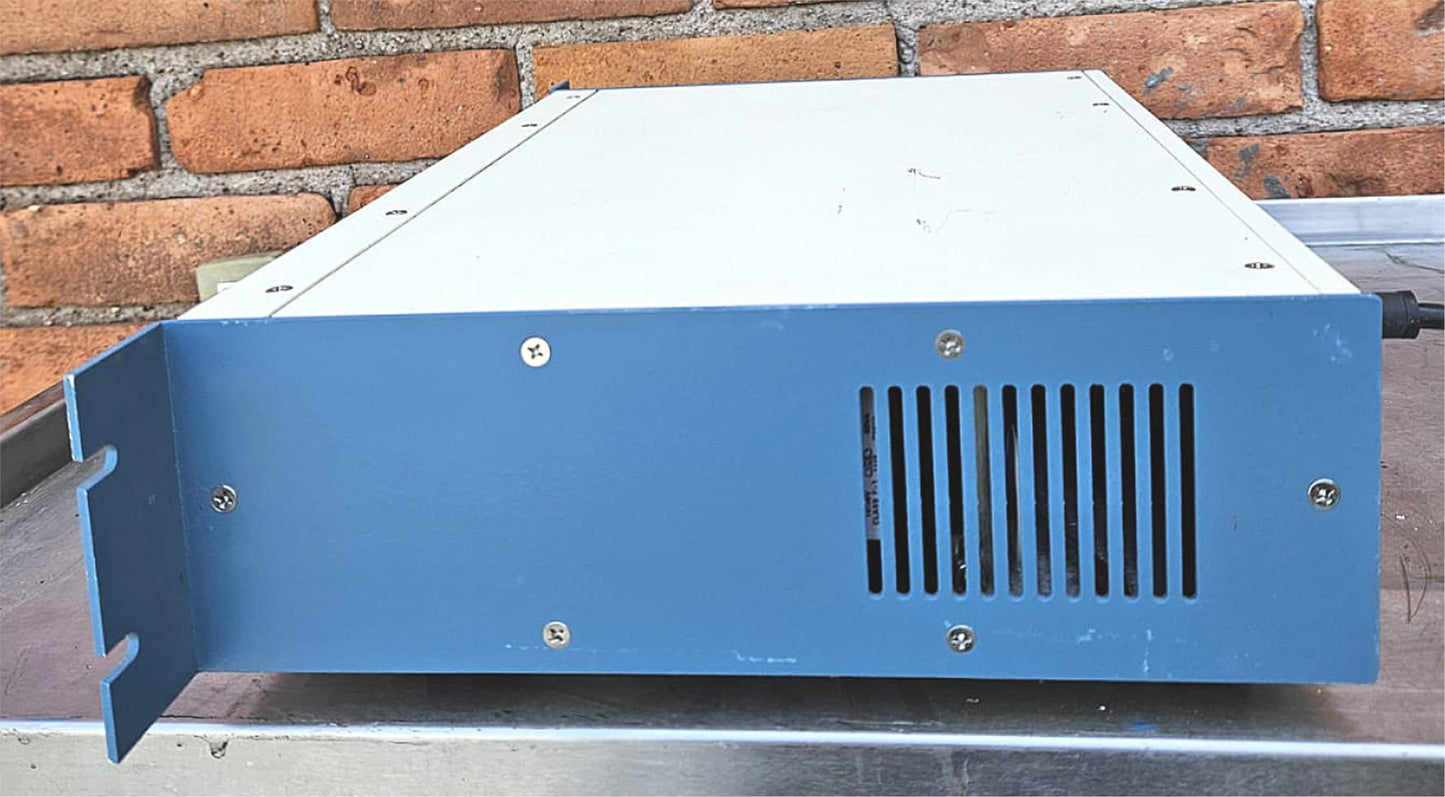

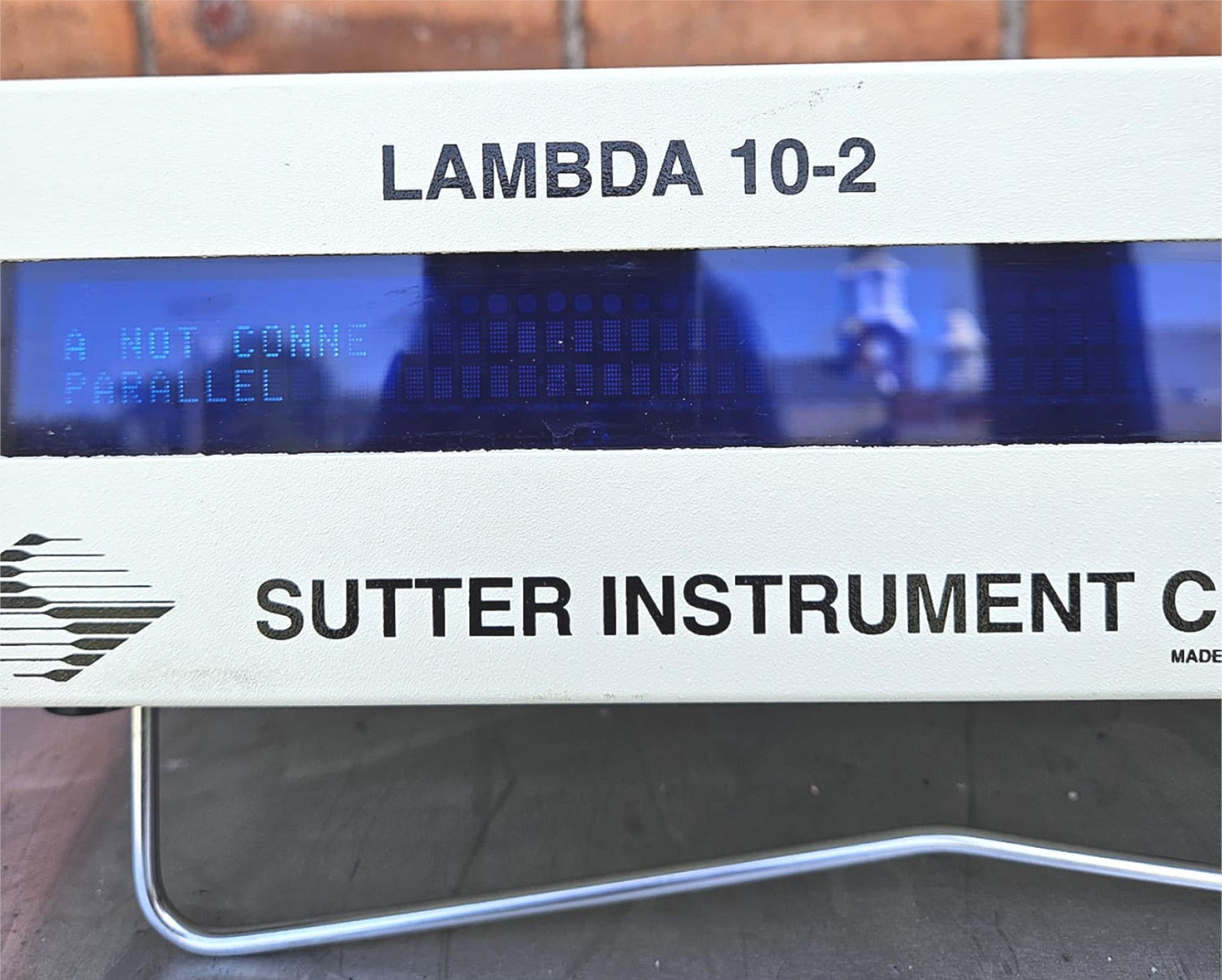

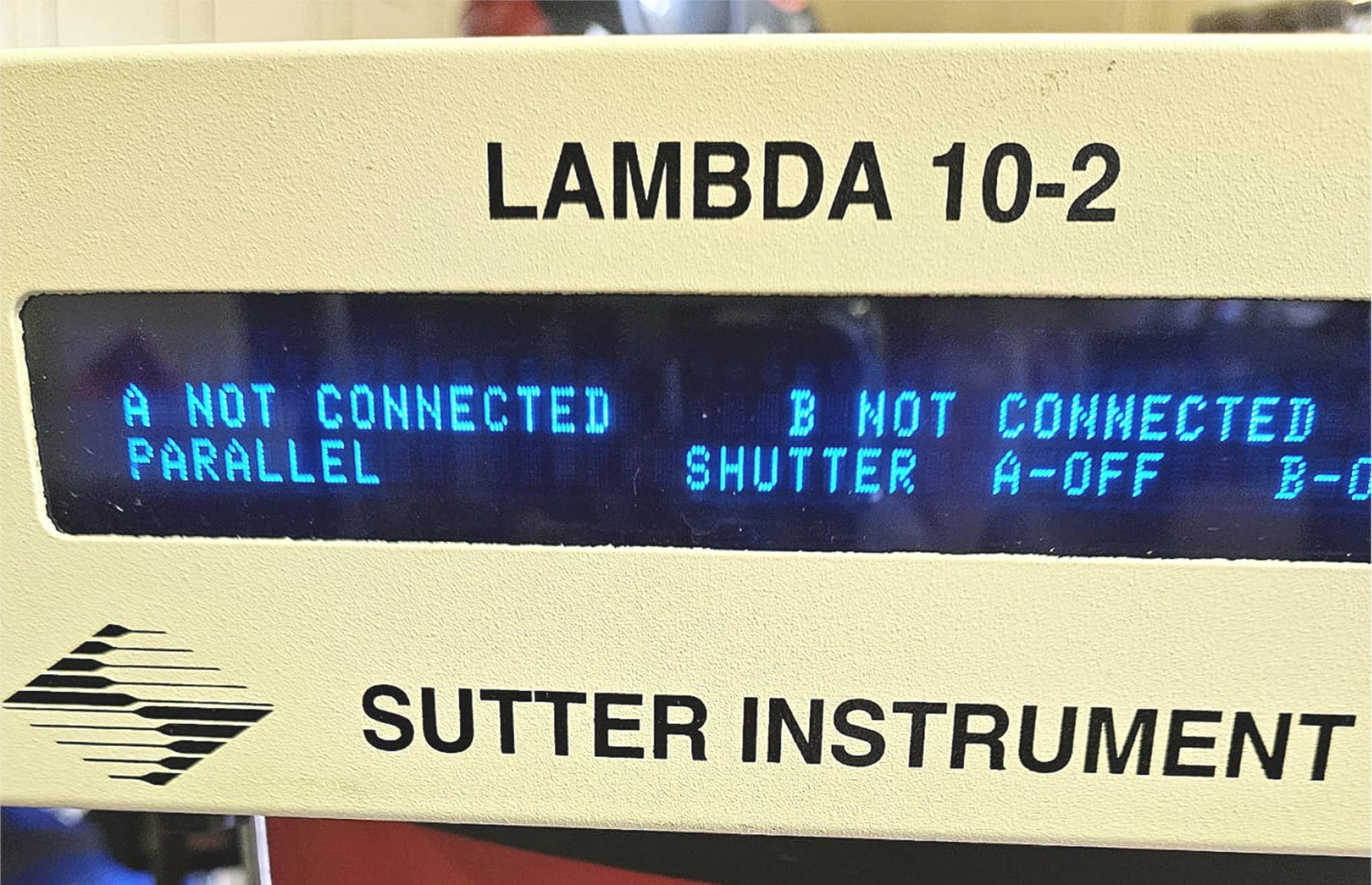

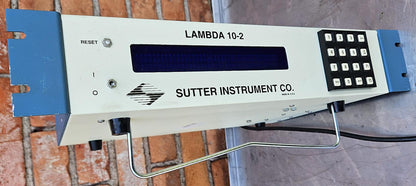

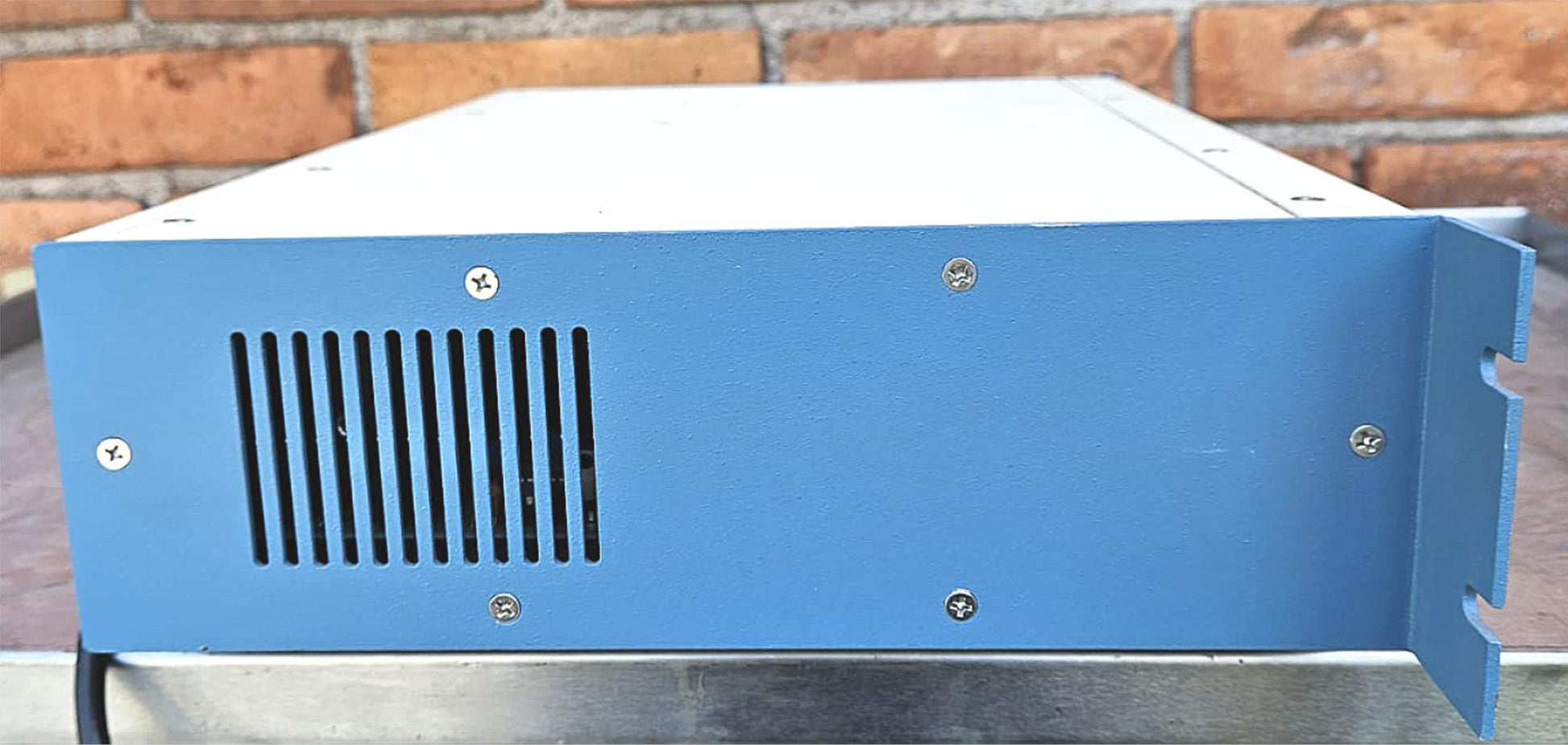

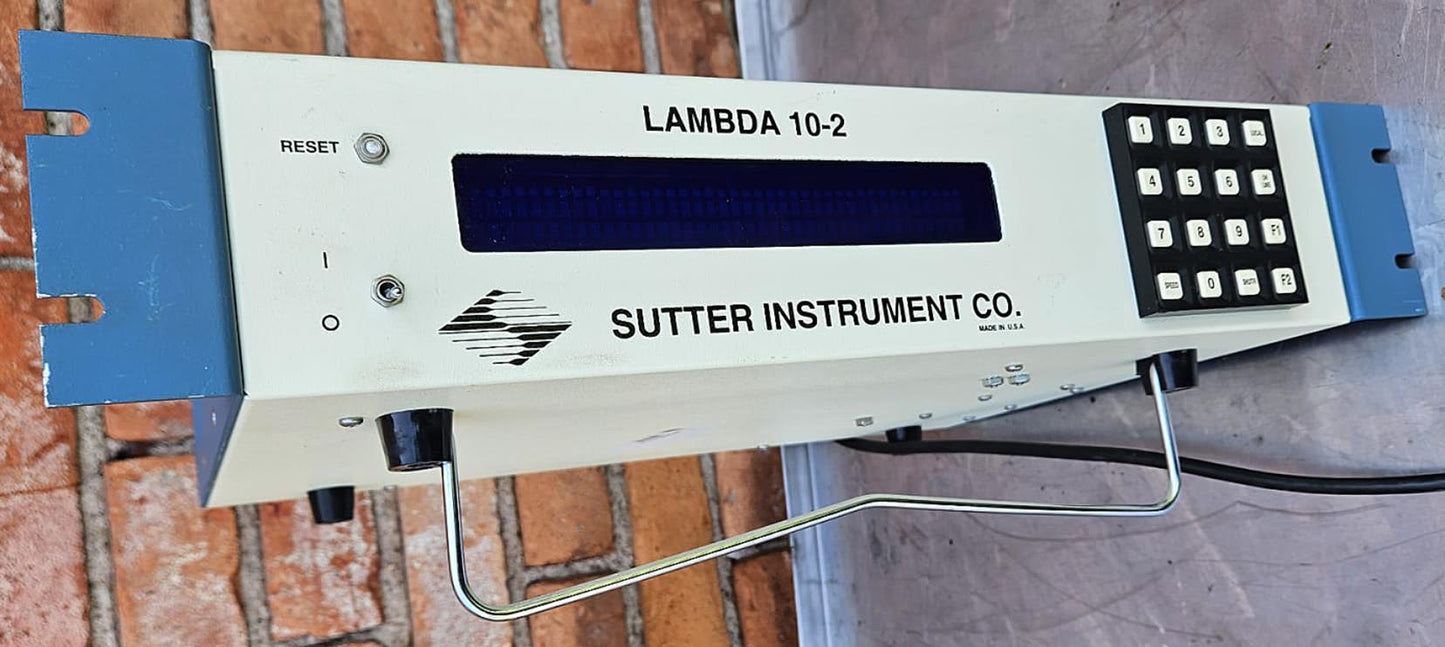

This listing is for a 100% TESTED VINTAGE LAMBDA 10-2 OPTICAL FILTER CHANGER FLUORESCENCE MICROSCOPY CONTROL UNIT as can be seen in the pictures.

Comes as shown in the pictures. The Power Cord IS included but no other Cable or Accessory come with it!

Technical information below in ITALICS BLUE was taken from the web:

sutter.com/IMAGING/lambda102.html

The Lambda 10-2 is the ideal choice for researchers whose applications are intolerant of electrical noise. The low-noise linear electronics of the controller assure that only DC voltages are present on the motor windings when the wheels are not moving.

The Lambda 10-2 is capable of independently operating up to two filter wheels and two Uniblitz® shutters. The reliable, smooth operation of the Lambda 10-2 has made it highly suitable for research applications involving fluorescence microscopy, ratio imaging, spectrophotometry, and visual physiology.

The controller electronics are designed around three embedded chips: one slave for each wheel and a master for control and communication.

The Lambda 10-2 system can hold up to ten optical filters (25mm in diameter and up to 9mm thick) which are easily loaded through an access port on the housing. Additional filters (e.g. heat and/or neutral density filters) may be inserted manually at two other locations in the optical path. The optical ports on both sides of the unit are internally threaded as C-mounts (32 threads per inch). When mounted in an upright position, the center of the optical port can be positioned from 11cm to 53cm above the mounting surface. Slide-in filter holders are optionally available for inverted configurations. A second wheel can be added to the system with no need for additional mechanical or electronic changes.

Eight user selectable speeds are provided. Filter to adjacent filter time can be set from 55 to 1200msec, depending on the number and the weight of the filters mounted in the wheel. Integral shutter drivers will open the optional shutter in 10msec. The use of a direct drive stepper-motor with advanced microstepping technology and intelligent acceleration/deceleration algorithms assures the fastest possible moves for a given inertial load, while minimizing vibrations.

The Lambda 10-2 consists of a 10-position filter wheel, a rack mountable controller, a support base and mounting rods, a controller/filter wheel interface cable, parallel and serial interface cables, two drop-in filter holders, spanner wrench, and manual. Microscope adapters for most Nikon, Olympus, Zeiss, and Leica scopes can be purchased separately.

OEM WHEELS

For OEM applications, the Lambda 10-2 can readily be modified to meet your specific requirements. By utilizing the 10-2 controller to drive customized wheels, we can provide an economical solution to your OEM design specification. To date we have made custom 2,3,4,5, 10 and 12 position wheels and have designed for 50mm, 32mm and 25mm filters. Our technical staff will be happy to discuss with you special application requirements.

GETTING FASTER FILTER SWITCHING TIMES WITH MANY FILTERS INSTALLED

The Sutter filter wheel systems have always been optimized for fast switching of a lightly loaded wheel. When many thick filters are installed, the added mass requires an increase in the time required to switch from one filter to another. Switching times improve significantly with filters made on a thin substrate that do not require a thick layer of additional glass to obtain the desired blocking. Semrock® has the required coating technology to offer filters with substrates down to 2mm in thickness.

We have taken the additional step of designing a special threaded ring that Semrock can install in place of their typical plain filter cells. Filters mounted in these rings can be threaded directly into the body of our filter wheels when our standard filter cups have been removed. Semrock filters actually weigh less than the filter cup and retaining ring normally used to mount filters in the Sutter wheels. Thus, if you remove our filter cups and mount the new threaded filters directly in the wheel, even a fully loaded wheel will be able to run at speeds that previously could only be used with just 2 filters installed.

The STR Semrock filters are available in both 25mm and 32mm versions and should be purchased directly from Semrock. If you are installing these filters in a sutter wheel that has filter cups, you will need to remove the cup from the position you intend to use to mount the threaded filter. When installing the new threaded filters, you will want to use the new wrench designed for this purpose. Contact Sutter for details.

FEATURES

55 msec between adjacent filters

Parallel and serial interfaces

Simultaneous control of up to two wheels and two shutters

Dual integral shutter drivers

Linear power supply

OPTIONS

Additional wheel

Built-in shutter

Dual wheels mounted in series

Slide-in filter holders

Microscope mounting adaptors

Table-top controller box

Liquid light guide

THIS SALE IS FOR JUST WHAT IS SHOWN IN THE PICTURES OR MENTIONED IN THE DESCRIPTION. THERE ARE NO ADDITIONAL PARTS, CABLES, SOFTWARE, POWER SUPPLIES, AC ADAPTERS, TUBING, OR ANY OTHER ACCESSORIES.

Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures and that's why we can offer a 90-DAY-WARRANTY on this unit.

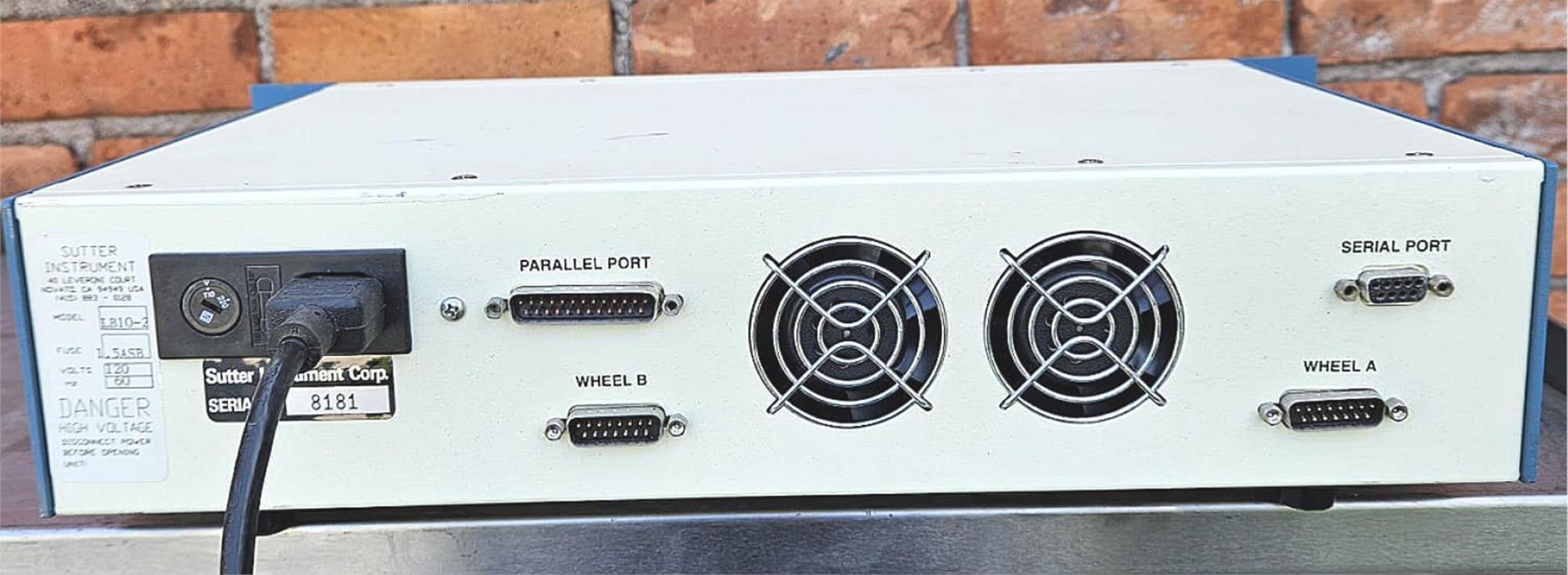

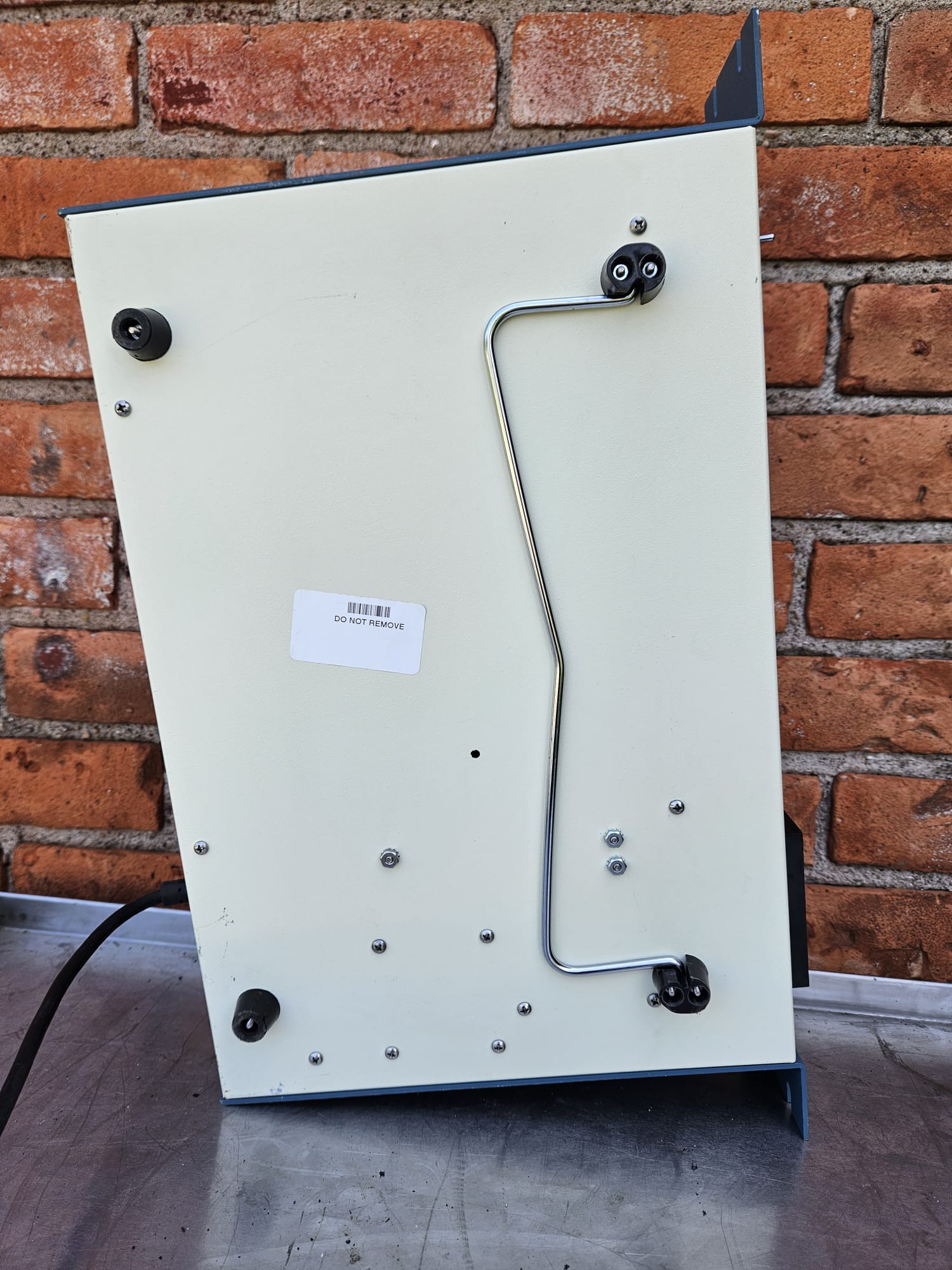

Picture is actual item buyer will receive.

Used and in excellent working order.

INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!

Stock # 23147
