1 ONE UNIT OF ORIGINAL EDWARDS NW40 FLEXIBLE PIPELINE 500mm S/S FREE SHIPPING

This listing is for ONE UNIT of Brand New Condition EDWARDS NW40 FLEXIBLE PIPELINE 500mm S/S 500mm S/S as can be seen in the pictures.

UNIT IS BRAND NEW INSIDE ORIGINAL BOX! NO DISAPPOINTMENTS HERE!!!

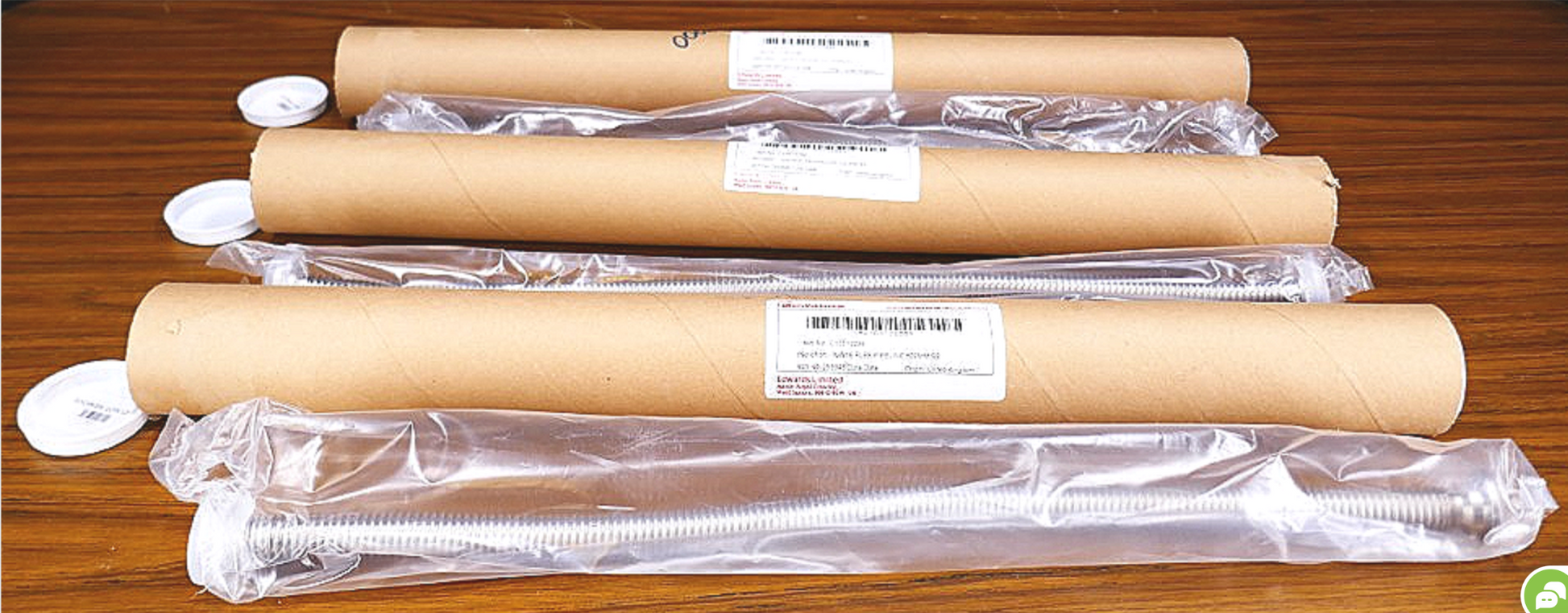

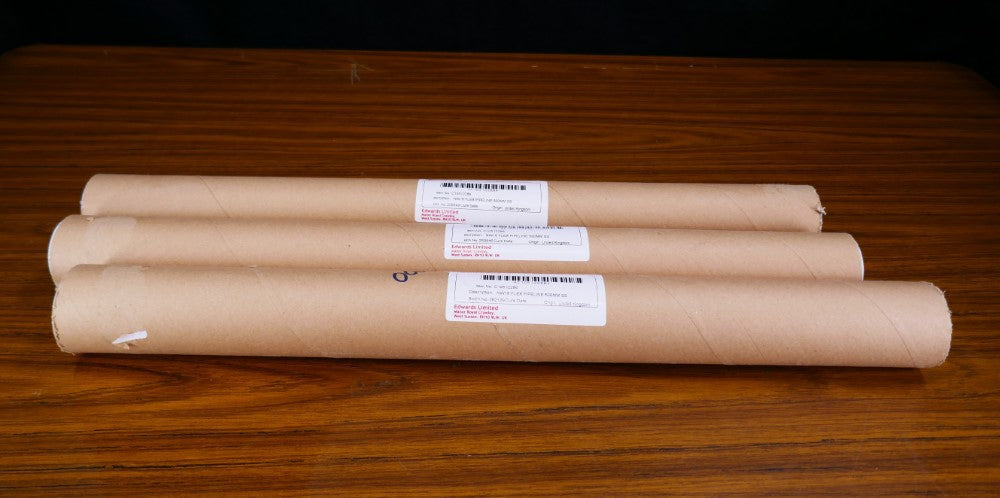

IMPORTANT: WE HAVE THREE OF THESE UNITS AS SHOWN IN THE PICTURES, THIS LISTING IS FOR ONE UNIT BUT IF BUYER NEEDS MORE THAN ONE, PLEASE DO LET US KNOW SO WE CAN OFFER A DISCOUNT ON THE SECOND AND THIRD UNITS!!!

CAME FROM A FEDERAL UNIVERSITY LAB.

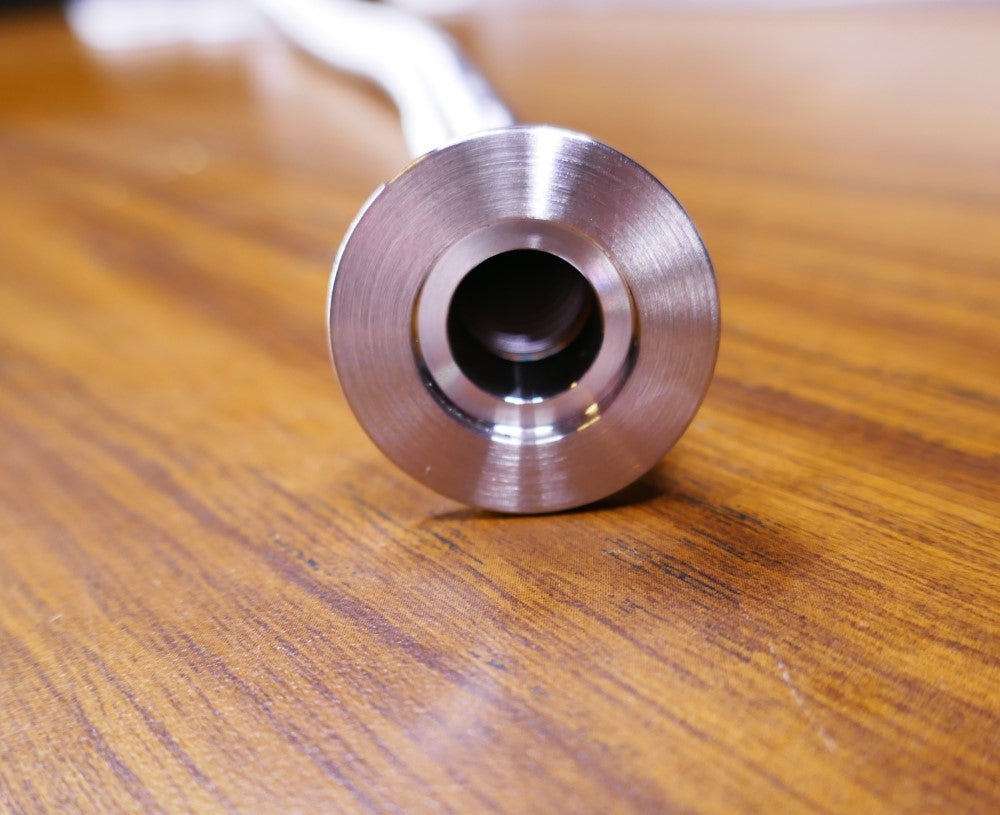

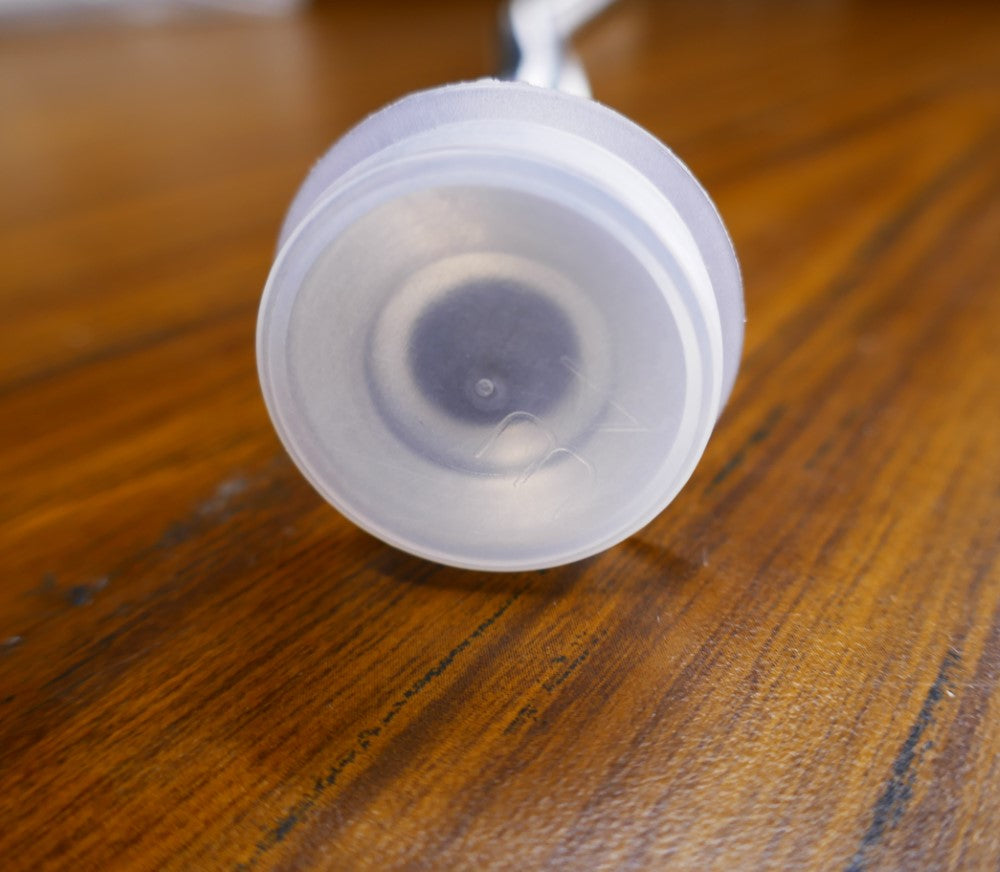

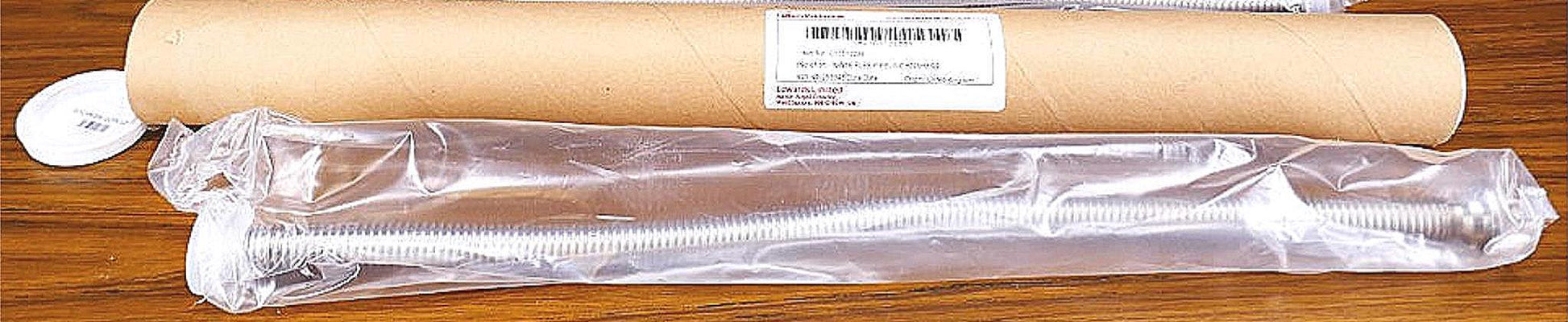

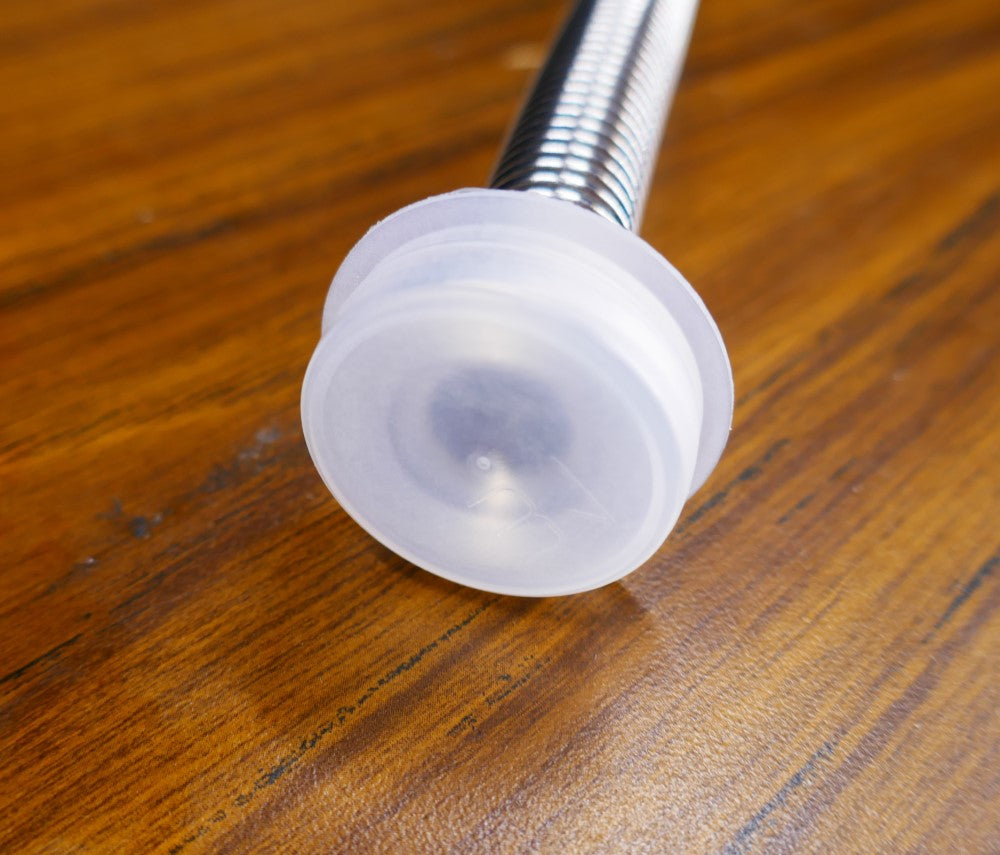

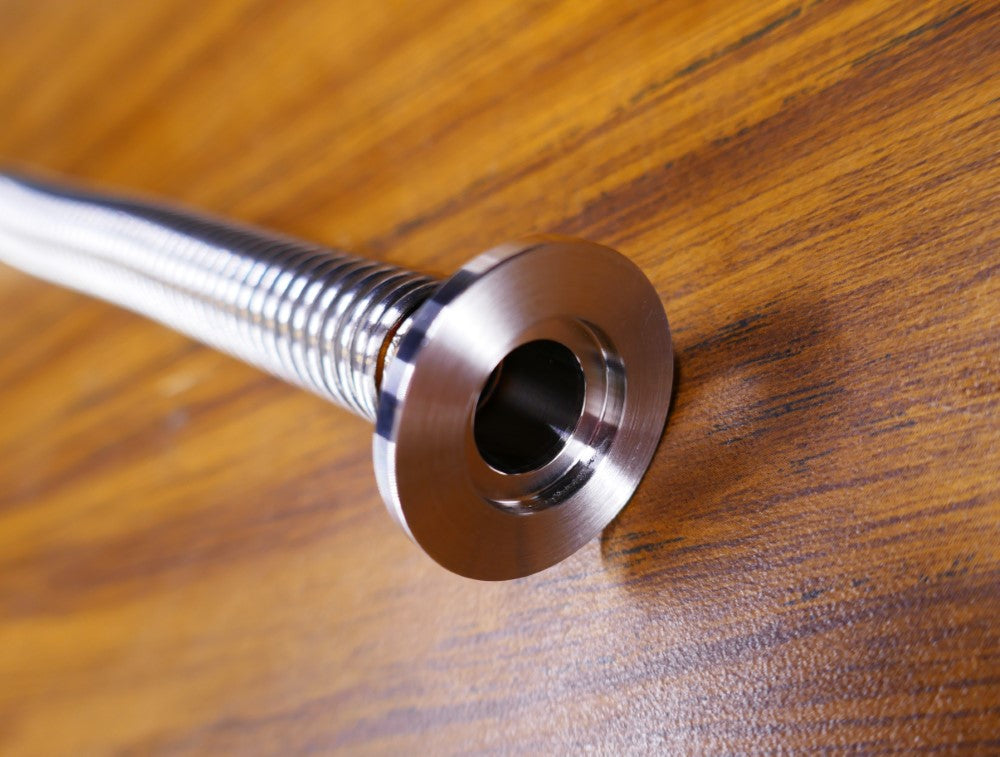

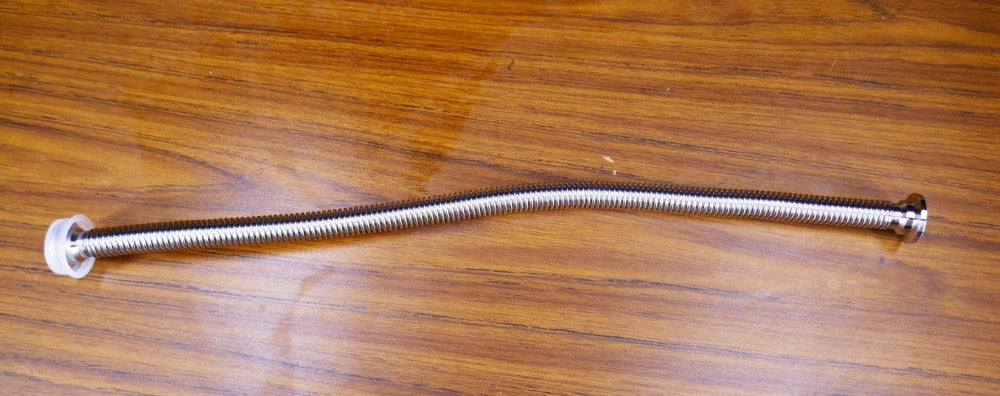

Pictures are of the actual  item.

Equipment Description https://shop.edwardsvacuum.com/products/c10516286/...

NW40 Flexible Pipeline 500mm S/S

C10516286

List Price: USD 238.00Web Price: USD 178.61

Overview

When you buy Edwards flange fittings you can expect the service that only a leading international supplier can offer you.  Whether you are an OEM (needing scheduled deliveries of component kits for series production) or a unique system builder, you can rely on your local supplier to meet all your requirements.

Choose the optimum material to match your application and budget. Aluminum is ideal for achieving dependable cost-effective performance down to 10-7 mbar. Edwards also offers 316L/DIN 1.4404 stainless steel fittings for rugged corrosion resistance in semiconductor processing and excellent repeatability in high vacuum applications. In addition, careful quality control of elastomer specifications ensures critical sealing materials deliver the low outgassing performance your vacuum system performance depends on. Edwards attention to detail on all specifications delivers fit-and-forget dependability for your vacuum equipment.

Features and Benefits

Fast availability from responsive local supply centres

One source shopping

Kitting

Consignment stocks

Total quality

Technical Data

Physical data

Operating pressure range (absolute)

C clamp and centring ring 10-7 mbar - 1 bar

Stainless steel clamping ring and Co-seal 10-7 mbar - 17 bar

Stainless steel clamp and metal seal    10-8 mbar - 3 bar

Stainless steel clamp and Co-seal (all sizes) 10-7 mbar - 17 bar

Polymer and aluminium clamps and Co-seal

   NW10 to NW25 10-7 mbar - 17 bar

   NW40 to NW50 10-7 mbar - 10 bar

NW trapped ‘O’ ring 10-7 mbar - 10 bar

‘O’ ring and centring ring (vacuum use only) 10-7 mbar - 1 bar

Bellows 10-7 mbar - 1 bar

Flexible pipelines 10-7 mbar - 2 bar

Braided flexible pipelines* 10-7 mbar - 10 bar

*  Depends on size

Operating temperature

Polymer Co-seal -10 to 80 ºC

Aluminium Co-seal and nitrile seal -10 to 100 ºC

Aluminium Co-seal and fluoroelastomer seal -10 to 200 ºC

Polymer centring ring and nitrile ‘O’ ring -10 to 100 ºC

Polymer centring ring and fluoroelastomer seal -10 to 125 ºC

Nitrile ‘O’ ring -10 to 100 ºC

Fluoroelastomer ‘O’ ring -10 to 200 ºC

Polymer clamp

    Constant vacuum use -10 to 100 ºC

    Intermittent vacuum use -10 to 125 ºC

Stainless steel clamping ring -10 to 125 ºC

Aluminium clamping ring -10 to 200 ºC

Stainless steel clamp -10 to 200 ºC

Standards compliance

NW and ISO fittings Pneurop 6606 (1981),     ISO1609 (1986) DIN28403, DIN28404

CF fittings ISO3669

Stainless steel equivalents

AISI number German steel number DIN standard

304 1.4301 X5 CrNi 18 10

303 1.4305 X10 CrNi 5 18 9

304L 1.4306 X2 CrNi 19 10

301 1.4310 X12 CrNi 17 7

316 1.4401 X5 CrNiMo 18 10

316L 1.4404 X2 CrNiMo 17 13 2

316Ti 1.4571 X6 CrNiMoTi 17 12 2

321 1.4541 X10 CrNiTi 18 9

Flexible Pipelines – see Dimensional drawing

  A B C D E

Stainless Steel AISI 316L DIN 1.4404

NW10 12.2 250 30 100 2.3

NW16 17.2 250 30 130 1.8

NW25 26.2 250 50 210 1.0

NW40 41.2 250 80 260 0.7

NW50 52.2 250 100 320 0.5

NW10 12.2 500 30 100 2.3

NW16 17.2 500 30 130 1.8

- FREE CONTINENTAL USA SHIPPING!!!!

INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!

Stock # 210110
